Portable Hardness Tester, Sino Age Development Technology (SADT),HARTIP2200 portable hardness tester with wireless probe,เครื่องวัดค่าความแข็ง,
Name : HARTIP2200 portable hardness tester with wireless probe,
Brand : SADT,
Model: HARTIP2200,
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
Portable Hardness Tester, Sino Age Development Technology (SADT),HARTIP2200 portable hardness tester with wireless probe,เครื่องวัดค่าความแข็ง,

Name : HARTIP2200 portable hardness tester with wireless probe,
Brand : SADT,
Model: HARTIP2200,


Durometer with WIRELESS Probe!!!

Introduction:

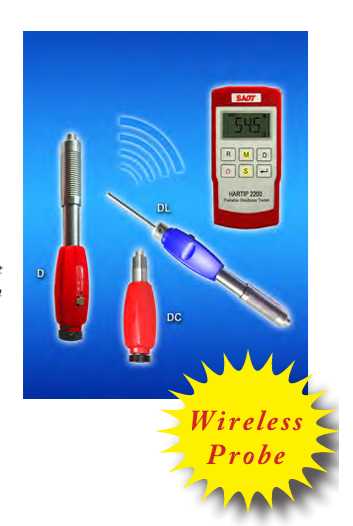

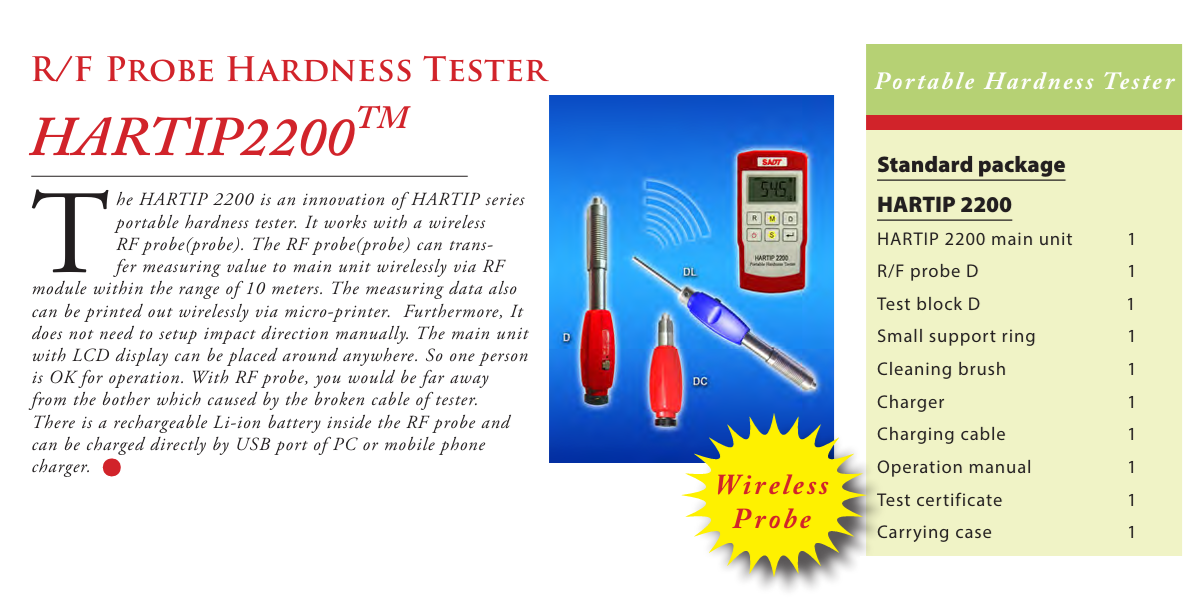

HARTIP 2200 is an innovation of HARTIP series portable hardness tester. It works with a wireless RF probe. The RF probe can transfer measuring value to main unit wirelessly via RF module within the range of 10 meters. There is a rechargeable Li-ion battery inside the RF probe and can be charged directly by USB port of PC. The main unit with LCD display can be placed around anywhere.So one person is OK for operation.
Besides, the main unit with magnetic housing can also be attracted upon to the surface of workpiece to avoid of dropping to damage.

Specification:





SADT HARTIP 2200

Principle

Leeb hardness measurement

Accuracy

±0.3% @ HL=800, Repeatability: ±2HL

Display

Digital LCD with backlight

Hardness scale

HL / HRC / HRB / HB / HV / HS / HRA /σb

Measuring range

HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 / σb(rm)24-6599N/mm2

Probe

r/f wireless probe D / DC / DL / C / D+15

r/f communication distance

10m in space

r/f frequency

2.4GHz

Impact direction

Universal angle (UA) type

Materials

10 common metal materials

Memory

300 data can be stored and re-readable

Statistics

Calculated automatically

Re-calibration

Allowed by user

Indicator

Low battery

Communication interface

Wireless micro-printer

Auto power off

Auto

Power supply

1.5V AA alkaline battery x 2 (main unit) / 3.7V Li-ion rechargeable battery (wireless probe)

Working environment

-10~+40ºC

Dimension (mm)

124x67x30

Net weight (g)

240

Standards

Conforming to ASTM A956, DIN 50156, GB/T 17394-1998



Standard Package :



HARTIP 2200 main unit 1
R/F probe D 1
Test block D 1
Small support ring 1
Cleaning brush 1
Charger 1
Charging cable 1
Operation manual 1
Test certificate 1
Carrying case 1



Optional accessories:

R/F probe DC
R/F probe DL
R/F probe C
R/F probe D+15
Wireless micro printer
Special support rings
Standard big support ring for
probe
Small support ring for probe
Impact body D
Carbide ball tip D
Test block D with certificate
Test block D w/o certificate
