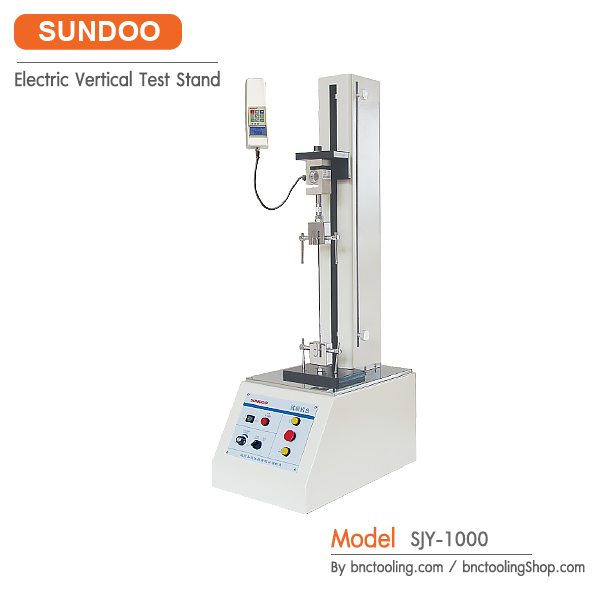

SUNDOO, SJY-1000 Electric Vertical Test Stand, SJY-1000 ,Force Gauge Vertical Test Stand Stroke:520mm

SSJY Series Electric Vertical Test Stand, equipped with push pull force gauge, can be fitted to perform a variety
of force tests, such as tension/compression test, insertion/withdraw test,and destructive test. Good stability,
wide application, convenient usage with stepless speed uniform motion and manual & automatic control switch functions.

● Dimension: LX W X H(mm) 430 X 240 X 570; Stroke: 250mm; Weight: about 24.2kg.

● Testing speed: 50-245mm/min, max load: 200N; 250-500mm/min, max load: 500N.

● Can be configured (purchase additionally): SN, SH/SP(Sensor Inside)push pull force gauge, various clamps.

   SJY-1000

● Dimension: LX WX H(mm) 410X270 970; Stroke: 520mm; Weight: about 31.2kg.

● Testing speed: 50-245mm/min, max load: 500N; 250-500mm/min, max load: 1000N.

● Can be configured (purchase additionally): SN, SH/SP(2N-1KN)push pull force gauge, various clamps
