Guoou,S1PROMAX Film Transmittance Meter,Car Window Film Transmittance Meter, Solar Film Transmission Meter, Light Window Tinting Tester,
Brand : GUOOU,
Model: S1,S1PRO,S1PROMAX (โปรดเลือก),
Name : Solar Film Transmission Meter,
|
Product Name
|
Solar film transmittance meter
|
|
Resolution
|
0.1%
|
|
Accuracy
|
±2%
|
|
Wave band
(different model)
|
Visible light：380nm ~ 780nm All model
Ultraviolet：Peak wavelength 365nm All model
Infrared：Peak wavelength 940nm S1、S1 ProMax
Infrared：Peak wavelength 1400nm S1 Pro、S1 ProMax
Infrared：Full infrared band ( Full IR ) S1 ProMax
|
|
Bluetooth
|
Yes
|
|
Power supply
|
Built-in rechargeable batter
|
|
Test slot
|
wide 15 mm, deep 60mm
|
|
Weight
|
About 175g
|
|
Size
|
161*79*20 mm
|

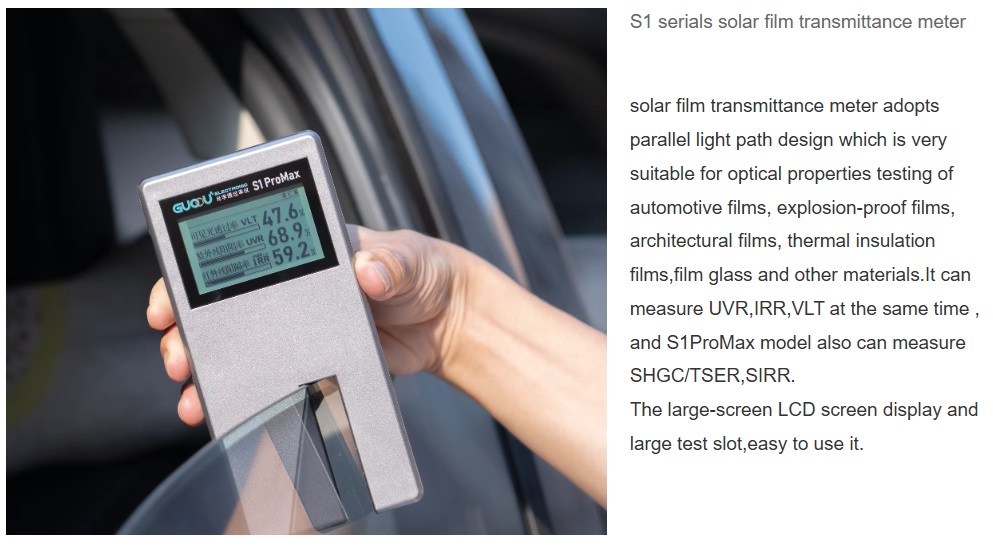

solar film transmittance meter adopts
parallel light path design which is very suitable for optical properties testing of automotive films, explosion-proof films,
architectural films, thermal insulation films,film glass and other materials.It can measure UVR,IRR,VLT at the same time ,
and S1ProMax model also can measure SHGC/TSER,SIRR.
The large-screen LCD screen display and large test slot,easy to use it.
Can measure total solar energy rejection rate (TSER) Optical transmittance meter
GUOOU S1 serials model is both a transmission meter and a portable transmittance meter.
The instrument can test three parameters of
visible light, infrared and ultraviolet.
This solar film transmission meter has three different display modes, which are light
transmittance display, rejection rate display and light transmission display.
GUOOU S1 Transmittance meter
portable transmission meter is a classic three-band solar film tester. Three test holes are used to test the visible light transmittance, UV rejection rate and infrared rejection rate of the material. Simply place the tested material in the test slot then we can read the three test data at the same time. It is mainly suitable for optical properties of various uniform and transparent materials such as solar film, laminated glass and automobile side glass.
GUOOU S1promax
Optical transmittance meter
can measure six parameters,including:UV rejection rate,visible light transmittance, infrared 950nm and infrared 1400nm rejection rates,all infrared rejection rate and SHGC total solar projection ratio.Other instruments can only measure three of these
parameters,so there is a difference in price.Many customers will find it difficult to choose a three-band window tint meter,
because the solar film rejection is different when measuring with different infrared light sources. But if you use this instrument,there is no such confusion,you can choose the middle gear to read the average of the two infrared rejection rates.
