Guoou,Coating thickness gauge, GTS810F ferrous all-in-one coating thickness gauge, 0~1250um GUOOU GTS810F Car Paint Magnetic Chrome Digital Coating Thickness Tester Meter automotive coating Thickness Gauge,เครื่องวัดความหนาเคลือบสี Ferrous metals,

Product Description:

Technical Data：

Measuring Range

0-1500µm (0-1.5mm) or 0-60mil

Resolution

0.1µm (0-99.9 µm) and 1µm (over 100 µm)

Color

Blue ,Black ,Red ,Yellow

Application

non-magnetic coating on magnetic substrate

Accuracy

±(1+2%H)   H: coating thickness

Certification

CE, RoHS

Power supply

2 x 1.5V AA Batteries/USB

Warranty

1 years

Item Name

coating thickness gauge

Minimum Measurement Area

5mm

Minimum Sample Thickness

0.3mm

MOQ

1 Piece

Model Number

GTS810F

Operating Conditions

Temp: -10 - 50ºC and Humidity: < 85%

Weight

97g ( including batteries)

Dimensions

126 x 69 x 35 mm

Features:

Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.

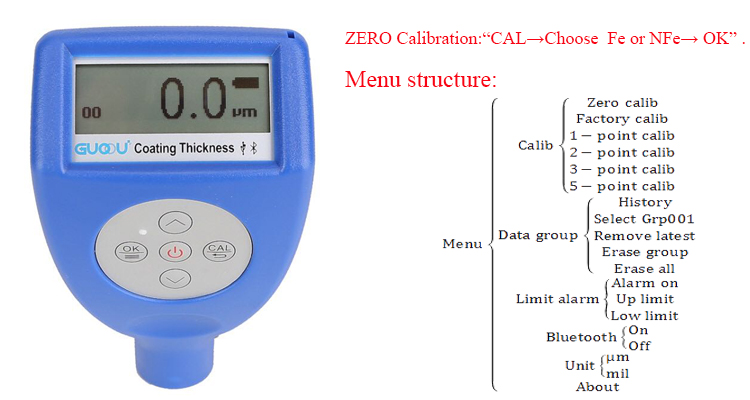

Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.

Power voltage indicator.supply by USB 5V or 2 AA batteries (AA)

Speaker beep while operating.

Power-off automatically when idle; manually power-off available.

Negative display function to ensure the accuracy of zero point calibration.

Ultra-low power consumption, less than 10 μA in standby mode.

Operation method: Graphic menu button operation

Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer

Data transfer: USB, Bluetooth

PC software: Windows PC, Android App , iOS App
