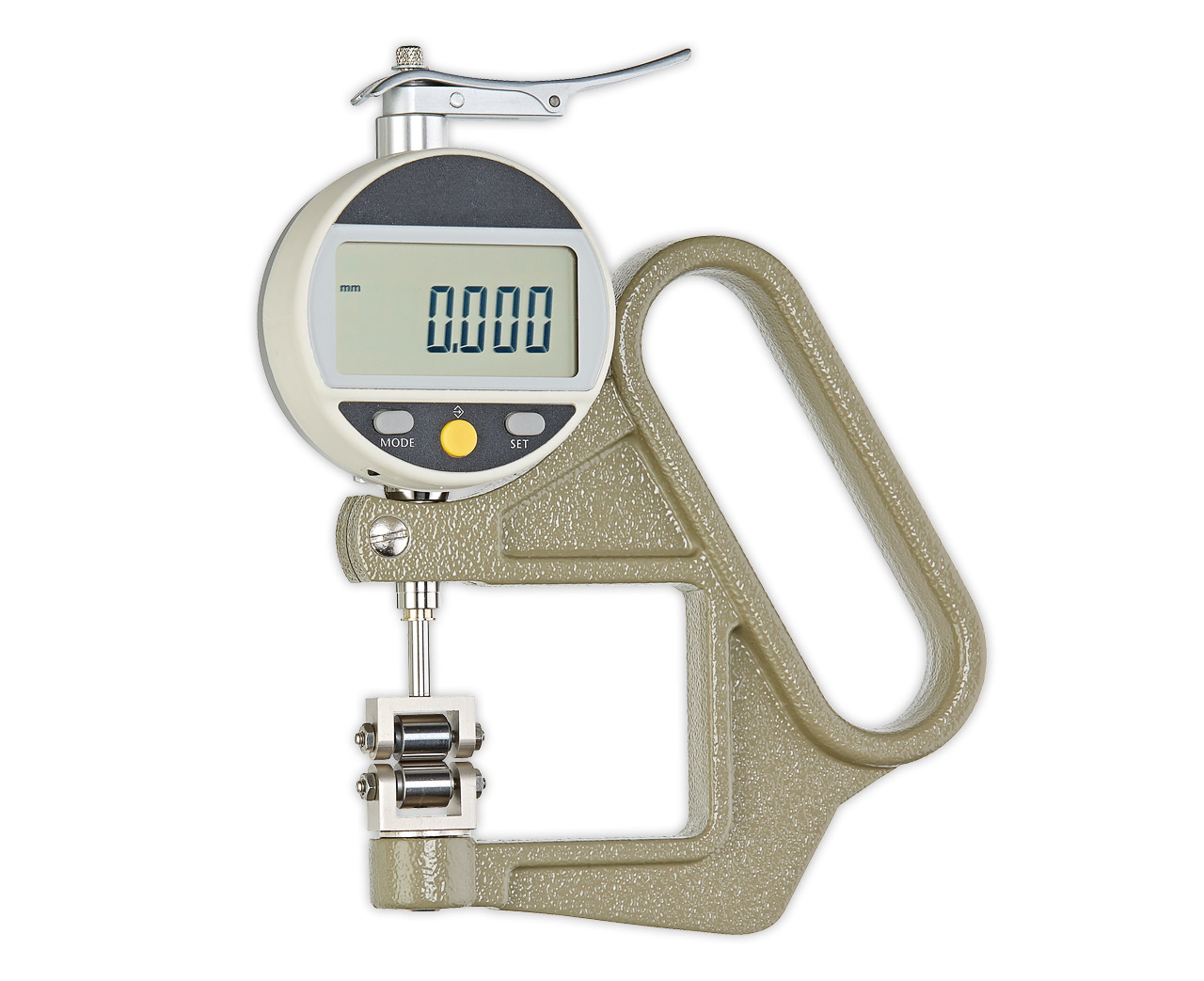

Hans-Schmidt,Thickness Gauge, Thickness Gauges for running Wires-Tapes etc.,Digital Thickness Gauges with Rollers ,Thickness Gauge with Rollers FD-50-R,เครื่องวัดค่าความหนาแบบล้อดิจิตอล,

Model

Measuring Range

Resolution

Depth of Jaw

Flange

Display

FD-50-R

12.5 mm

0.001 mm

50 mm

yes

digital

0.5 inch

0.0001 inch

FD-50-RO

12.5 mm

0.001 mm

50 mm

no

digital

0.5 inch

0.0001 inch

alternative

J-50-R

5 mm

0.01 mm

50 mm

yes

analog

J-50-RO

5 mm

0.01 mm

50 mm

no

analog

J-50-RS

5 mm

0.005 mm

50 mm

yes

analog

J-50-RSO

5 mm

0.005 mm

50 mm

no

analog

F-50-R

5 mm

0.001 mm

50 mm

yes

analog

F-50-RO

5 mm

0.001 mm

50 mm

no

analog

JD-50-R

12.5 mm

0.01 mm

50 mm

yes

digital

0.5 inch

0.001 inch

JD-50-RO

12.5 mm

0.01 mm

50 mm

no

digital

0.5 inch

0.001 inch

JD-100-R

12.5 mm

0.01 mm

100 mm

yes

digital

0.5 inch

0.001 inch

JD-100-RO

12.5 mm

0.01 mm

100 mm

no

digital

0.5 inch

0.001 inch

The lower roller is standard equipped with flanges. If lower roller is requested without flange (material width > 8.4 mm), please use Code O.

Order code e.g. FD-50-RO

Resolution:

0.001 mm / 0.0001 inch

Measuring range:

0 – 12.5 mm / 0.5 inch

Depth of jaw:

50 mm

Measuring principle:

Self closing

Display:

LCD 6 digit, 8.5 mm high

Measuring system:

Capacitive (Sylvac)

Temperature range:

10 – 45 °C

Battery:

3 V Lithium, CR 2032

Data output:

USB, RS-232, galvanic isolation

Weight, net (gross):

Approx. 300 g (350 g)
