Brand Hans-Schmidt,

Name:Thickness Gauges,

Model:Thickness Gauge HSTGA,

Detail

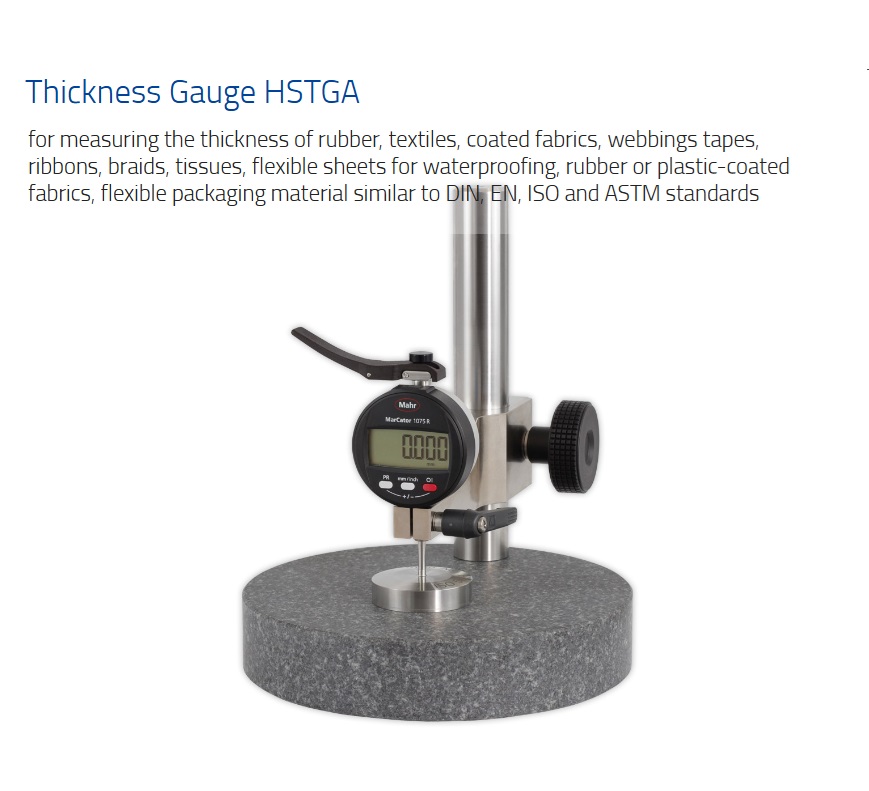

Thickness Gauge HSTGA

Measuring depth: approx. 85 mm

Measuring range: 0 - 12 mm (expandable)

Resolution: 0.001 mm

Display: LCD

Applications: Rubber, textiles, tapes, braids, sheets for waterproofing, tissue, wobenfabrics, blankets, napped fabrics, flexible packaging material, textured and knitted fabrics

Special Features

Thickness gauge HSTGA with granit measuring bench (Ø 200 mm x 40 mm) in laboratory quality

Stainless steel pillar guide

Sturdy extention arm

Rugged construction

Thickness gauge HSTGA are working similar to international standards.

Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument

The standard measuring range is 0 – 12 mm; By using a gauge block, as well as the preset-function, the measruing range can be changed (e. g. 10 mm gauge block for measuring material thickness from 10 to 22 mm)

The resolution is 0.001 mm

Depending on the model, the feeler is moved upwards with a cable lifting device or a lifting device

Thickness gauge HSTGA is equipped with an USB interface

Measuring depth 85 mm (centre of the stamp)

Standard Features

Thickness gauge HSTGA with LCD display – switchable measuring units mm / inch

The instrument is easy to use

Calibration report and DAkkS inspection certificate optional
