Brand Hans-Schmidt,

Name:Thickness Gauges for Textiles

Model:Thickness Gauge D-2006,

Detail

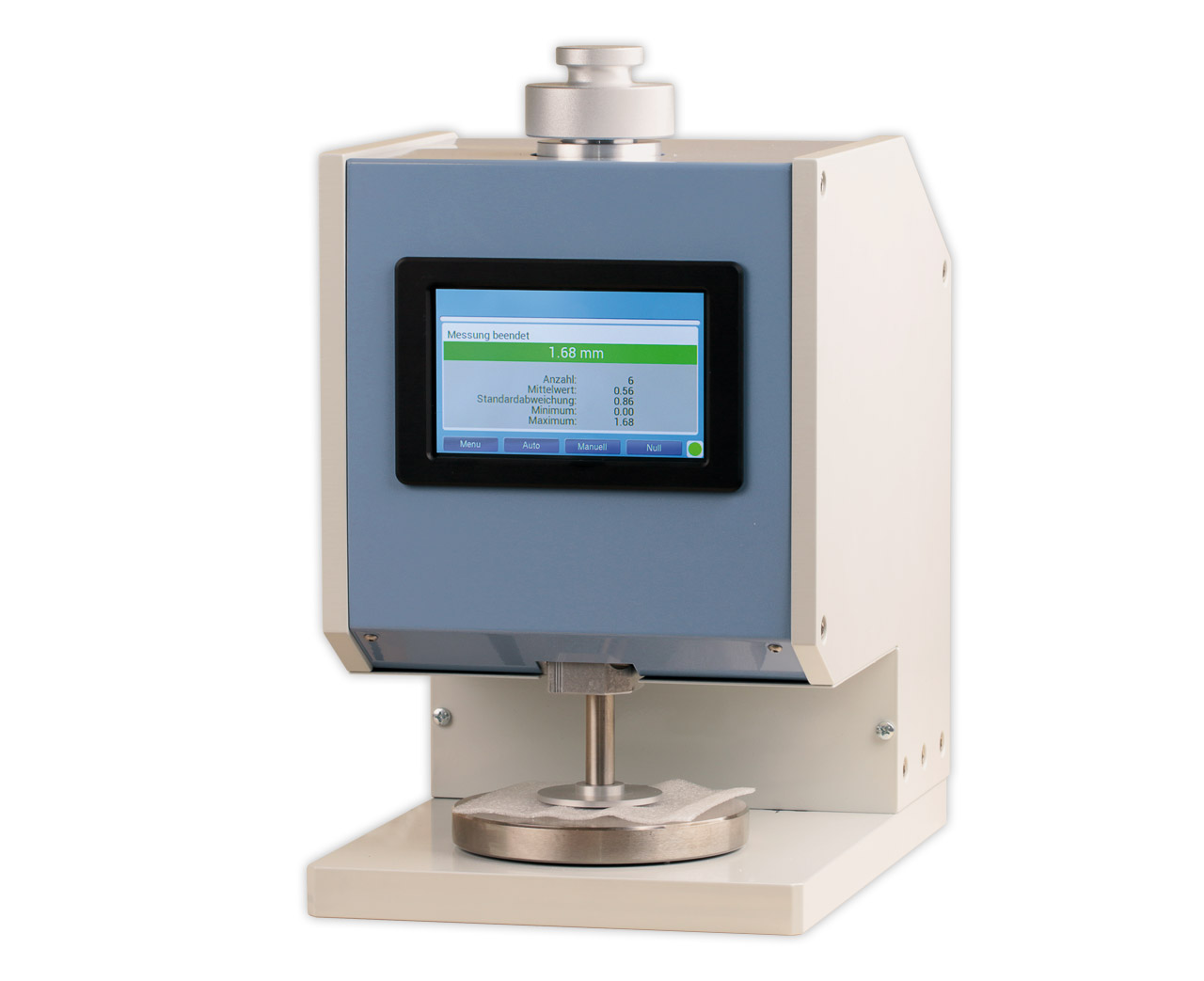

Thickness Gauge D-2006

Measuring depth: 110 mm

Measuring range: 0 - 10 mm, 0 - 25 mm or 0 - 50 mm

Resolution: 0.01 mm or 0.001 mm

Display: graphic display.

Measuring range: 0 - 10, 25 or 50 mm

Resolution: 0.01 mm or 0.001 mm

Thickness Gauge to determine the material thickness of all kinds of fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc.

Thickness gauge according to international standards DIN, EN , ISO and ASTM

Special Features

The thickness gauge D-2006 are mainly designed for laboratory use; They are working according international DIN, EN, ISO and ASTM standards

Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument

Thickness gauge D-2006 is equipped with graphic display for readings and statistics

Touch screen for adjusting e. g.:

– Number of measurings 1 – 250

– Measuring range 0 – 10 mm

– Measuring time 1 – 60 sec.

– Measuring units mm or inch

The motorized feeler will be moved, by using a key at the touch screen or by pressing the foot pedal (V = 2.5 sec)

Statistical analysis of series of measurement (Number of measurings, average value, min, max, standard deviation)

Interface:

– USB for data transmission

– RS-232 for printer

The standard measuring range is 0 – 10 mm; 25 and 50 mm are optional available

The standard resolution is 0.01 mm; as option 0.001 is available

Standard Features

Robust, bend-resistant device construction, encapsulated against external influences, e.g. shock; this ensures maximum measurement and repeatability

Thickness gauge D-2006 with selectable measuring units mm / inch

The display language can be changed between German and English

Easy to use

Calibration report for free, DAkkS inspection certificate optional

Specifications
