Hans-Schmidt,Thickness Gauges for Textiles, Paper, Leather according to DIN, EN, ISO and ASTM Standards, Thickness Gauge D-2005,

Hans-Schmidt,Thickness Gauges for Textiles, Paper, Leather according to DIN, EN, ISO and ASTM Standards, Thickness Gauge D-2005,

Brand Hans-Schmidt,

Name:Thickness Gauges for Textiles

Model:Thickness Gauge D-2005,

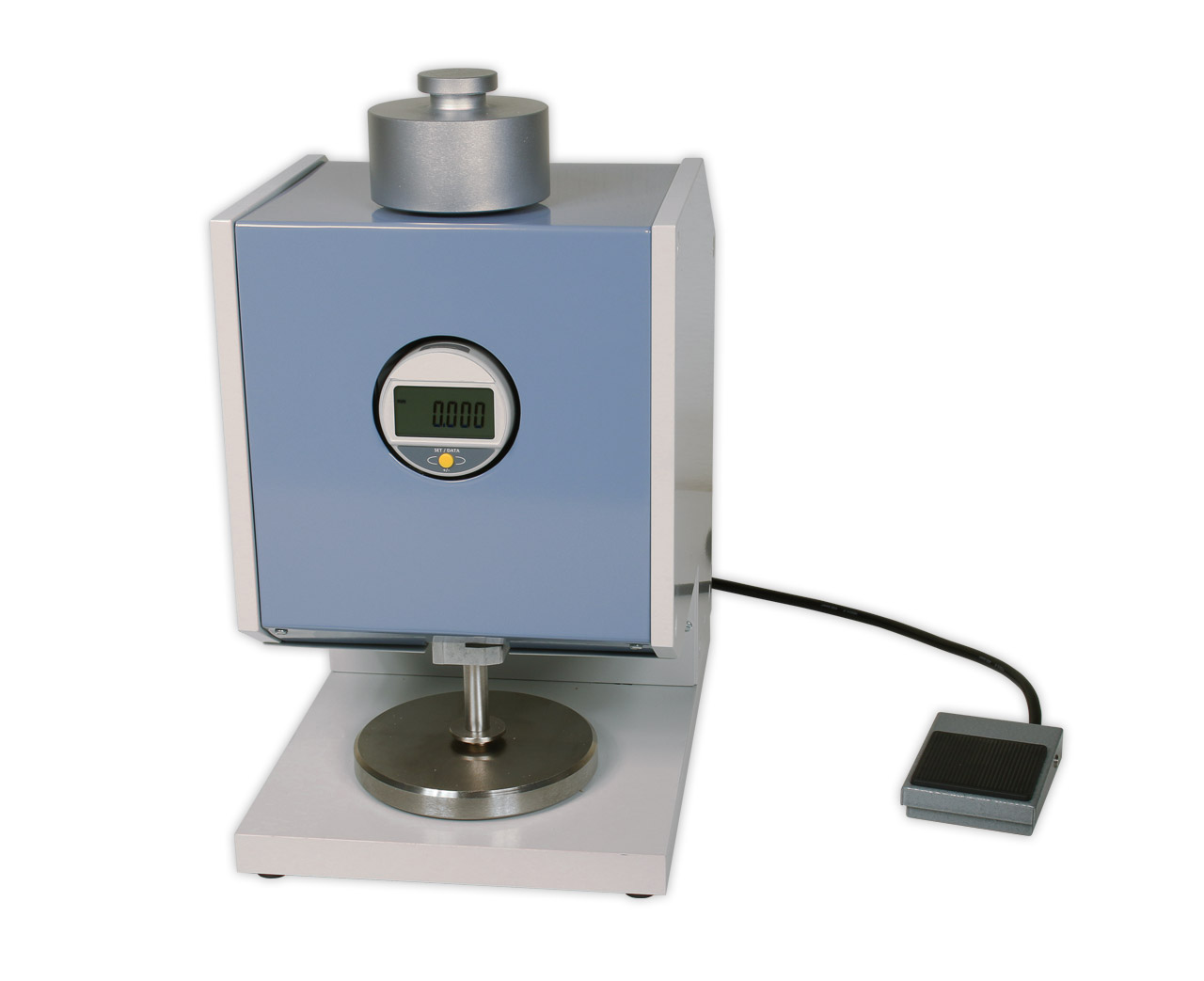

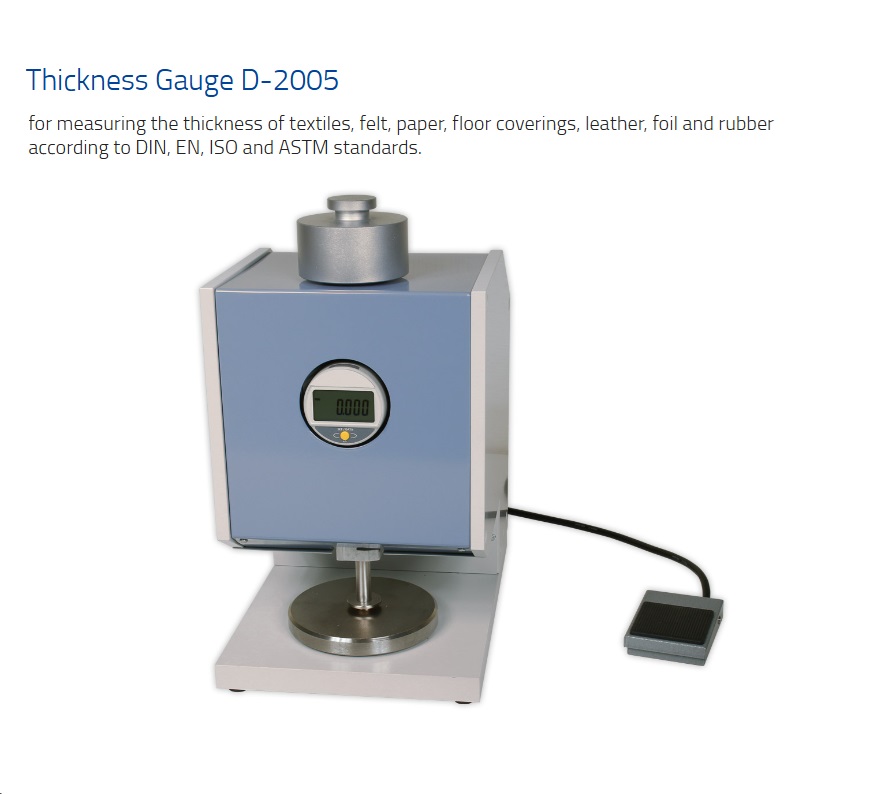

Thickness Gauge D-2005

Measuring depth: 110 mm

Measuring range: 0 - 10 mm,0 - 25 mm or 0 - 50 mm

Resolution: 0.01 or 0.001 mm

Display: LCD

Measuring range up to 10, 25 or 50 mm

Resolution 0.01 / 0.001 mm

Thickness Gauge to determine the material thickness of all kinds of fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc.

Thickness according to international standards DIN, EN ISO or ASTM

Special Features

Thickness gauge D-2005 is working according international DIN, EN, ISO and ASTM standards. They measure with highest accuracy.

The instruments are mainly designed for laboratory use

Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument

The standard measuring range is 0 – 10 mm; 25 and 50 mm are optional available

The resolution is 0.01 mm; as option 0.001 is available

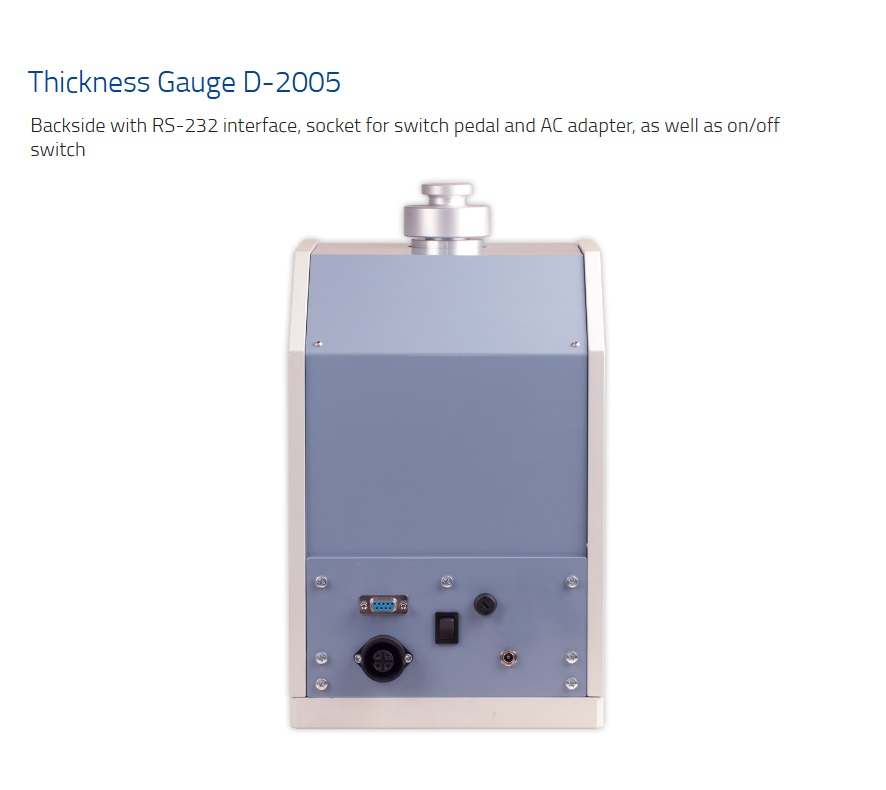

Thickness gauge D-2005 with USB interface (Sub-D9 socket) and Sub-D9/USB adapter cable for data transfer and power supply for the dial gauge

The motorized feeler will be moved down by using a  pedal switch (V= 2.5 mm/sec)

Robust, bend-resistant device construction, encapsulated against external influences, e.g. shock; this ensures maximum measurement and repeatability

Standard Features

Thickness gauge D-2000 with LCD display – switchable measuring units mm / inch

The dial gauge is powered using the Sub-D9/USB adapter cable via PC or with plugged on USB AC adapter to a power supply.

Power supply of the motor by AC adapter.

The instrument is easy to use

Calibration report for free, DAkkS inspection certificate optional
