Hans-Schmidt,Shore Durometer,HPS-R Series,Shore Durometer HPSA-R-M,Durometer,เครื่องวัดค่าความแข็งยาง

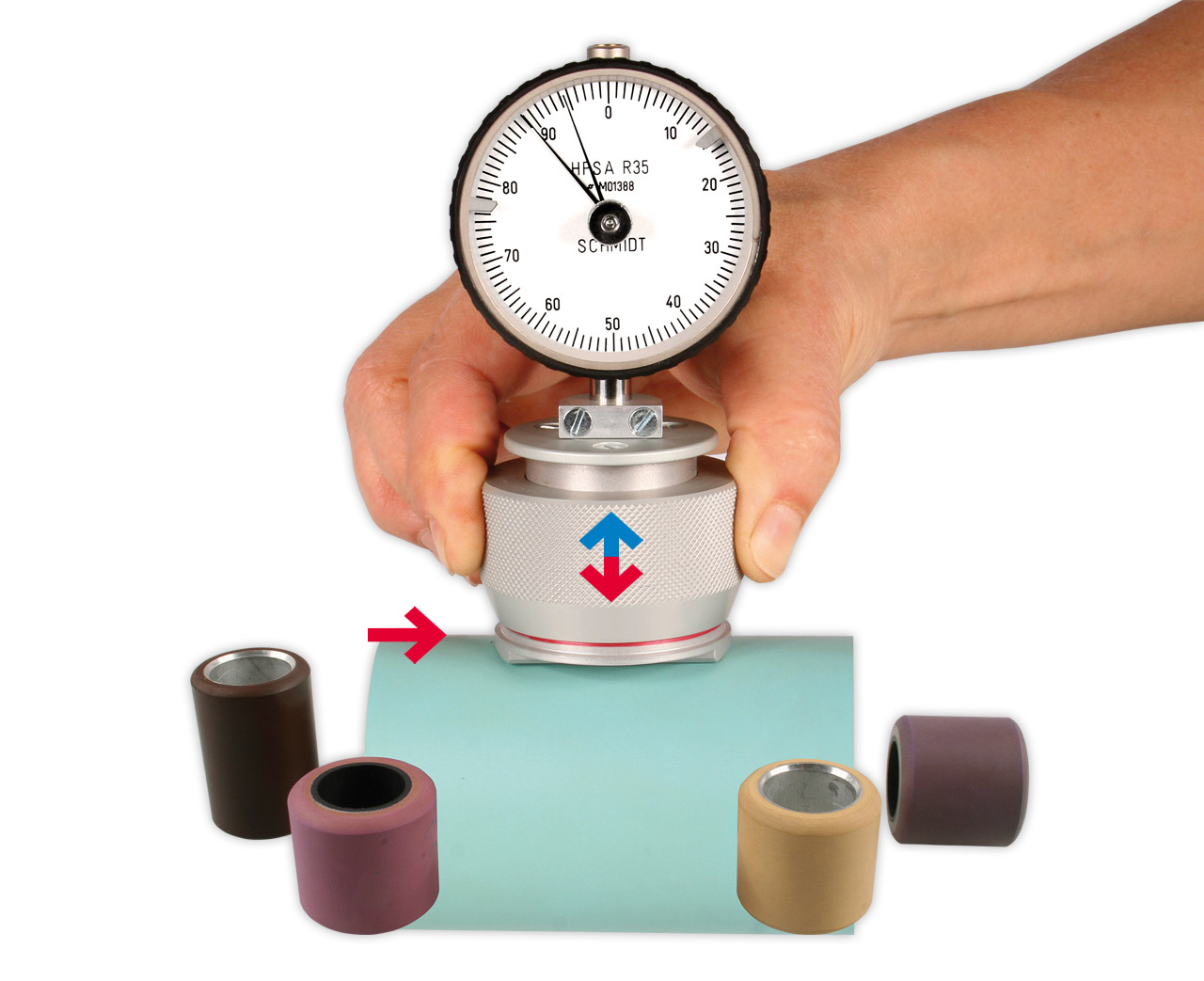

Shore Durometer HPSA-R-M

Shore A:

For roller, cots and aprons

Following DIN 53505, ISO 48-4, ISO 868, ASTM D 2240

Durometer according to Shore for determining the indentation hardness of cots, pressure rollers, aprons and many other rubber coated rollers, etc. with max. diameter 200 mm.

In dependence to Shore A according DIN 53505, ISO 48-4, ISO 868, ASTM 2240

Durometer with curved working face for accurate measuring

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators

Working face slightly curved to fit on rollers

Adjustable min./max. indicator marks to highlight working range of the durometer HPSA-R

Shore hardenss tester with memory pointer to capture and store the last or highest reading during measuring

For diameters > 110 mm the standard model HPSA can be used

Optionally available: Calibration certificate with calibration report

Standard Features

High repeatability

Easy to use

Durometer with an application range of 10 – 90 Shore A units

Certificate of Compliance with the order 2.1 according EN 10204 is included

เลือก Model ตามขนาด Roller
