Hans-Schmidt,เครื่องวัดความแข็งยาง, HPS Series, Shore Durometer HPSDO,According ASTM D 2240

Hans-Schmidt,เครื่องวัดความแข็งยาง, HPS Series, Shore Durometer HPSDO,According ASTM D 2240

Brand : Hans-Schmidt,

Model: HPSDO,

Name : HPSDO,Shore DO ,

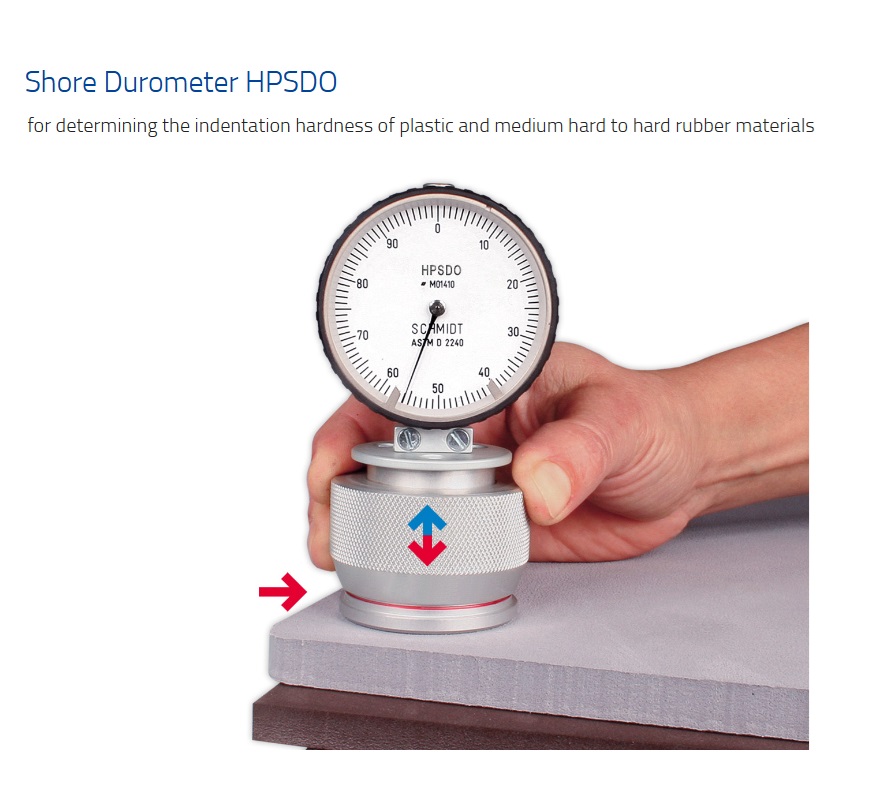

Shore Durometer HPSDO,

Shore DO For plastic and medium hard to hard rubber materials,

According ASTM D 2240,

Durometer according to Shore for determining the indentation hardness of plastic and medium hard to hard rubber materials

Shore DO hardness tester according ASTM D 2240

Durometer with large seating for accurate measuring.

Special Features

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators.

Flat bottom prevent tilting and improves the measuring accuracy.

Shore hardness tester with 18 mm Working face diameter

Adjustable Min./Max. indicator marks to highlight the working range of the durometer HPSDO

Optionally available: Calibration certificate with calibration report.

Standard Features

Easy to use

High repeatability

Durometer with an application range of 20 – 90 Shore DO units

Certificate of Compliance with the order 2.1 according EN 10204 is included
