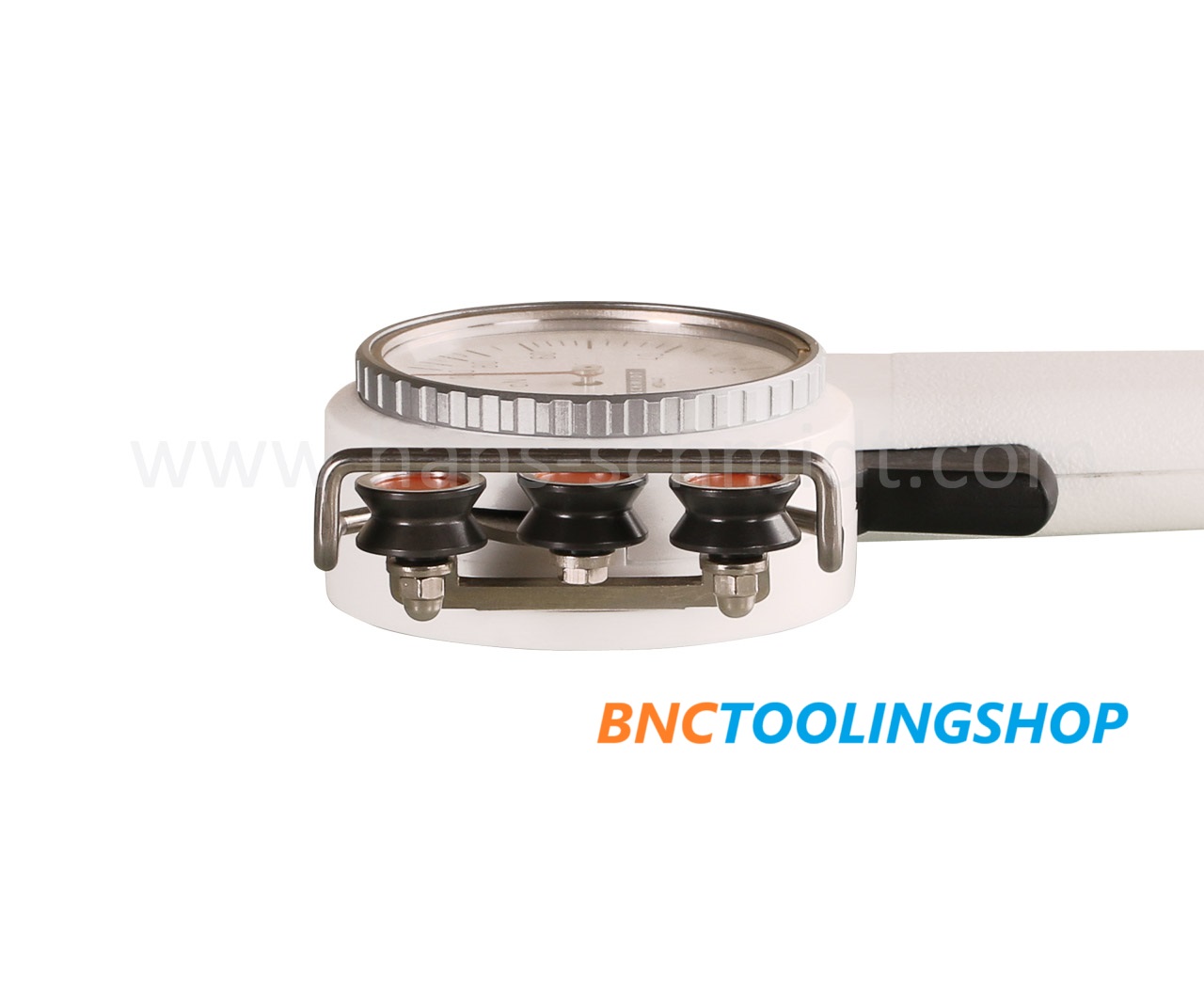

SCHMIDT,Hand-Held Mechanical Tension Meter, Z Series, Tension Meter ZD2,

Model

Tension Range

Measuring Head Width*

SCHMIDT Calibration Material**

ZD2-30

3 – 30 cN

63 mm

PA: 0.12 mm Ø

ZD2-50

5 – 50 cN

63 mm

PA: 0.12 mm Ø

ZD2-100

10 – 100 cN

63 mm

PA: 0.12 mm Ø

ZD2-150

20 – 150 cN

63 mm

PA: 0.12 mm Ø

ZD2-200

20 – 200 cN

63 mm

PA: 0.12 mm Ø

ZD2-300

20 – 300 cN

63 mm

PA: 0.20 mm Ø

·       Calibration:

According to SCHMIDT factory procedure

Accuracy:

±1 % full scale or ±1 graduation on scale

Scale diameter:

54 mm

Temperature range:

10 – 45 ºC

Air humidity:

85 % RH, max.

Housing material:

Plastic (POM)

Dimensions:

See dimensions

Weight, net (gross):

Approx. 220 g (620 g)
