Film Applicator, Single Side Bar Coater Film Applicator, coating drawdown bar Standard ASTM paint ink draw down tool High quality,

Film Applicator, Single Side Bar Coater Film Applicator, coating drawdown bar Standard ASTM paint ink draw down tool High quality,



Brand : lianer

Model Number : 201

Effective Wire-Wounding Length : 100mm

Part : โปรดเลือก 25µm  -  100µm





  For numerous products such as paint, ink, varnishes, glue and cosmetics, the reliability of many laboratory tests is directly related to the quality of the samples prepared from it.

  It is absolutely essential that any measurements made on such coatings, whether for the purpose of describing their appearance or their physical properties (color, gloss, hiding power, drying time, etc.),are made on the basis of uniform and comparable samples with precisely controlled thickness.

  In order to meet such specific demands, we has a wide range of high quality, high precision film applicators and motorised film applicators for greater repeatability and reproducibility when undertaking a large number of sample tests.

  Stainless steel and anodized aluminum are the preferred materials of construction, due to their resistance to corrosion.

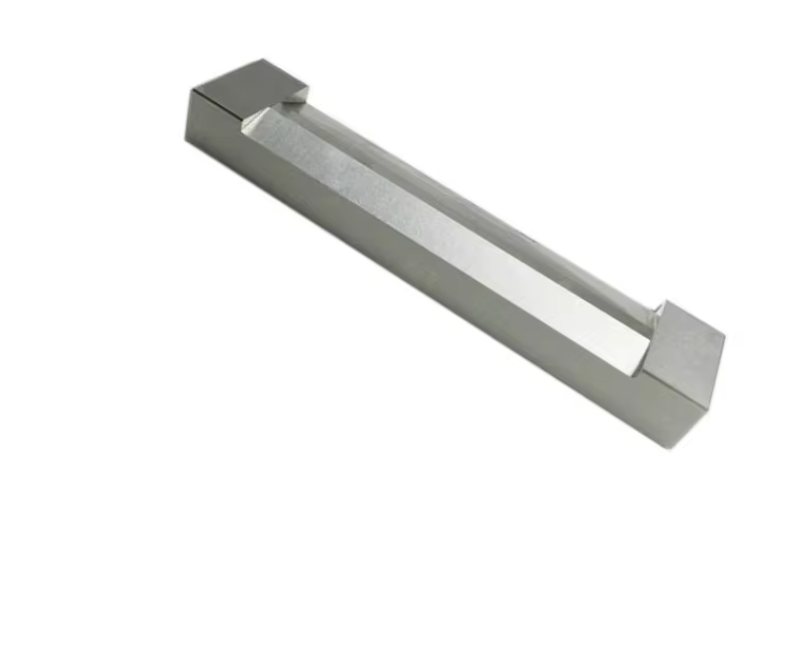

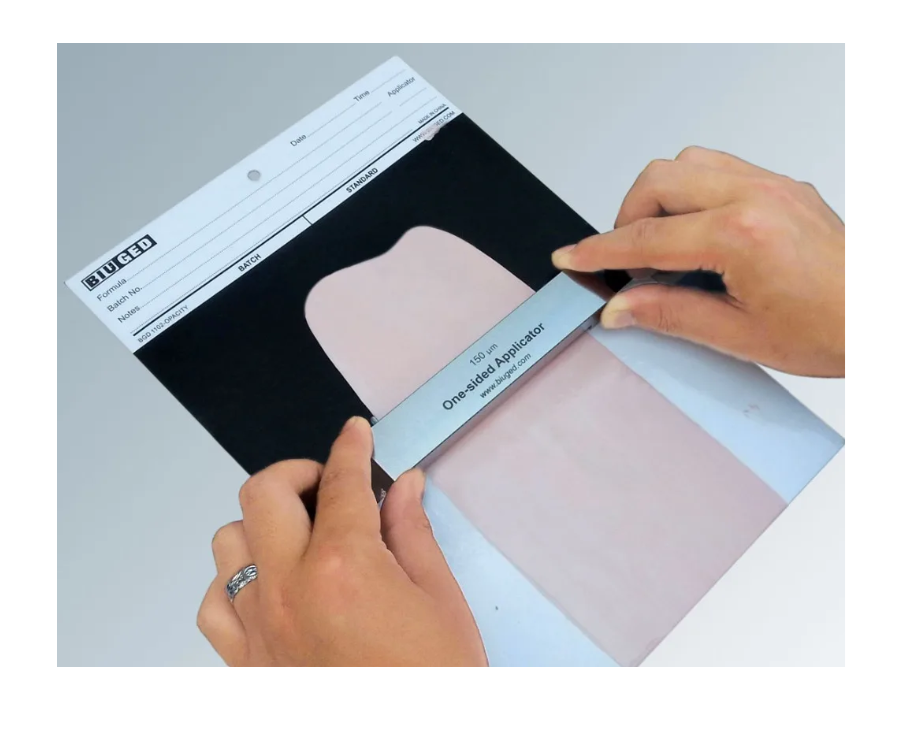

  The Bar-Type One-Sided Applicator is made using modern technology of metallurgy with a precision grinding machine. The accuracy of the Gap Depth is ±1.0µm（50µm and below）and or 2% of Full Scale. It is designed with ASTM D 823-25 and ASTM D 3022.

It is made of high-grade, corrosion-resistant stainless steel 440C.





Deatil (โปรดเลือก No.)



Main Technical Parameters



■ Effective Wet Film Width ：100mm

■ The total length：128mm

■ Ordering Information



(buyer must choose the needed coating thickness from the below options!)



BGD 201/1： 25µm         BGD 201/2： 37.5µm

BGD 201/3： 50µm         BGD 201/4： 75µm

BGD 201/5： 100µm        BGD 201/6：125µm

BGD 201/7： 150µm        BGD 201/8： 200µm

BGD 201/9： 250µm        BGD 201/10： 300µm

BGD 201/11：350µm        BGD 201/12：400µm

BGD 201/14：500µm        BGD 201/15：600µm
