ไฮไลท์
เครื่องวัดเฉดสี,Landtek, Color Meter CM-200S , Digital Colorimeter CM-200S,
Brand : Landtek
Model: CM-200S
Name : เครื่องวัดเฉดสี ,Digital Colorimeter CM-200S,
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

Features

The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.
* Color difference displayed ∆(L*, a*, b*), ∆(E*ab, C*ab, H*ab), ∆(Y, x, y), ∆(X, Y, Z), ∆(Rs, Gs, Bs) or ∆(WI, YI, Tw).
* Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
* Statistical function (Maximum, Minimum, Average and Standard Deviation).
* Color difference tolerance set to perform PASS / WARN / FAIL.
* Store 9 color-difference target colors.
* User calibration function ensures higher accuracy.
* Auto memory (99 sets) & Read function.
* Digital backlight display.
* Auto power off function.
* Applies USB, Bluetooth data output.
* Use USB data output to connect with PC.

Display
Triple 4 digit LCD Display
Auto power off
Approx. 3 minutes
Data memory capacity
99 set. (Direct reading from LCD display)
Low battery indication
Illuminating/Viewing geometry
45°/0°: Illumination at 45°, measurement at 0°
Measuring area
Color difference: ∆(L*,a*,b*), ∆(E*ab,C*ab,H*ab), ∆(Y,x,y), ∆(X,Y,Z), ∆(Rs,Gs,Bs) or ∆(WI,YI,Tw)
Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
Target color memory
9 channel; set by measurement or keypad
Measuring range
L*: 5 to 100
Measurement conditions
Observe: CIE 2° Standard Observer
Illuminant
White LED lamp
Repeatability
Standard deviation within ∆E*ab 0.5 (Measurement conditions: Average of measurements of standard white plate)
Minimum interval  between measurements
Approx. 2 seconds
Operating temperature and humidity
0~40°C(32~104°F), < 85%RH.
Storage temperature and humidity
-10~40°C(14~104°F), < 70%RH.
Power source
4x1.5 AAA (UM-4) Battery
Dimensions
140x73x35mm (5.5x2.9x1.4inches)
Weight(Not Including Batteries)
Approx. 220g with battery

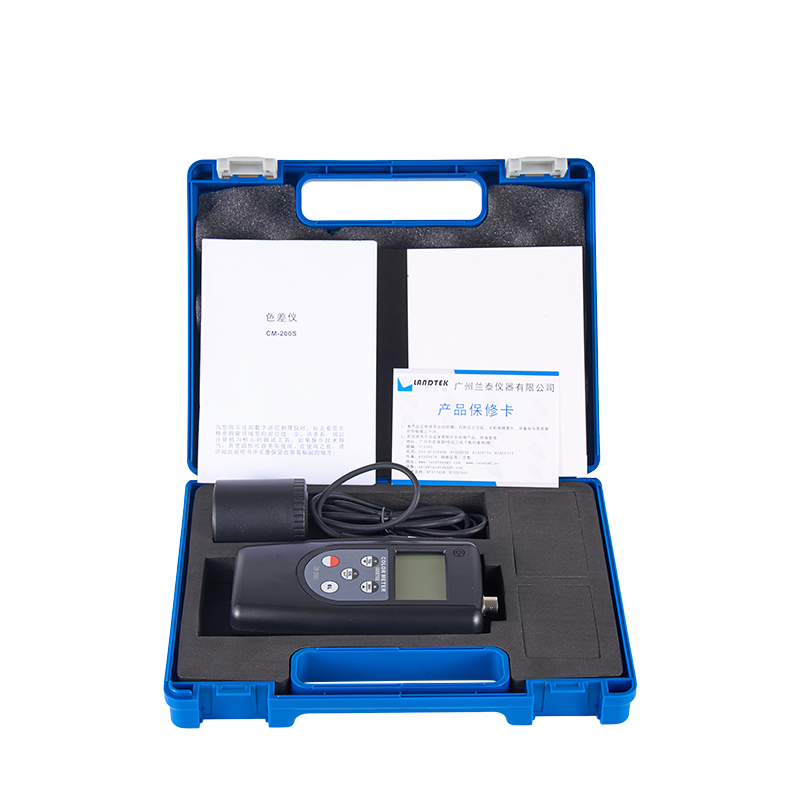

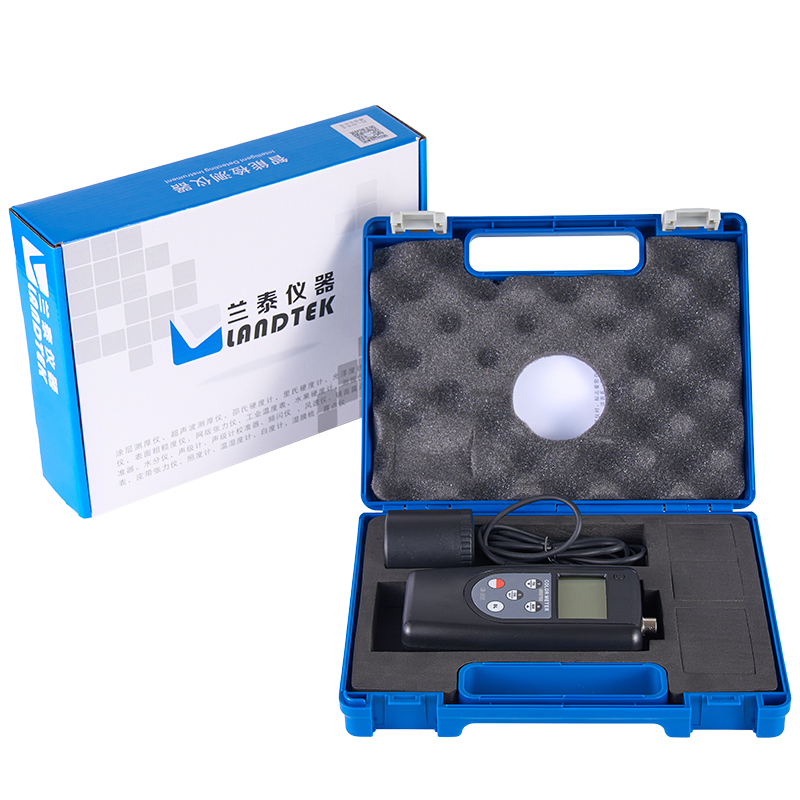

Standard Accessories
Main Unit
Measuring head
White calibration card
Carrying Case (B04)
Manual
Optional Accessories
USB Data Cable with Software
