Linshang,LS127C UV Light Meter ,Uv Meter Digital Uvc Light Radiometer LS127C 254nm Germicidal Lamp APP Function PC Software High Precision Professiona,

Description

LS127C UV light meter is professionally used to measure the intensity of UVC germicidal lamp, adopting integrated design, easy to operate. LS127C has the Bluetooth communication function, after connecting with the cell phone APP, it can be used to monitor the intensity of germicidal lamp irradiation in real time of remote distance, which can make the testers stay away from UV radiation injury. Equipped with a 1 meter test hook, the instrument can be placed on the hook base, the hook hangs directly below the vertical of the lamp for measurement.

Specifications

1. Spectral response: 230nm-280nm, λp = 254nm

2. Power measuring range: 0 - 20000μW/cm2

3. Power resolution: 0.1μW/cm2

4. Energy measuring range: 0 – 9999999 μJ/cm2

5. Relative indication error: ±8%(relative to NIM standard)

6. Long wave response error: 60%

7. Cosine characteristics (directional response) error: 10%

8. Linearity error: ±1%

9. Short-term instability: ±1%( 30min after startup)

10. Fatigue characteristics: Attenuation 2%

11. Error of zero:±0.1% of full scale

12. Response time : 0.5 seconds

13. Recording time: 0 - 99999S

14. Unit: μW/cm2 (default), mW/cm2, W/m2

15. Bluetooth transmission distance: 50 meters (open area)

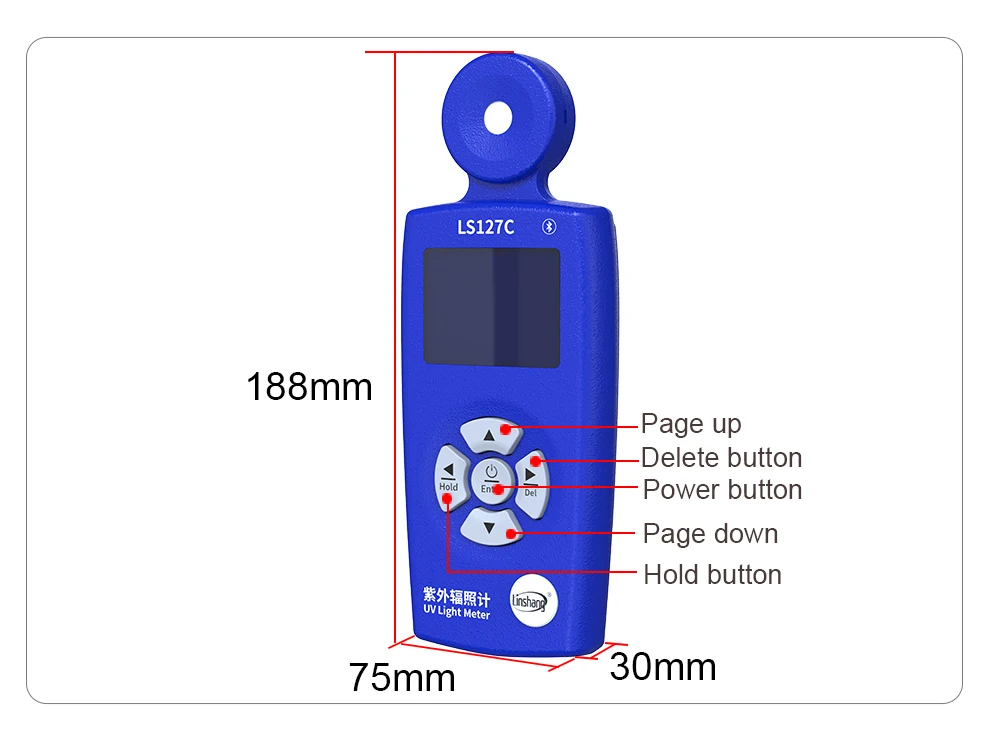

16. Instrument size: 188.5mm*75.2mm*30.3mm

17. Instrument weight: About 232 grams (including batteries)

18. Display: 240*160 dot matrix LCD

19. Battery: 2 AA alkaline dry batteries

20. Operating Temperature: 0° to 40°C, 85% RH

Features

1. Professionally used for 254nm germicidal lamp ultraviolet radiation intensity detection.

2. Cell phone APP real-time monitoring, away from UV radiation damage.

3. Auto shutdown can be set within 1-255 minutes, test data will be saved automatically when shutdown.

4. It adopts high-precision UVC filters and professional UV sensors to eliminate the influence of UVA and UVB.

5. It counts real-time power, maximum, minimum, average, energy values and measurement times.

6. Provide a 1 meter test hook, it can be placed on hook base, the hook hangs below the vertical lamp for measurement.

7. Equipped with PC software to support data export and measurement report printing.

Versatile applications

It is widely used in hospitals, disease control centers, pharmaceutical factories, food and drug administration, environmental monitoring stations, etc.

Bluetooth function

Cell phone APP real-time monitoring at a certain distance, away from UV radiation damage.

Automatic shutdown can be set

Auto shutdown can be set within 1-255 minutes, test data will be saved automatically when shutdown.

Intelligent statistical measurement data

It counts real-time power, maximum value, minimum value, average value, energy value and measurement times.

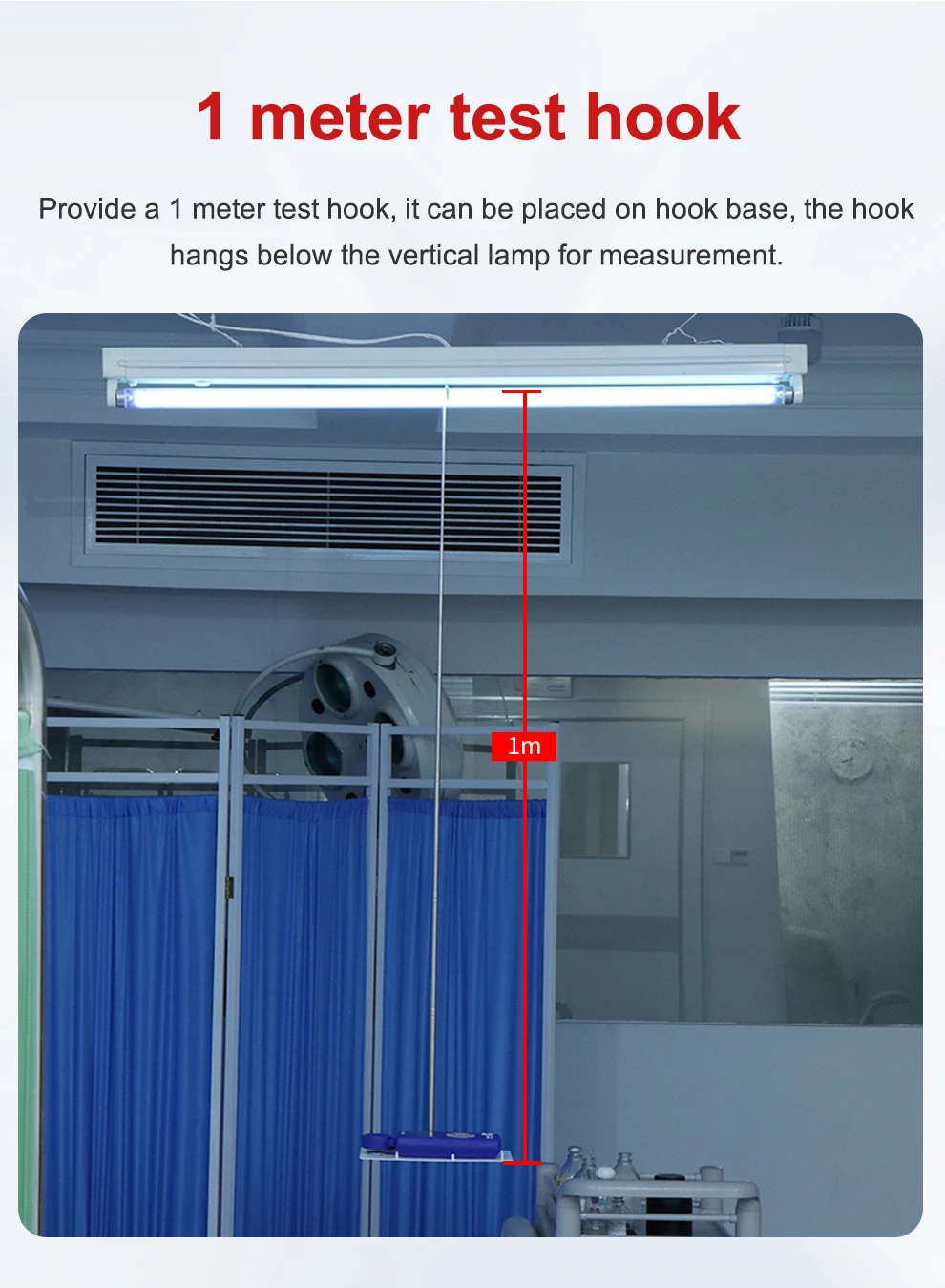

Provide a 1 meter test hook

Provide a 1 meter test hook, it can be placed on hook base, the hook hangs below the vertical lamp for measurement.

Advanced digital probe

Using advanced digital probe technology, the probe cannot be easily interfered with and provides excellent test accuracy.

PC software support

quipped with PC software to support data export and measurement report printing.

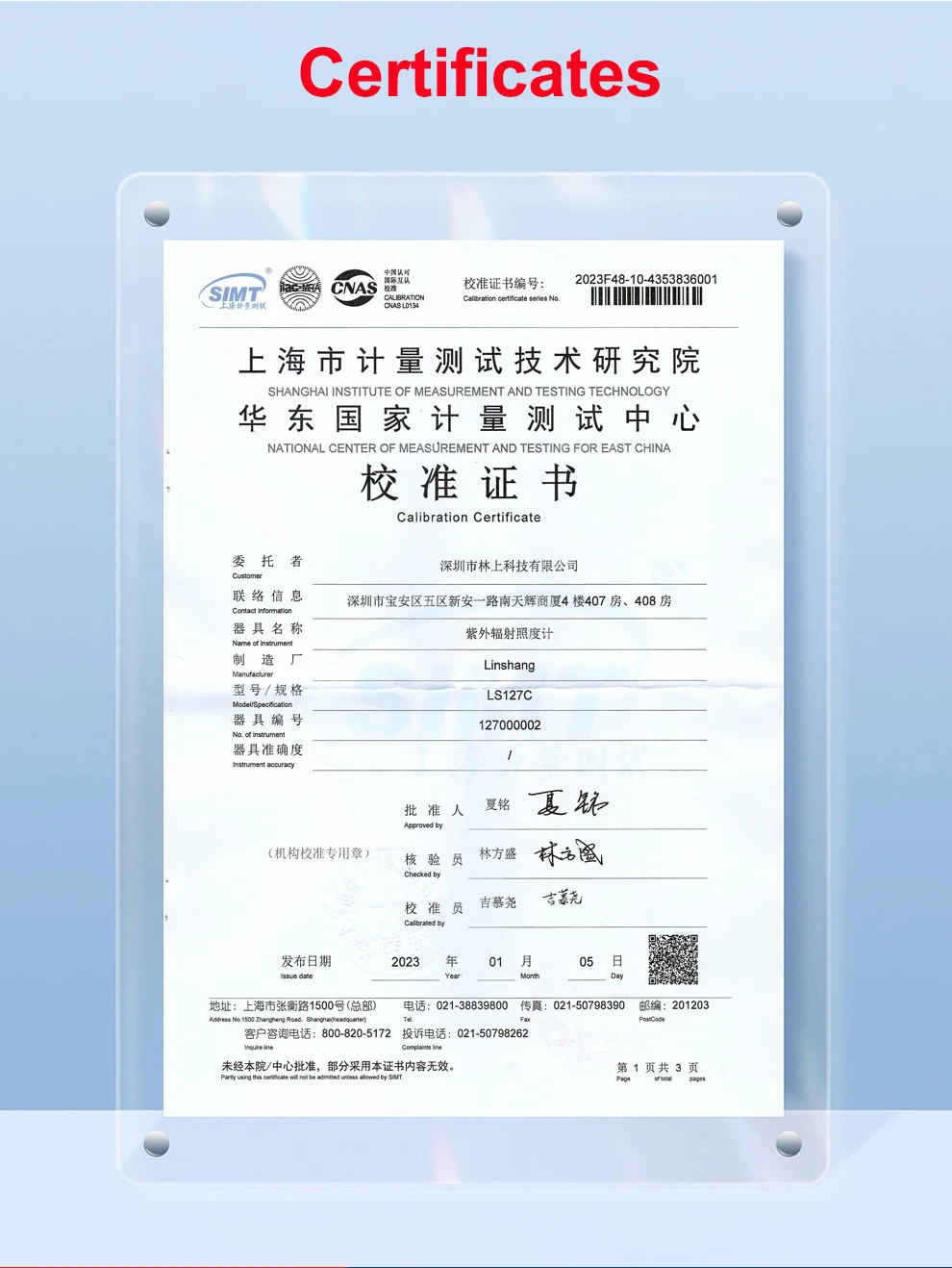

Passed testing by metrology institute

Can be certified by CNAS, ILAC-MAR accredited metrological institutions.

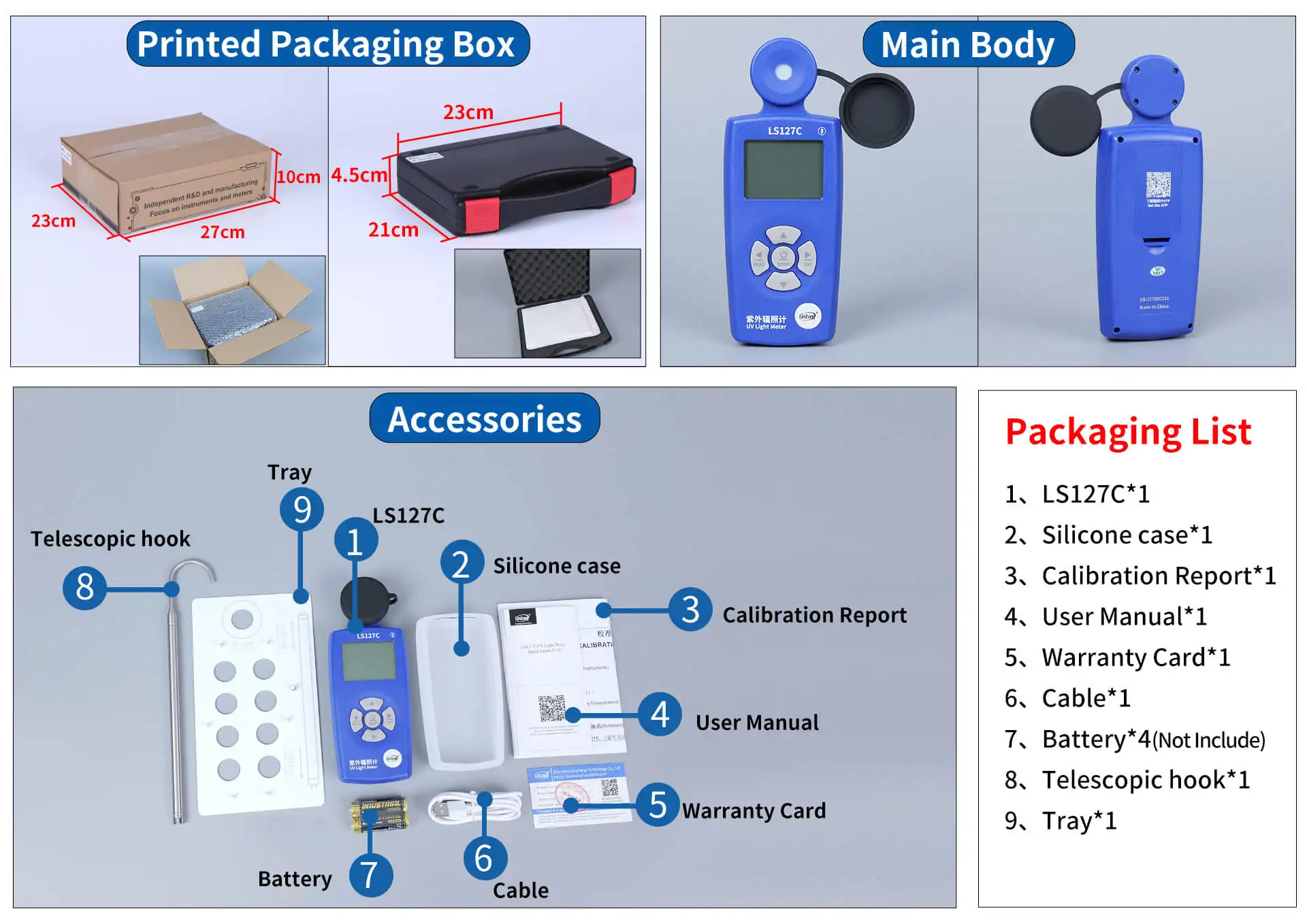

1. LS127C UV Light Meter *1

2. USB cable *1

3. USB flash disk *1

4. UV scale hook *1

5. Silicone Case *1

6. User manual *1

7. Certificate/Warranty card *1

8. Plastic box *1
