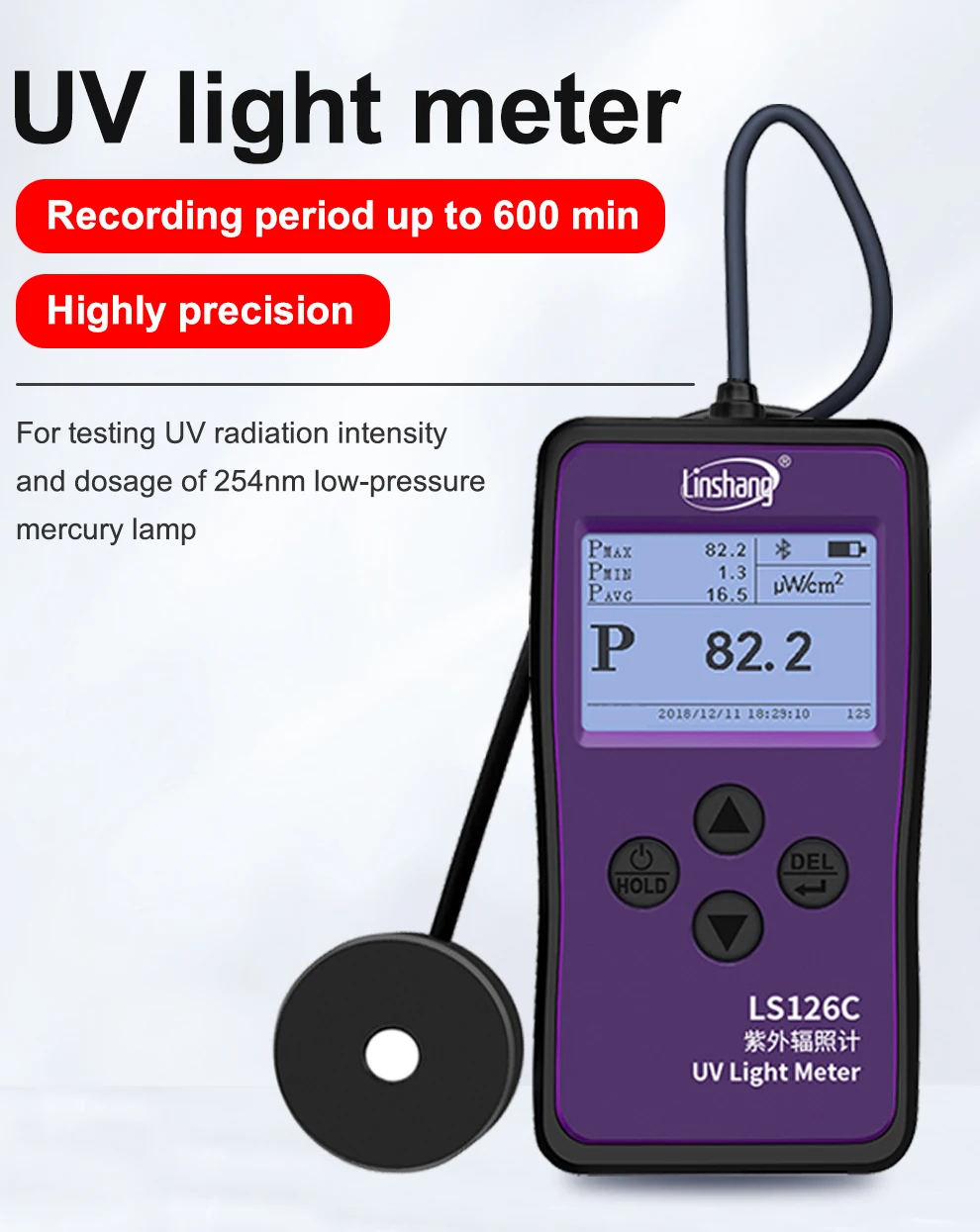

Linshang,LS126C UV Light Meter ,Uv Tester Uvc Light Meter LS126C, 254nm Germicidal Lamp High Precision PC Software, APP Function Simple Operation Professional,

Parameter

Description

LS126C UV light meter is a professional instrument used to measure the intensity of UVC germicidal lamps.LS126C also has a Bluetooth data transmission function, connected with the cell phone APP can be outside the certain distance real-time monitoring of germicidal lamps intensity, to avoid testers burned by UV rays. It has been widely used in hospitals, CDC, pharmaceutical companies, FDA, environmental monitoring stations and other fields to measure the intensity of 253.7nm UVC germicidal lamps. The instrument can record 25 sets of data, and comes with PC software to support data exportation.

Specifications

1. Spectral response: 230nm-280nm, λp = 254nm

2. Measuring range: 0 - 20000 μW / cm²

3. Resolution: 0.1μW / cm²

4. Relative indication error:±8%(relative to NIM standard)

5. Long wave response error: <60%

6. Cosine characteristics (directional response) error: 10%

7. Linearity error: ±1%

8. Short-term instability: ±1%( 30min after startup)

9. Fatigue characteristics: attenuation <2%

10. Error of zero: ±0.1% of full scale

11. Response time: <0.5 seconds

12. Sampling speed: 2048 times/second

13. Test hole diameter:￠=10mm

14. Power value storage interval: 1s/10s/60s optional

15. Recording period: 10 min / 100 min / 600 min

16. Bluetooth transmission distance: 50 meters (open space)

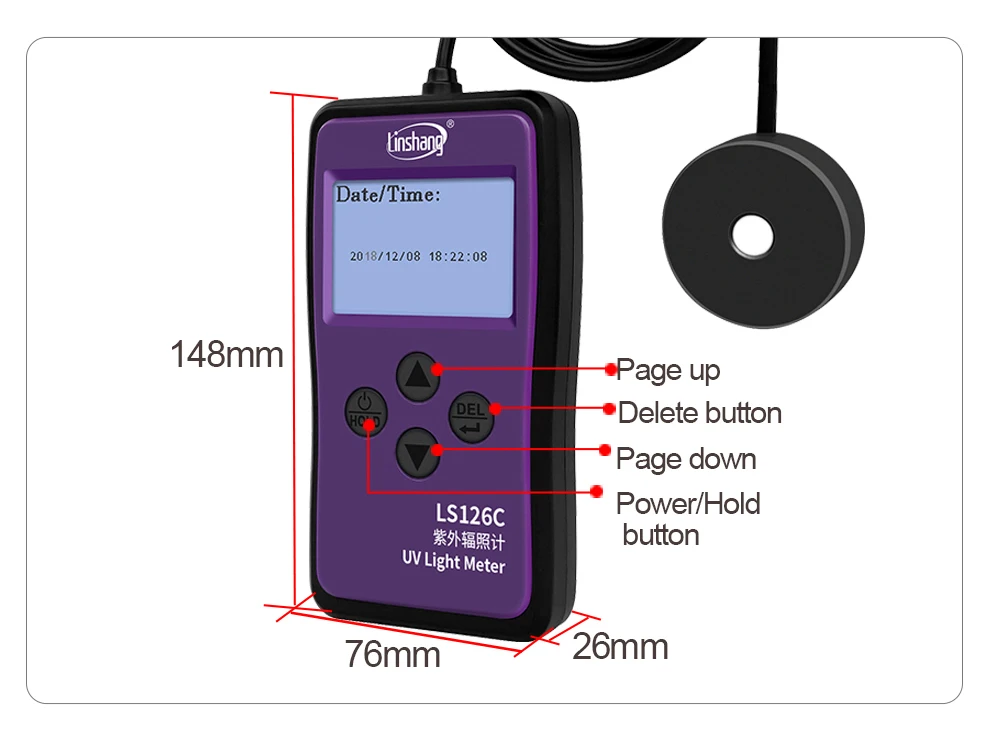

17. Instrument size: 148mm ×76mm ×26mm (L*W*H)

18. Probe size: Diameter 39mm × thickness 15mm

19. Probe wire length: 1 meter

20. Weight: About 300 g

21. Display: 240*160 dot matrix LCD

22. Battery: 4 AAA alkaline dry batteries

23. Operating Temperature: 0° to 40°C, <85% RH

Features

1. Comes with a one-meter test hook for convenient placement on lamp bases during measurements.

2. With Bluetooth function, it can monitor the data in certain distance through APP to avoid being burned by UV rays.

3. It counts real-time power, maximum, minimum, average values, energy, and records measurement time.

4. Automatic shutdown can be set, no need to keep watch over the measurement.

5. Indicates the trend of lamp luminous efficiency by displaying the power curve.

6. Equipped with USB interface and specialized PC software, supporting data export and report printing.

7. Can be certified by CNAS, ILAC-MAR accredited metrological institutions.

Wide range of applications

It has been widely used in hospitals, CDC, pharmaceutical companies, FDA, environmental monitoring stations and other fields to measure the intensity of 253.7nm UVC germicidal lamps.

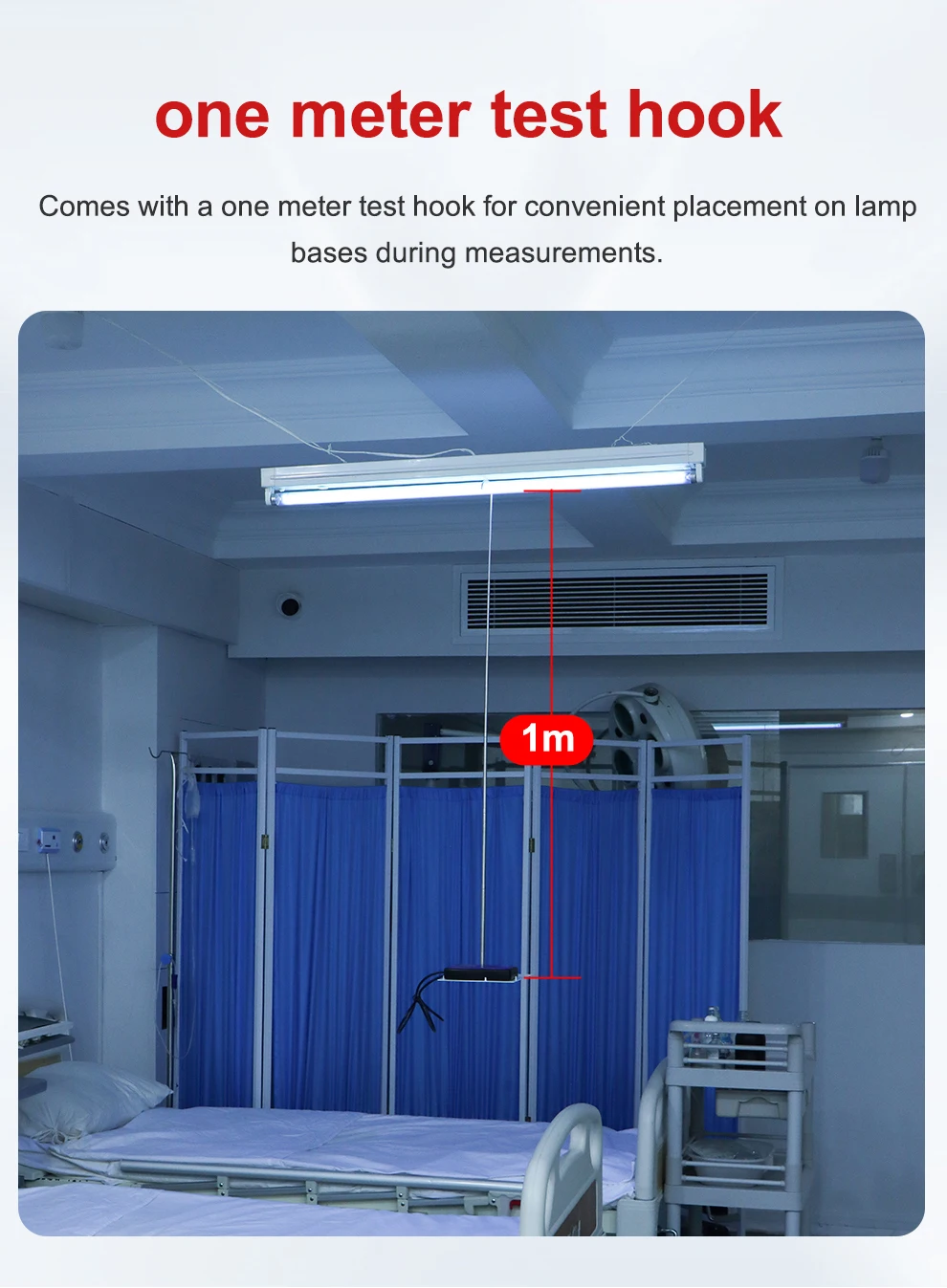

Provide a one meter test hook

Comes with a one meter test hook for convenient placement on lamp bases during measurements.

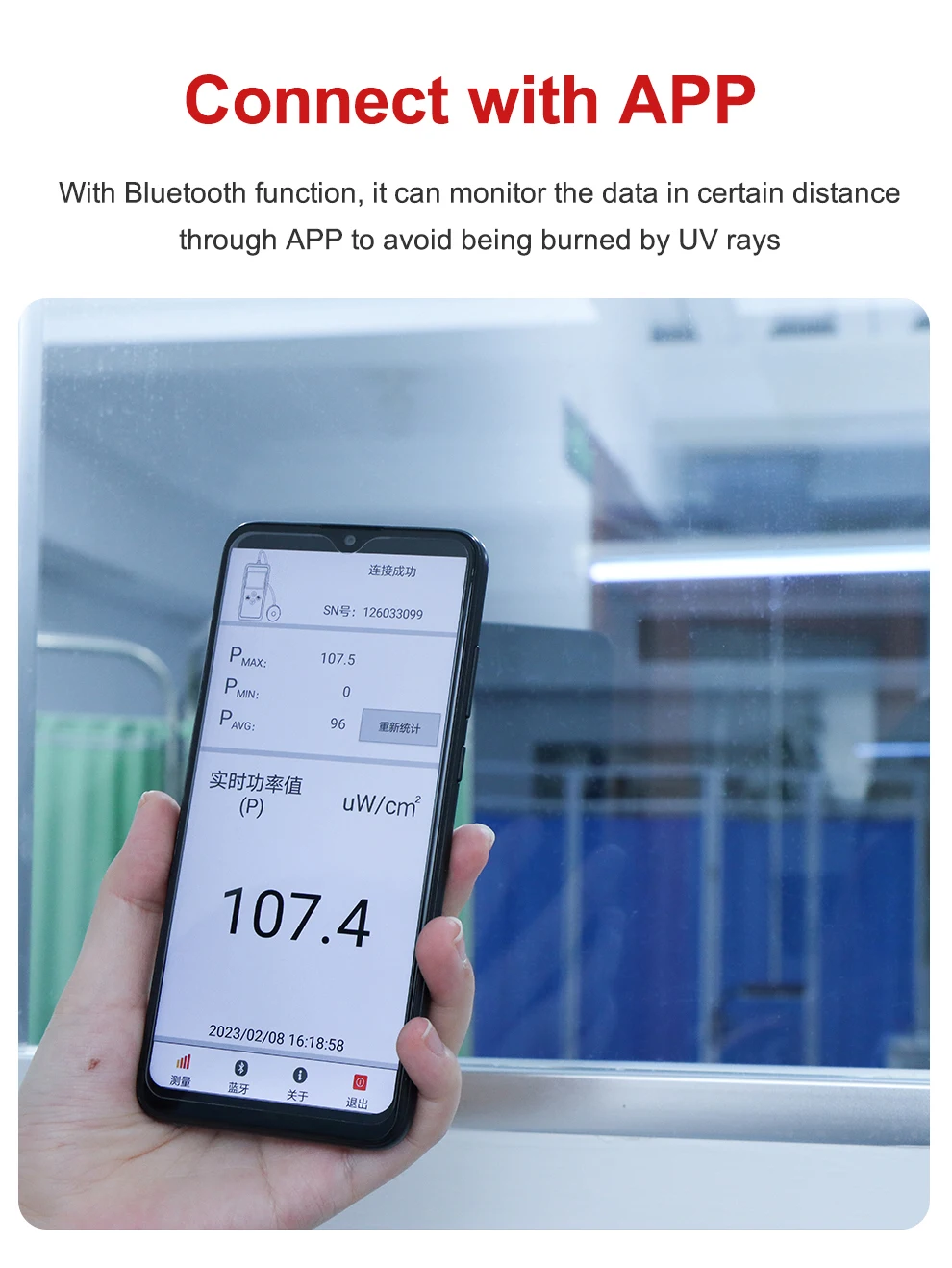

Connect with APP

With Bluetooth function, it can monitor the data in certain distance through APP to avoid being burned by UV rays.

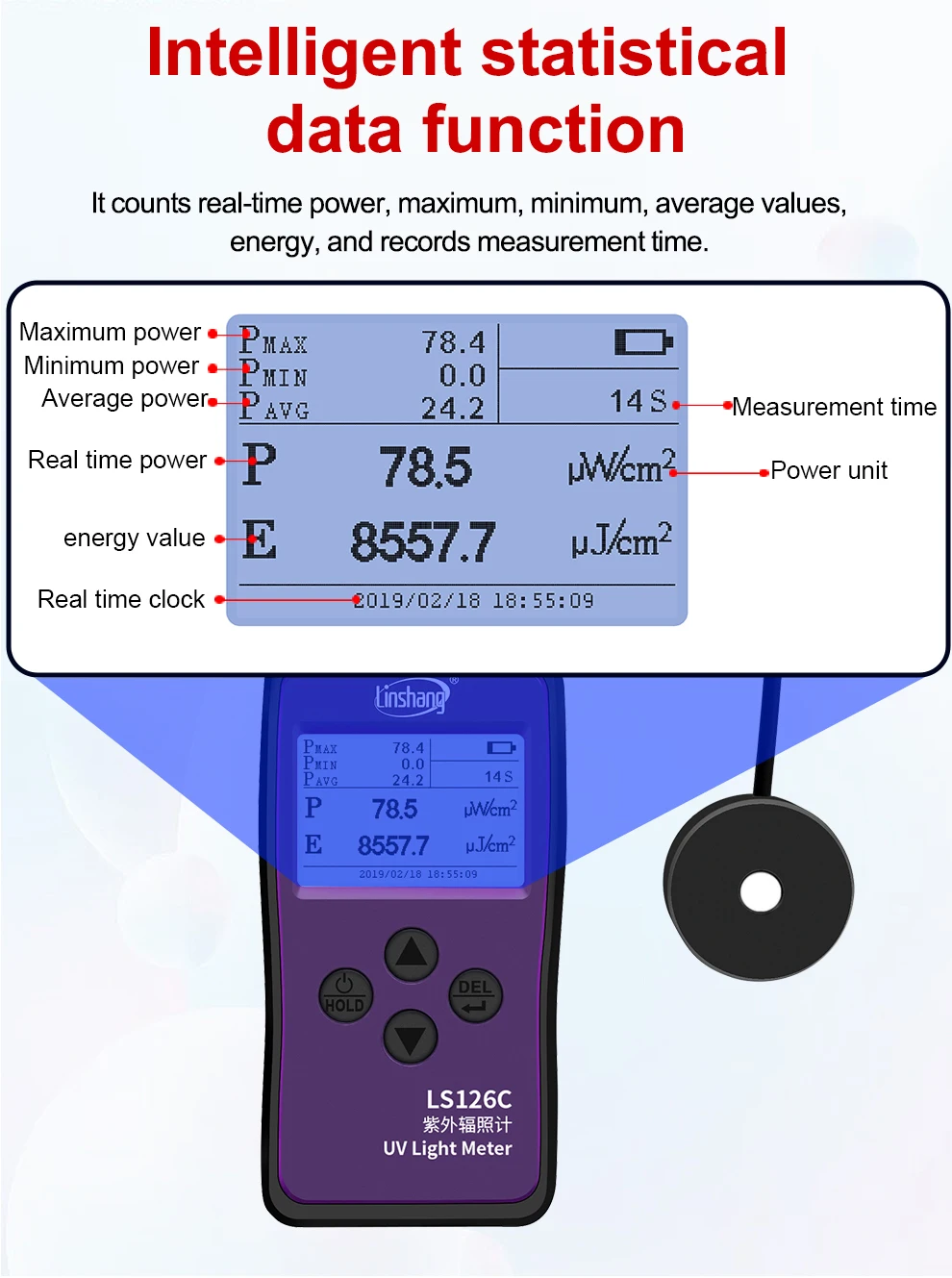

Intelligent statistical data function

It counts real-time power, maximum, minimum, average values, energy, and records measurement time.

Shut down within 1-10 minutes by setting

Automatic shutdown can be set within 1-10 minutes, the test data will be automatically saved when the shutdown, no need to keep watch over the measurement.

Power curve display

Indicates the trend of lamp luminous efficiency by displaying the power curve.

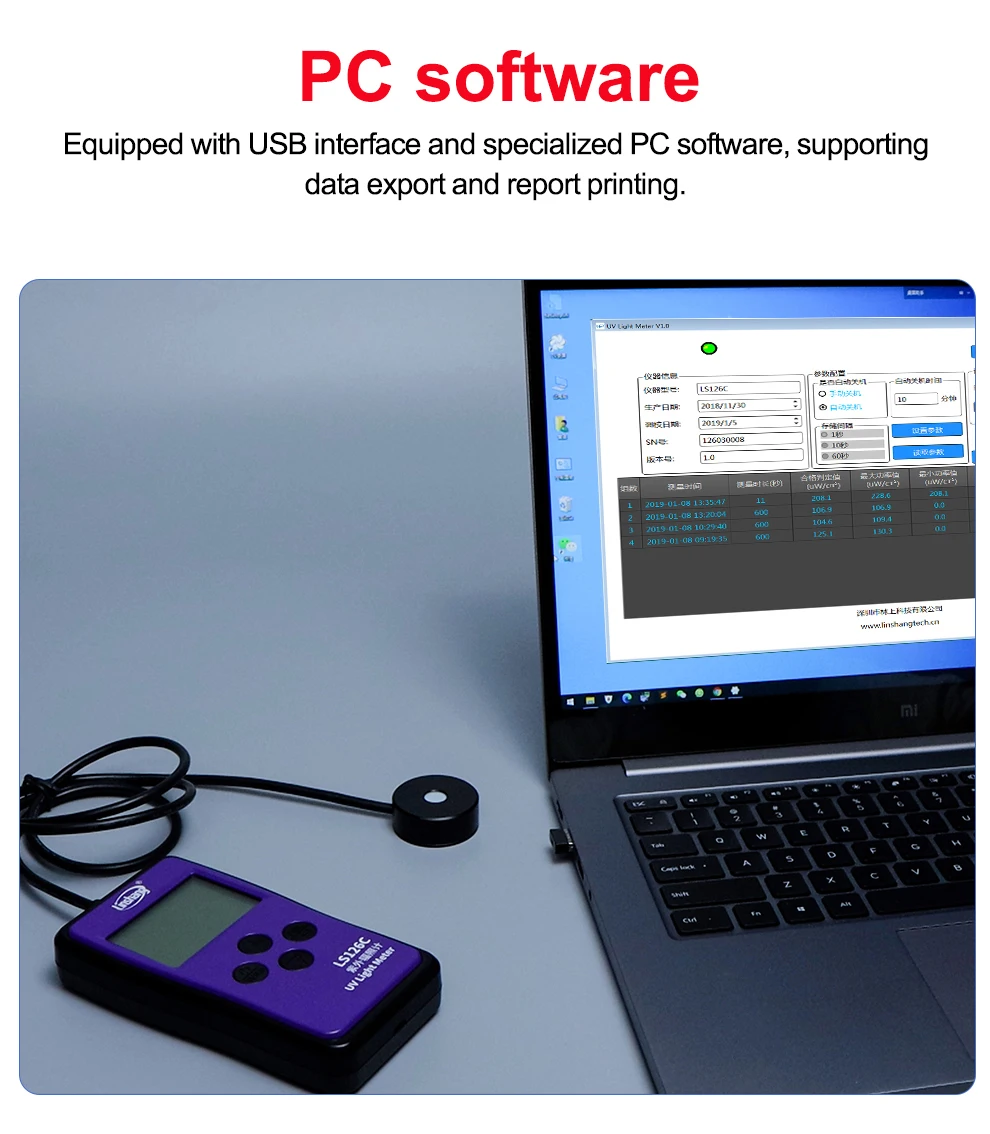

Provide PC software

Equipped with USB interface and specialized PC software, supporting data export and report printing.

Passed testing by metrology institute

Can be certified by CNAS, ILAC-MAR accredited metrological institutions.

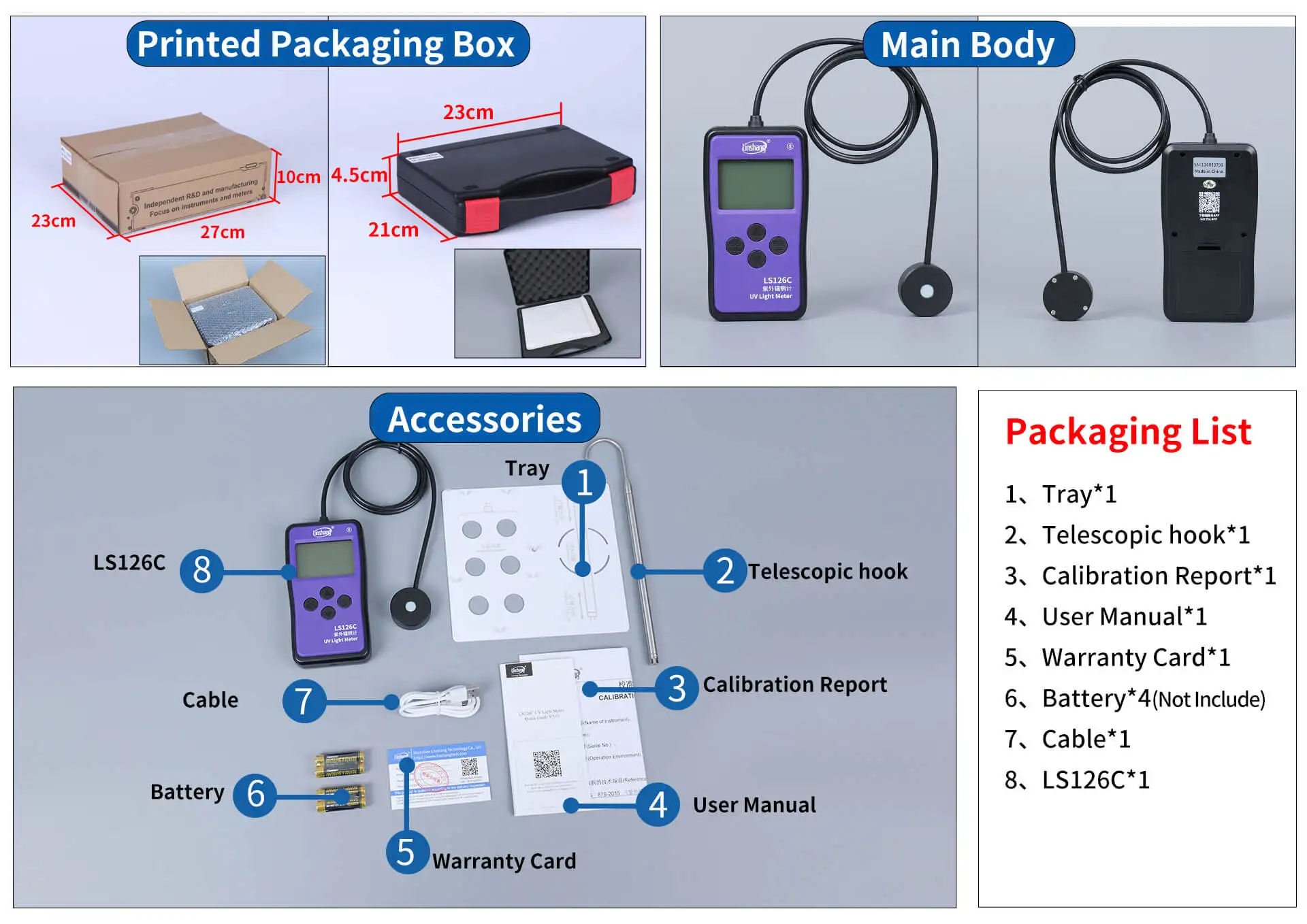

1. 126C UV Light Meter *1

2. USB Cable *1

3. USB Flash disk *1

4. UV Scale Hooks *1

5. User Manual *1

6. Certificate/Warranty card *1

7. Plastic Case 34*29*9 cm(L*W*H) *1
