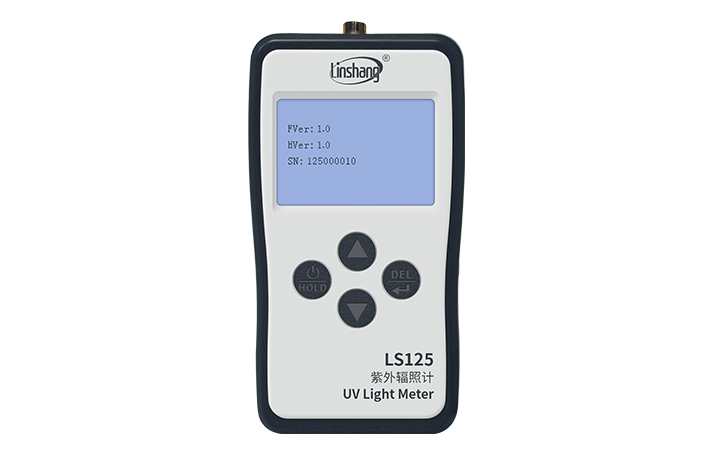

Linshang,LS125 Multi-probe ,Uv Tester Ultraviolet Light Meter Radiometer, Uva Uvb Uvc Light Sources LS125 Multi-probe, High Precision Simple Operation,

Description

LS125 UV light meter can be freely combined with 9 different types of probes. It can be used for UVA, UVB, UVC band UV intensity and energy testing. The probes are digital, not easily disturbed during the test. After the host connects the probe, it can intelligently recognize the model of the probe and adaptively display the interface. The instrument has a statistical function, can simultaneously measure maximum value, minimum value and average value. The instrument is highly accurate and can pass the test of authoritative metrology institute.

Probe Selection

Select according to the spectral response range and application of the light source

1. Probe type: UVC-X0

Spectral response range: 230-280nm

Power range: 0 - 200000 μW/cm²

Test aperture: ￠10mm

Application: 254nm UV sterilization mercury lamp

2. Probe type: UVCWP-X1

Spectral response range: 230-280nm

Power range: 0 - 200000 μW/cm²

Test aperture:￠10mm

Application: 254nm UV sterilization mercury lamp, waterproof

3. Probe type: UVCLED-X0

Spectral response range: 240-320nm

Power range: 0 - 200000 μW/cm²

Test aperture:￠10mm

Application: 260nm-285nm UV LED germicidal lamp

4. Probe type: UVB-X0

Spectral response range: 280-315nm

Power range: 0 - 200000 μW/cm²

Test aperture:￠10mm

Application: General UVB intensity and energy measurement

5. Probe type: UVA-X0

Spectral response range: 315-400nm

Power range: 0 - 2000 mW/cm²

Test aperture:￠10mm

Application: High pressure mercury lamp in UV curing industry

6. Probe type: UVA-X1

Spectral response range: 315-400nm

Power range: 0 - 200000 μW/cm²

Test aperture:￠10mm

Application: General UVA intensity and energy measurement

7. Probe type: UVALED-X0

Spectral response range: 340-420nm

Power range: 0 - 20000 mW/cm²

Test aperture:￠10mm

Application: Area light source of UV LED in UV curing industry

8. Probe type: UVALED-X1

Spectral response range: 340-420nm

Power range: 0 - 20000 mW/cm²

Test aperture:￠1mm

Application: Point light source of UV LED in UV curing industry

9. Probe type: UVALED-X3

Spectral response range: 340-420nm

Power range: 0 - 200000 μW/cm²

Test aperture:￠10mm

Application: General UVA+UVV LED, low power measuring range

Features

1. The host connects to probes via aviation plugs and can pair with 9 UV probes for versatile testing.

2. Matching probes for UVA (315nm-420nm), UVB(280nm-315nm), UVC(200nm-280nm) UV intensity and energy detection.

3. Using advanced digital probe technology, the probe is not easy to be disturbed.

4. Intelligent recognition of the probe type and adaptive display interface.

5. Power real-time, maximum, minimum, average, energy value, and measurement duration can be displayed at the same time.

6. It can save 9 sets of data, which is retained even when the power is off.

7. The instrument is highly accurate and can pass the test of authoritative metrology institute.

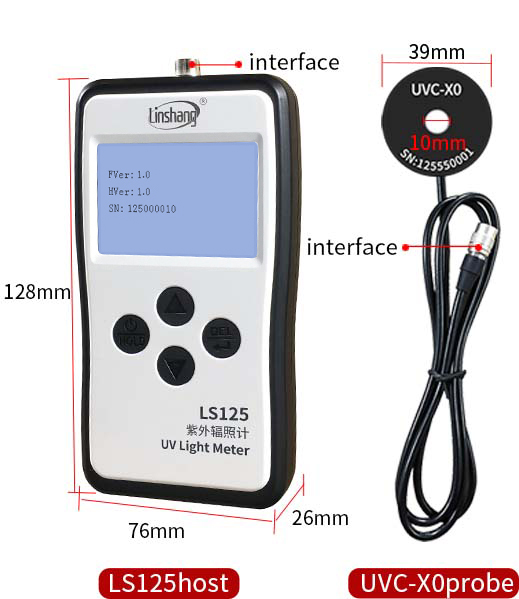

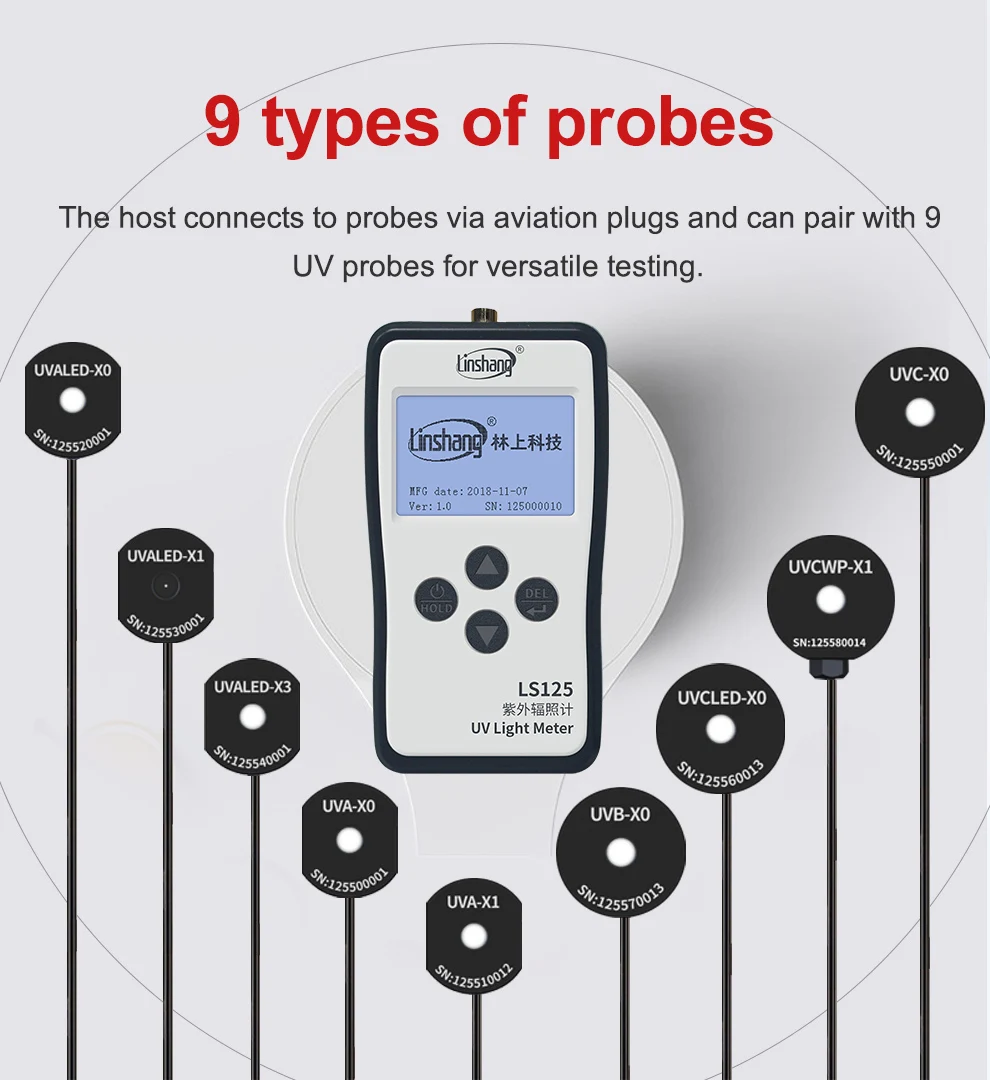

Free to match 9 types of probes

The host connects to probes via aviation plugs and can pair with 9 UV probes for versatile testing.

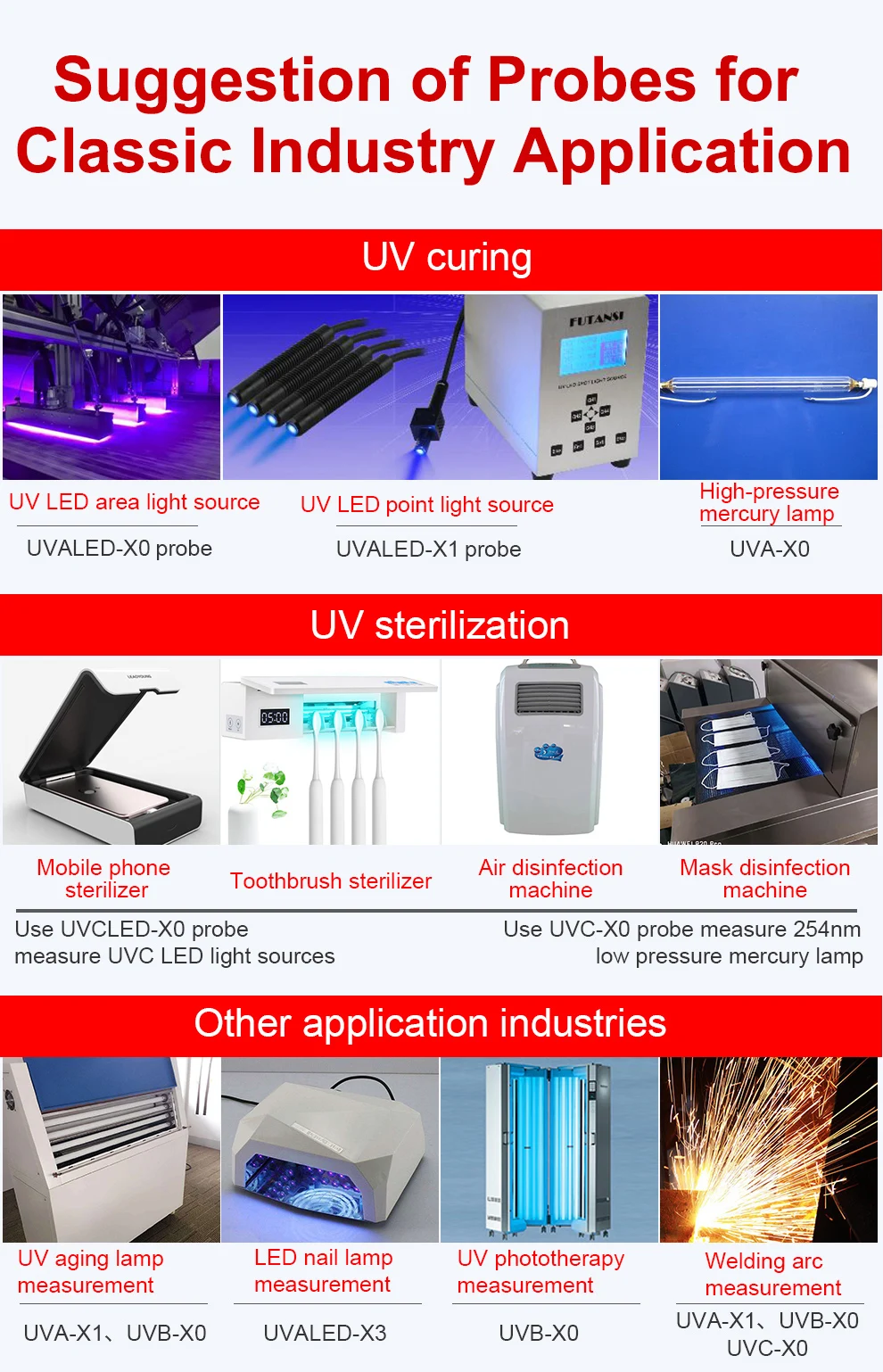

Suggestion of Probes for Classic Industry Application

Detect UV aging box: UVA-X1, UVB-X0

Detect ambient light and sunlight: UVA-X1, UVB-X0

Detect welding arc: UVA-X1, UVB-X0, UVC-X0

Detect UV light of non-destructive testing: UVA-X0

Detect UV nail lamp: UVALED-X3

Detect plant growth lamp or reptile lamp: UVB-X0

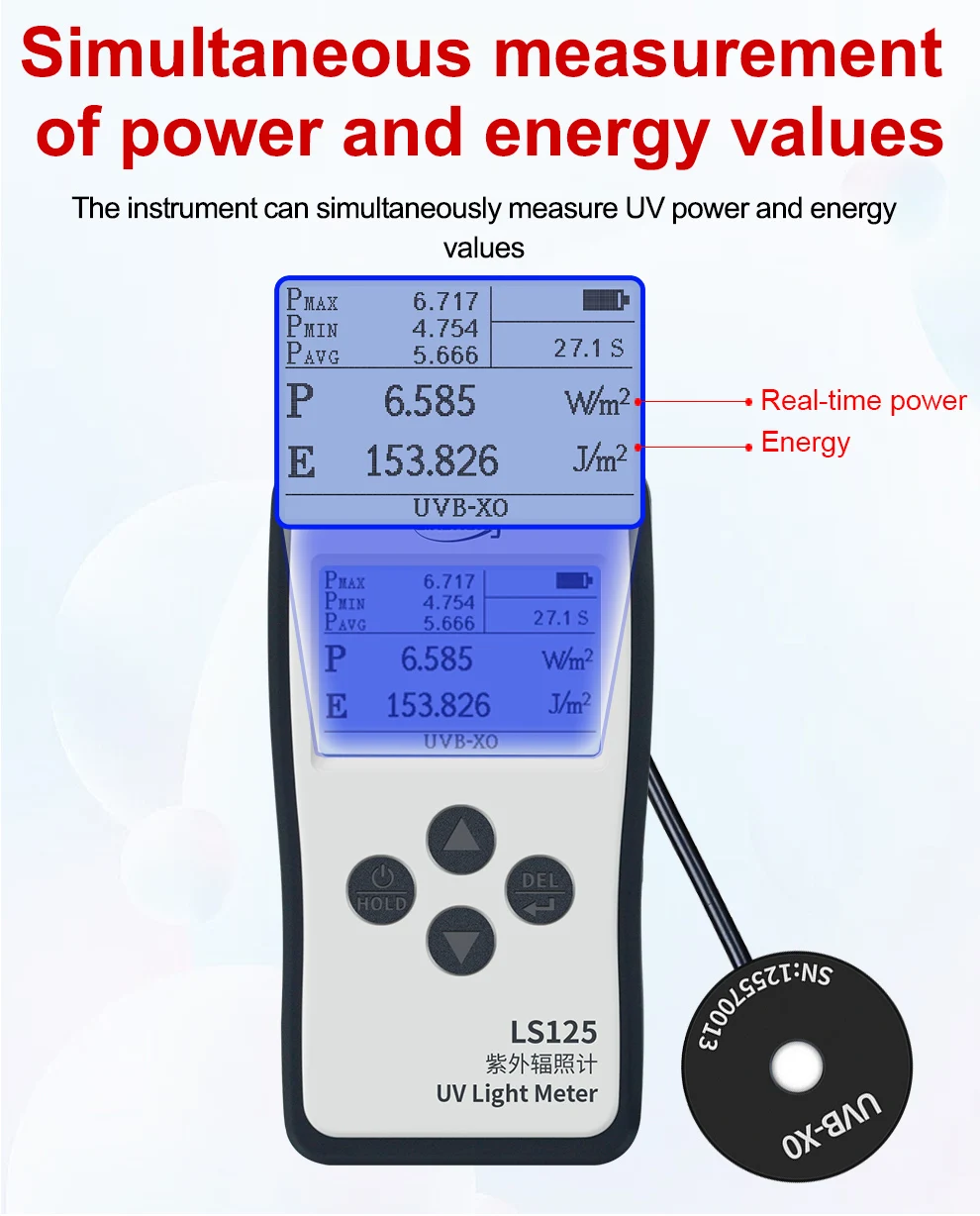

Simultaneous measurement of power and energy values

The instrument can simultaneously measure UV power and energy values.

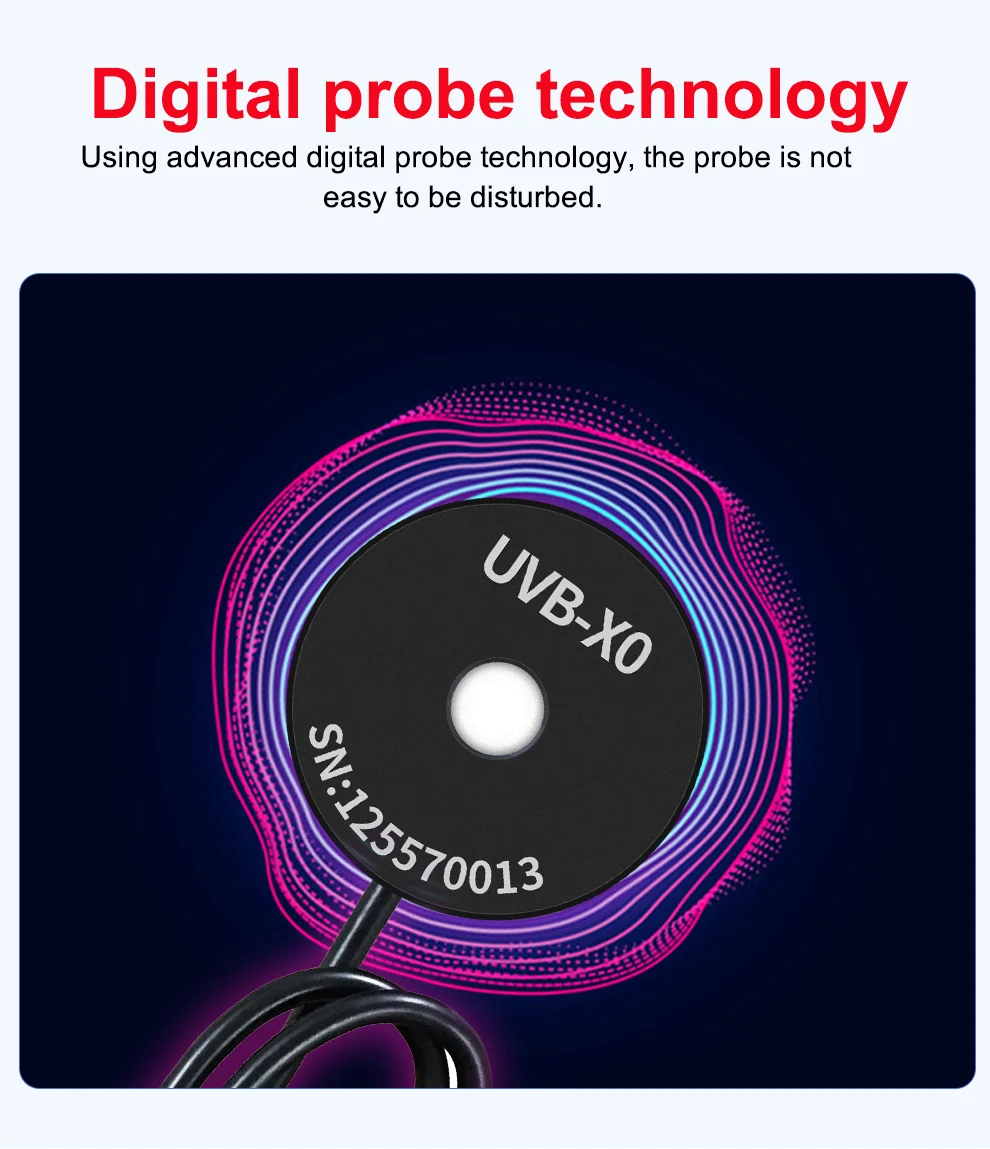

Digital probe technology

Using advanced digital probe technology, the probe is not easy to be disturbed.

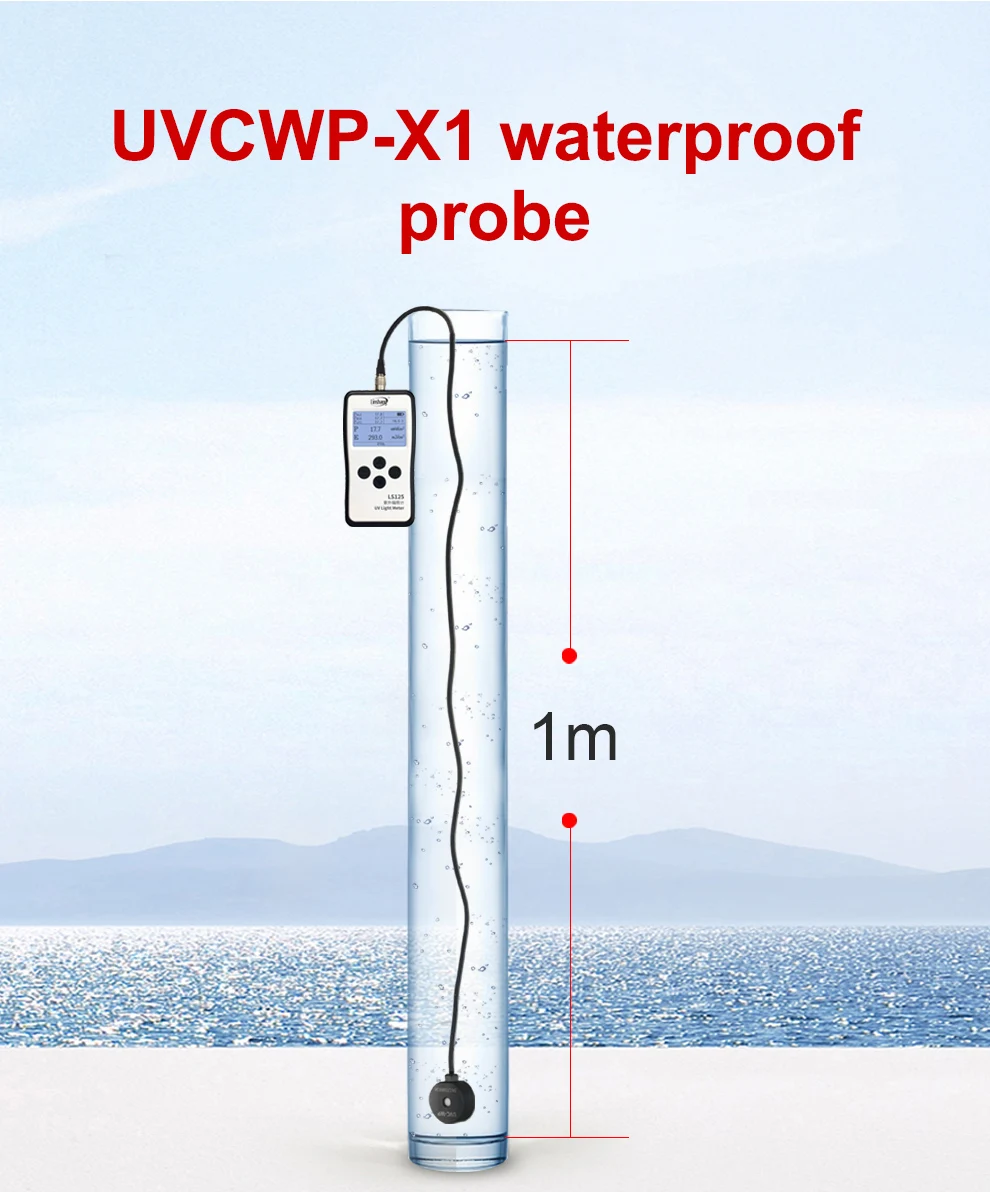

Waterproof probe optional

It can be matched with UVCWP-X1 waterproof probe, which is waterproof up to 1 meter, suitable for underwater germicidal lamp detection.

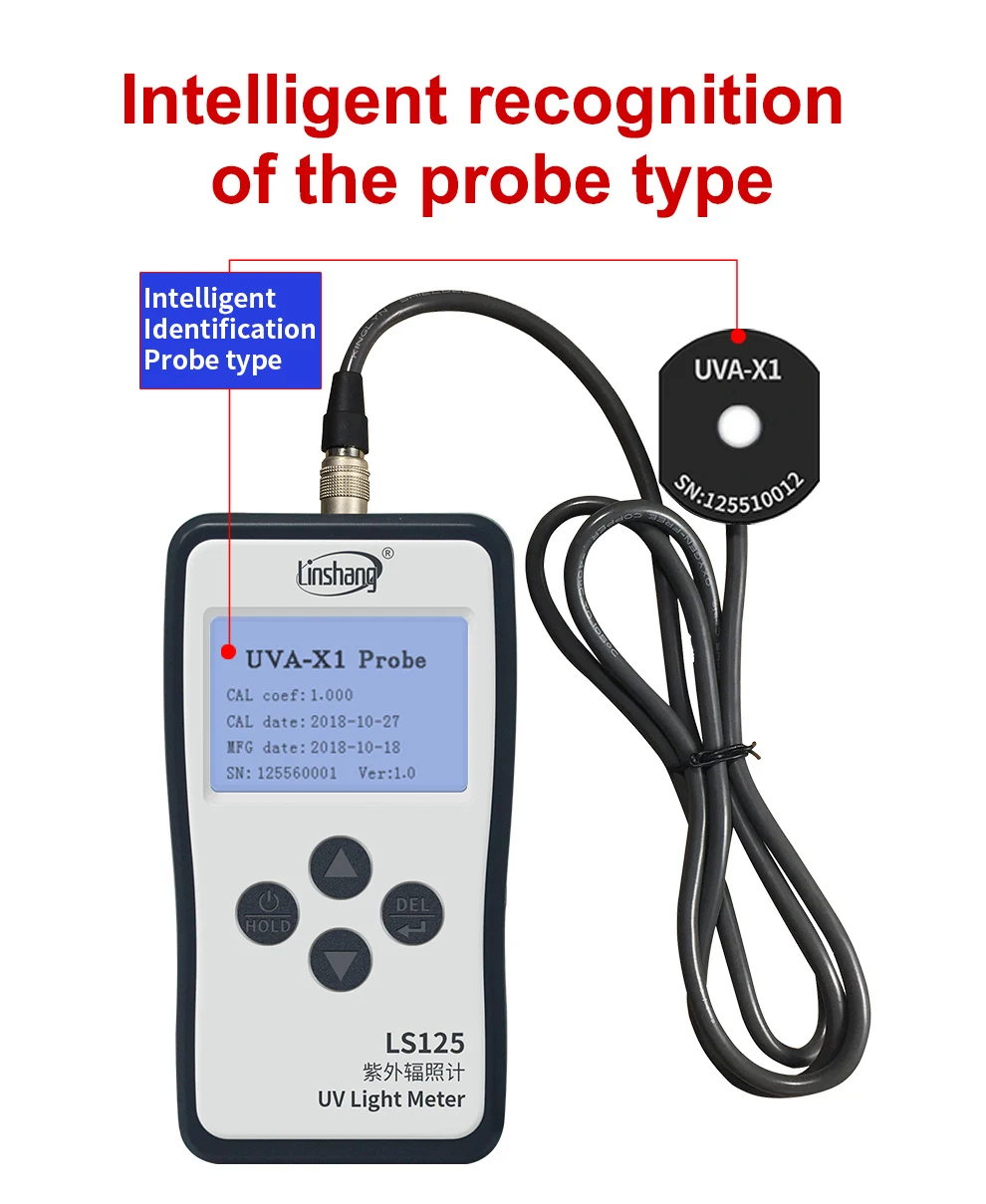

Intelligent recognition of the probe type

It can intelligent recognition of the probe type and adaptive display interface.

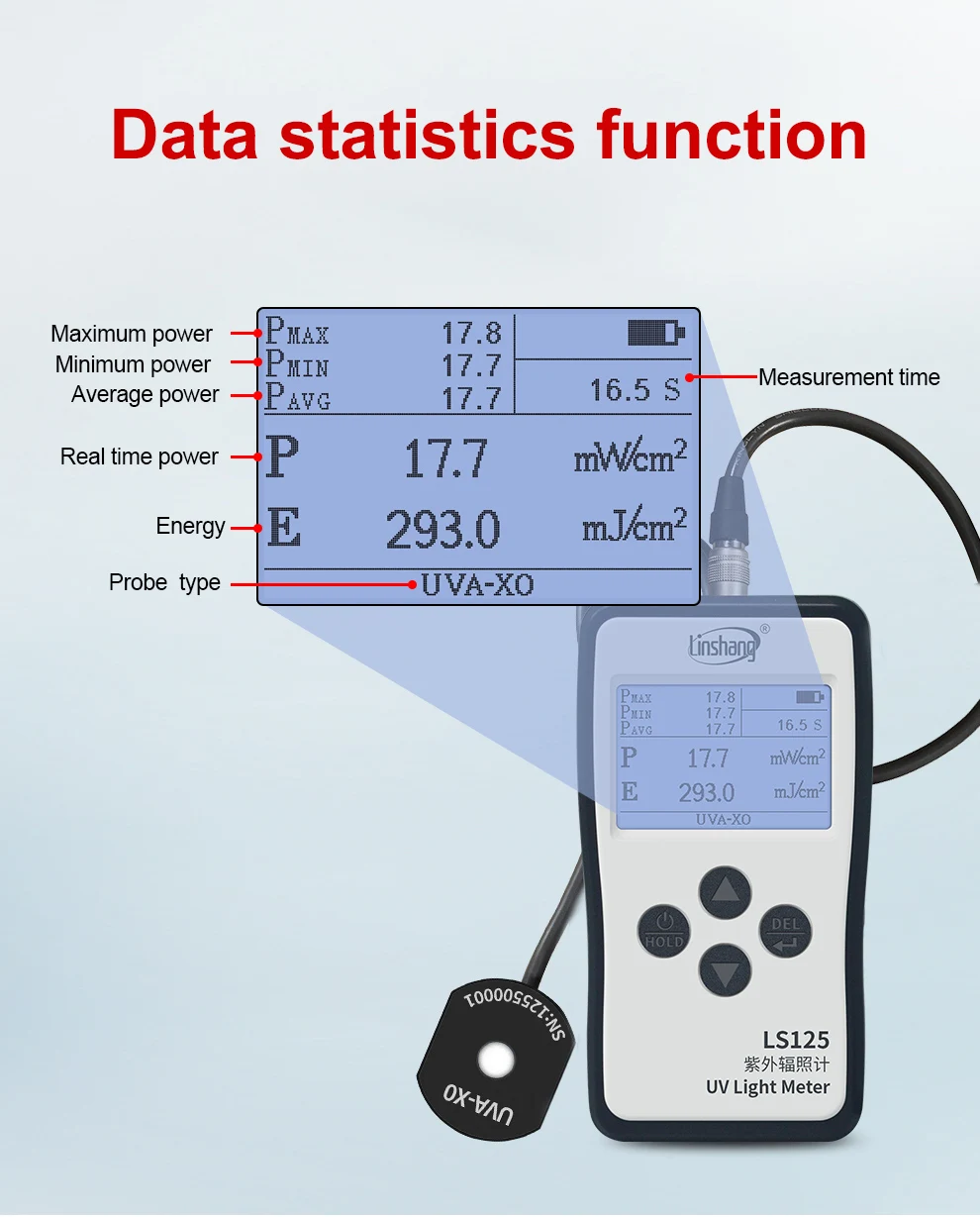

Data statistics function

Power real-time, maximum, minimum, average, energy value, and measurement duration can be displayed at the same time.

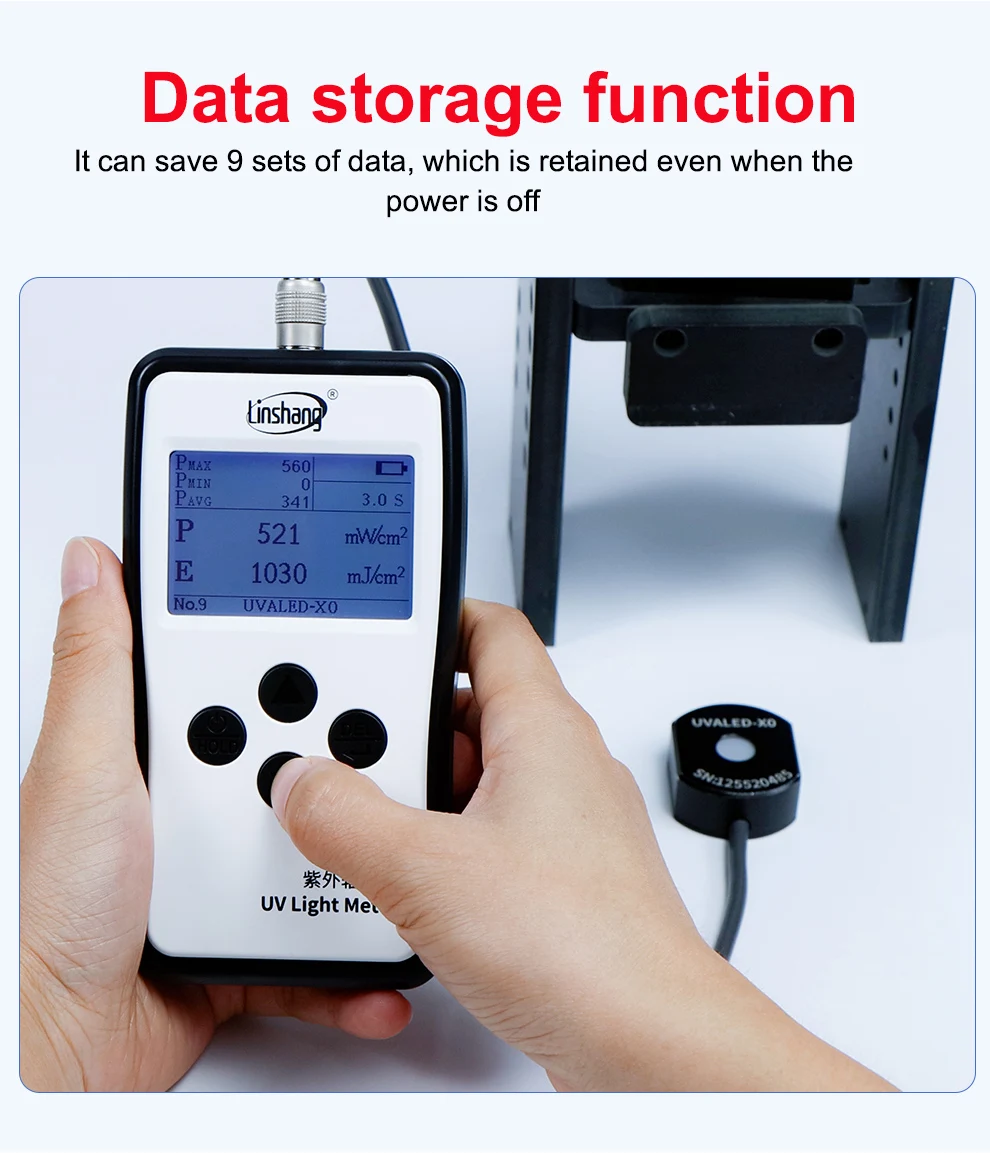

Data storage function

It can save 9 sets of data, which is retained even when the power is off.

Pass authoritative metrology institute testing

The instrument is highly accurate and can pass the test of authoritative metrology institute.

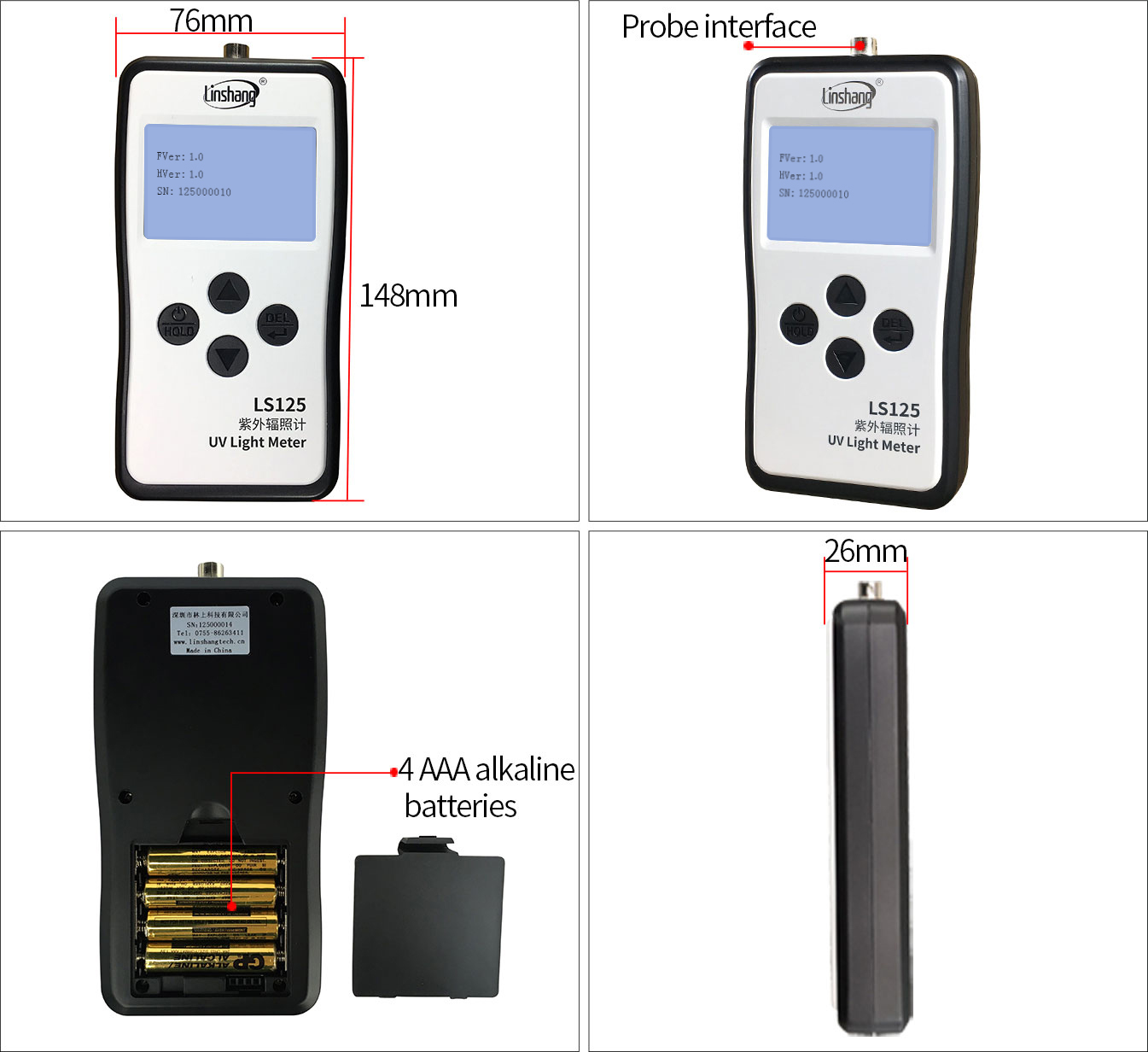

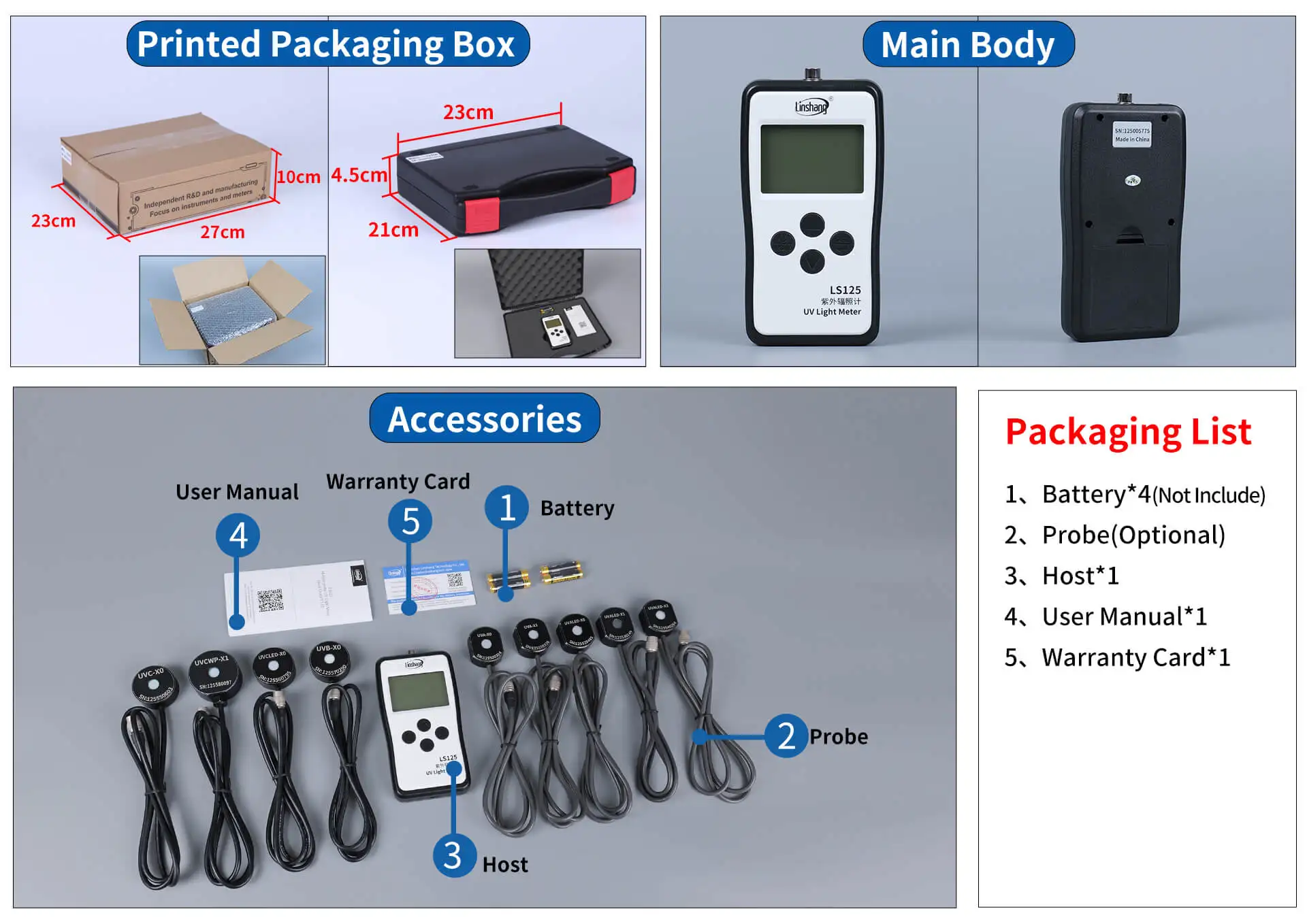

1. LS125 UV light meter

2. User manual

3. Certificate/Warranty card

4. Plastic box

5. Packing box dimension

6. According to the numbers of probe ordered
