Linshang,LS128 UV Energy Meter,Uv Energy Meter, Uva Light Test LS128, UV LED Light Sources PC Software High Precision Measure Energy, Power and Temperature,

Parameter

Description

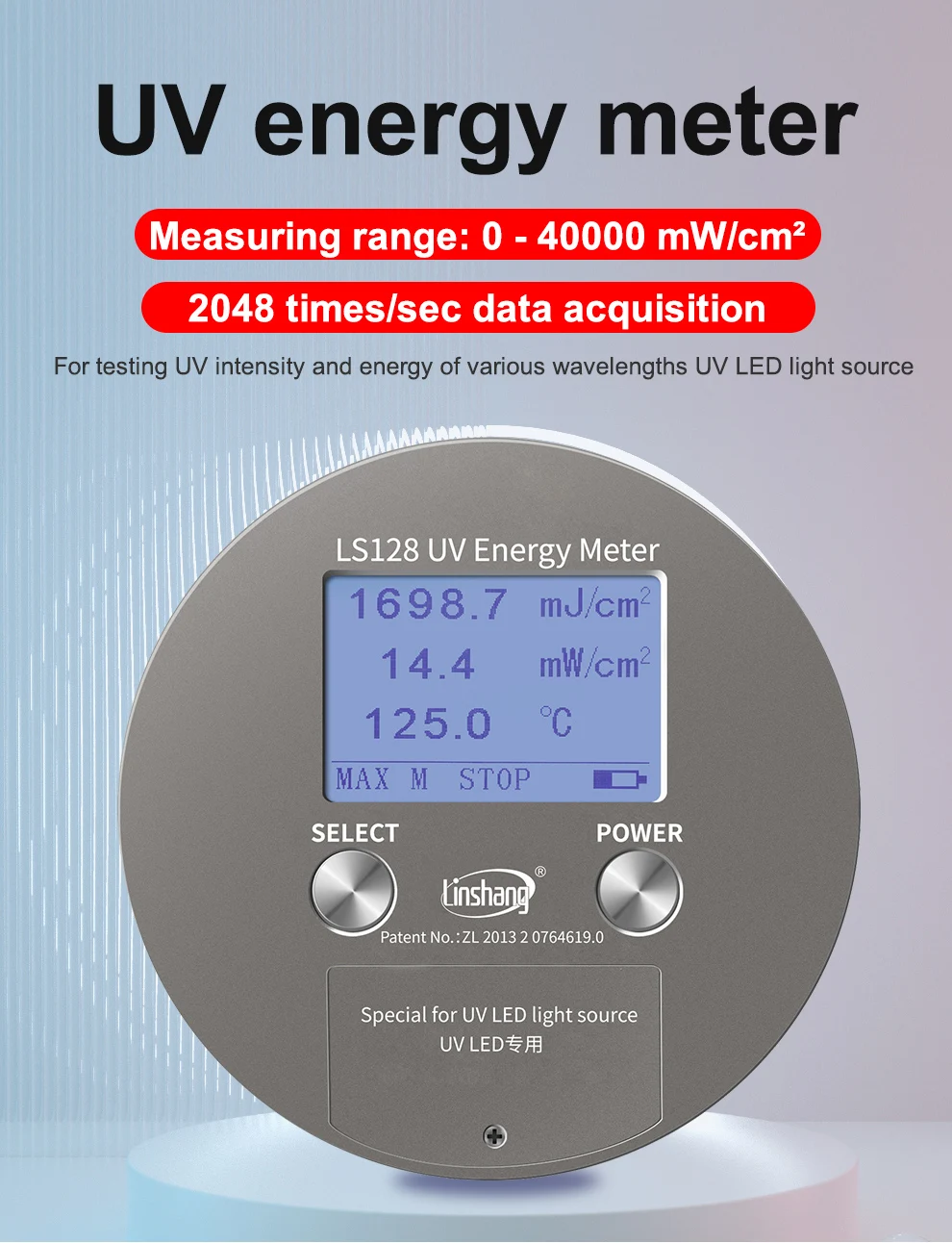

LS128 is a professional UV energy meter for testing UV LED light sources. The spectral response range is 340nm-420nm, and it can test UV LED lamps in various wavelength bands such as 365nm, 375nm, 385nm, 395nm, 405nm and so on. Simultaneous measurement of energy, power and temperature and display of power curve and temperature curve can be realized. Complimentary computer software, to read the detailed record data, and can generate test reports. Ultra-large range design, power can be measured up to 40,000mW/cm².

Specifications

1. Application: Light intensity, energy and temperature measurement of UV LED light sources

2. Spectral range: 340nm - 420nm, calibrated at 395nm UV LED light sources

3. Irradiance measuring range: 0 - 40000 mW/cm²

4. Irradiance resolution: 1 mW/cm²

5. Energy measuring range: 0 - 999999 mJ/cm²

6. Energy measuring accuracy: ± 10% , ± 5% (typical)

7. Temperature measuring range: -55°C -125°C

8. Sampling speed: 2048 times/second

9. Irradiance data storage interval: 32 times/second

10. Temperature data storage interval: 2 times/second

11. Recording period: 32 min

12. Power supply: 2 AAA alkaline dry batteries

13. Display: 240*160 Dot matrix LCD

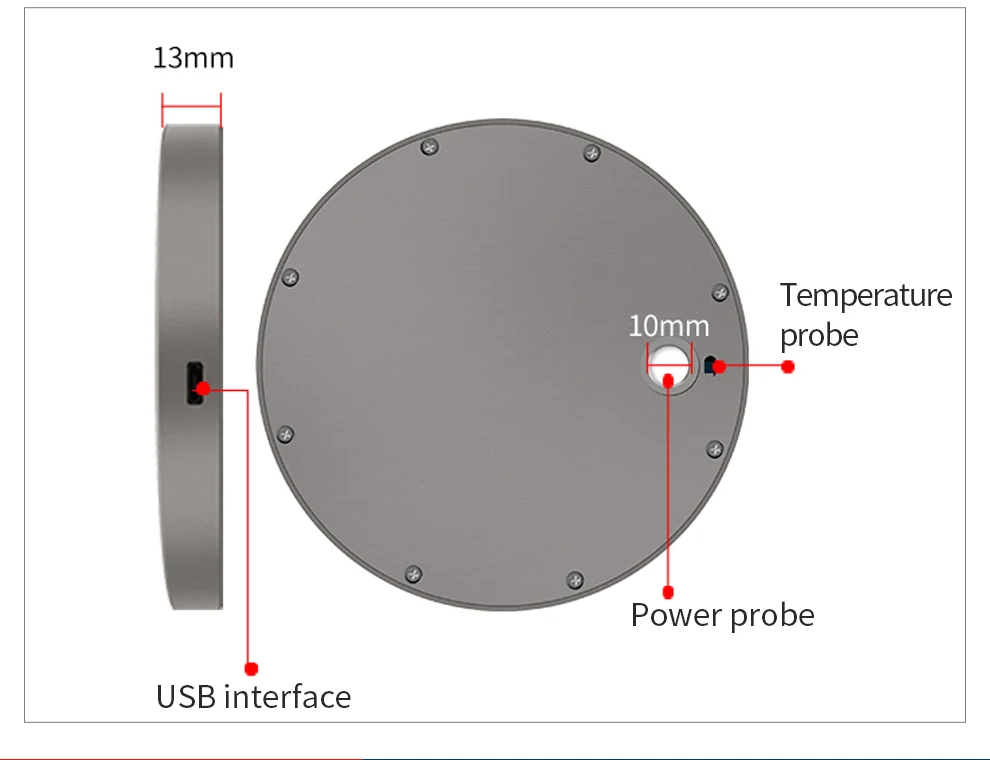

14. Test Hole Diameter: Φ10mm

15. Dimension: Diameter 120mm * Thickness 13mm

16. Weight: 327g

Features

1. Wide spectral response range for testing UV LED sources with peaks in any band from 365nm-405nm.

2. Simultaneous measurement of energy value, power value and temperature.

3. Display power and temperature curves to analyze the distribution of temperature and luminous intensity.

4. High-speed data acquisition of 2048 times/sec, more accurate measurement.

5. Ultra-large range design, power can be measured up to 40,000mW/cm².

6. Built-in timer to accurately record the length of UV curing time.

7. Support computer software for reading detailed recorded data and generating test reports.

8. Switching between manual and auto mode is possible according to different testing environments.

Wide spectral response range

Wide spectral response range for testing UV LED sources with peaks in any band from 365nm-405nm.

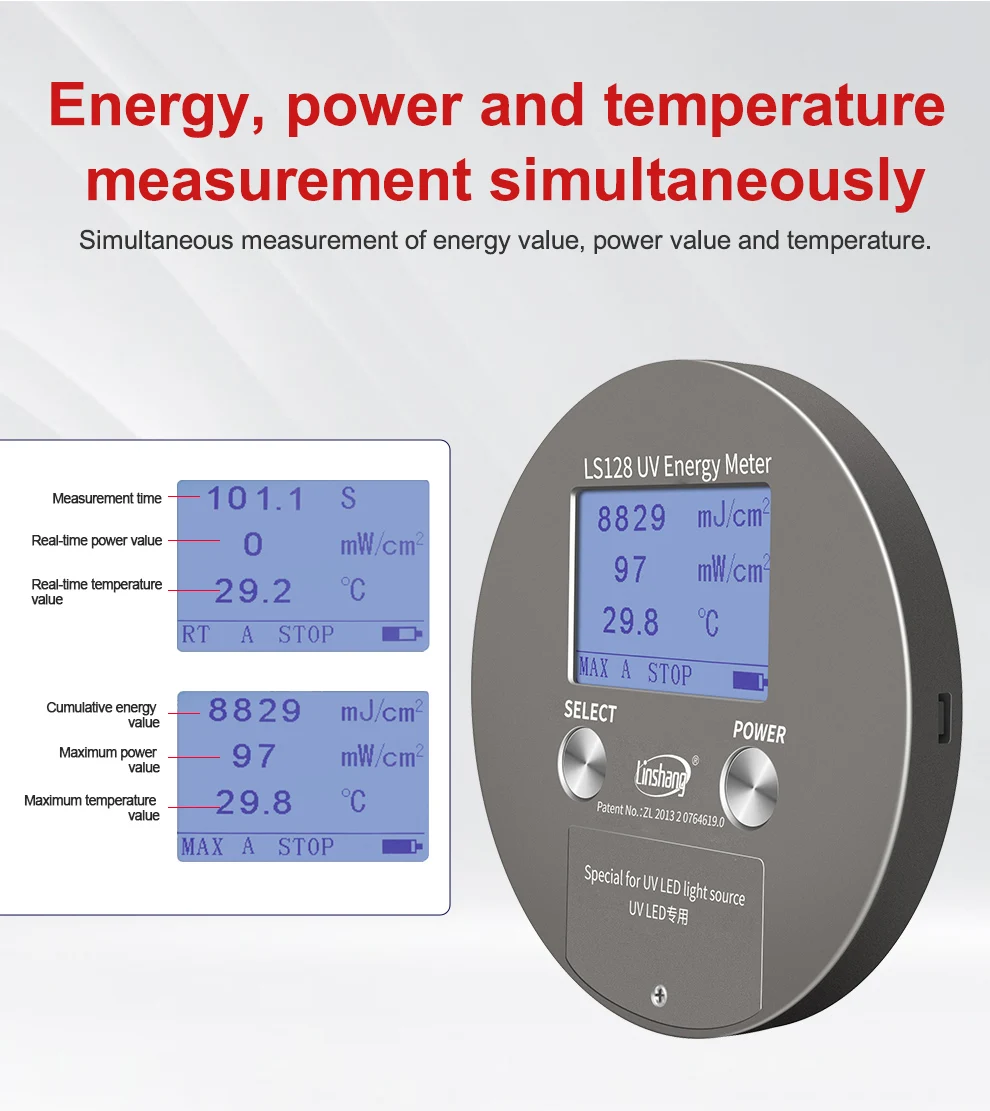

Energy, power and temperature measurement simultaneously

Simultaneous measurement of energy value, power value and temperature.

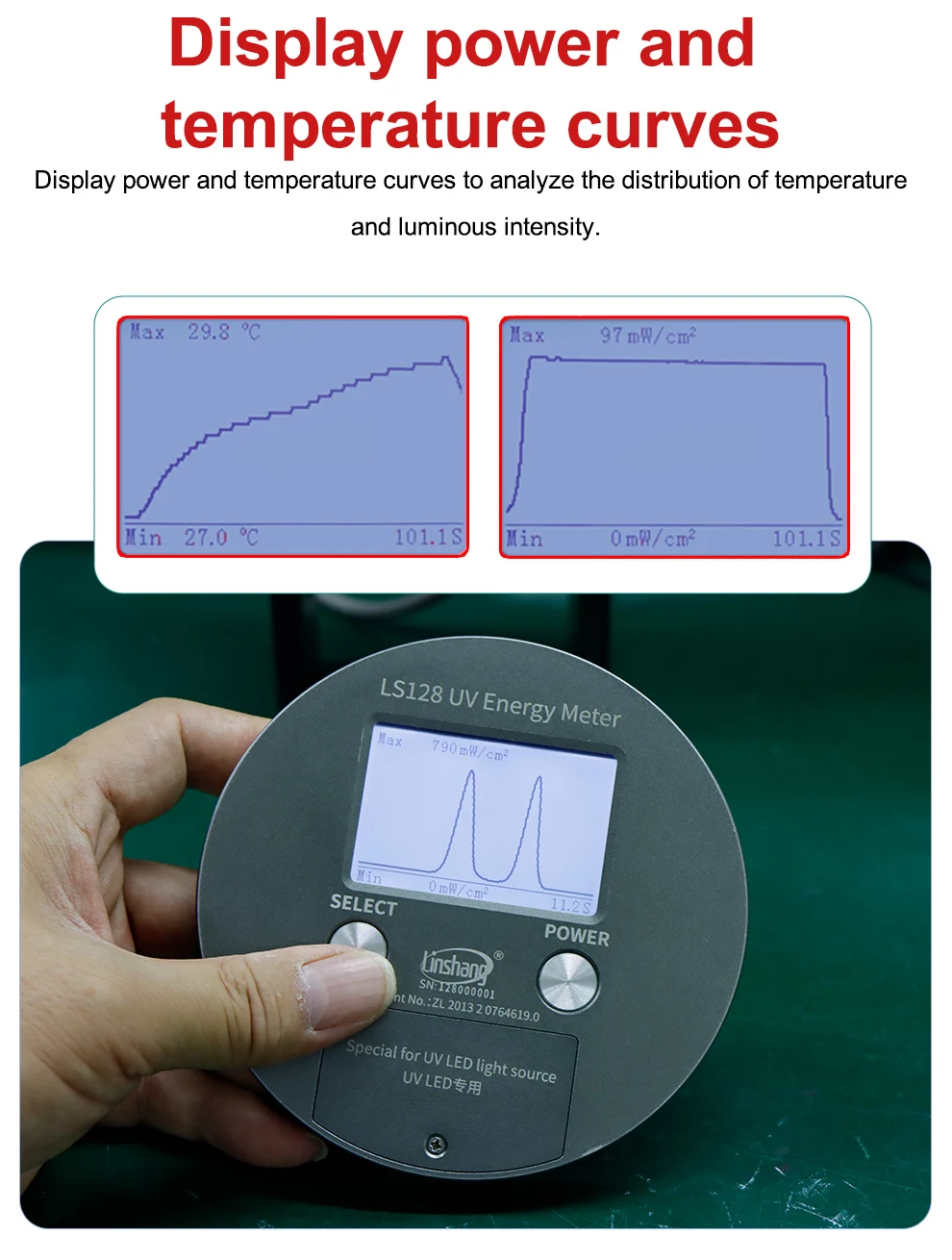

Display power and temperature curves

Display power and temperature curves to analyze the distribution of temperature and luminous intensity.

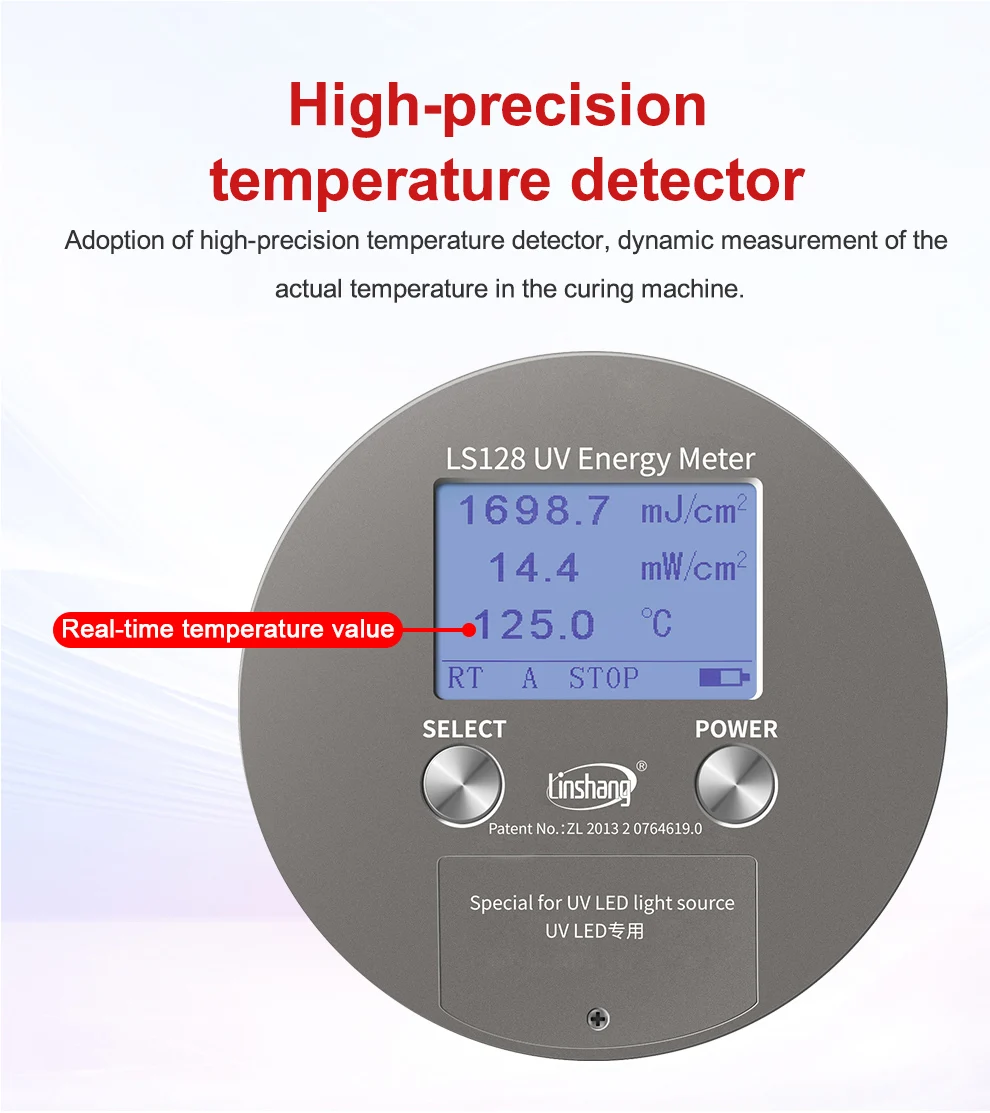

High-precision temperature detector

Adoption of high-precision temperature detector, dynamic measurement of the actual temperature in the curing machine.

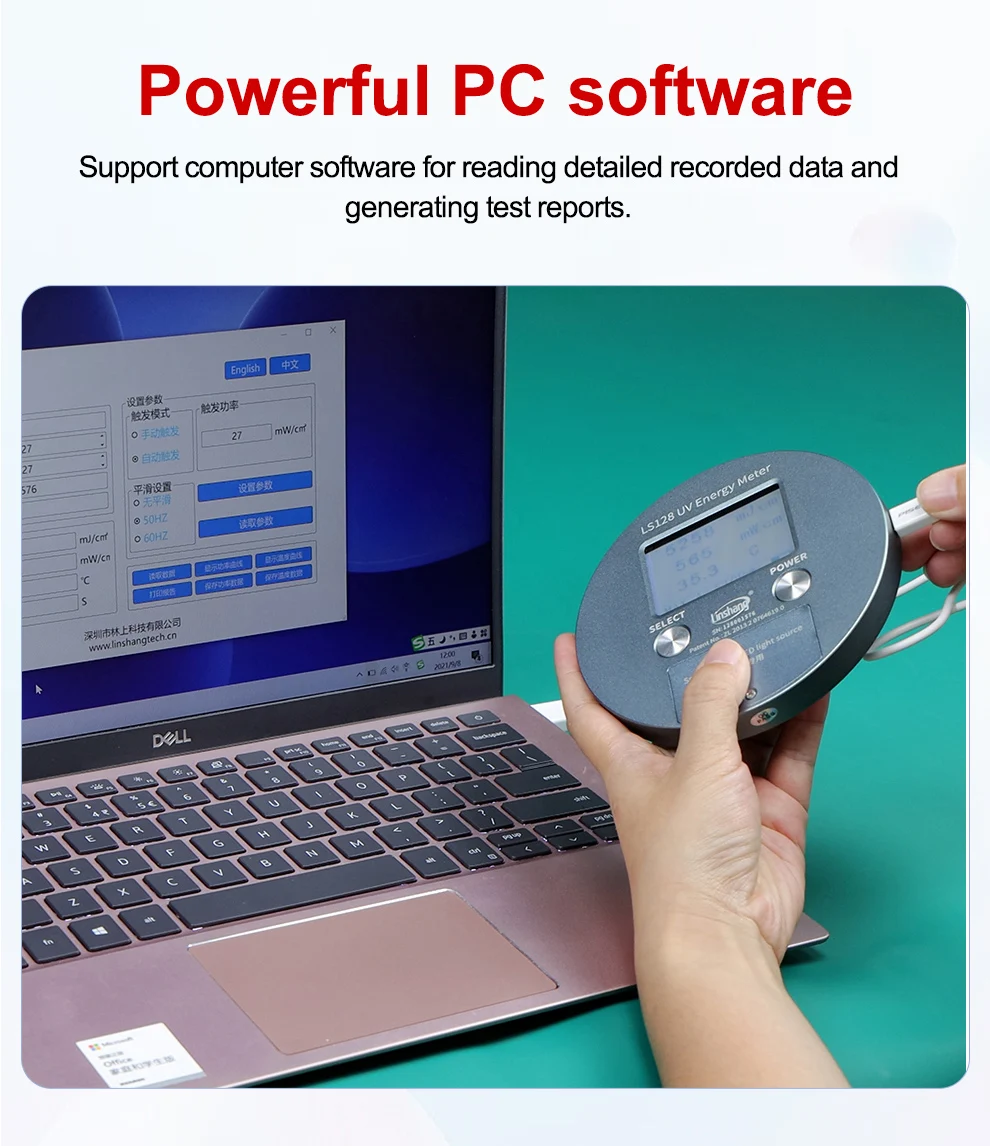

Powerful PC software

Support computer software for reading detailed recorded data and generating test reports.

Two measurement modes available

Switching between manual and auto mode is possible according to different testing environments.

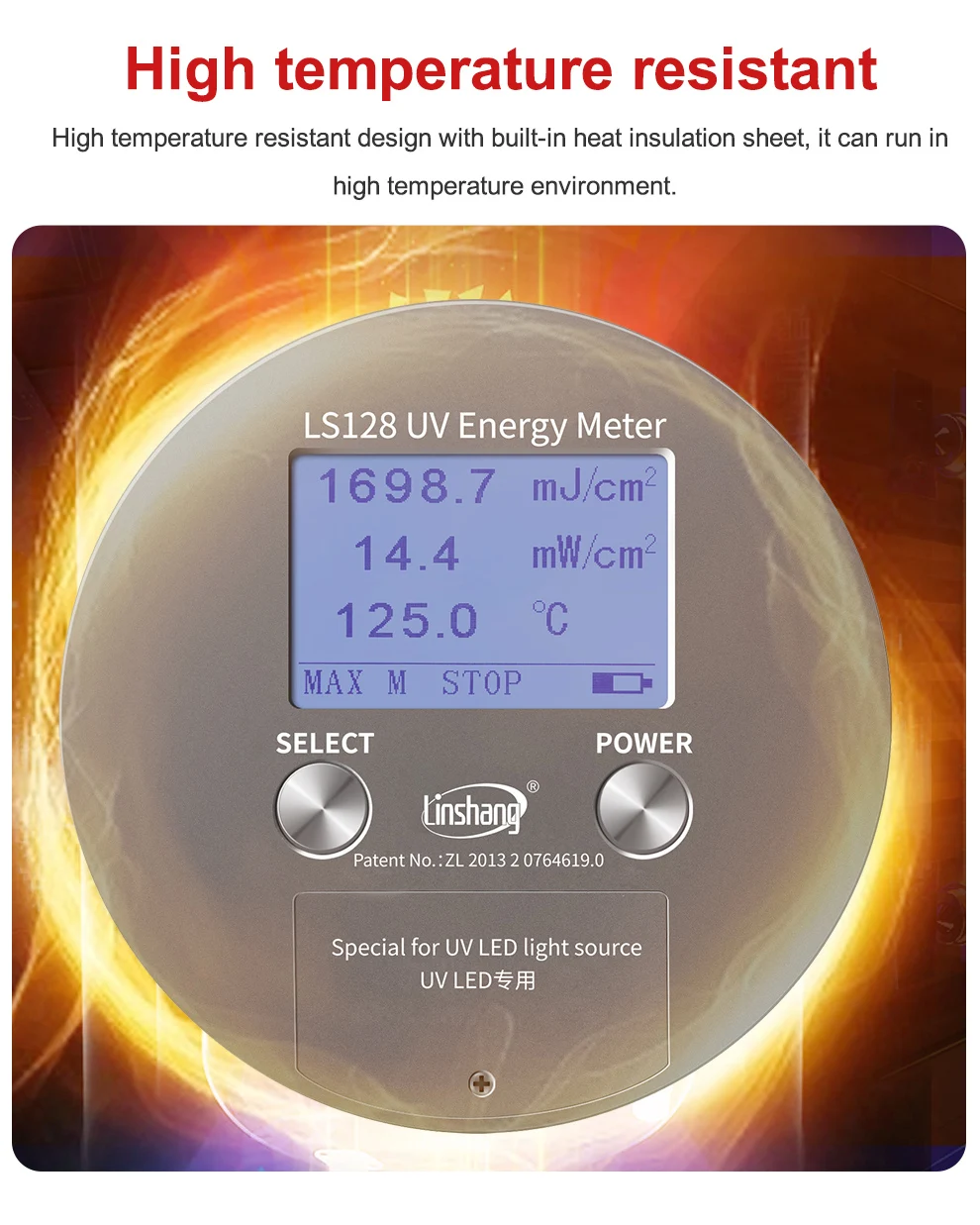

High temperature resistant

High temperature resistant design with built-in heat insulation sheet, it can run in high temperature environment.

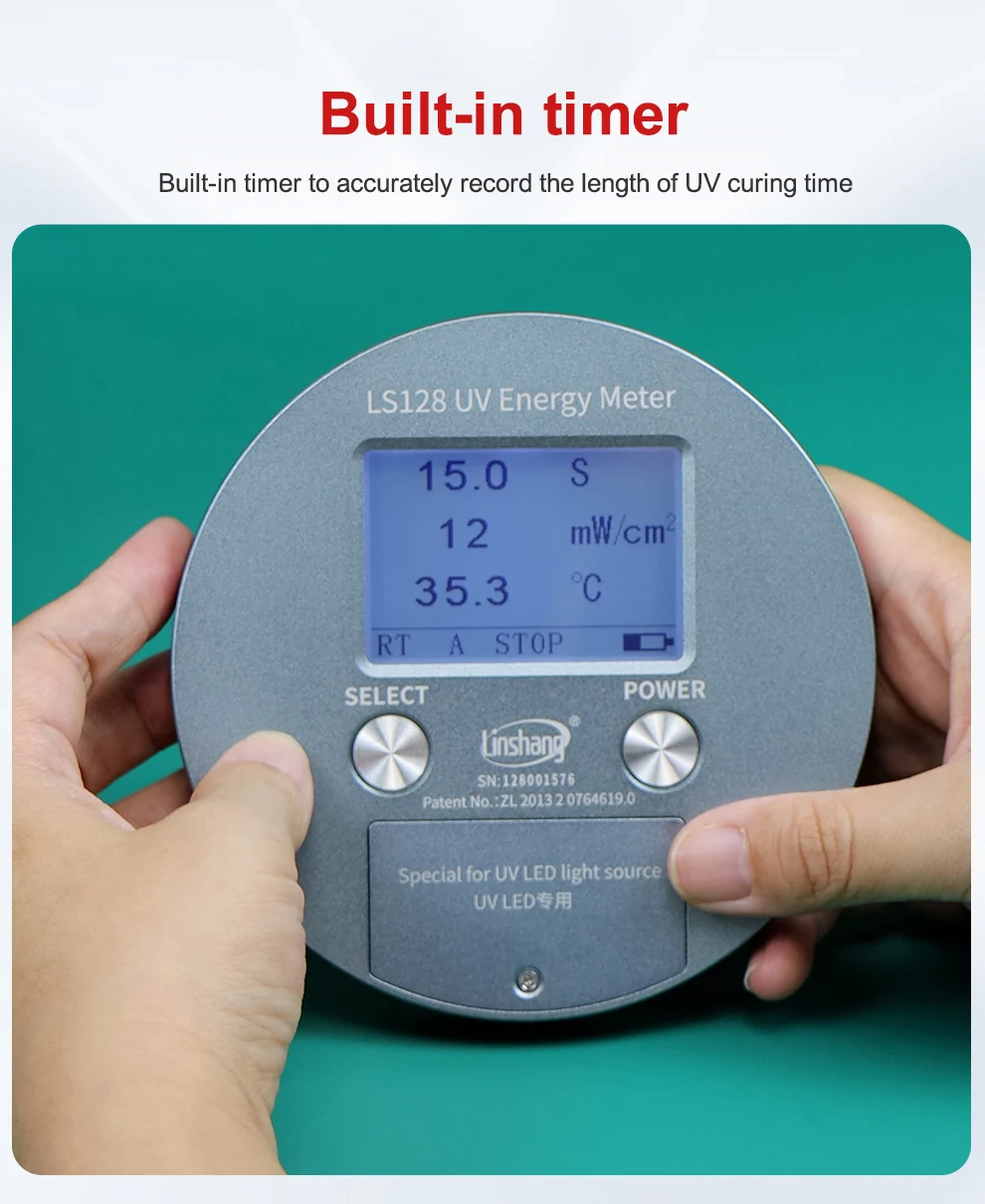

Built-in timer

Built-in timer to accurately record the length of UV curing time.

1. LS128 UV Energy Meter *1

2. USB cable *1

3. USB disk *1

4. Antistatic gloves *1

5. Cross head screw-driver *1

6. User manual *1

7. Certificate/Warranty card *1

8. Plastic box dimension 25*21*7cm (L*W*H) *1
