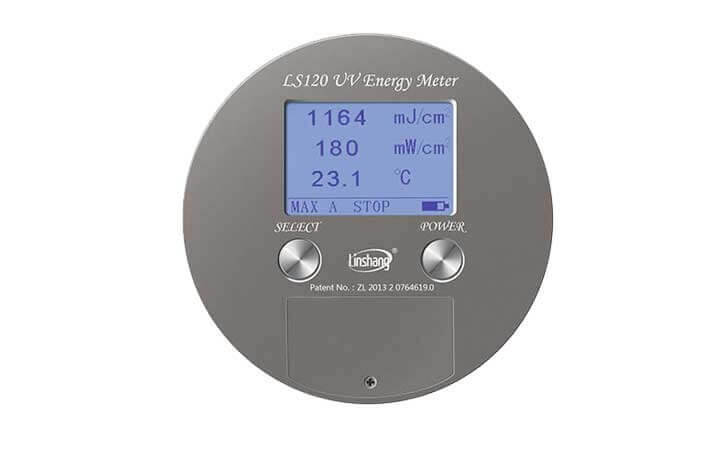

Linshang,LS120 UV Energy Meter,Uv Energy Meter Uva Tester, LS120 High Pressure Mercury Measure Energy, Power and Temperature Lamp,

Parameter

Description

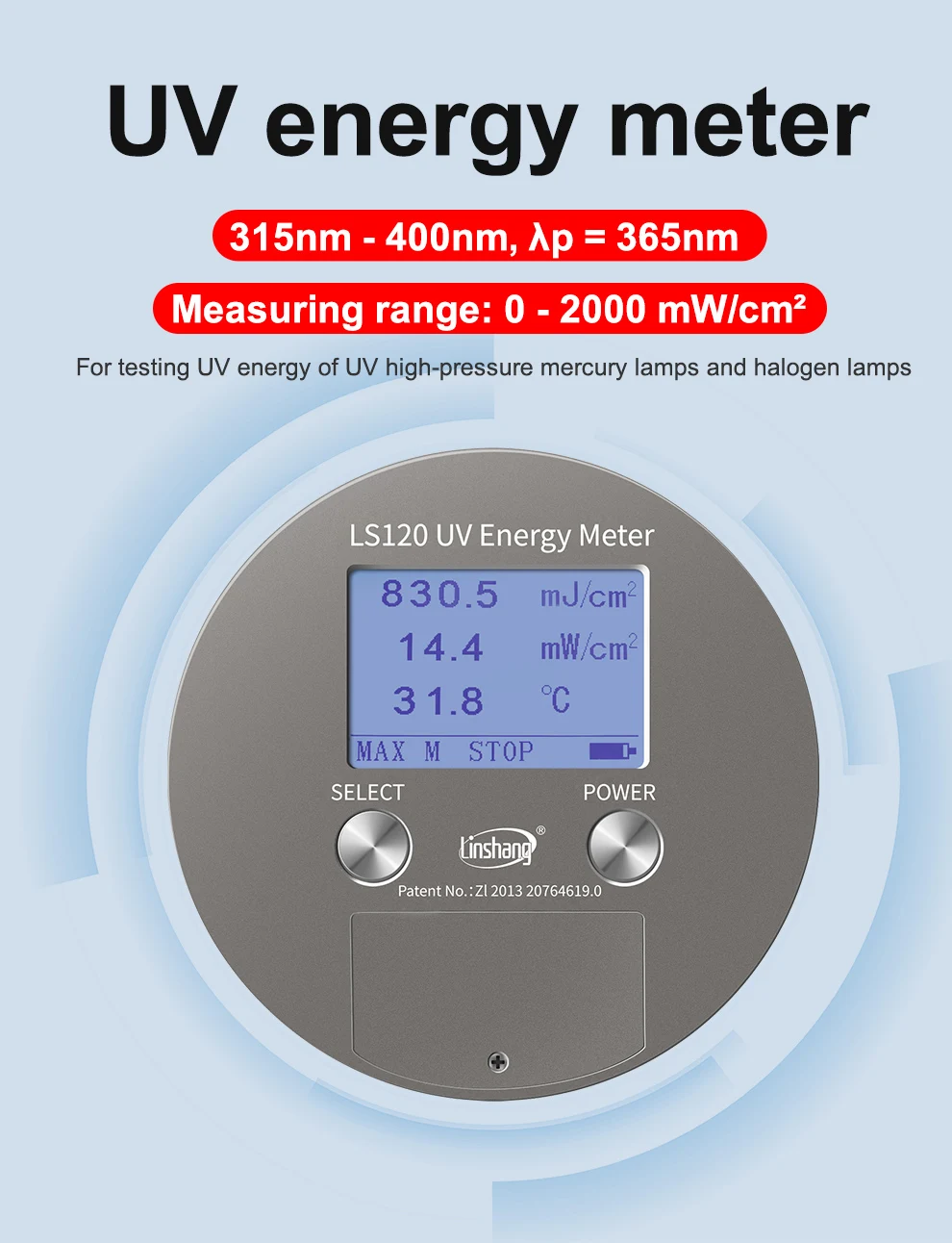

LS120 UV energy meter is suitable for UV energy testing in the curing industry. It can test UV energy, power, temperature and time at the same time. With power curve and temperature display, export data and print test reports and other functions. It is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing, etc. It is suitable for UV high-pressure mercury lamps, halogen lamps, gallium lamps, iron lamps, xenon lamps and other light sources.

Specifications

1. Application: Light intensity, energy and temperature measurement of high pressure mercury lamp

2. Spectral range: 315nm - 400nm, λp = 365nm

3. Power measuring range: 0 - 2000 mW/cm²

4. Power resolution: 0.1 mW/cm²

5. Energy measuring range: 0 - 999999mJ/cm²

6. Energy measuring accuracy: ± 10% , ± 5% (typical)

7. Temperature measuring range: -55°C - +125°C

8. Sampling speed: 2048 times/second

9. Power data storage interval: 32 times/second

10. Temperature data storage interval: 2 times/second

11. Recording period: 32 min

12. Power supply: 2 AAA alkaline dry batteries

13. Display: Dot matrix LCD

14. Test Hole Diameter: Φ10mm

15. Dimension: Diameter 120mm * thickness 13mm

16. Weight: 327g

Features

1. Dedicated to high-pressure mercury lamps, halogen lamps UV testing.

2. Simultaneous measurement of energy, power and temperature, and display of power and temperature curves.

3. Complimentary computer software for reading detailed test data and generating test reports.

4. Highly accurate temperature detector for dynamic temperature measurement during curing process.

5. High-speed data acquisition at 2048 times/second for more accurate measurement data.

6. With independent intellectual property rights, can pass authoritative metrology institute testing.

7. Automatic mode, manual mode can be switched, suitable for a variety of testing environments.

8. Built-in timer to accurately record the length of UV curing time.

Versatile applications

It is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing, etc.

Energy, power and temperature measurement simultaneously

It can simultaneously measure energy value, power value and temperature.

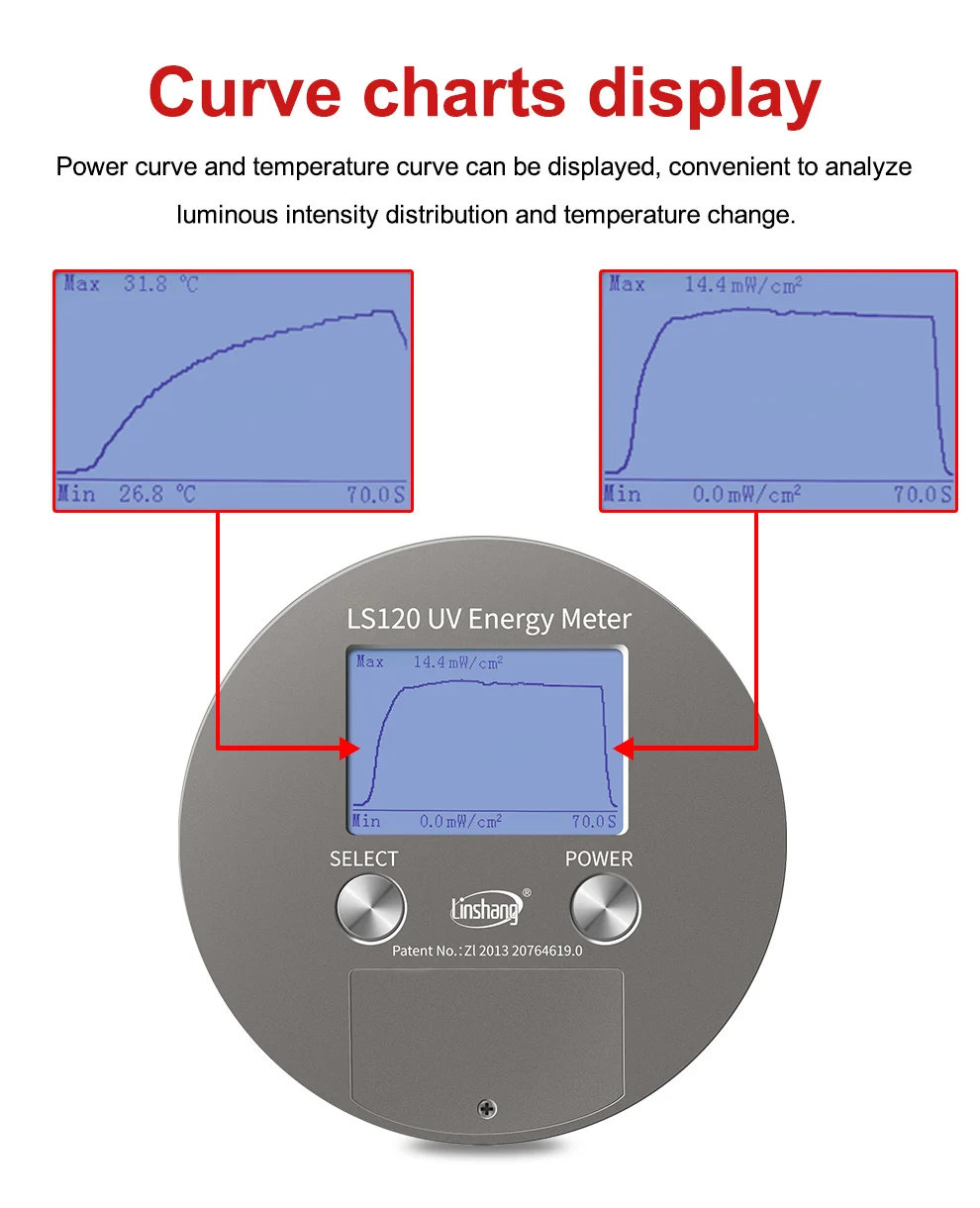

Curve charts display

Power curve and temperature curve can be displayed, convenient to analyze luminous intensity distribution and temperature change.

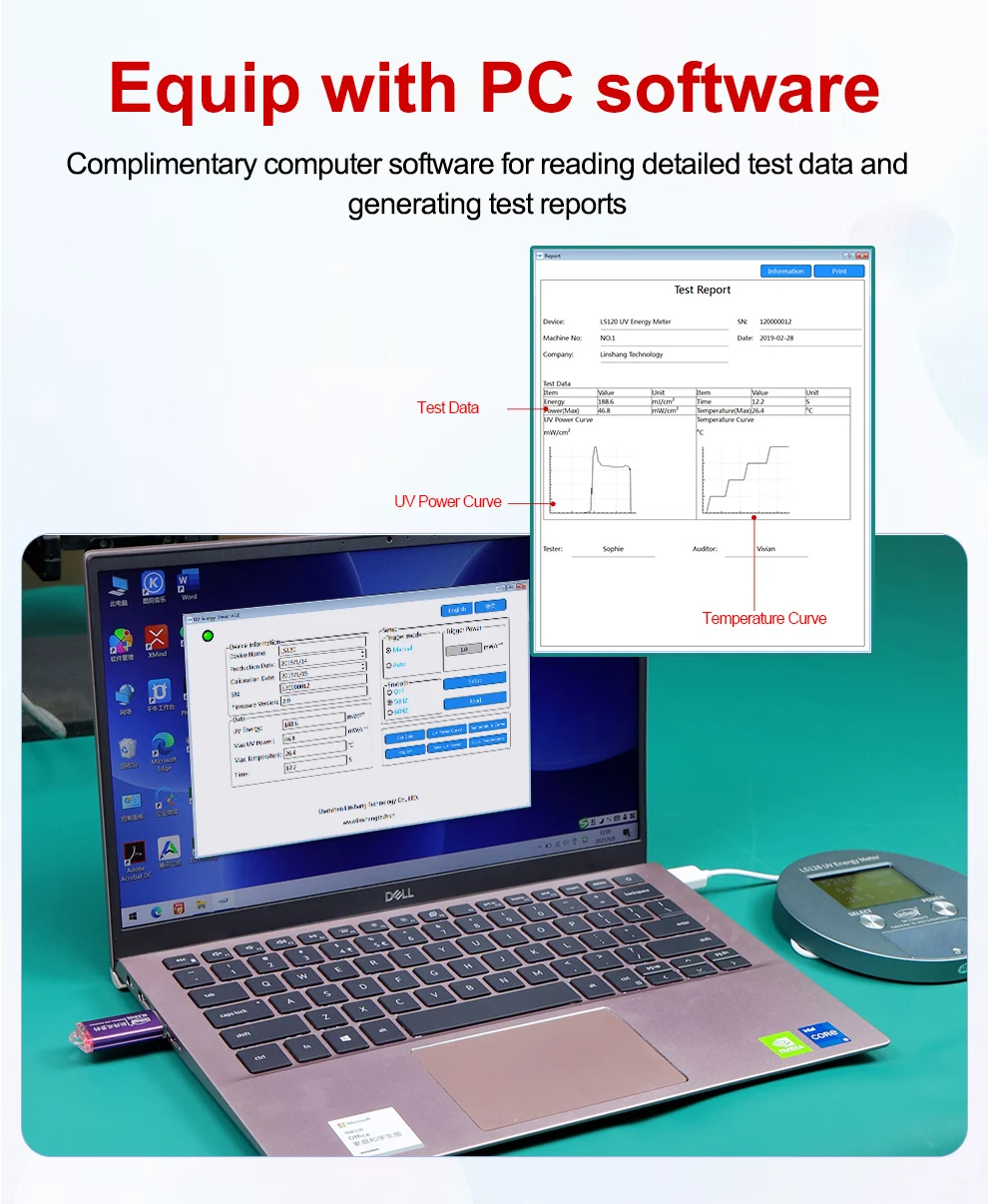

Equip with PC software

Complimentary computer software for reading detailed test data and generating test reports.

Pass authoritative metrology institute testing

With independent intellectual property rights, can pass authoritative metrology institute testing.

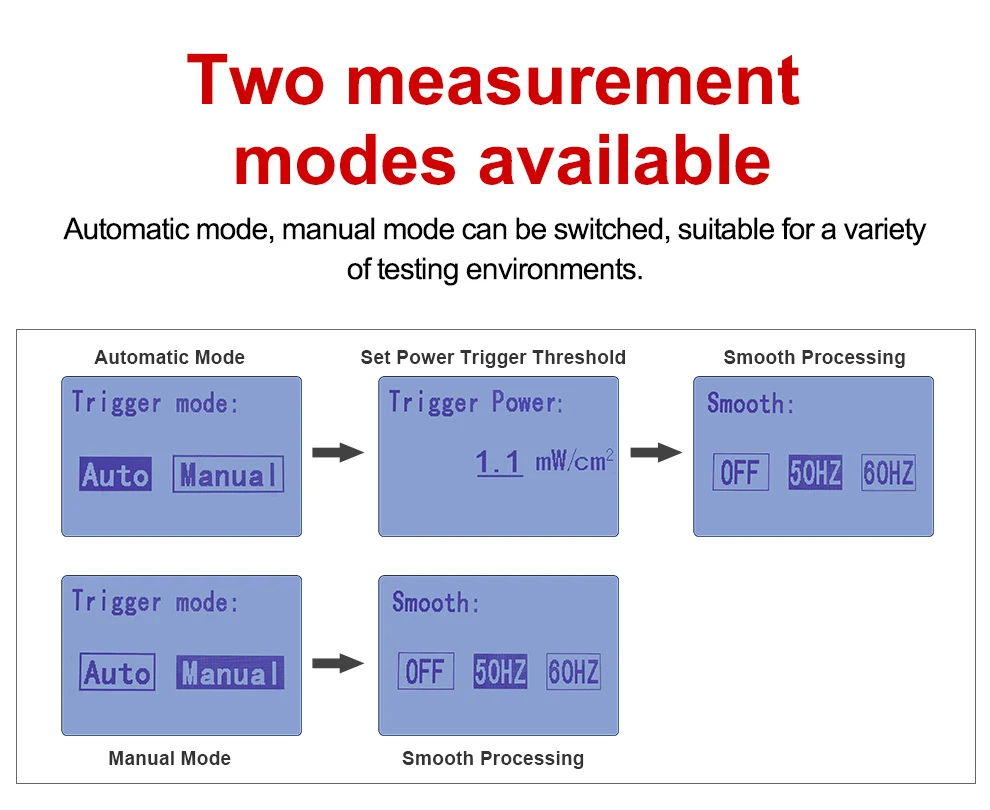

Two measurement modes available

Automatic mode, manual mode can be switched, suitable for a variety of testing environments.

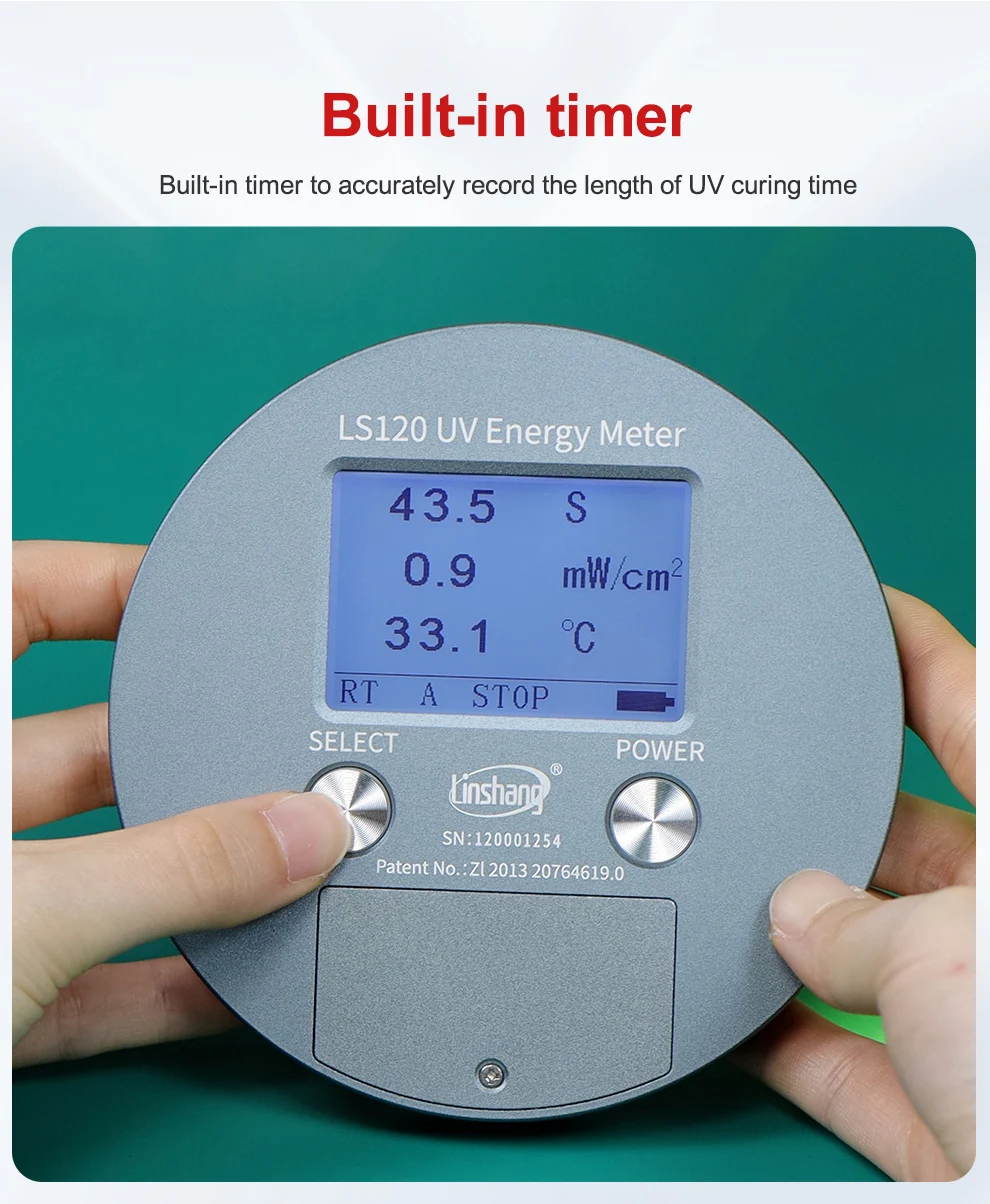

Built-in timer

Built-in timer to accurately record the length of UV curing time

1. LS120 UV Energy Meter *1

2. USB cable *1

3. USB disk *1

4. Antistatic gloves *1

5. Cross head screw-driver *1

6. User manual *1

7. Certificate/Warranty card *1

8. Plastic box dimension 25*21*7cm (L*W*H) *1
