Linshang, LS136 UV Energy Meter,Uv Energy Meter Radiometer, LS136 Halogen Lamp Uva Light Sources Measure Energy, Power and Temperature High Precision Ultra-small,

Parameter

Description

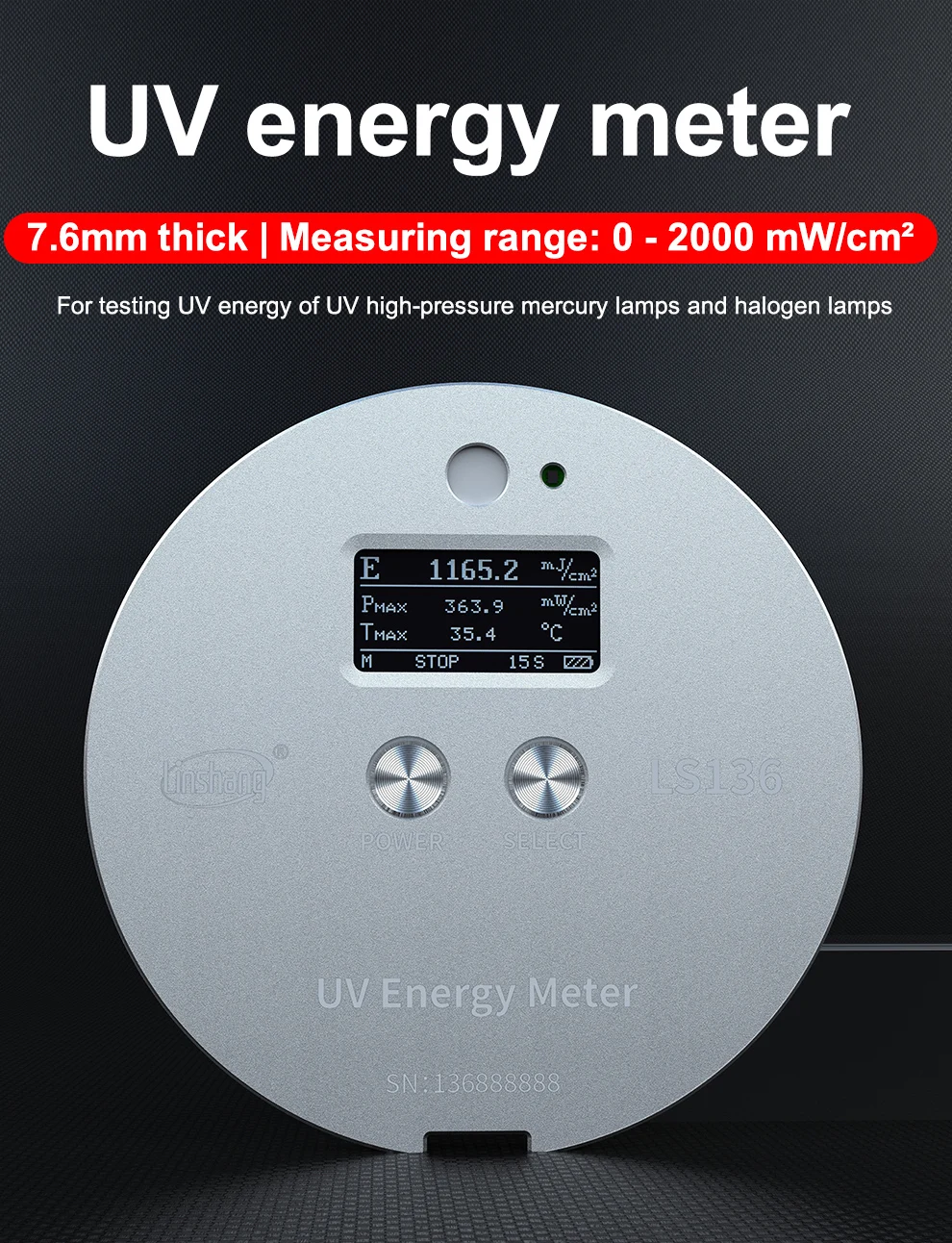

LS136 UV energy meter is a professional UV testing instrument used to detect UV energy and intensity in high pressure mercury lamps, halogen lamps and other light sources. It can be used to measure UV intensity, energy and temperature in various UV curing machines, UV coating machines, exposure machines, dryers, printing machines and other equipment. Adopting disc type design, the body is more slim. Simple operation, equipped with high temperature protection cover, fearless of high temperature environment. High precision ensuring that it can pass the test of the authoritative metrology institute.

Specifications

1. Spectral range: 315nm-400nm, λp = 365nm

2. Power measuring range: 0-2000mW/cm²

3. Power resolution: 0.1mW/cm²

4. Energy measuring range: 0-999999mJ/cm²

5. Energy measuring accuracy: ±10%, ±5% (typical)

6. Sampling speed: 2048 times/second

7. Recording period: 32 min

8. Power supply: Rechargeable lithium battery 3.7V@400mAh

9. Display: 128X64 Dot matrix OLED

10. Dimension: Diameter 102mm* thickness 7.6mm

11. Weight: 136g

Features

1. Display of real-time power and temperature, energy, maximum power and maximum temperature.

2. Spectral range of 315nm-400nm, specializing in high-pressure mercury lamps, halogen lamps.

3. Automatic mode, manual mode can be switched, suitable for a variety of testing environments.

4. Only 7.6mm thick, lighter body weight, suitable for narrow spaces.

5. High-temperature protective cover is provided, which can be operated in high-temperature environment.

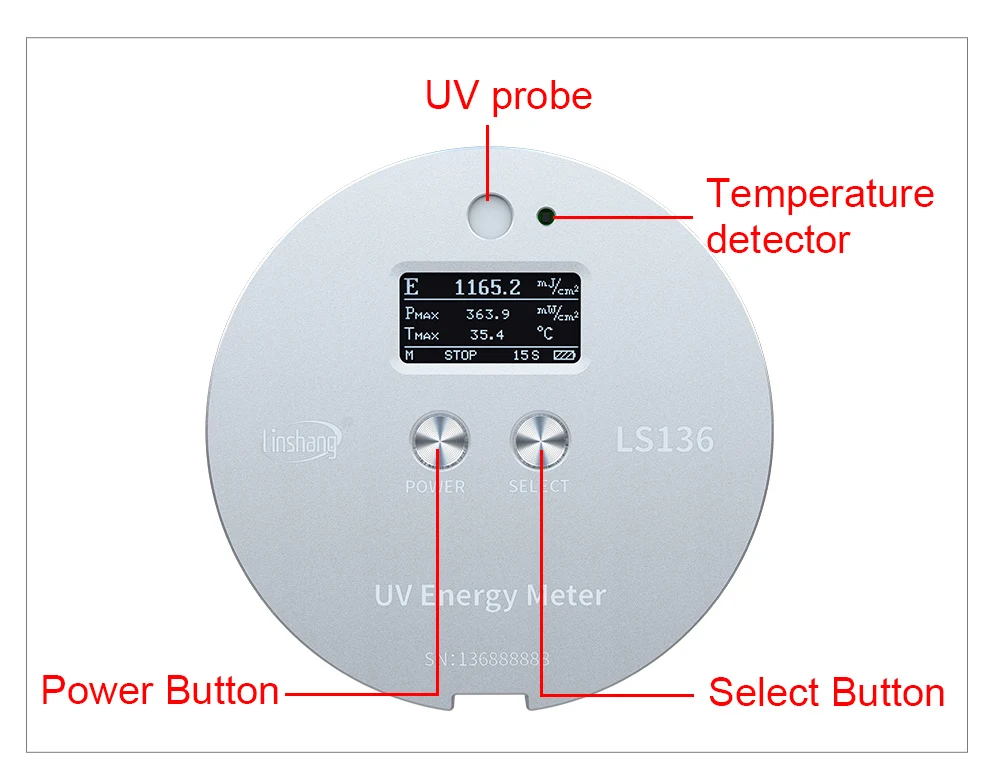

6. Built-in high-precision temperature detector and timer to measure temperature and measurement time.

7. High precision ensuring that it can pass the test of the authoritative metrology institute.

8. 2048 times/second high-speed sampling, provide more accurate data.

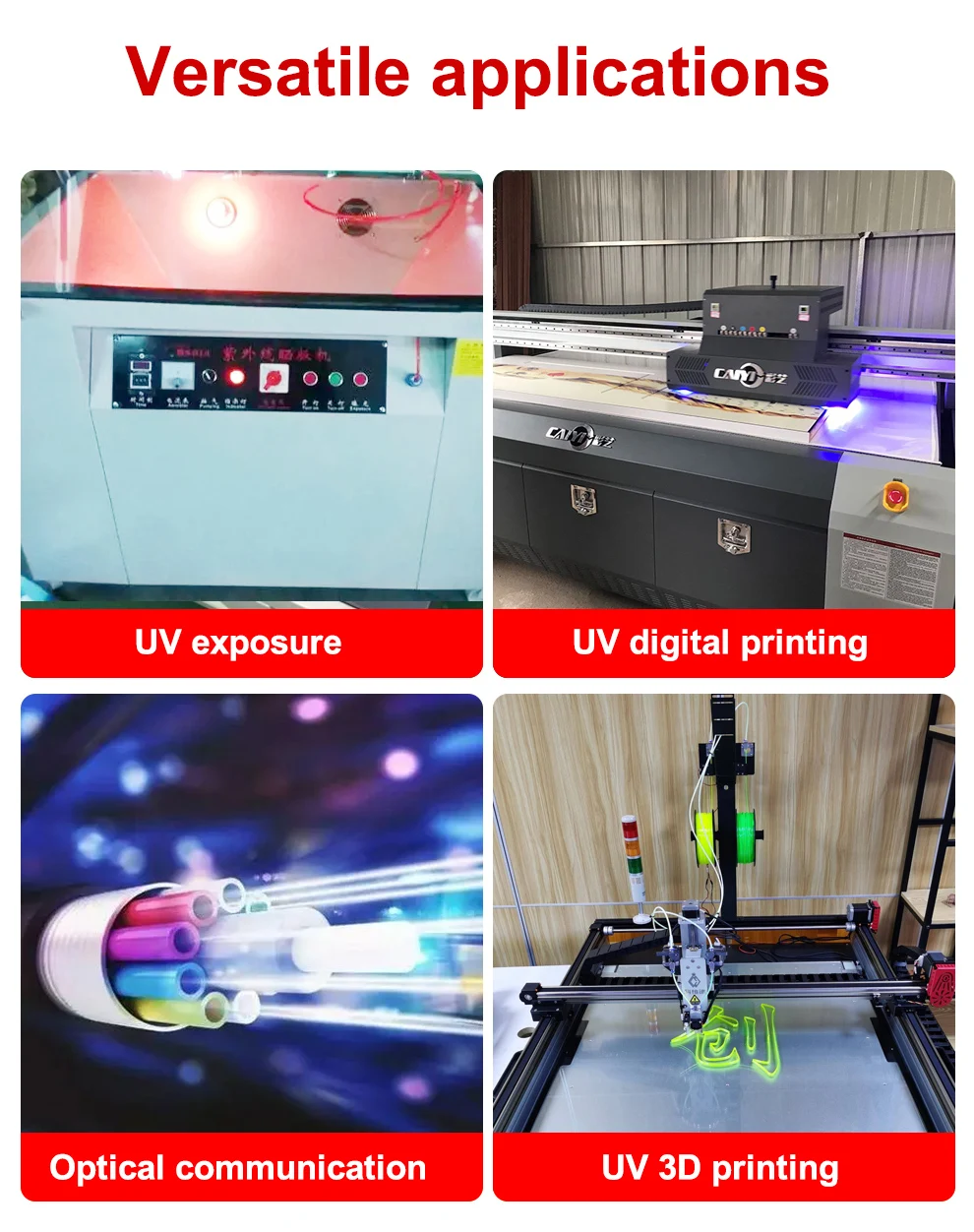

Versatile applications

It is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing, etc.

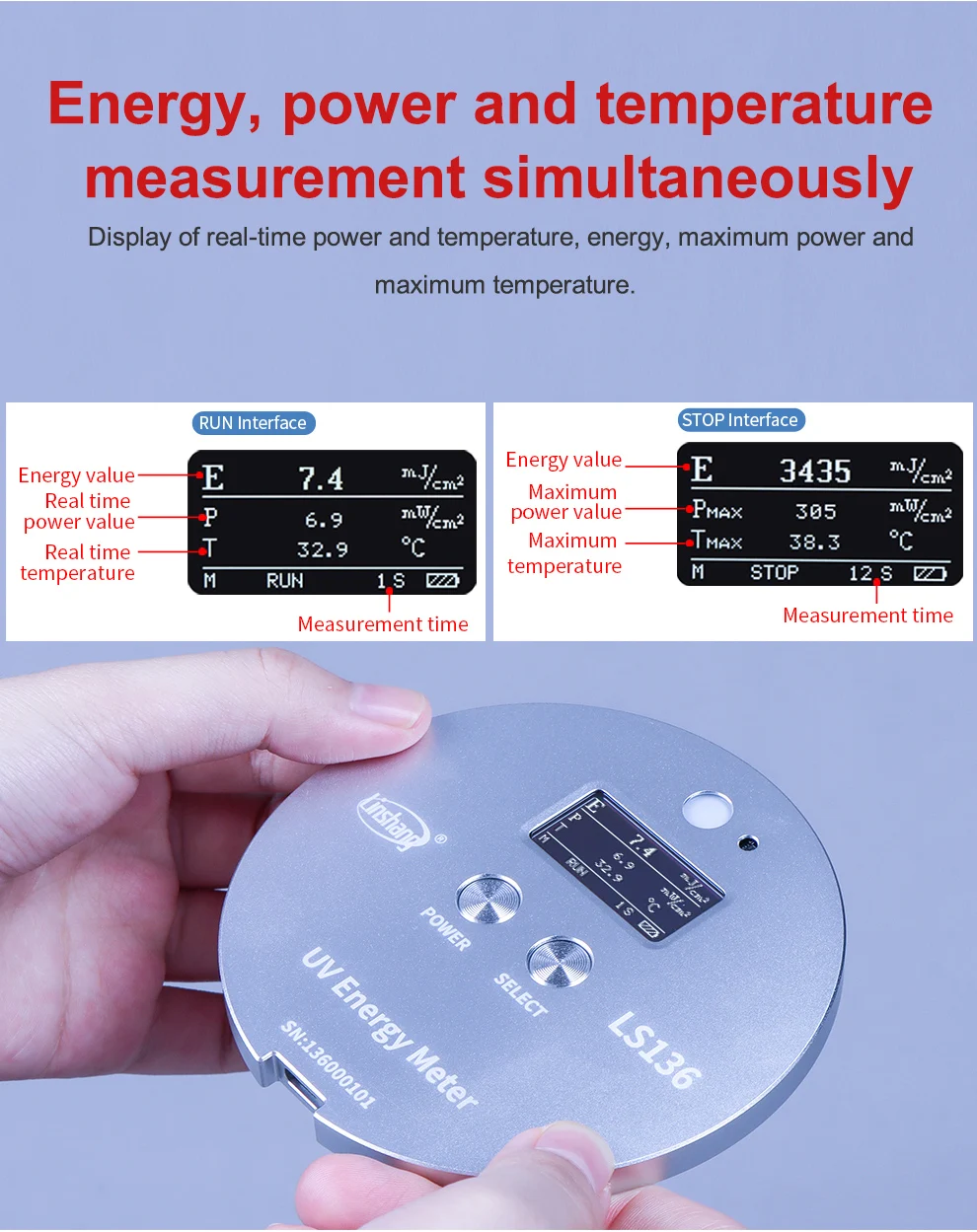

Energy, power and temperature measurement simultaneously

Display of real-time power and temperature, energy, maximum power and maximum temperature.

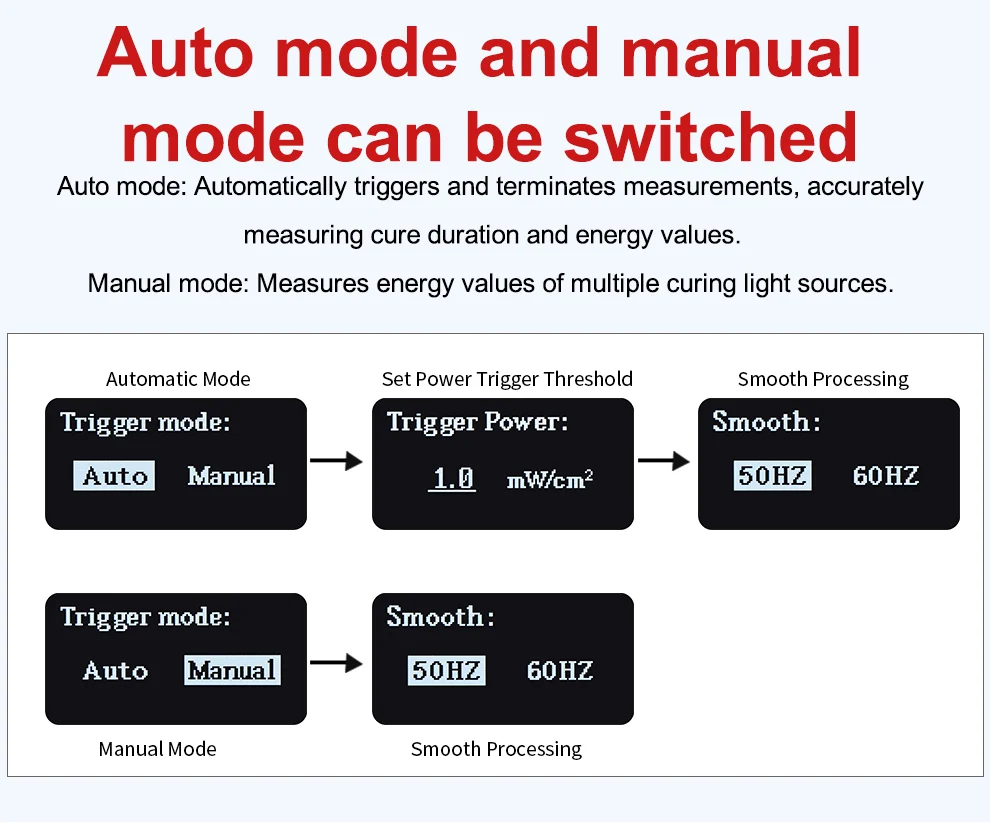

Auto mode and manual mode can be switched

Auto mode: Automatically triggers and terminates measurements, accurately measuring cure duration and energy values.

Manual mode: Measures energy values of multiple curing light sources.

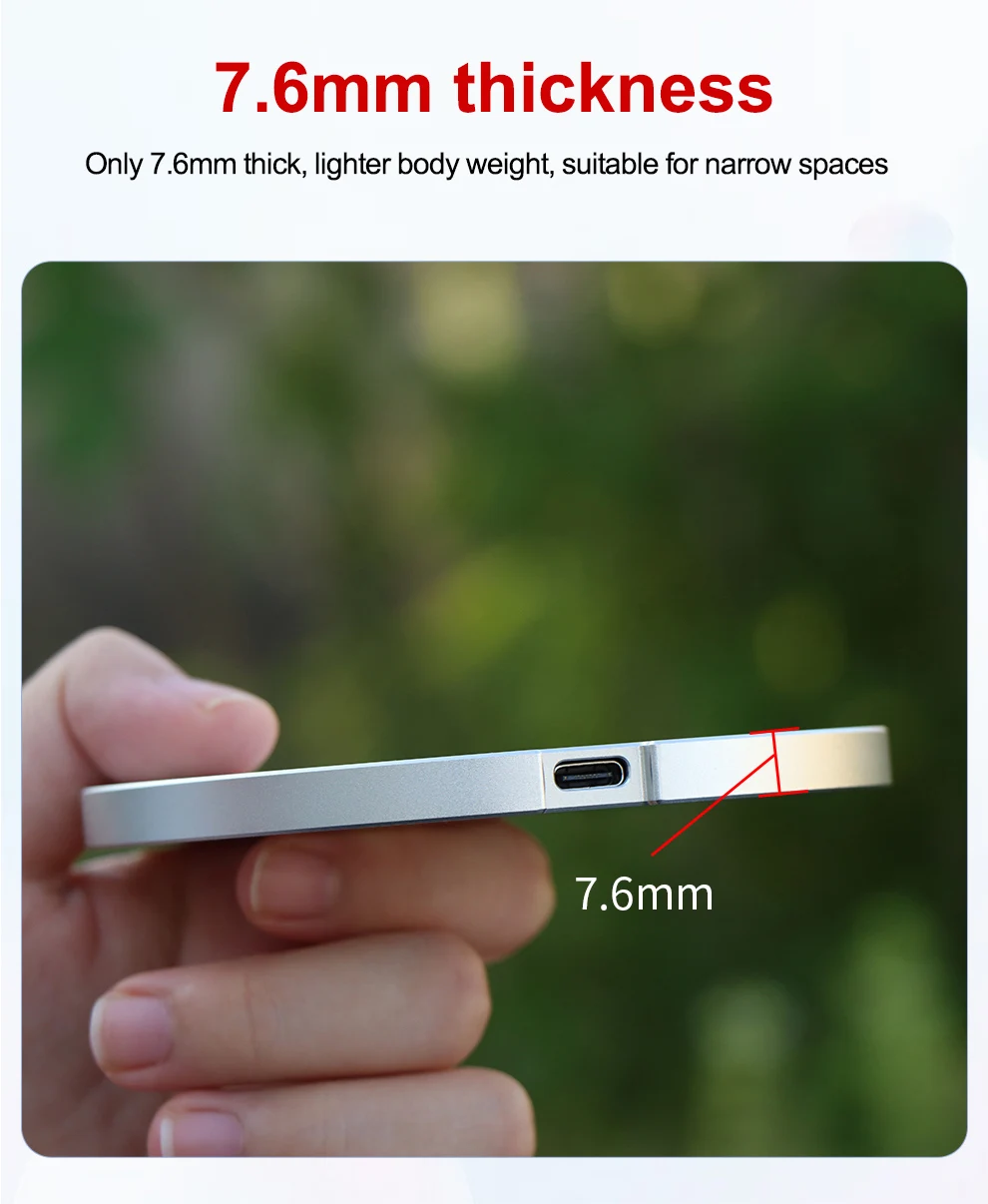

Ultra-thin design

Only 7.6mm thick, lighter body weight, suitable for narrow spaces.

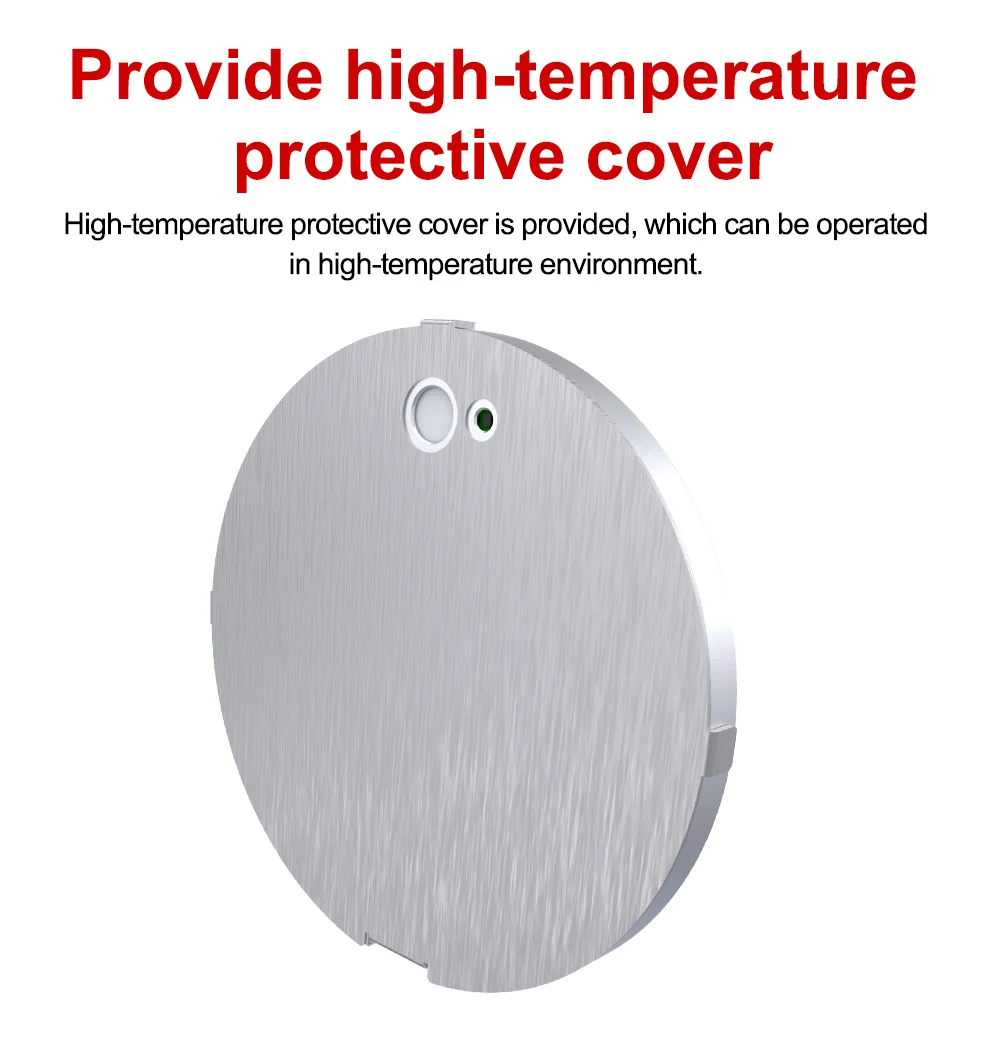

Provide high-temperature protective cover

High-temperature protective cover is provided, which can be operated in high-temperature environment.

High-precision temperature detector and timer

Built-in high-precision temperature detector and timer to measure temperature and measurement time.

Pass authoritative metrology institute testing

High precision ensuring that it can pass the test of the authoritative metrology institute.

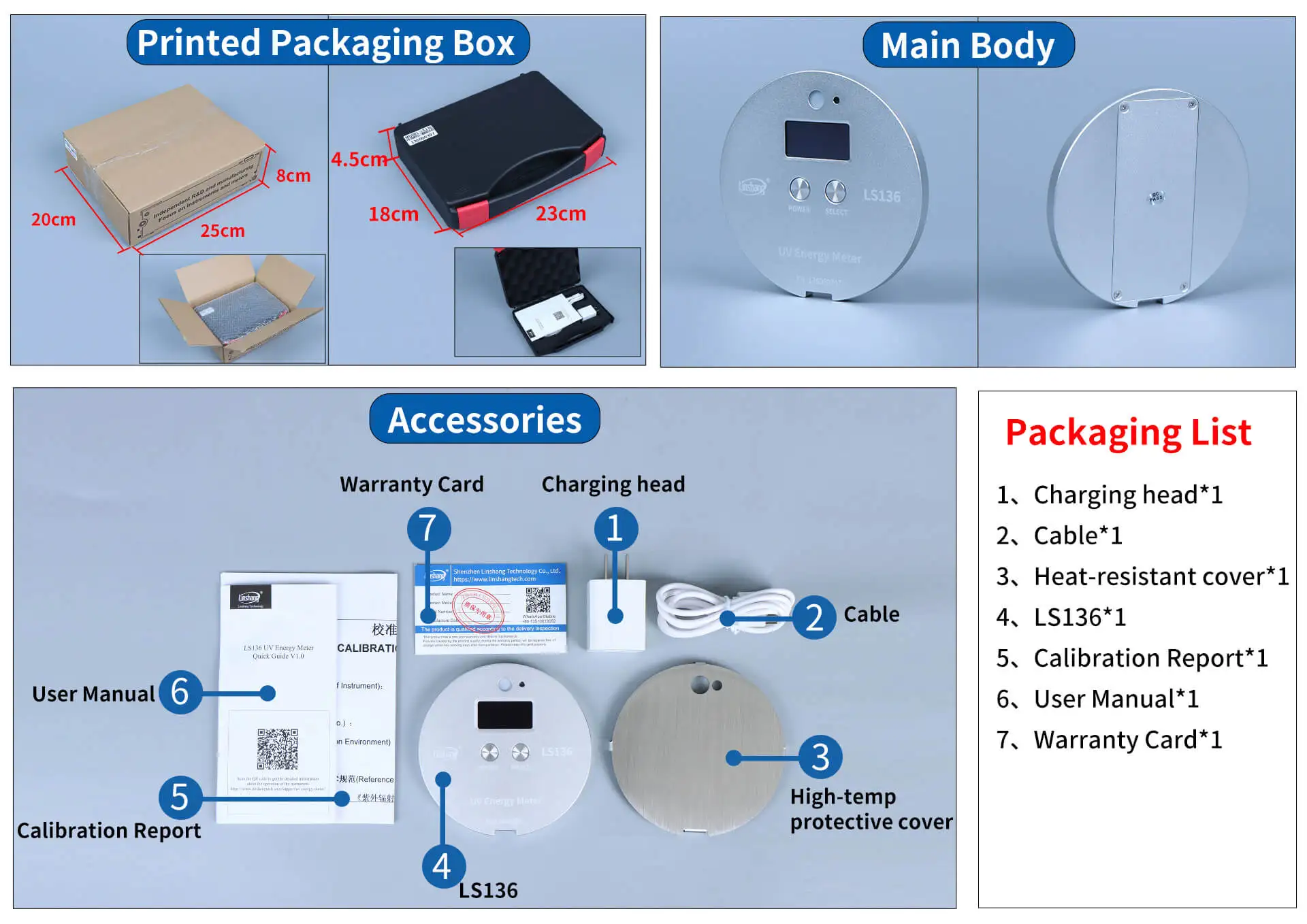

1. LS136 UV energy meter

2. USB cable

3. DC5V power adapter

4. User manual

5. Certificate/Warranty card

6. High temperature protective cover

7. Plastic engineering box
