Brand : Linshang,

Model: LS162A,

Type :  Transmission Meter.,

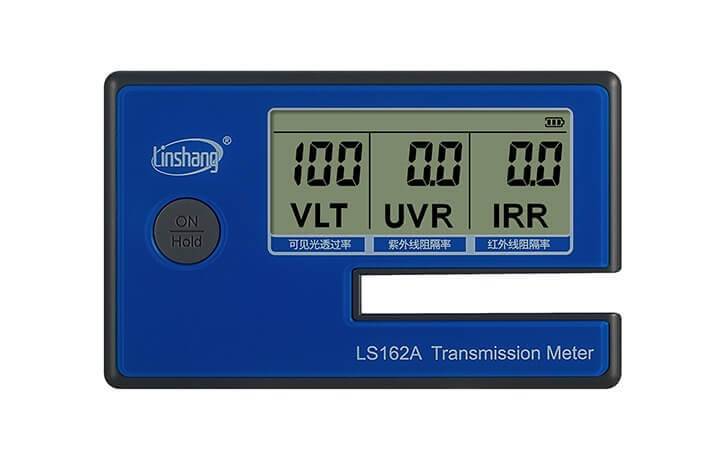

LS162A Transmission Meter

Measure side windshied, window tint and window film

Measure visible light transmittance of 380nm-760nm

Measure UV rejection rate at 365nm and IR rejection rate at 1400nm

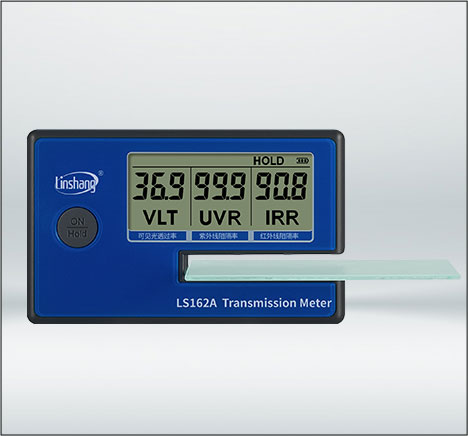

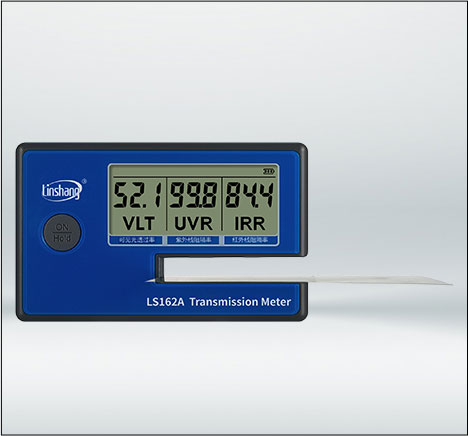

LS162A is our portable and classic solar film tester. The sophisticated meter measures not only visible light transmittance but also UV rejection rate and IR rejection rate. When placing glass or film on the test slot, the screen will show the measurement data at once. It is mainly suitable for optical properties of various uniform and transparent materials such as solar film, laminated glass and automobile side glass.

Tint Meter Solar Film Tester LS162A UV 365nm and IR 1400nm VLT Simple Operation Parallel Optical Path 8mm Measuring Thickness.

Parameter

Parameter	Value
UV peak wavelength	365nm
IR peak wavelength	1400nm
Visible light	380nm-760nm full wavelength, in line with CIE photopic luminosity function
Resolution	0.1%
Measurement accuracy	better than ± 2% (colorless and uniform transparent material)
Maximum sample thickness	<8mm
Weight	about 165g(batteries excluded)
Display	Segment LCD

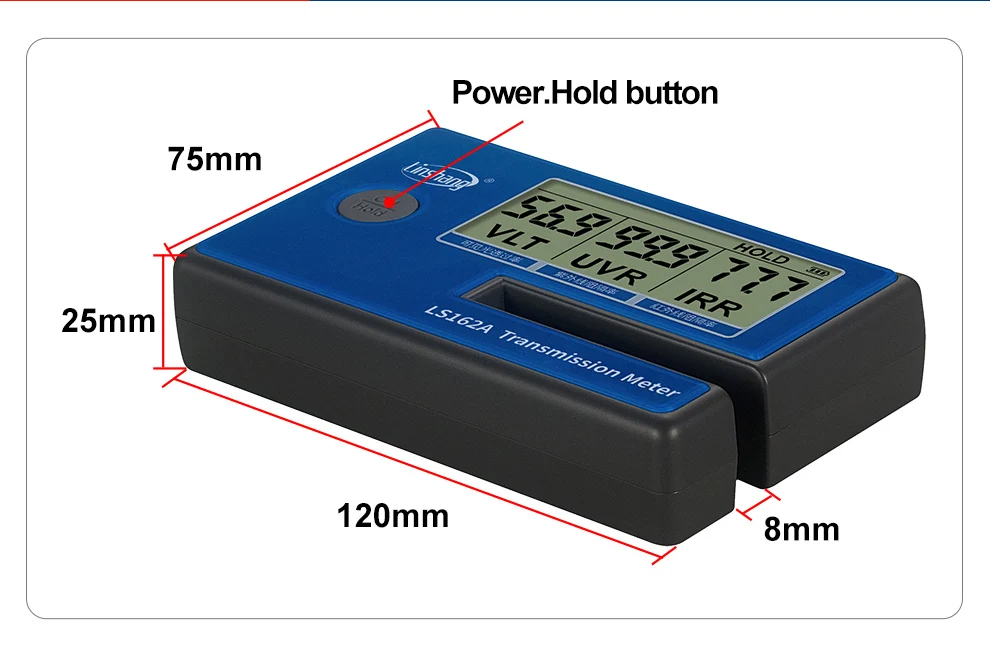

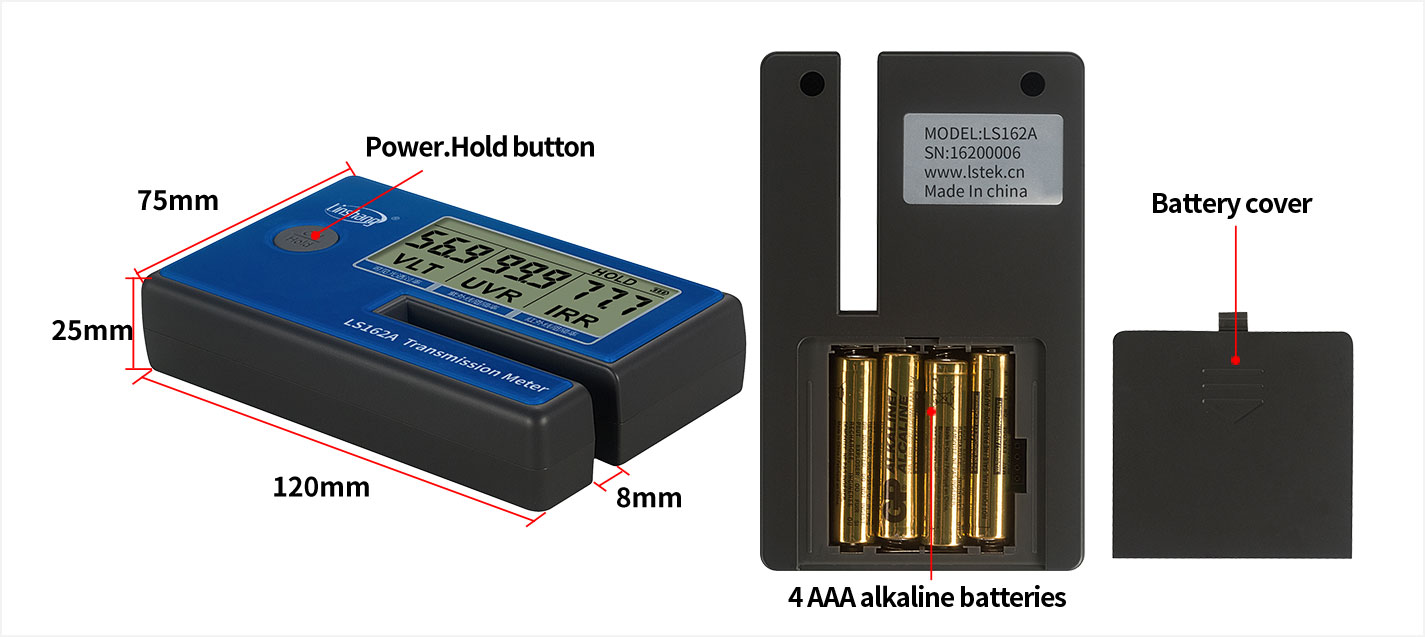

Dimension	120mm × 25mm× 75mm (L*W*H)
Power supply	4 AAA alkaline dry batteries



Description

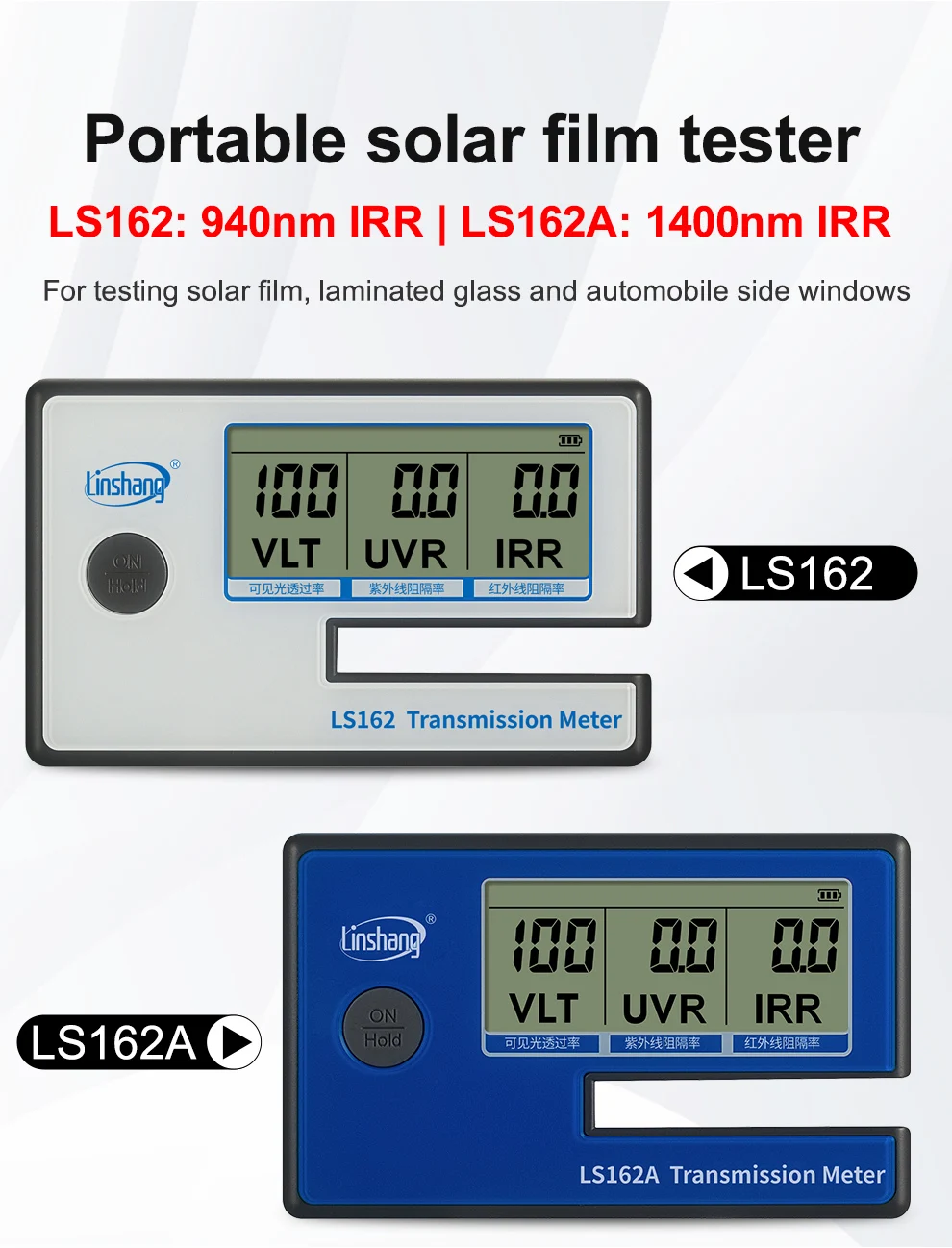

LS162/LS162A solar film tester is used to test the light transmittance, UV rejection and 940nm/1400nm IR rejection of materials. Compact size, easy to carry. With a test slot of 8mm and only one button, it is easy to operate and can be used to test laminated glass and solar film. The instrument has a real-time dynamic self-calibration function to ensure that the test data is more accurate. With data lock function, press the HOLD button to lock the test data after finishing the test.

Specifications

1. UV peak wavelength: 365nm

2. IR peak wavelength: 940/1400nm

3. Visible light: 380nm-760nm full wavelength, in line with CIE photopic luminosity function

4. Resolution: 0.1%

5. Measurement accuracy: better than ± 2% (colorless and uniform transparent material)

6. Maximum sample thickness: <8mm

7. Weight: about 165g (batteries excluded)

8. Display: Segment LCD

9. Dimension: 120mm × 25mm× 75mm (L*W*H)

10. Power supply: 4 AAA alkaline dry batteries

Features

1. Visible light transmittance, UV and IR rejection rate measurement at the same time.

2. Suitable for measuring solar film and laminated glass with 8mm test slots.

3. Simple operation, just put in the material to display the data immediately.

4. It is pocket-sized and easy to be carried outside for measurements.

5. With data lock function, press the HOLD button to lock the test data after finishing the test.

6. It has real-time dynamic self-calibration function, without test objects will automatically return to initial status.

7. Powered by 4 AAA alkaline dry batteries, ultra-low power consumption.

8. With CE certification and can pass the authoritative metrology institute testing.

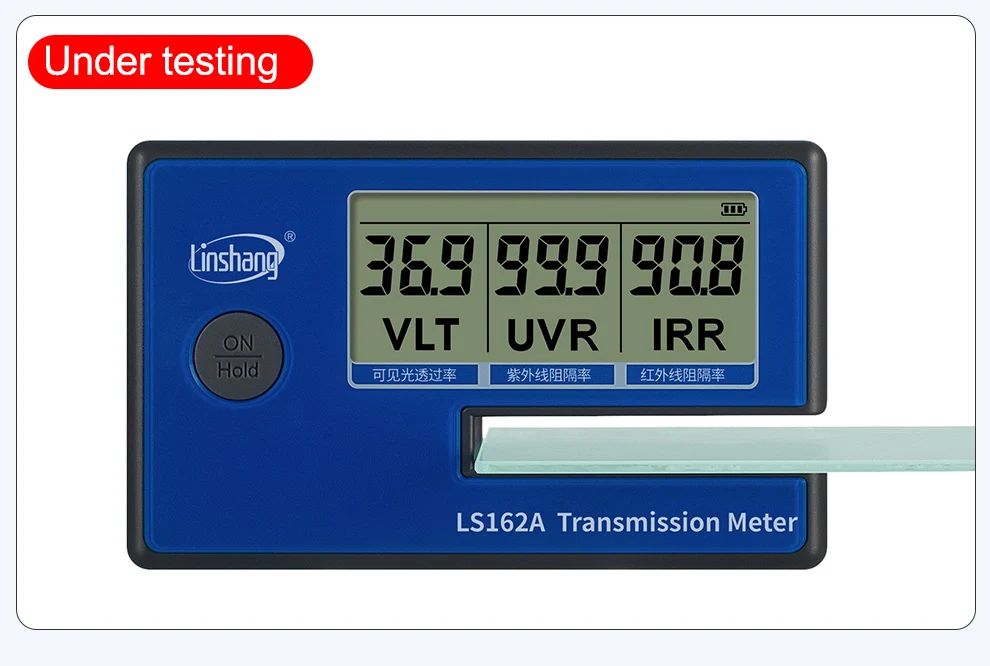

Simultaneous measurement VLT, UVR, IRR

Visible light transmittance, UV and IR rejection rate measurement at the same time.



8mm test slot

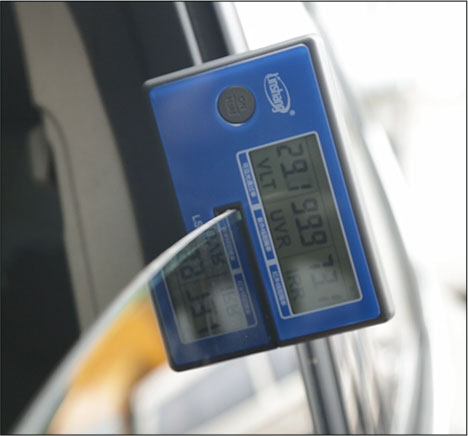

Suitable for measuring solar film, laminated glass and automobile side windows with 8mm test slots.

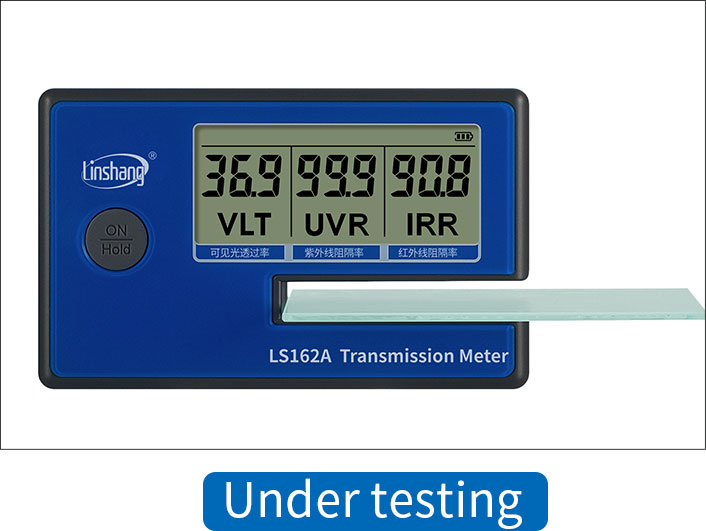

Simple operation

Simple operation, just put in the material to display the data immediately.

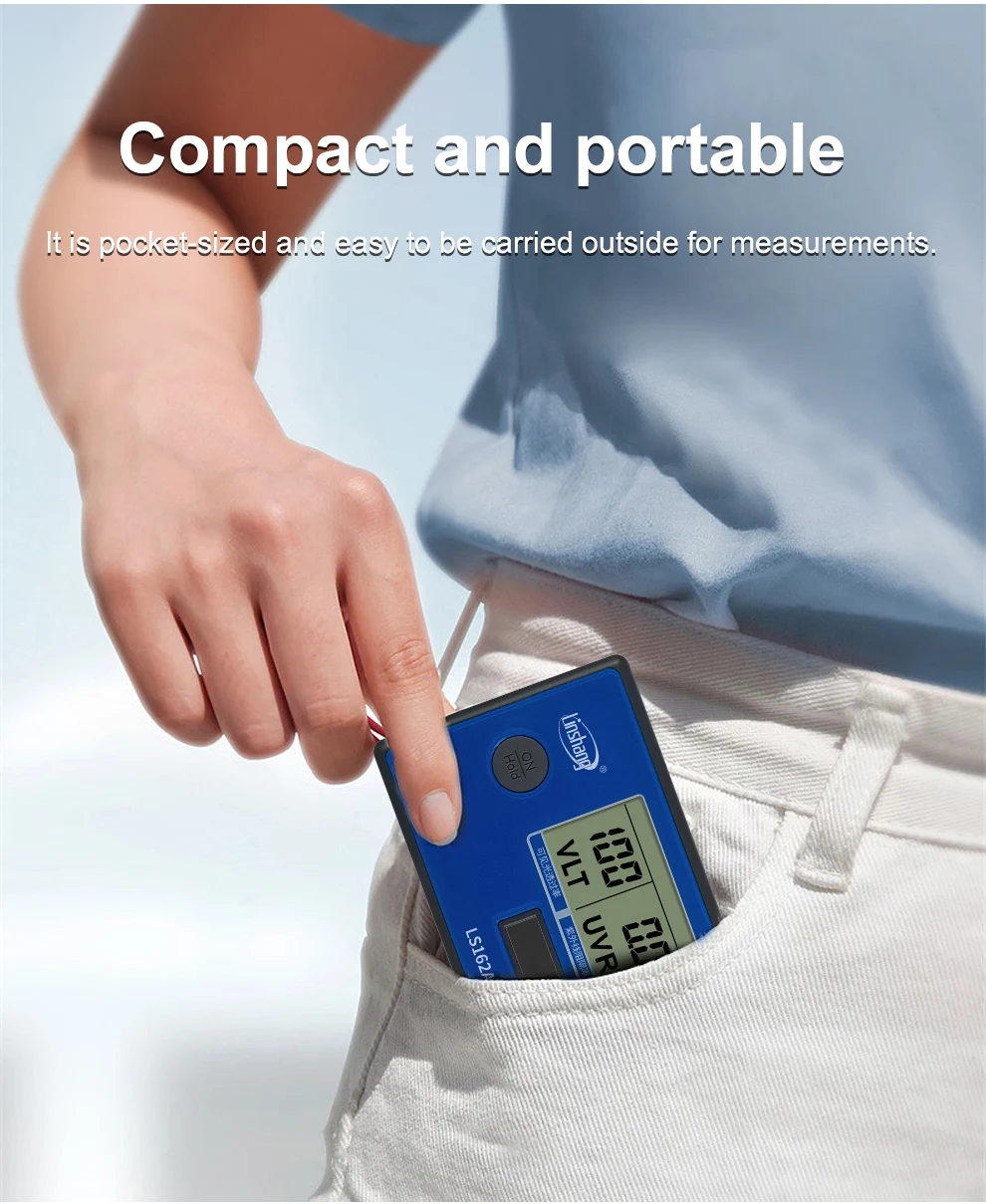

Compact and portable

It is pocket-sized and easy to be carried outside for measurements.

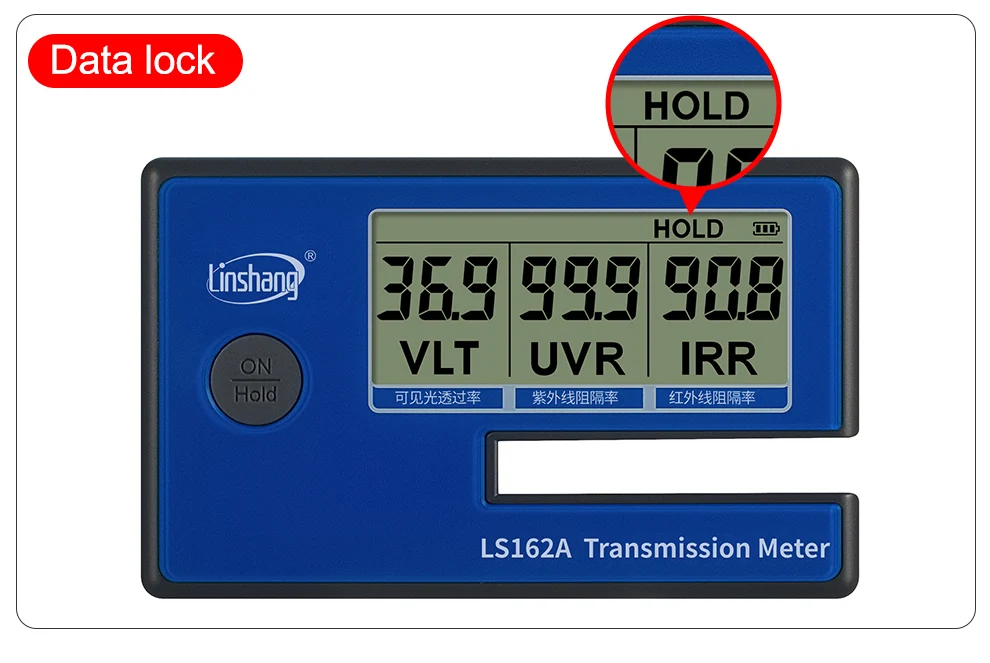

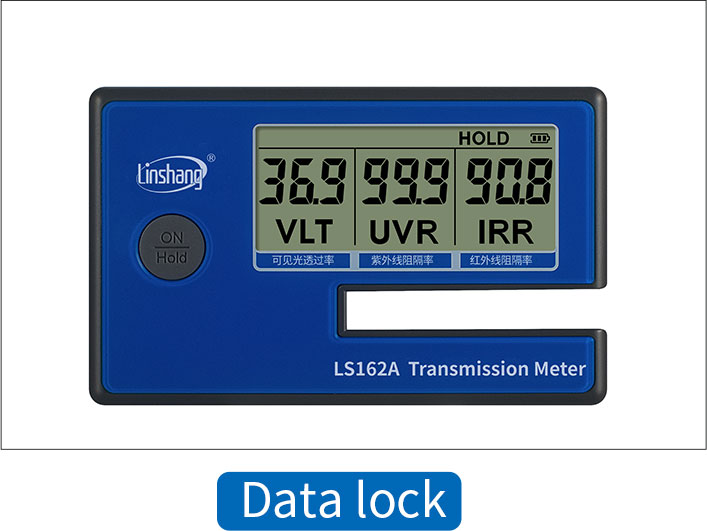

Data lock function

With data lock function, press the HOLD button to lock the test data after finishing the test.



Real-time dynamic self-calibration

It has real-time dynamic self-calibration function, without test objects will automatically return to initial status.



Ultra-low power consumption

Powered by 4 AAA alkaline dry batteries, ultra-low power consumption.

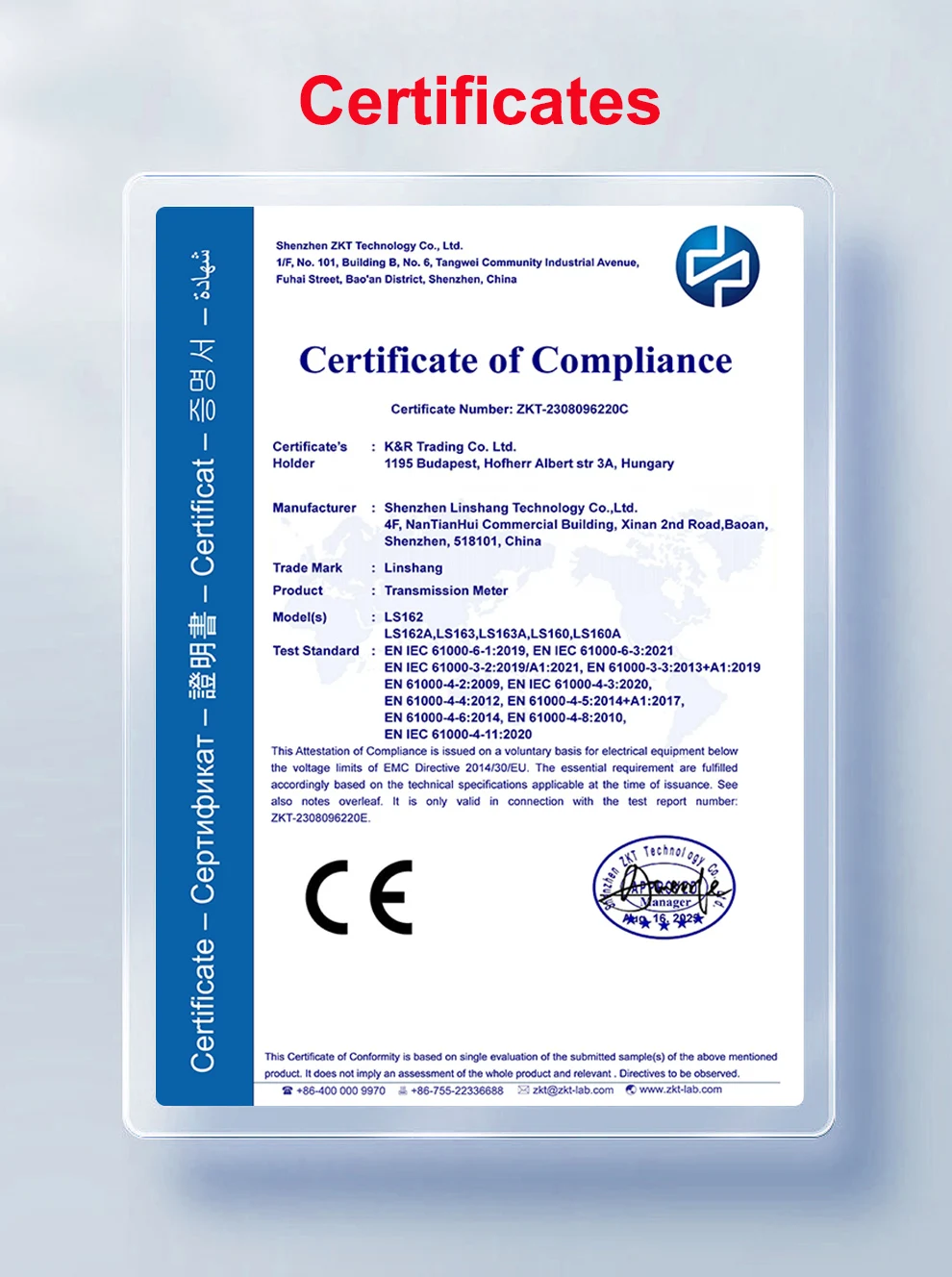

CE certificate

With CE certification and can pass the authoritative metrology institute testing.

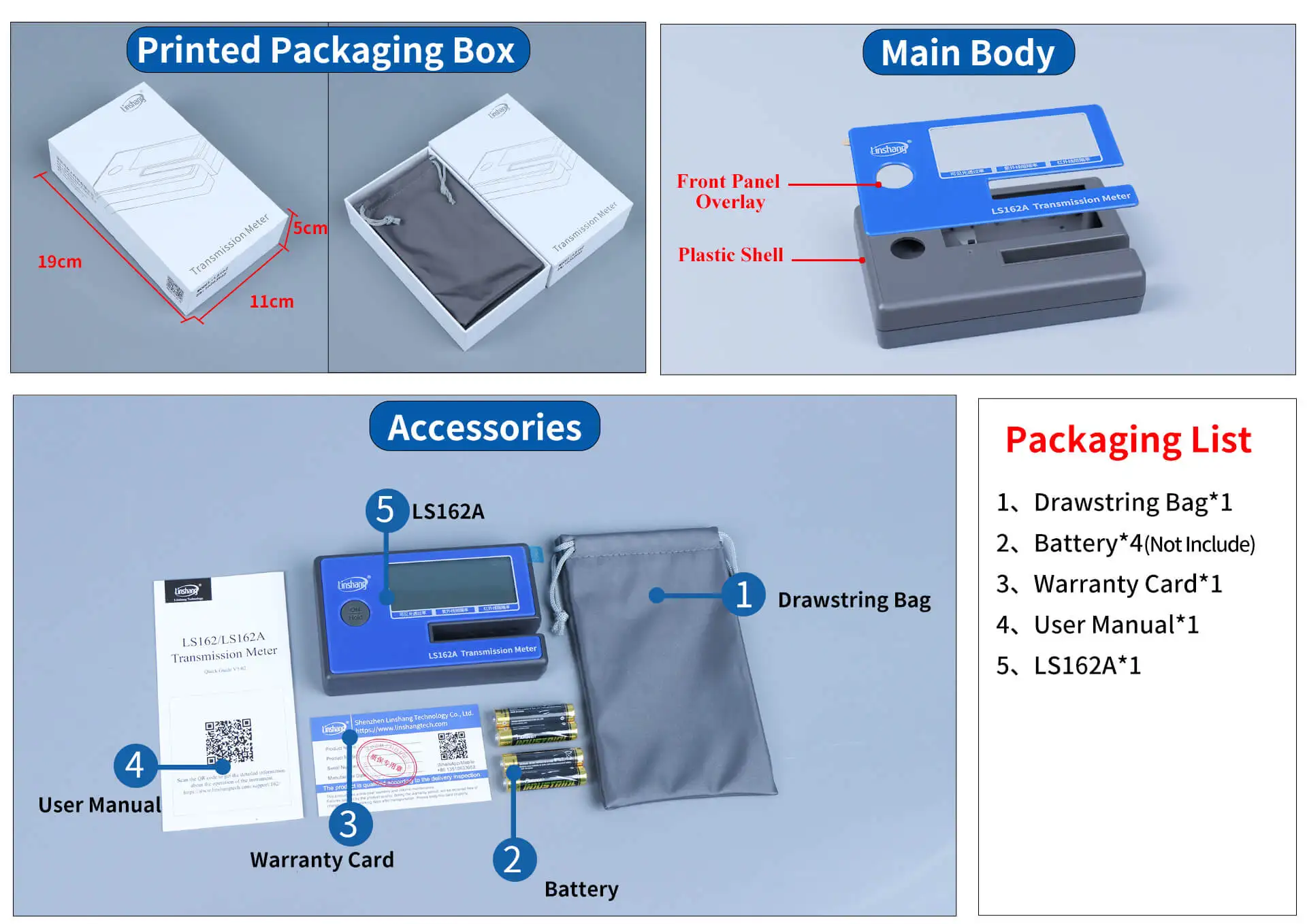

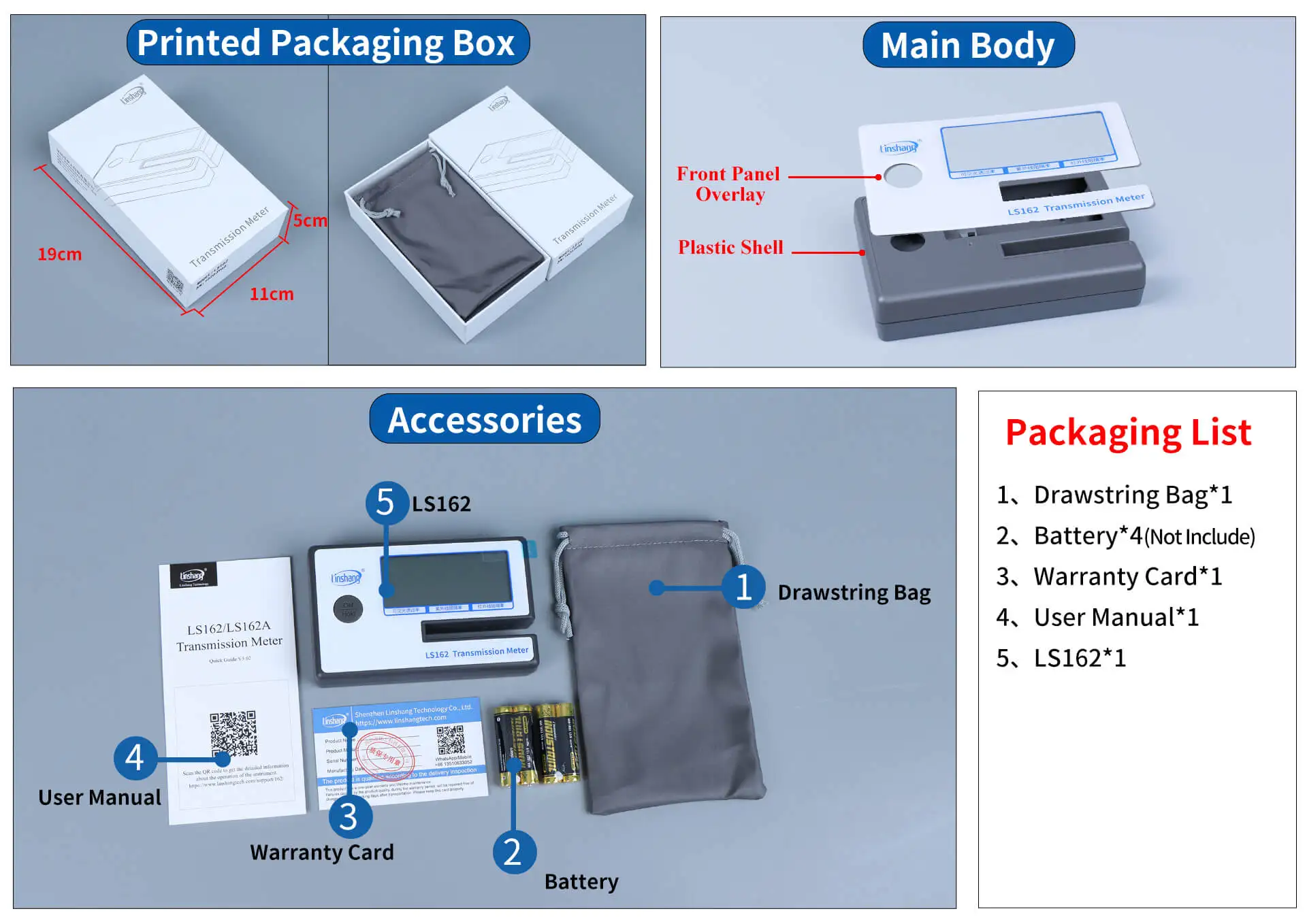

1. LS162/LS162A Transmission Meter*1

2. User Manual*1

3. Certificate / warranty card*1

4. Packing box dimension 18*11*5 cm（L*W*H）*1
