Linshang,LS110A Split Transmission Meter,Measure front windshield, window tint, window filmSplit design, suitable for testing already installed glass or larger materials Simultaneous testing of VLT, IRR, UVR,

Linshang,LS110A Split Transmission Meter,Measure front windshield, window tint, window filmSplit design, suitable for testing already installed glass or larger materials Simultaneous testing of VLT, IRR, UVR,





Brand : Linshang,

Model: LS110A,

Type : Split Transmission Meter.,



Linshang LS110A split automotive window tint meter is an instrument that can simultaneously test the transmittance, infrared rejection rate and ultraviolet rejection rate. The tint meter is suitable for testing materials such as automotive solar film, automotive glass and architectural glass. The instrument is composed of two parts: the main part (PARTⅠ) and the auxiliary part (PARTⅡ). It adopts a split structure, which is especially suitable for testing installed glass or large-sized materials.

Description

LS110A split transmission meter can test light transmittance, infrared barrier rate and UV barrier rate simultaneously. It is suitable for testing automobile solar film, automobile glass, architectural glass and other materials. The instrument consists of two parts, the main unit and the secondary unit, and adopts the split design, which is especially suitable for testing already installed glass or materials with larger size. With data lock function, take away the test sample data can be kept on the display screen, convenient to view the test data.

ParametersModel: LS110A

Parameter	Value
UV peak wavelength	365nm
IR peak wavelength	940nm
Visible light	380-760nm, conform to CIE photopic luminosity function
Resolution	0%---10%: 0.1% 10%---100%: 1%
Measurement accuracy	± 2% (colorless and uniform transparent materials)
Test sample size	Great than 40mm * 40mm
Weight	630 g
Dimension	130mm * 70mm * 84mm
Power supply	Built-in lithium rechargeable battery





Specifications

1. UV peak wavelength: 365nm

2. IR peak wavelength: 940nm

3. Visible light: 380-760nm, conform to CIE photopic luminosity function

4. Resolution: 0%---10%: 0.1%; 10%---100%: 1%

5. Measurement accuracy: ± 2% (colorless and uniform transparent materials)

6. Test sample size: Great than 40mm * 40mm

7. Weight: 630 g

8. Dimension: 130mm * 70mm * 84mm

9. Power supply: Built-in lithium rechargeable battery



Features

1. Split design, main unit and auxiliary machine in the middle of the self-super-strong magnetic force.

2. Simultaneous testing of light transmission, UV and IR rejection is available.

3. With data lock function, take away the test sample data can be maintained on the display screen.

4. Available in a one-two charging cable to charge both main and auxiliary units together, due to built-in rechargeable lithium battery.

5. It can test large thickness of glass with parallel light path design.

6. With laser alignment function to ensure measurement accuracy.

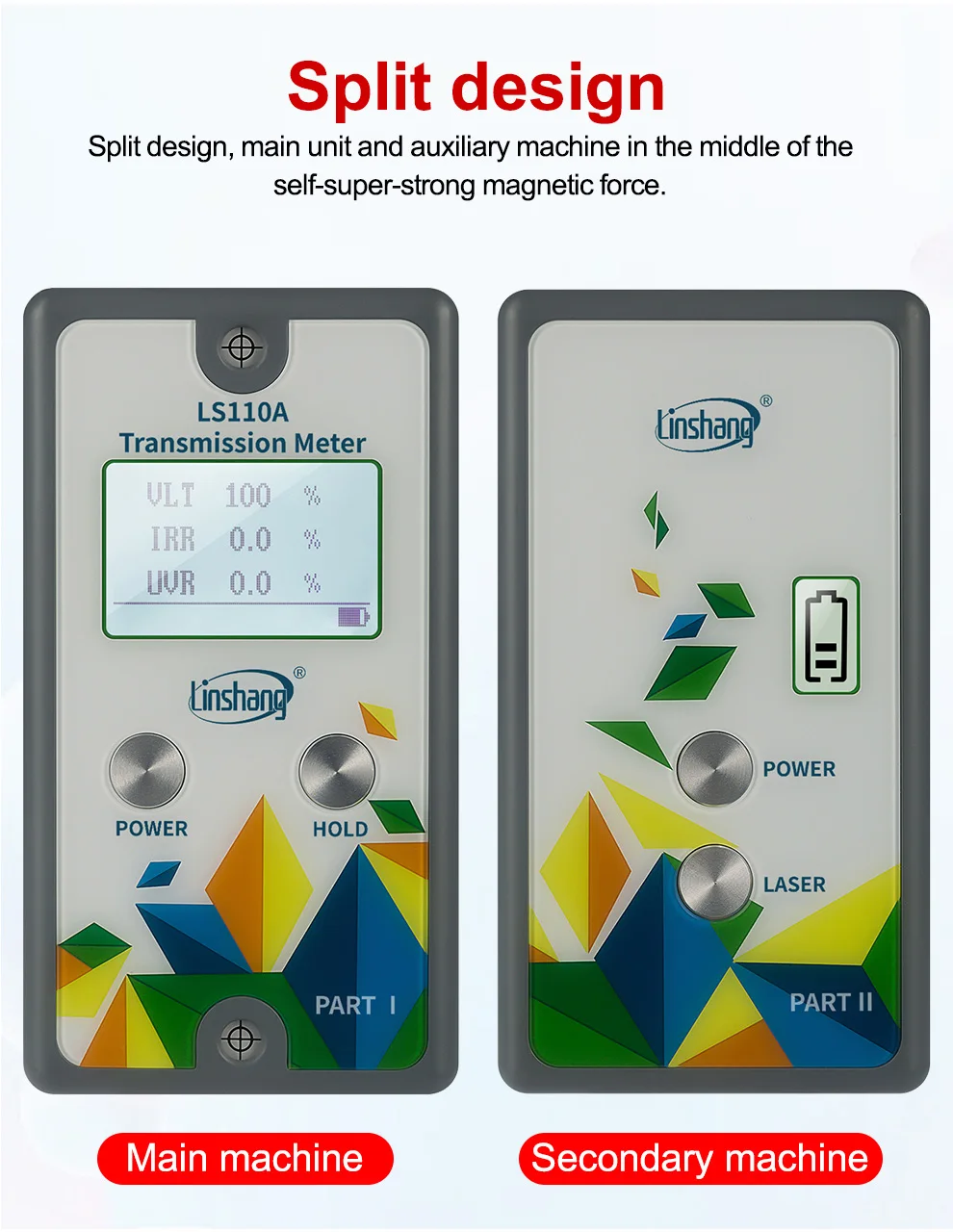

Split design

Split design, main unit and auxiliary machine in the middle of the self-super-strong magnetic force.

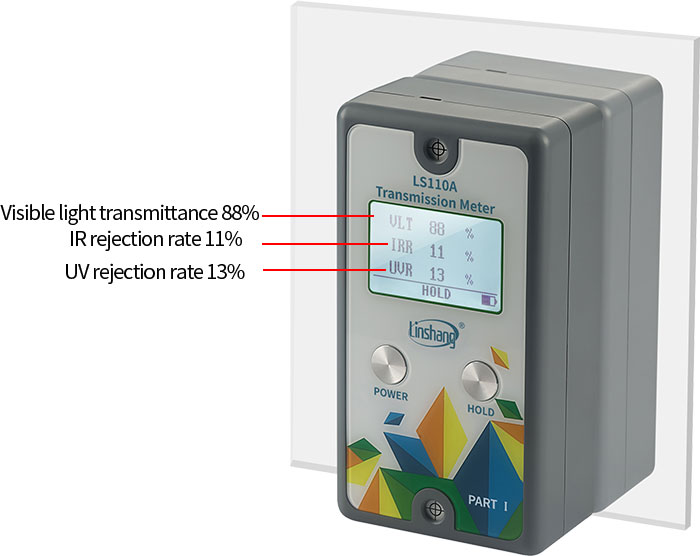

Three parameters can be measured

Simultaneous testing of visible light transmittance, UV and IR rejection is available.

Data lock function

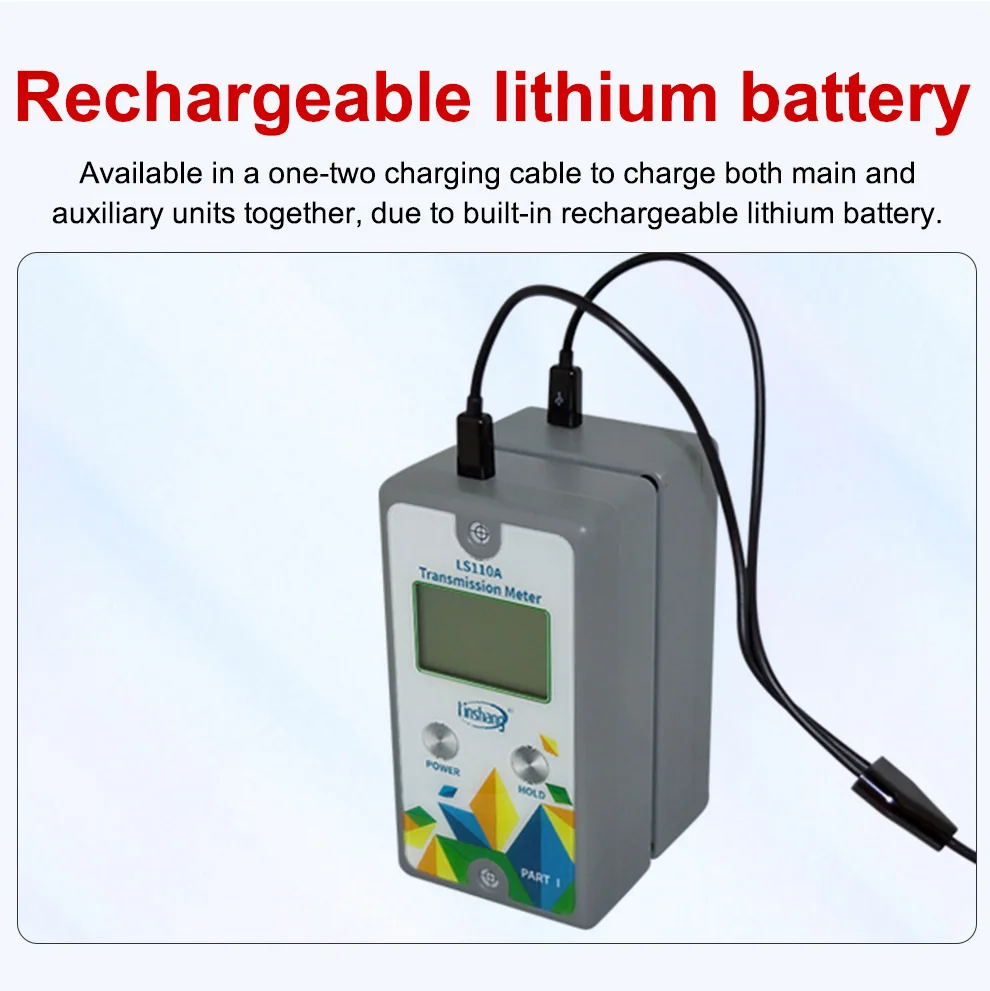

With data lock function, take away the test sample data can be maintained on the display screen.Rechargeable lithium battery for simple use

Available in a one-two charging cable to charge both main and auxiliary units together, due to built-in rechargeable lithium battery.

Parallel light path design

It can test large thicknesses of glass with a parallel light path design, ensuring the accuracy of its test data.

Laser alignment function

It features a laser alignment function to ensure the accuracy of measurements by aligning the main and auxiliary machines during the measurement process.

Possesses patent certificates

It comes with patent certificates to ensure the instrument can pass the tests of authorized metrology institutes.

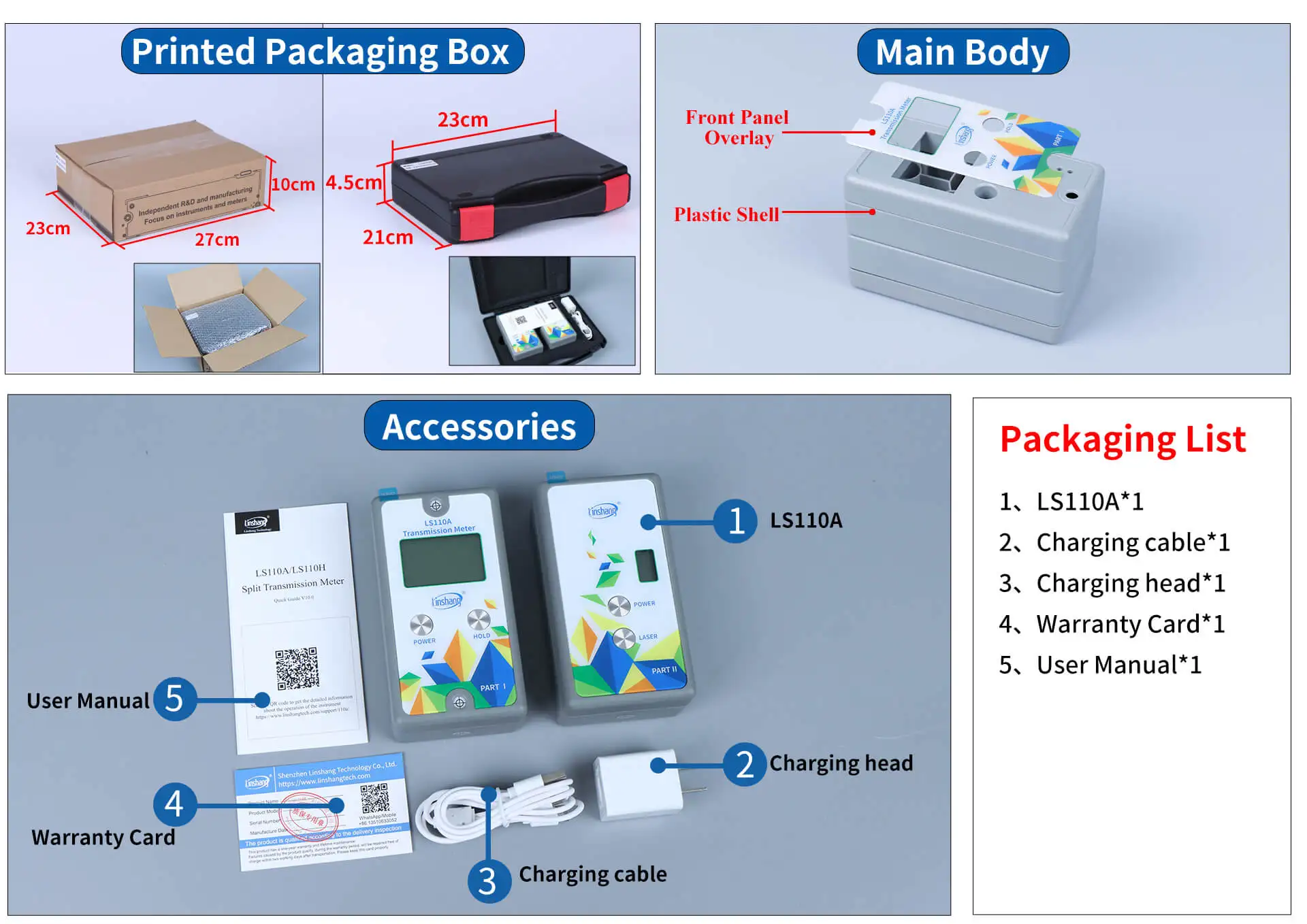

1. LS110A split transmission meter

2. Charger

3. User Manual

4. Certificate / warranty card

5. Packing box dimension 25*21*7 cm(L*W*H)

Note
