Linshang, LS122 Solar Power Meter,LS122 IR Power Meter, Special for testing the infrared rejection effect of iInsulating glass and solar film,Ir Meter Heat Insulation Infrared Light Rejection Rate LS122, Stick-film Glass Car Window 1000-1700nm Simple Oper

Linshang, LS122 Solar Power Meter,LS122 IR Power Meter, Special for testing the infrared rejection effect of iInsulating glass and solar film,Ir Meter Heat Insulation Infrared Light Rejection Rate LS122, Stick-film Glass Car Window 1000-1700nm Simple Operation Stable,



Brand : Linshang,

Model: LS122,

Type : Solar Power Meter.,

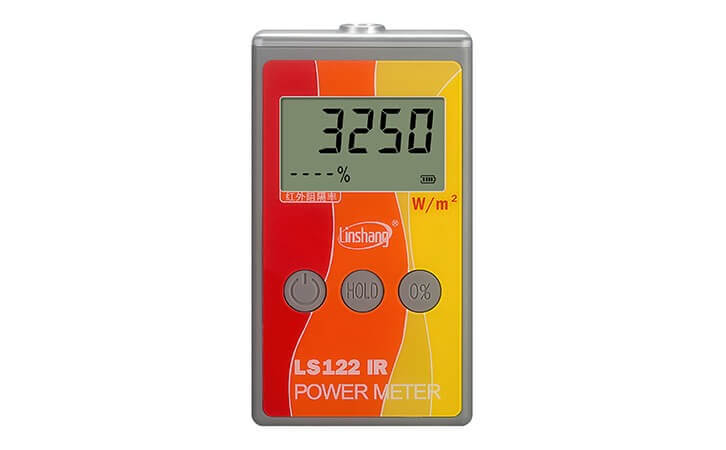

LS122 IR Power Meter

Special for testing the infrared rejection effect of iInsulating glass and solar film

Used for measuring the infrared radiation intensity and infrared rejection rate together

Convert the IR rejection of the material automatically and displays it directly on the screen

Spectral range: 1000-1700nm (λp=1400nm)



LS122 infrared power meter also called infrared energy receiver. This is an instrument with a wide receiving range. It is mainly used to measure the infrared rejection rate of materials. It is suitable for the display of thermal insulation effects of thermal insulation glass, solar film and other materials. It can also be used to measure the radiant energy power density of various light sources, that is, the radiant energy power per square meter with unit W/m².

Description

LS122 infrared power meter is mainly used for the measurement of infrared rejection rate of materials. It is suitable for displaying the heat insulation effect of heat-insulating glass, solar film and other materials, and the demonstration effect is intuitive and easy to understand. Can also be used for a variety of light sources in the infrared radiation energy power density measurement. It can automatically convert infrared rejection rate and display directly on the screen. With wide spectral response, it can test infrared intensity from 1000nm-1700nm wavelength.

Specifications

1. Power range: 0-40000 W / m²

2. Measurement accuracy:± 10%

3. Infrared rejection rate: -999%-100%

4. Spectral response: 1000nm-1700nm

5. Photosensitive aperture: 10mm

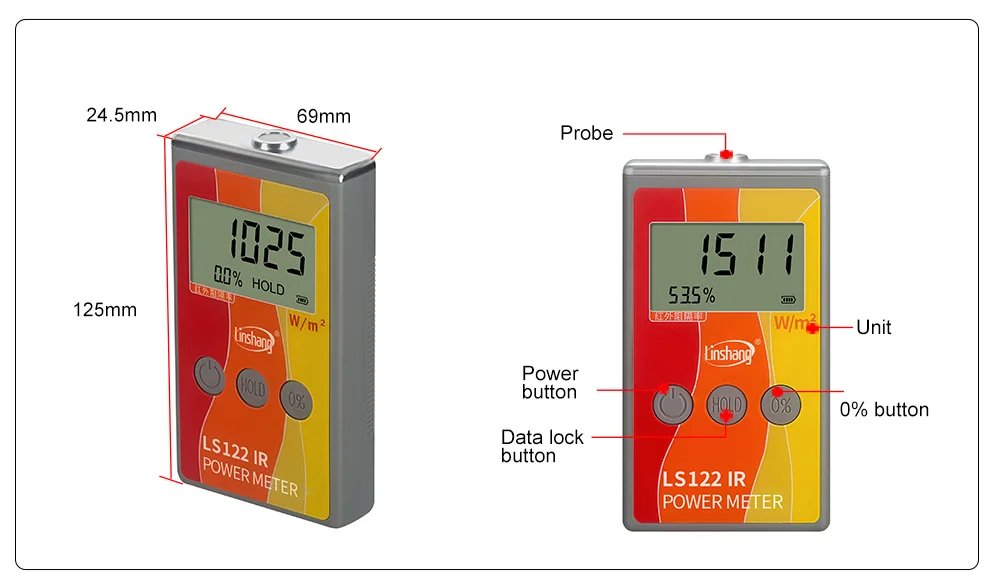

6. Dimension: 125mm * 69mm * 24.5mm (L*W*H)

7. Weight: about 140 g (including battery)

8. Working temperature: -20 ° C-+ 70 ° C

9. Power supply: AAA alkaline dry batteries



Features

1. It is suitable for testing the infrared rejection rate of insulating glass and solar film.

2. Mainly used for infrared radiation intensity measurement.

3. Automatic conversion of the material's infrared rejection rate, and direct display.

4. With wide spectral response, it can test infrared intensity from 1000nm-1700nm wavelength.



Applicable for a wide range of materials

It is suitable for testing the infrared ray rejection performance of architectural film, automobile heat insulation film, solar film, heat insulating glass and insulation coatings.

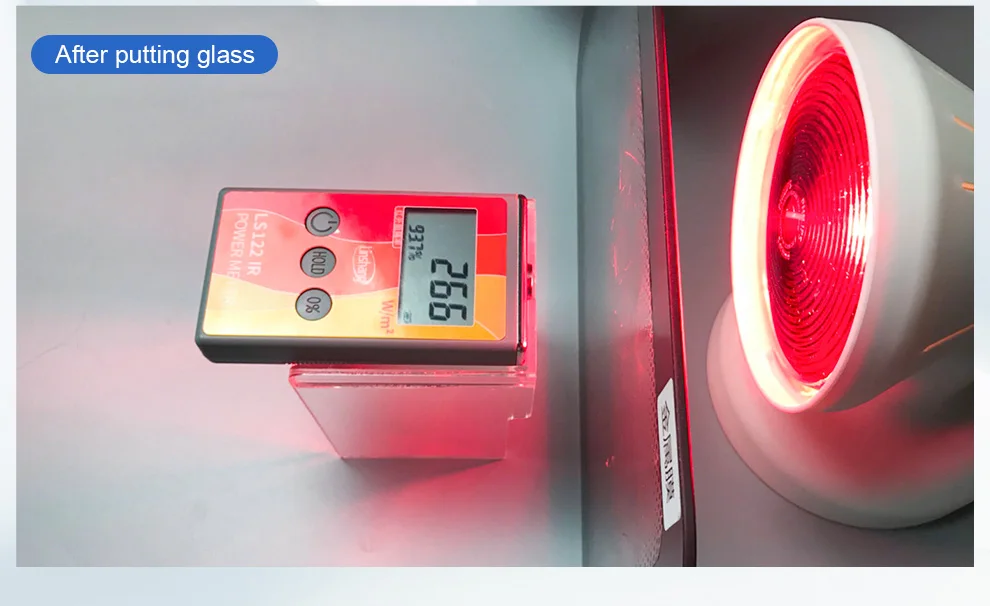

IR radiation intensity measurement

It can be used for infrared radiation intensity measurement of infrared light sources.

Direct display of rejection rate

Automatic conversion of the material's infrared rejection rate, and direct display.

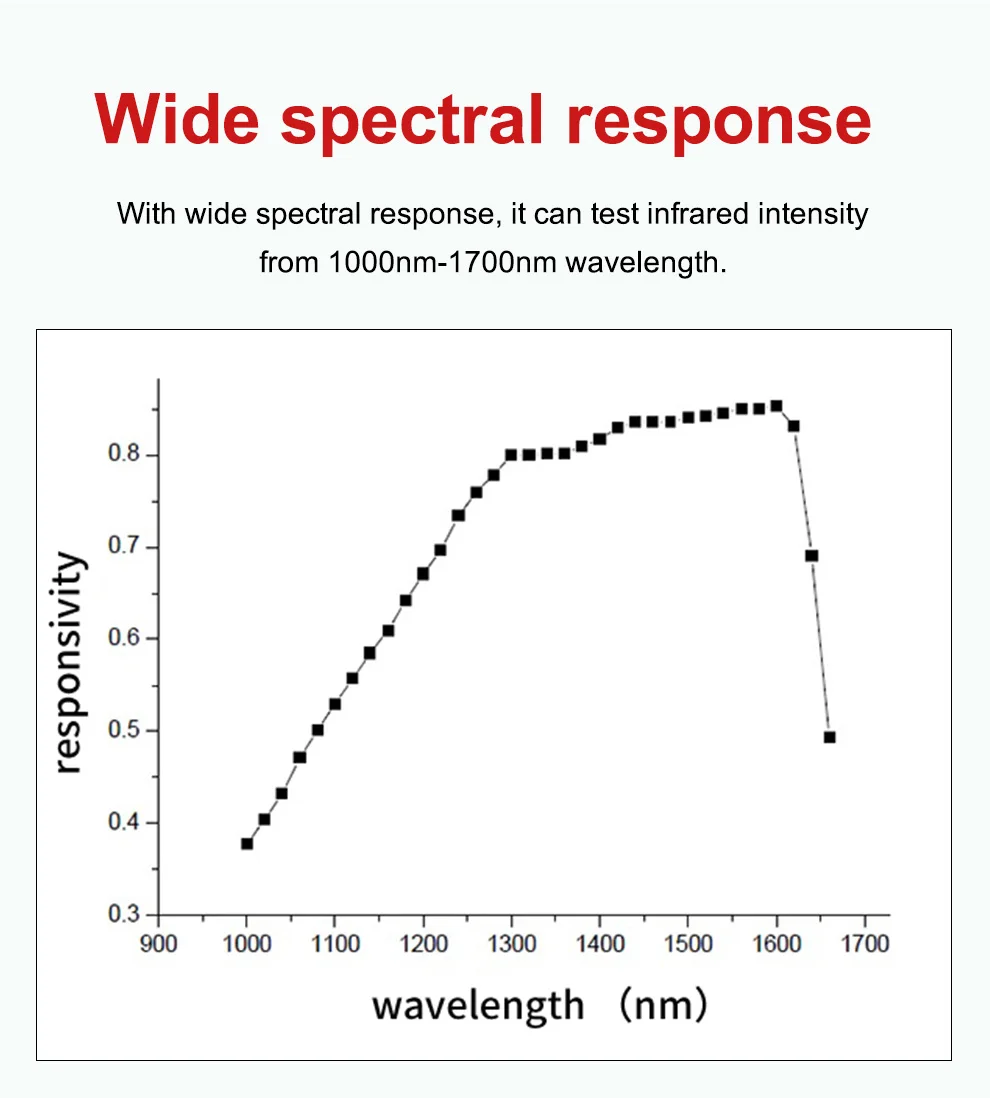

Wide spectral response

With wide spectral response, it can test infrared intensity from 1000nm-1700nm wavelength.

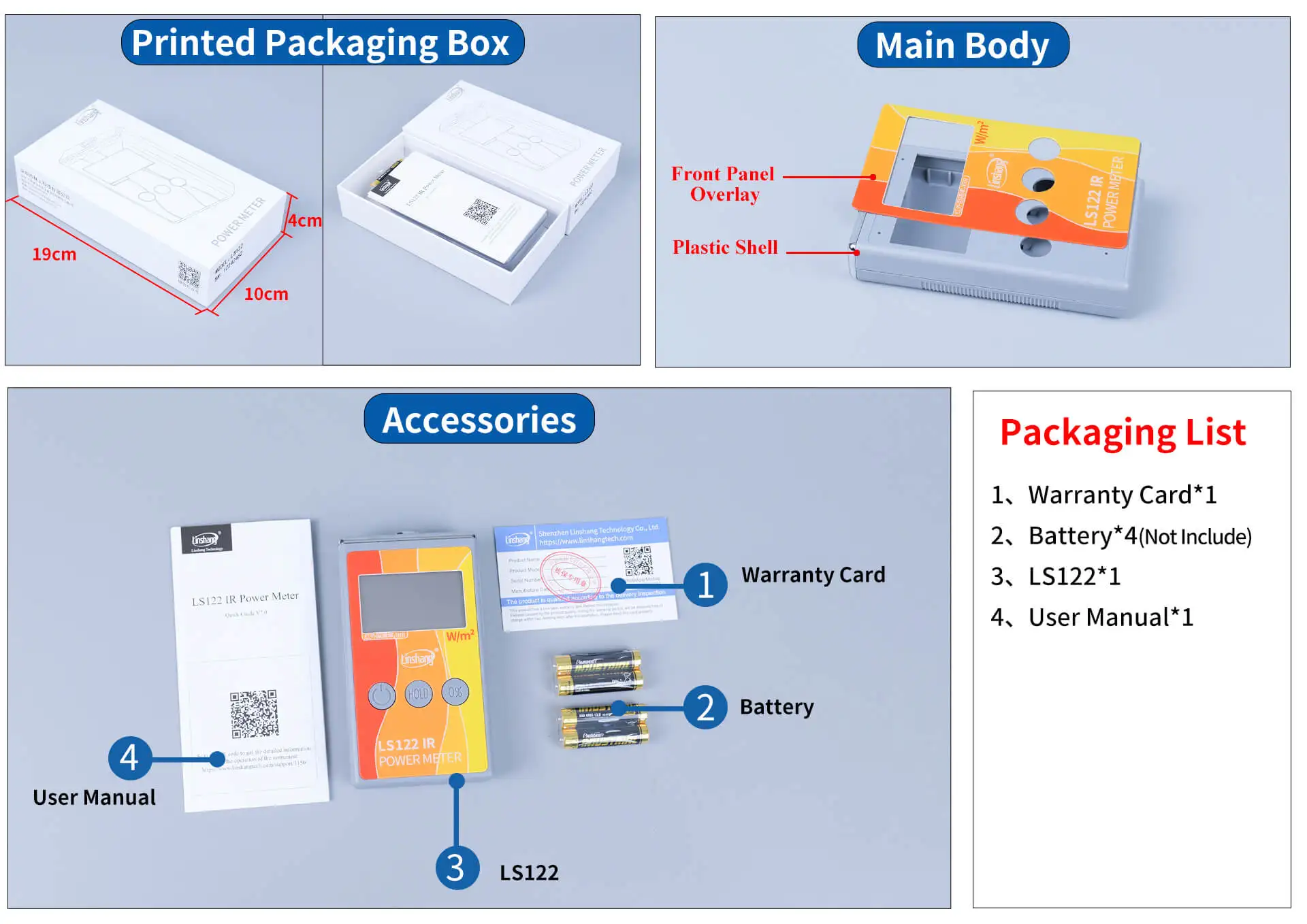

1. LS122 Infrared Power Meter *1

2. User Manual *1

3. Certificate / warranty card *1

4. Packing box dimension 21*13*6 cm(L*W*H) *1
