Linshang LS110H Split Transmission Meter, Measure front windshield, window tint, window film,Solar Transmission Meter LS110H 1400nm IR High Precision CNAS Solar Film Tester Stick-film Glass Dynamic Calibration,

Description

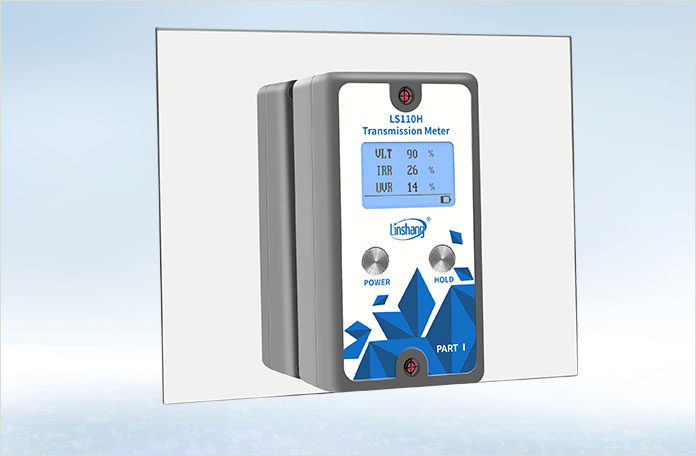

LS110H split transmission meter adopts split design and is comprised of both the main unit and the auxiliary unit. It is suitable for testing all kinds of solar films, automobile glass as well as installed door and window glass. It can simultaneously measure visible light transmittance, infrared and ultraviolet rejection rate. It can test large thicknesses of glass with a parallel light path design, ensuring the accuracy of its test data. With data lock function, it is convenient to view the test data.

Specifications

1. UV peak wavelength: 365nm

2. IR peak wavelength: 1400nm

3. Visible light: 380-760nm, conform to CIE photopic luminosity function

4. Resolution: 0%-10%: 0.1%; 10%-100%: 1%

5. Measurement accuracy: ± 2% (colorless and uniform transparent materials)

6. Test sample size: Great than 40mm * 40mm

7. Weight: 630 g

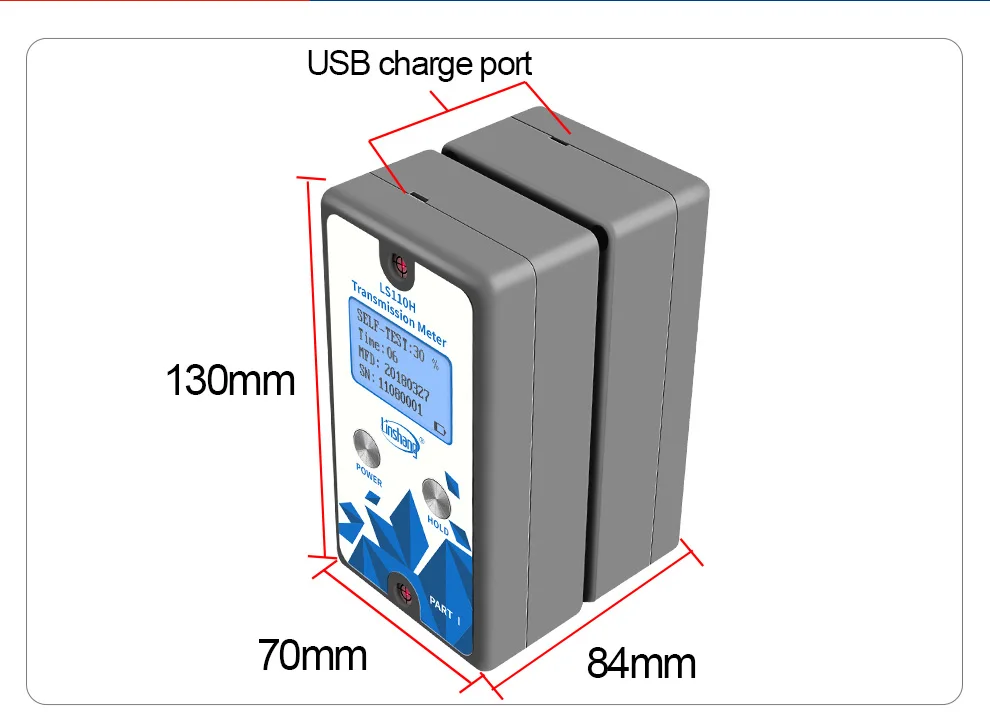

8. Dimension: 130mm * 70mm * 84mm

9. Power supply: Built-in lithium rechargeable battery

Parameters

Features

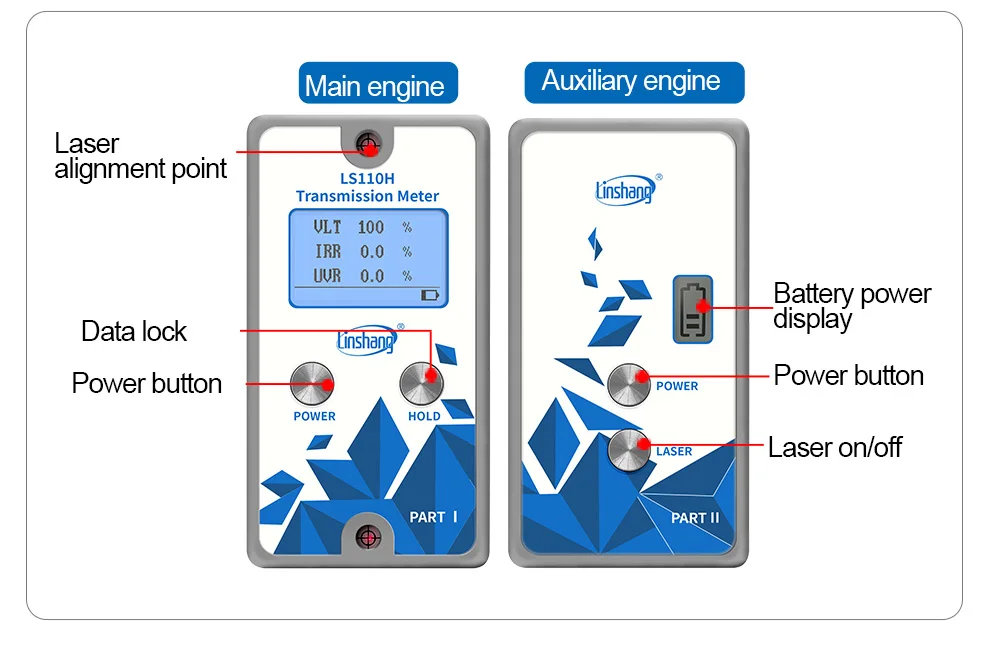

1. The split design incorporates a powerful self-aligning magnetic force between the main unit and auxiliary machine.

2. Simultaneous testing of light transmission, UV and 1400nm infrared rejection rate.

3. With a data lock function, data can be retained on the display screen even after removal.

4. Featuring a built-in rechargeable lithium battery, it can be charged with one to two USB cables.

5. It can test large thicknesses of glass with a parallel light path design, ensuring the accuracy of its test data.

6. Its test data accuracy is ensured through a parallel light path design, allowing it to test large glass thicknesses.

7. The laser alignment function ensures main and auxiliary machines align for measurement accuracy.

Split design

The split design incorporates a powerful self-aligning magnetic force between the main unit and auxiliary machine.

Measure three parameters

Simultaneous testing of light transmission, UV and 1400nm infrared rejection rate.

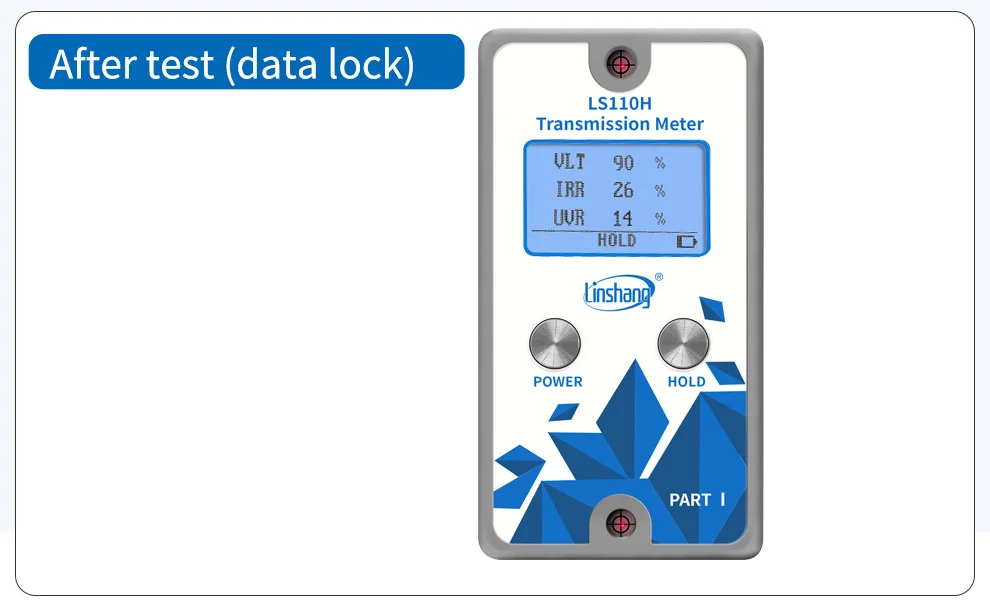

Data lock function

With data lock function, data can be retained on the display screen even after removal.

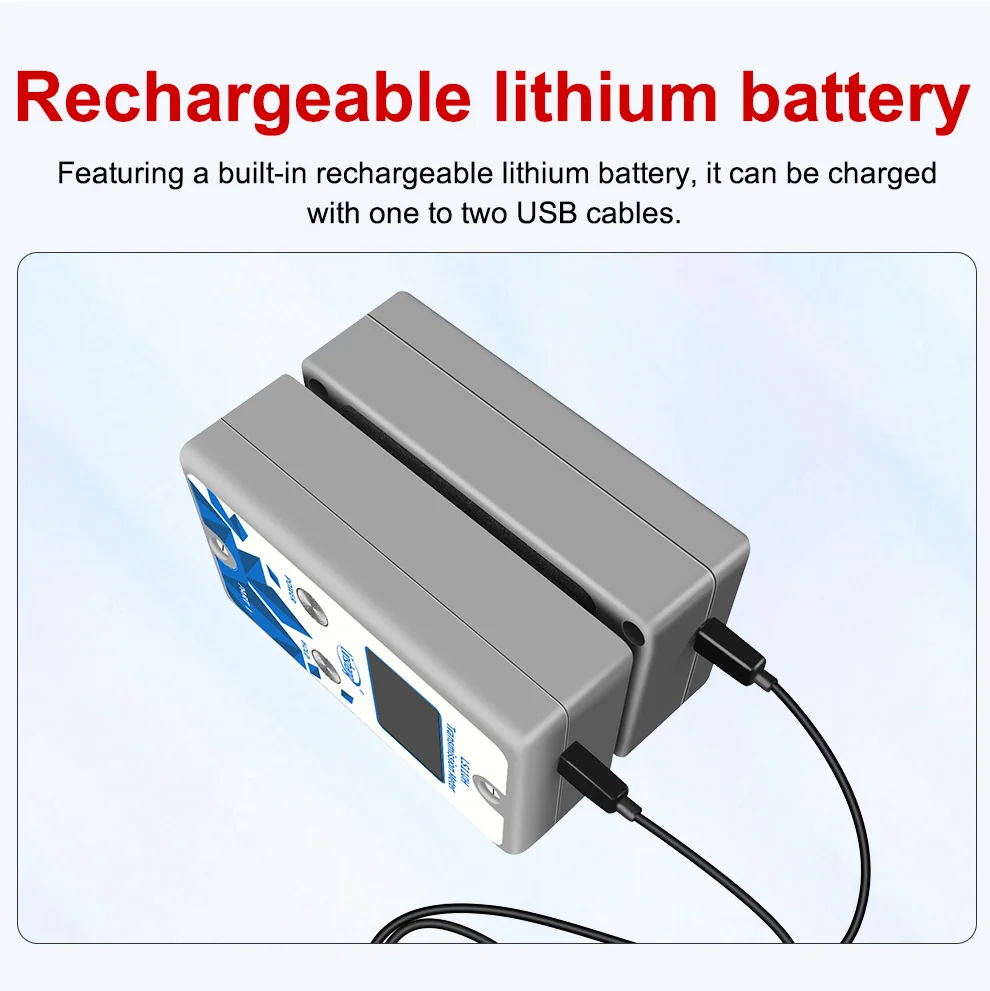

Rechargeable lithium battery for easy use

Featuring a built-in rechargeable lithium battery, it can be charged with one to two USB cables.

Parallel light path design

It can test large thicknesses of glass with a parallel light path design, ensuring the accuracy of its test data.

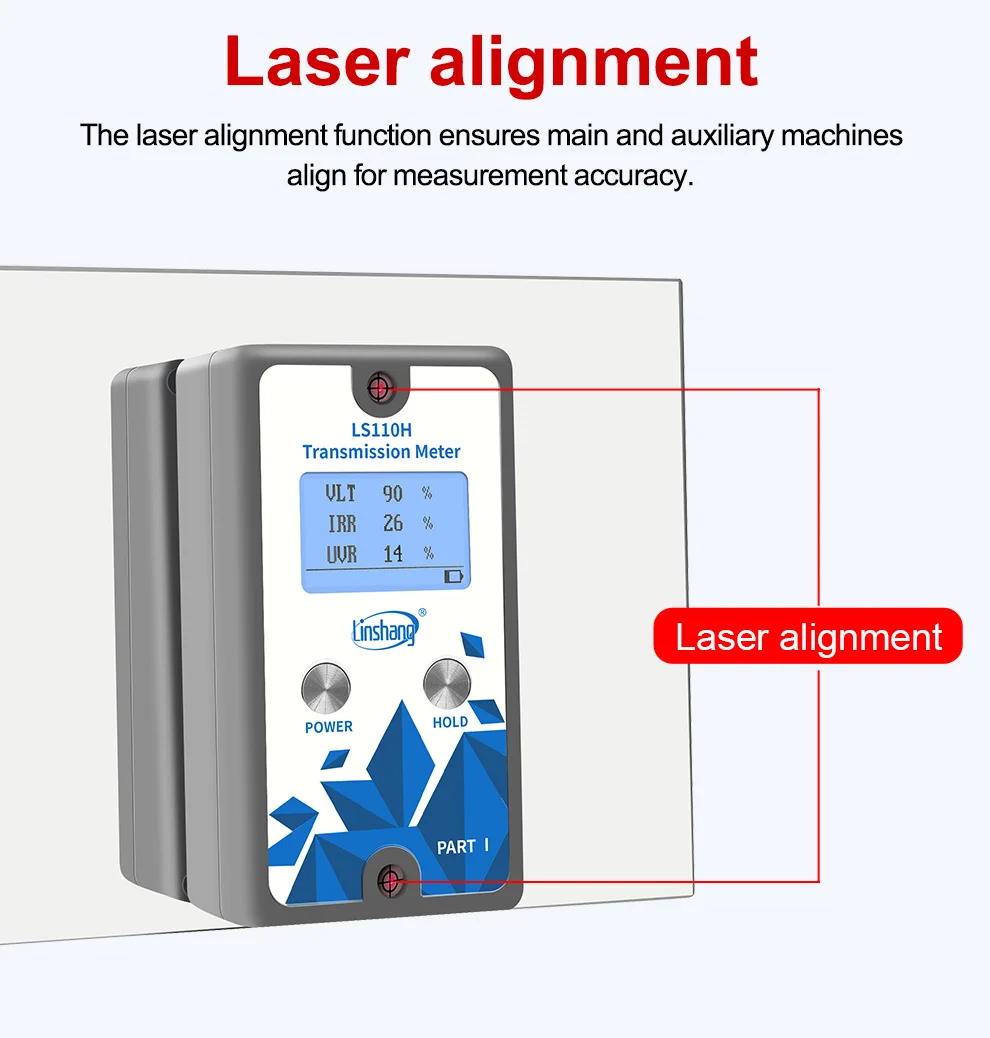

Laser alignment function

The laser alignment function ensures main and auxiliary machines align for measurement accuracy.

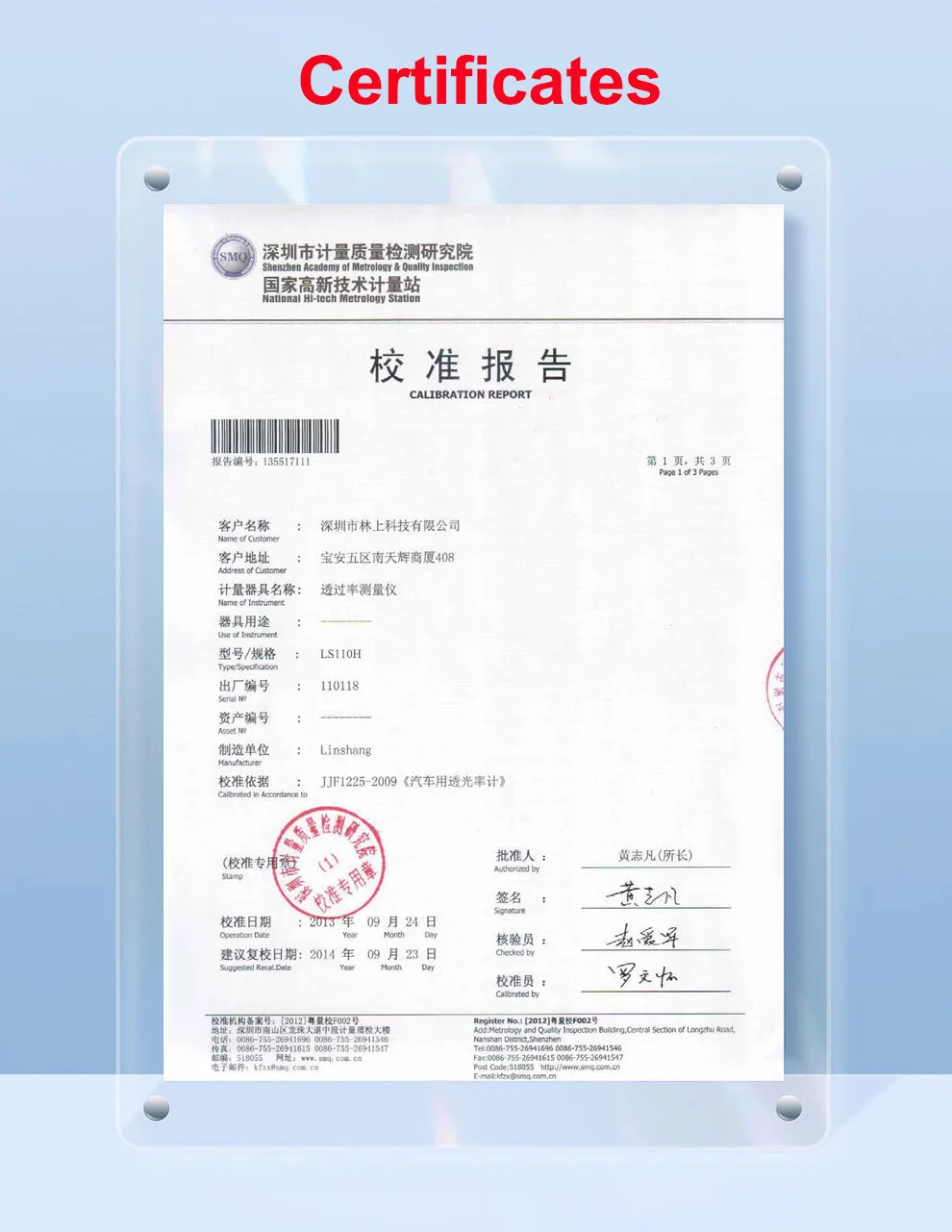

Possesses patent certificates

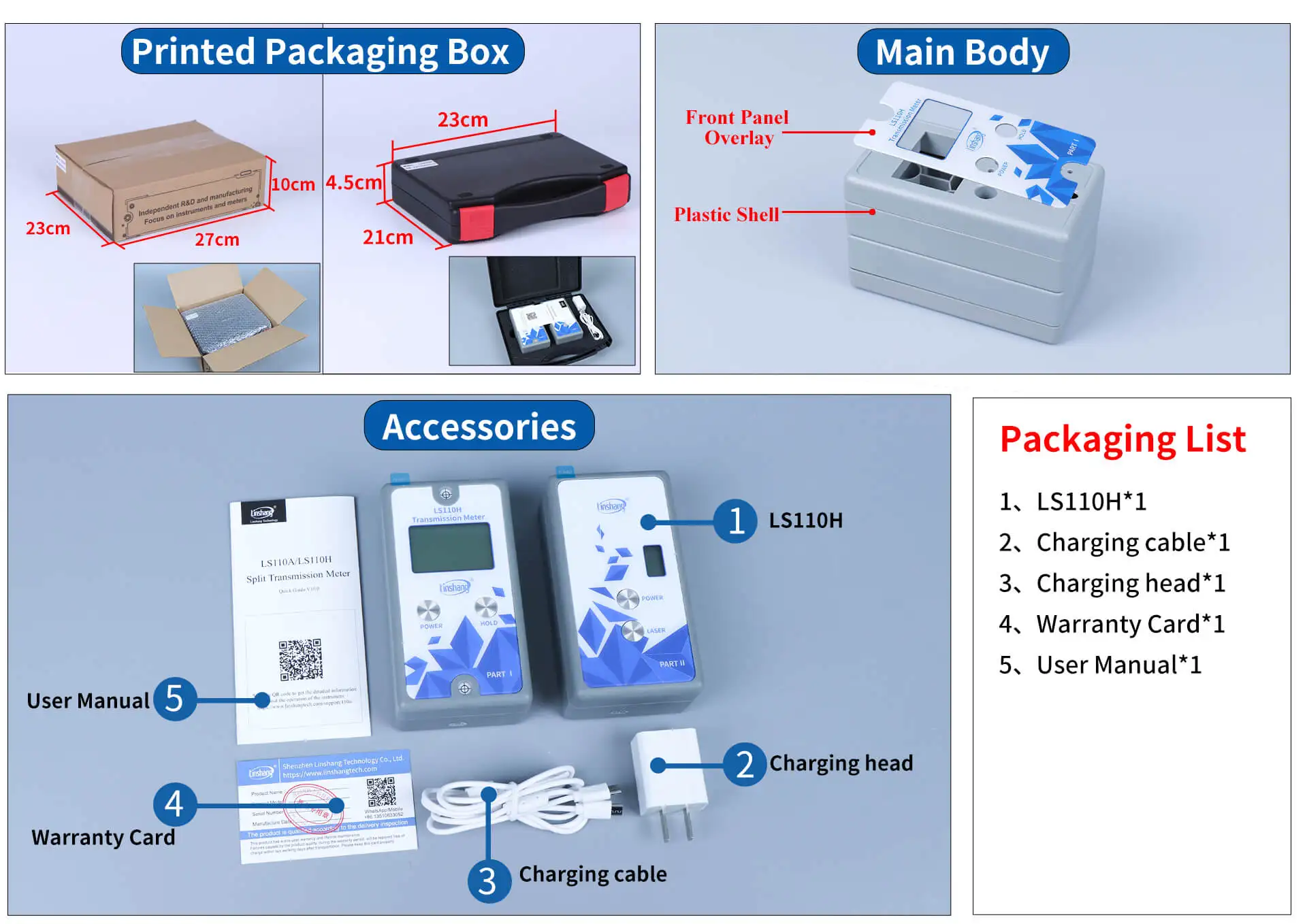

It comes with patent certificates to ensure the instrument can pass the tests of authorized metrology institutes.1. LS110H split transmission meter

2. Charger

3. User Manual

4. Certificate / warranty card

5. Packing box dimension 25*21*7 cm（L*W*H）
