LS101 Solar Film Transmission Meter

Test window tint, window film, glass

Test the UV rejection rate, IR rejection rate and VLT
With a parallel optical path, it is possible to test large thickness materials
Large LCD screen display, convenient for reading





LS101 solar film transmission meter adopts parallel light path design which is very suitable for optical properities testing of automotive films, explosion-proof films, architectural films, thermal insulation films, film glass and other materials. It can measure ultraviolet rejection rate, infrared rejection rate and visible light transmittance at the same time. The large-screen LCD screen display is convenient for reading.

Description

LS101 solar film transmission meter with parallel light path design, is very suitable for optical performance testing of automotive film, explosion-proof film, architectural film, heat insulation film, laminated glass and other materials. It can simultaneously measure UV rejection rate, infrared rejection rate and visible light transmittance, with a large LCD screen display for easy reading. It can measure large thickness of material with 20mm test slot. After HOLD is pressed, the data remains on the screen for easy reading, even when the material is removed.

Specifications

1. Size: 175mm*120mm*30mm (L*W*H)

2. Test slot: 20mm * 70 mm (W*H)

3. Weight: 360g

4. Resolution: 0.1%

5. Accuracy:±2% (Colorless and transparent material)

6. UV Peak wavelength: 365nm

7. Visible light: 380-760nm, conforming to the CIE photopic luminosity function

8. IR Peak wavelength: 940nm

9. Display: Segment LCD

10. Power Supply: 4*AA alkaline batteries or 5V AC/DC power supply

Parameter

Parameter	Value
Size	175mm*120mm*30mm (L*W*H)
Test slot	20mm * 70 mm (W*H)
Weight	360g
Resolution	0.1%
Accuracy	±2% (Colorless and transparent material)
UV Peak wavelength	365nm
Visible light	380-760nm, conforming to the CIE photopic luminosity function
IR Peak wavelength	940nm
Display	Segment LCD
Power Supply	4*AA alkaline batteries or 5V AC/DC power supply



Features

1. Simultaneous measurement of infrared rejection, ultraviolet rejection and transmittance.

2. It can measure large thickness of material with 20mm test slot.

3. It is suitable for optical performance testing of solar film, explosion-proof film, laminated glass and so on.

4. After HOLD is pressed, the data remains on the screen for easy reading, even when the material is removed.

5. The instrument comes with a support stand, more convenient reading.

6. Two power supply options are available: 4 AA alkaline batteries or a 5V USB power supply.

7. Accuracy up to ±2%, can pass the authoritative metrology institute testing.

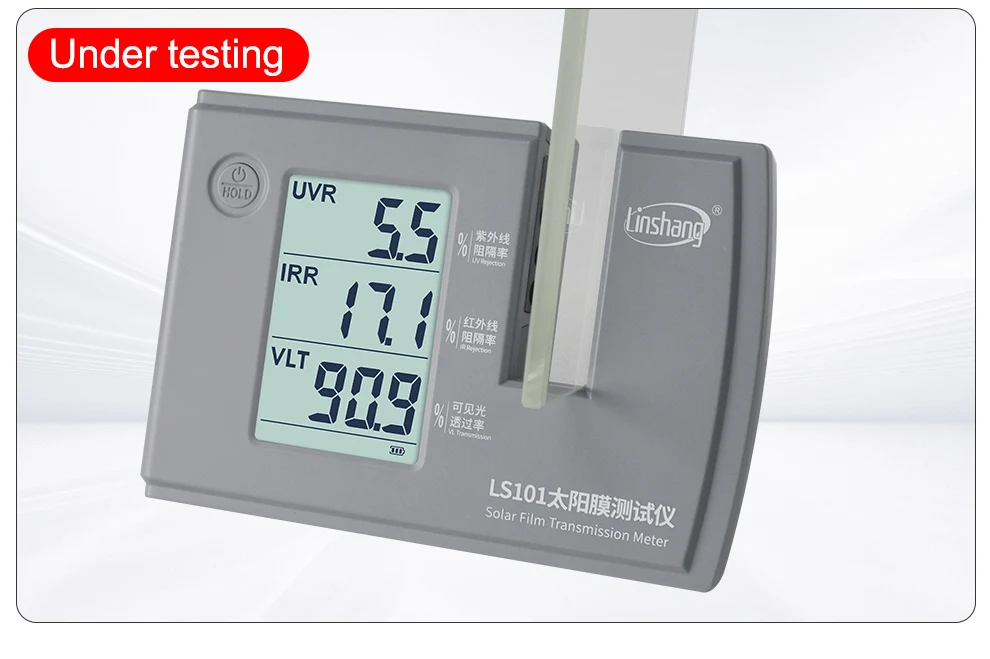

Measurement of IRR, UVR, VLT

Simultaneous measurement of infrared rejection, ultraviolet rejection and transmittance.



20mm test slot

It can measure large thickness of material with 20mm test slot.

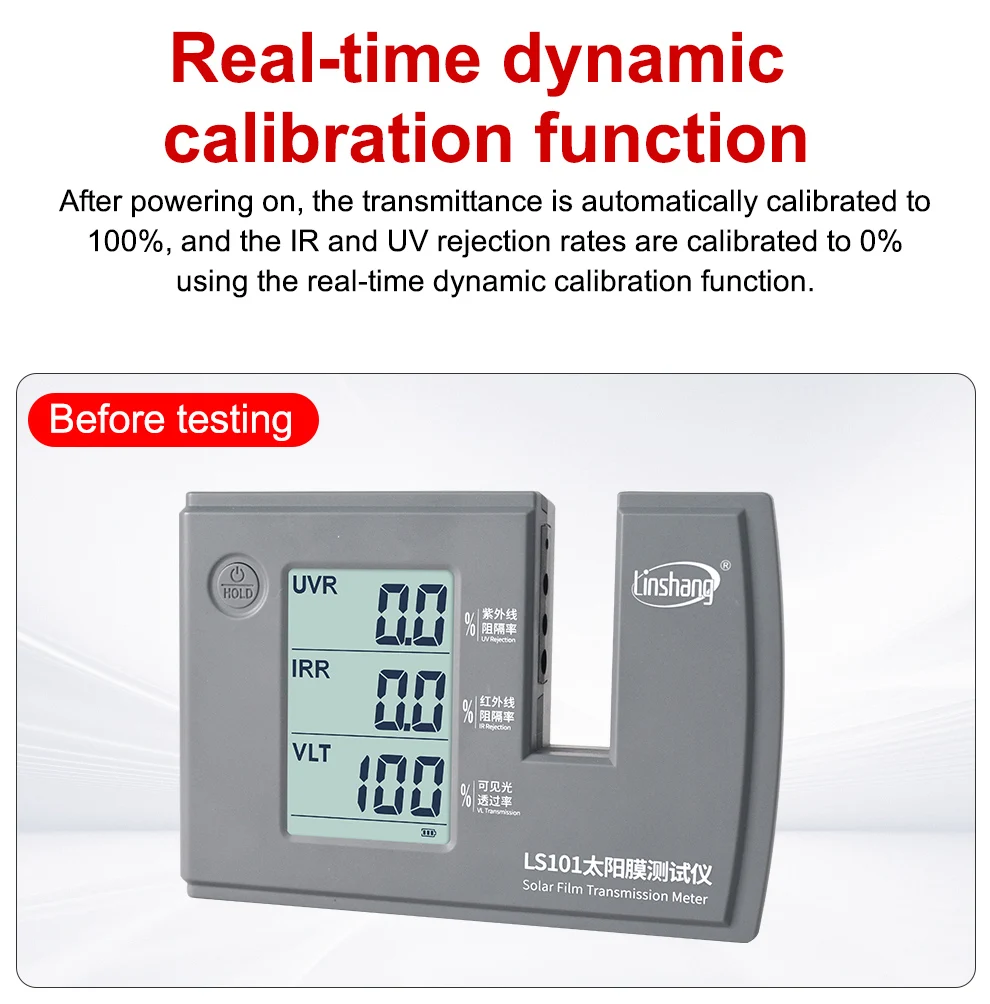

Real-time dynamic calibration function

After powering on, the transmittance is automatically calibrated to 100%, and the IR and UV rejection rates are calibrated to 0% using the real-time dynamic calibration function.



Data lock function

After HOLD is pressed, the data remains on the screen for easy reading, even when the material is removed.



Self-supporting stand

The instrument comes with a support stand, more convenient reading.

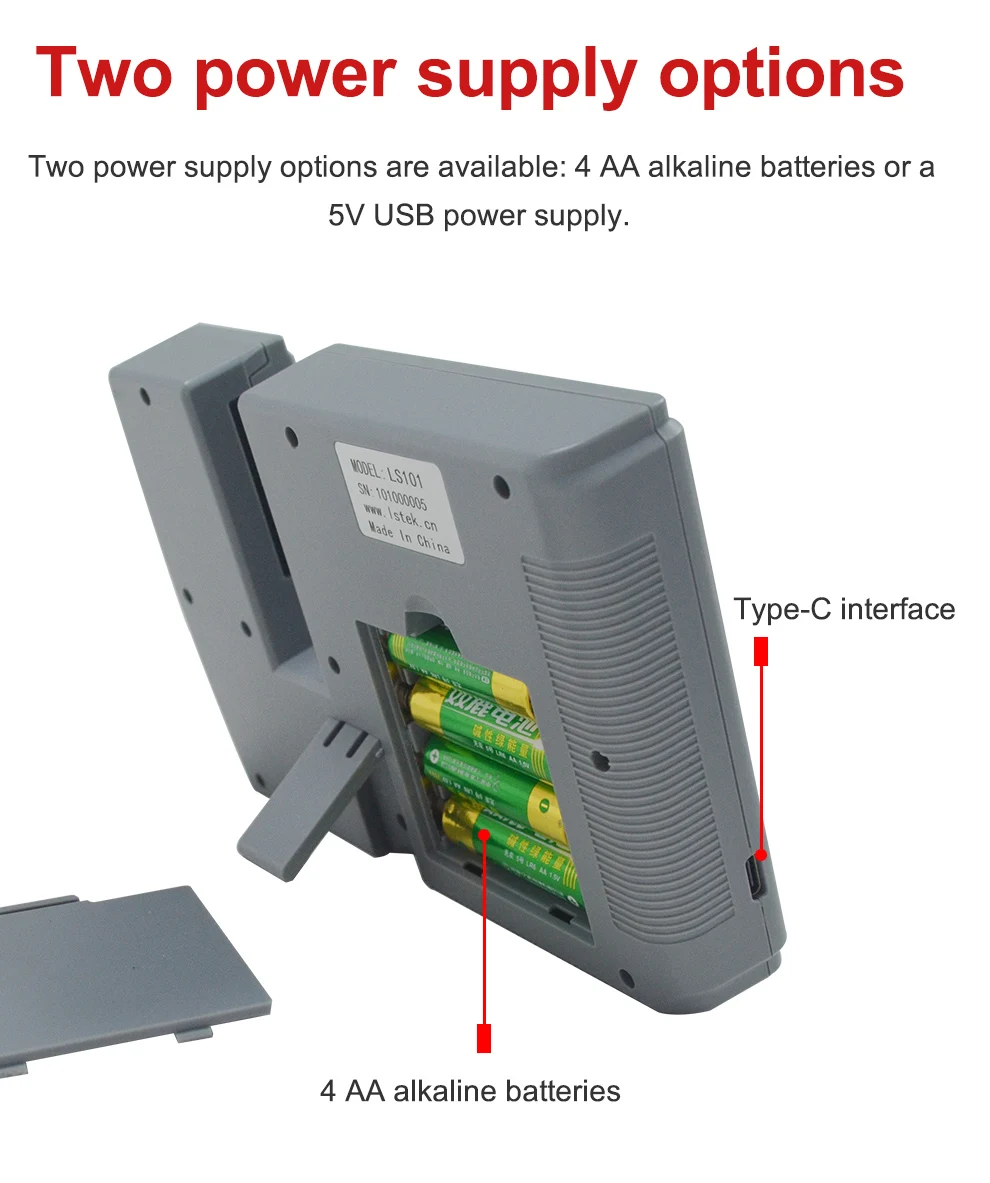

Two power supply options

Two power supply options are available: 4 AA alkaline batteries or a 5V USB power supply.

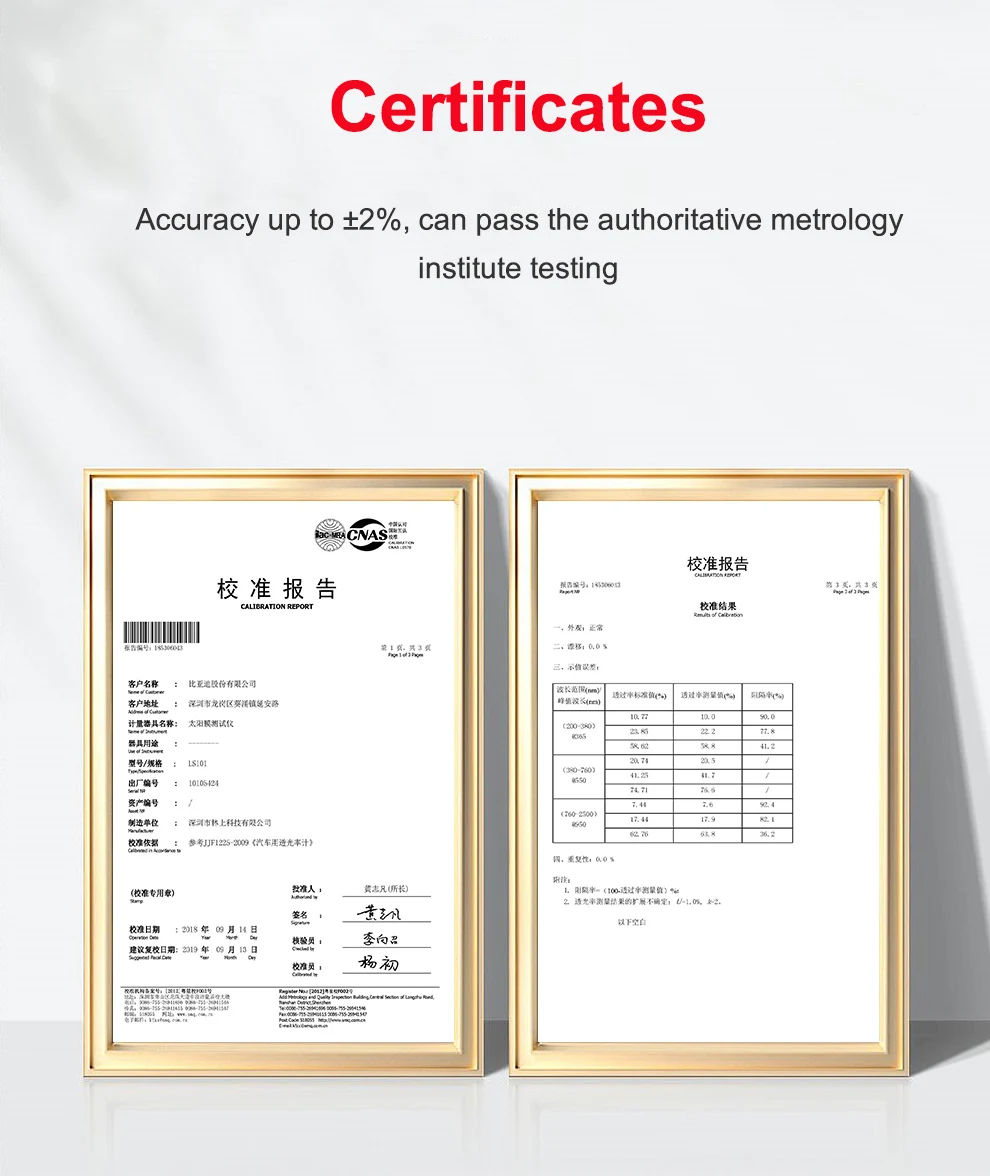

High precision guaranteed

Accuracy up to ±2%, can pass the authoritative metrology institute testing.

1. LS101 Solar Film Transmission Meter*1

2. User Manual*1

3. Certificate / Warranty Card*1
