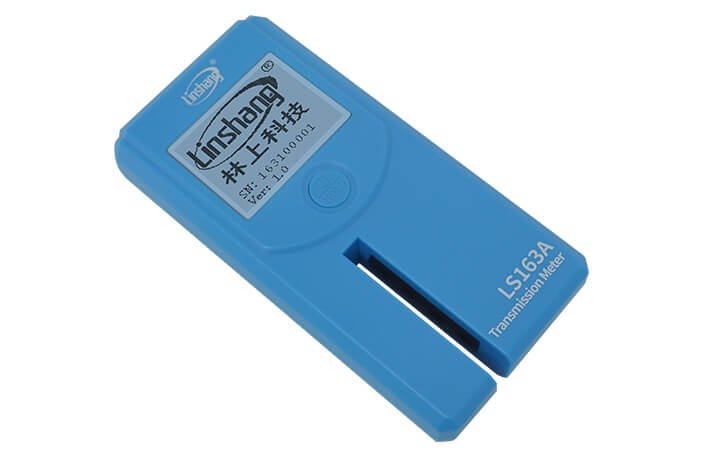

Linshang LS163A Transmission Meter 3 light source: visible light, UV and infrared VLT/UVR/IRR, VLT/UVT/IRT and VLT, three display interfaces are available.

Description

LS163/LS163A window film transmission meter is suitable for measuring the optical performance of uniform transparent materials such as solar film, laminated glass, heat-insulating glass and automobile side glass. Measurement of transmittance, infrared and ultraviolet rejection and transmittance. It has three display interfaces, which can display the transmittance or rejection and transmittance at the same time. The display interface can be rotated from four angles, which is convenient for reading when measuring from different angles. It is mainly applicable to solar film, glass manufacturers, automobile 4S stores, automobile beauty stores and other occasions.

Specifications

1. UV Peak wavelength: 365nm

2. IR Peak wavelength: 940nm/1400nm optional

3. Visible light: 380-760nm, conform to the CIE photopic luminosity function

4. Accuracy:±2% (Colorless and transparent material)

5. Resolution: 0.1%

6. Test Slot: 6mm *58mm (W*D)

7. Dimension: 146 mm ×73 mm ×24 mm (L*W*H)

8. Display: 128*128 Dot matrix LCD

9. Weight: 187g (Include Batteries)

10. Power supply: 4*AAA alkaline batteries

Parameters

Features

1. Measurement of transmittance, infrared and ultraviolet rejection and transmittance.

2. Test results will be displayed on interface immediately after putting the materials into the test slot.

3. It can test materials such as solar film, laminated glass and automobile side glass with 6mm test slot.

4. The display interface can be rotated in four angles, convenient for reading data measured at different angles.

5. VLT/UVR/IRR, VLT/UVT/IRT and VLT, three display interfaces are available.

6. With real-time dynamic calibration, after power on, transmittance is calibrated to 100%.

7. Obtained CE certification, ensure reliable product quality.

Measurement of VLT, UVR, IRR, ,UVT, IRT

Measurement of transmittance, infrared and ultraviolet rejection and transmittance.

6mm test slot

It can test materials such as solar film, laminated glass and automobile side glass with 6mm test slot.

Wide range of applications

It is mainly applicable to solar film, glass manufacturers, automobile 4S stores, automobile beauty stores and other occasions.

Easy to operate

Test results will be displayed on interface immediately after putting the materials into the test slot.

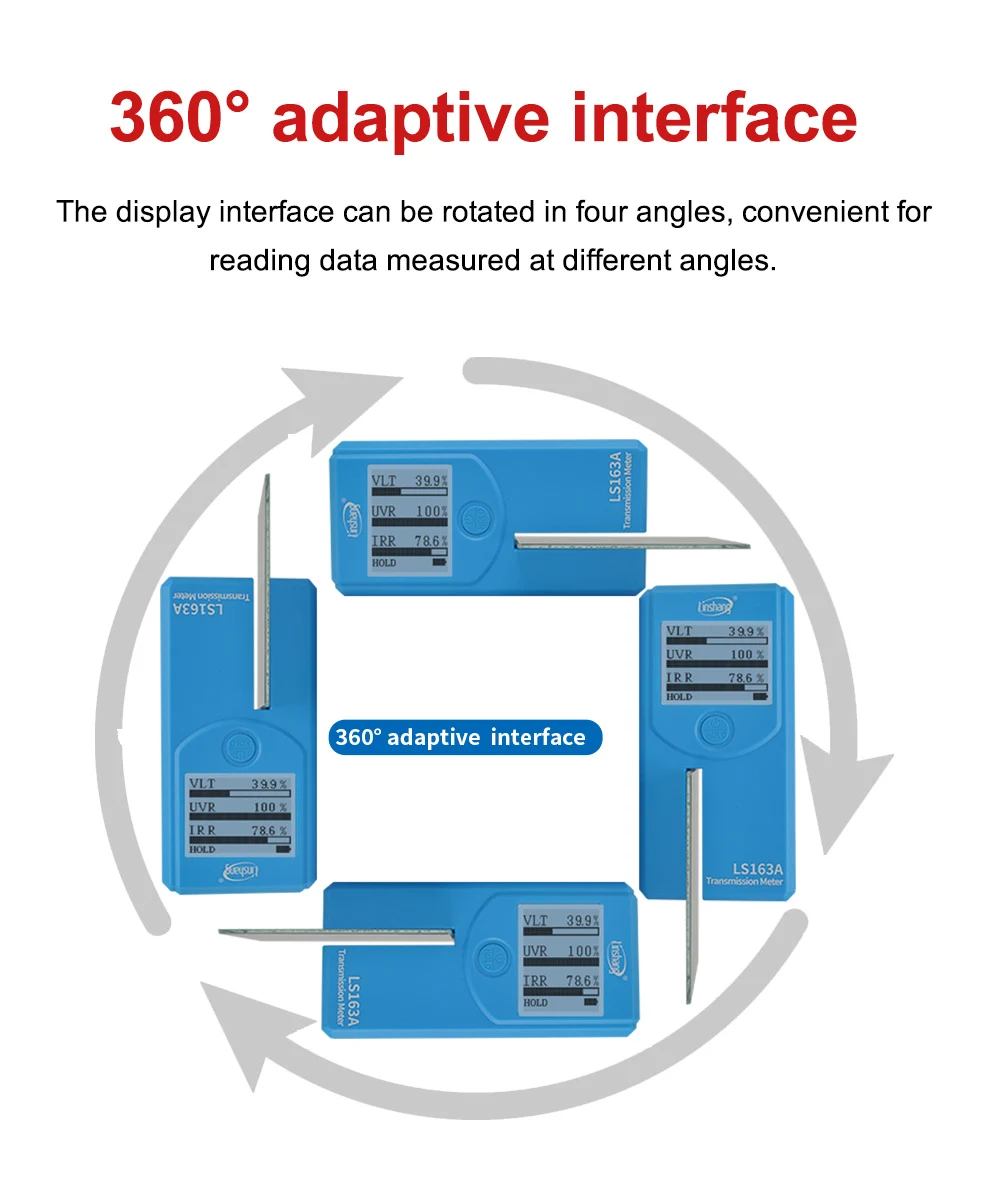

Rotating display interface

The display interface can be rotated in four angles, convenient for reading data measured at different angles.

Three display interfaces optional

VLT/UVR/IRR, VLT/UVT/IRT and VLT, three display interfaces are available.

Data lock function

Press the "Hold" button after testing, the data will remain on the interface after taking away the tested materials.

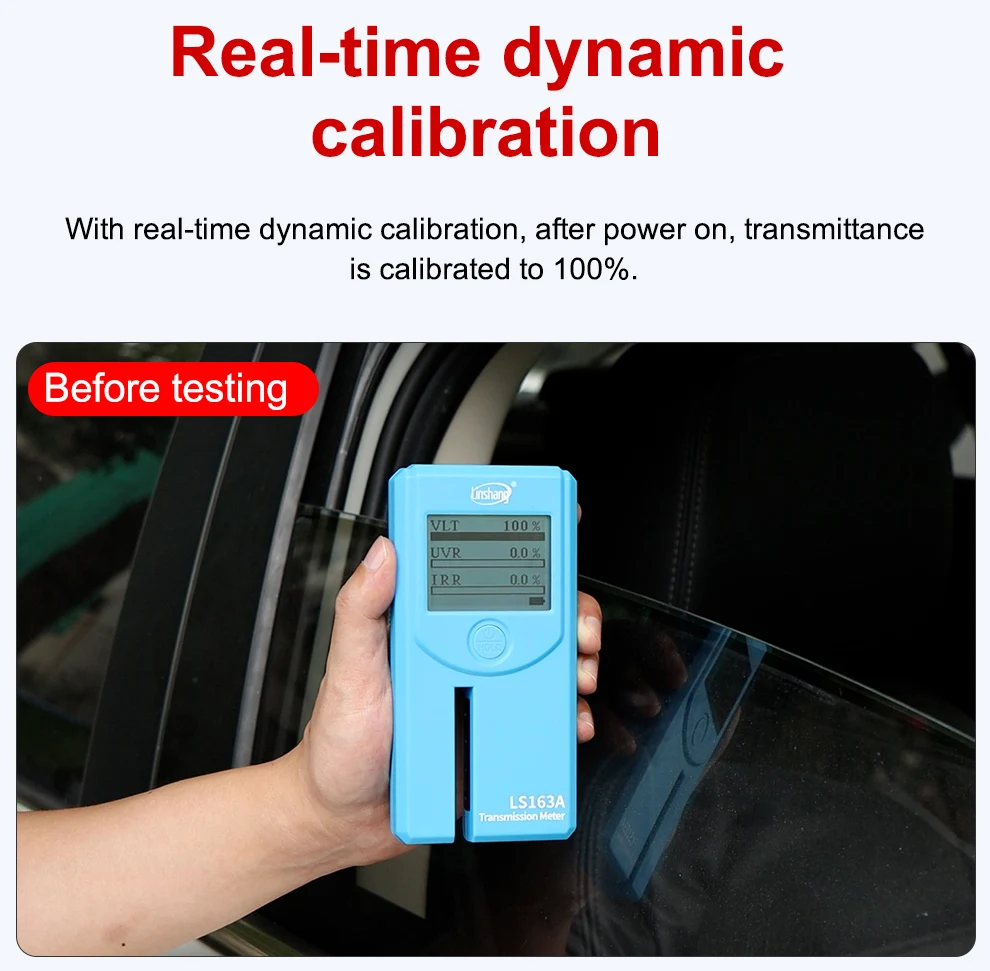

Real-time dynamic calibration

With real-time dynamic calibration, after power on, transmittance is calibrated to 100%.

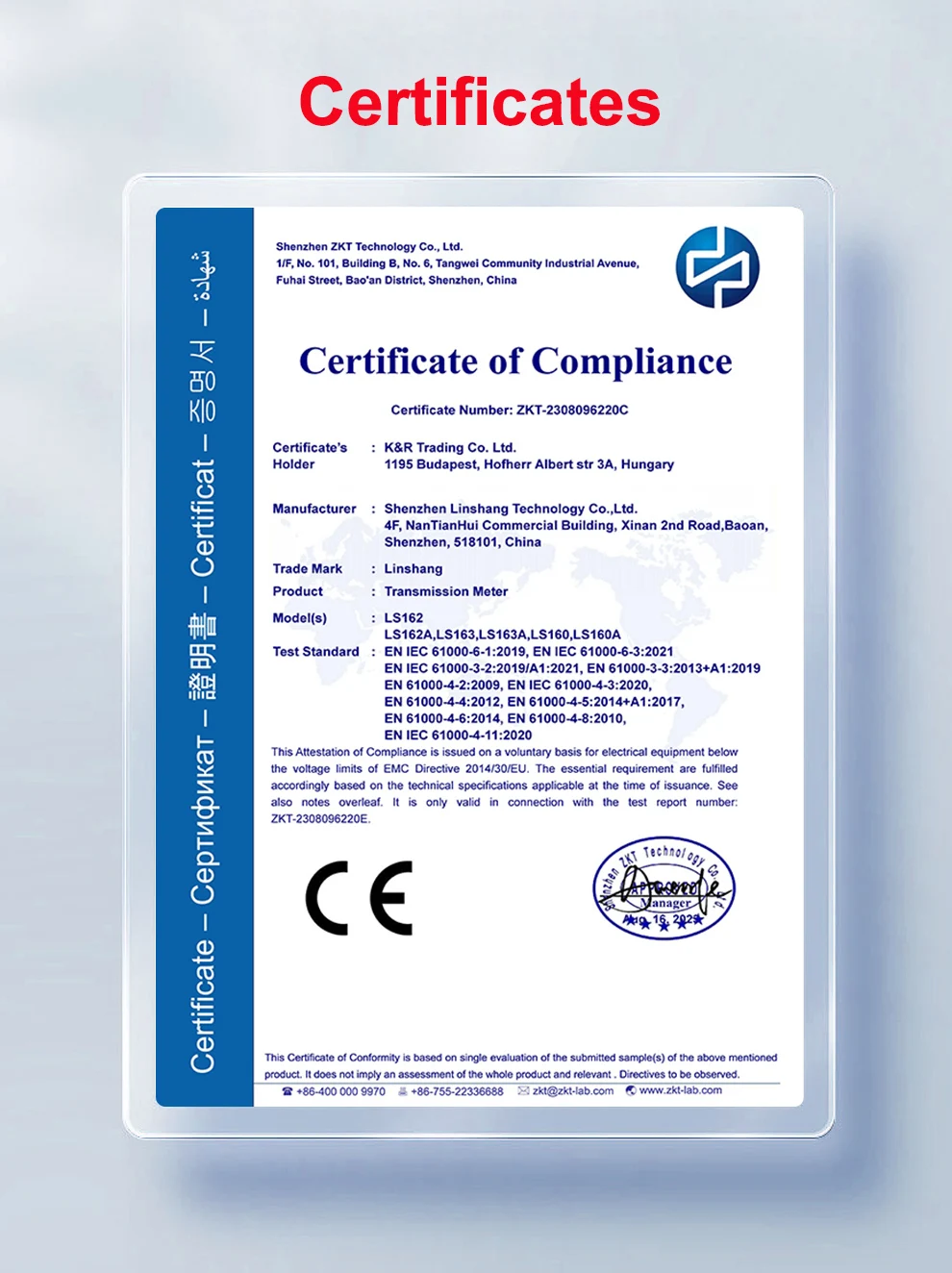

CE certificate

Obtained CE certification, ensure reliable product quality.

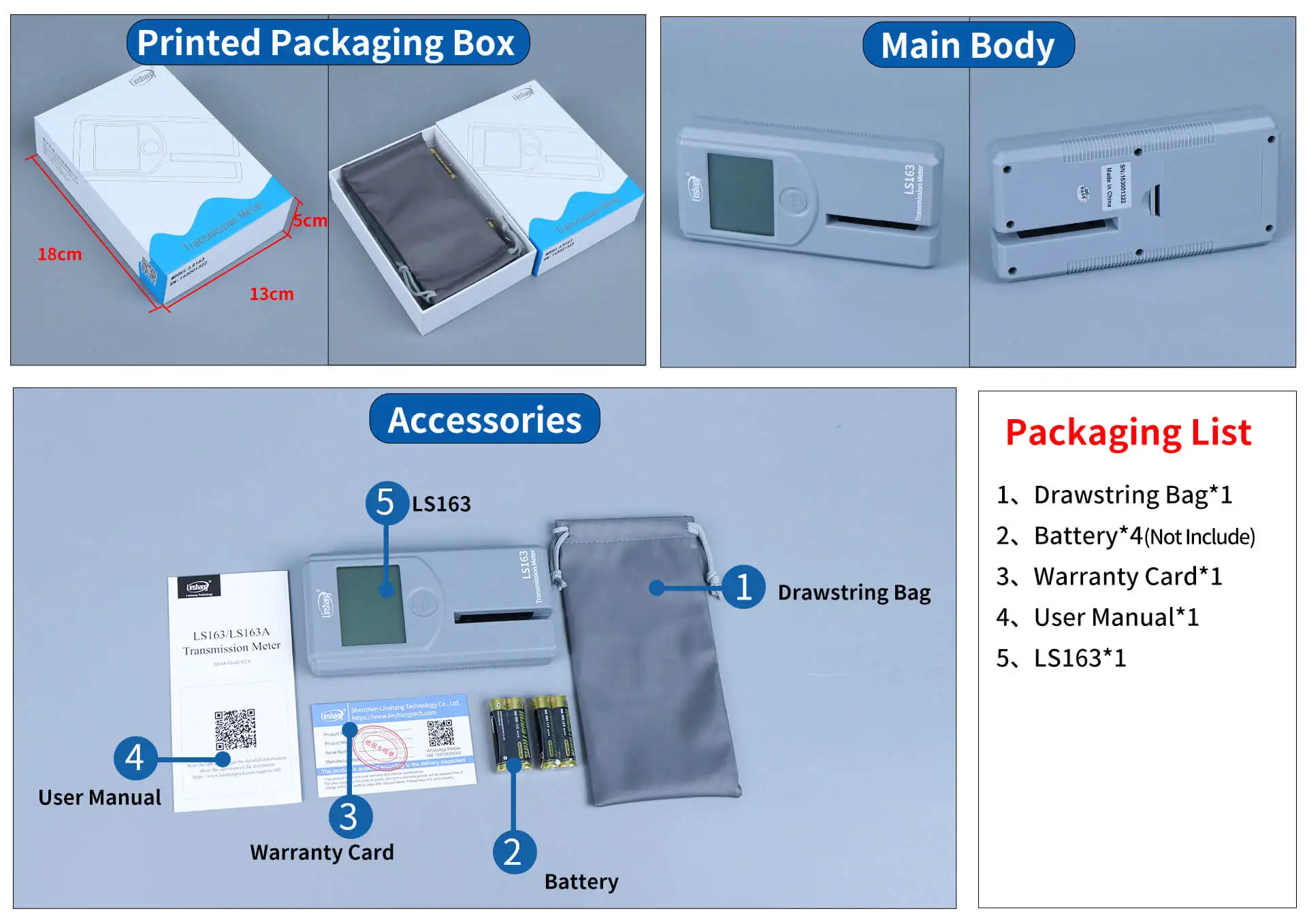

1. LS163/LS163A Transmission Meter*1

2. User Manual*1

3. Certificate / warranty card*1

4. Packing box dimension 18*11*5 cm（L*W*H）*1

5. Drawstring Bag*1
