Linshang, เครื่องวัดค่าความเงา, Linshang LS193 gloss meter with micro measuring aperture,LS193 gloss meter, with micro measuring aperture Measuring aperture: 3mm*6mm Universal angle 60°, measuring range: 0-1000GU In line with requirement of Chinese Grade

Parameter

Description

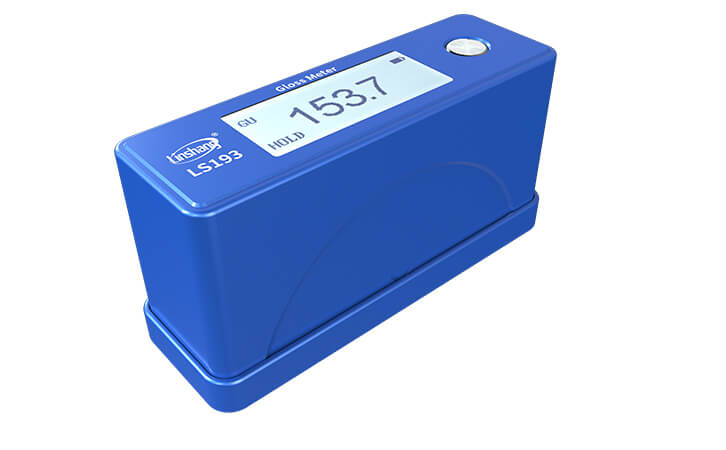

LS193 mini measuring aperture gloss meter specializes in gloss measurement of curved surfaces or ultra-small objects. It is designed with a 60° universal angle and a maximum range of 1000 GU. The operation is simple, and mass detection can be realized in QC mode. The instrument can be equipped with PC software for online measurement, intelligent statistics of measurement results and generation of measurement reports.

Specifications

1. Measure angle: 60°

2. Measuring Light spot: 1.5mm*3mm

3. Minimum test material size: 3mm*6mm

4. Test Range: 0-1000GU

5. Resolution: 0.1GU

6. Repeatability: 0-100GU：±0.2GU; 100-1000GU：±0.2%

7. Reproducibility: 0-100GU：±0.5GU; 100-1000GU：±0.5%

8. Zero error: 0.1GU

9. Indication error: 0-100GU：±1.5GU; 100-1000GU：±1.5%

10. Battery capacity: rechargeable lithium3.7V@1000mAh

11. Display: 192×64 Dot matrix LCD

12. System language: Chinese(Simplified), English

13. Charging interface: USB(Type-C)

14. Data Interface: USB

15. Size: 102*35*51mm

16. Weight: About 300g

17. Working temperature: 10~45℃，0~85%RH（no drew）

18. Storage temperature: -10~60℃，0~85%RH（no drew）

Features

1. 3*6mm measuring aperture is suitable for measuring curved or small size materials.

2. Excellent repeatability up to ± 0.2GU.

3. 60° universal angle design with widely measurement range of 1000GU.

4. Operation easily, put and read without using a button.

5. Equipped with PC software for online measurement, statistics on measurement results and generation of measurement reports.

6. QC mode, which may automatically determine whether a result is qualified.

7. The instrument shell made of aluminum is durable and not easily damaged in use.

8. It can pass inspection of authoritative metrology institute.

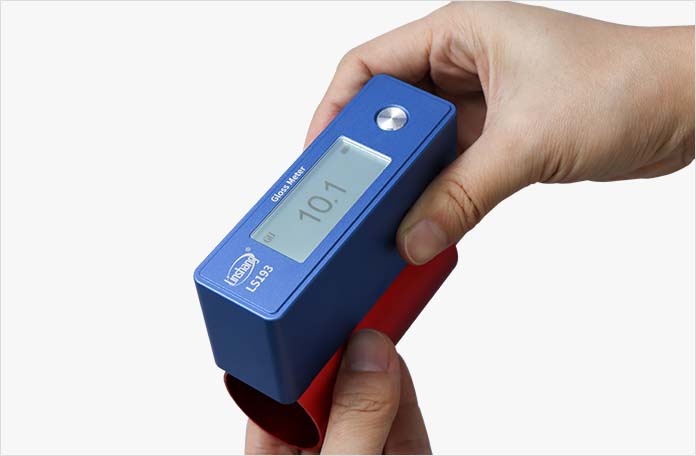

3*6mm measuring aperture

3*6mm measuring aperture is suitable for measuring curved or mini size materials.

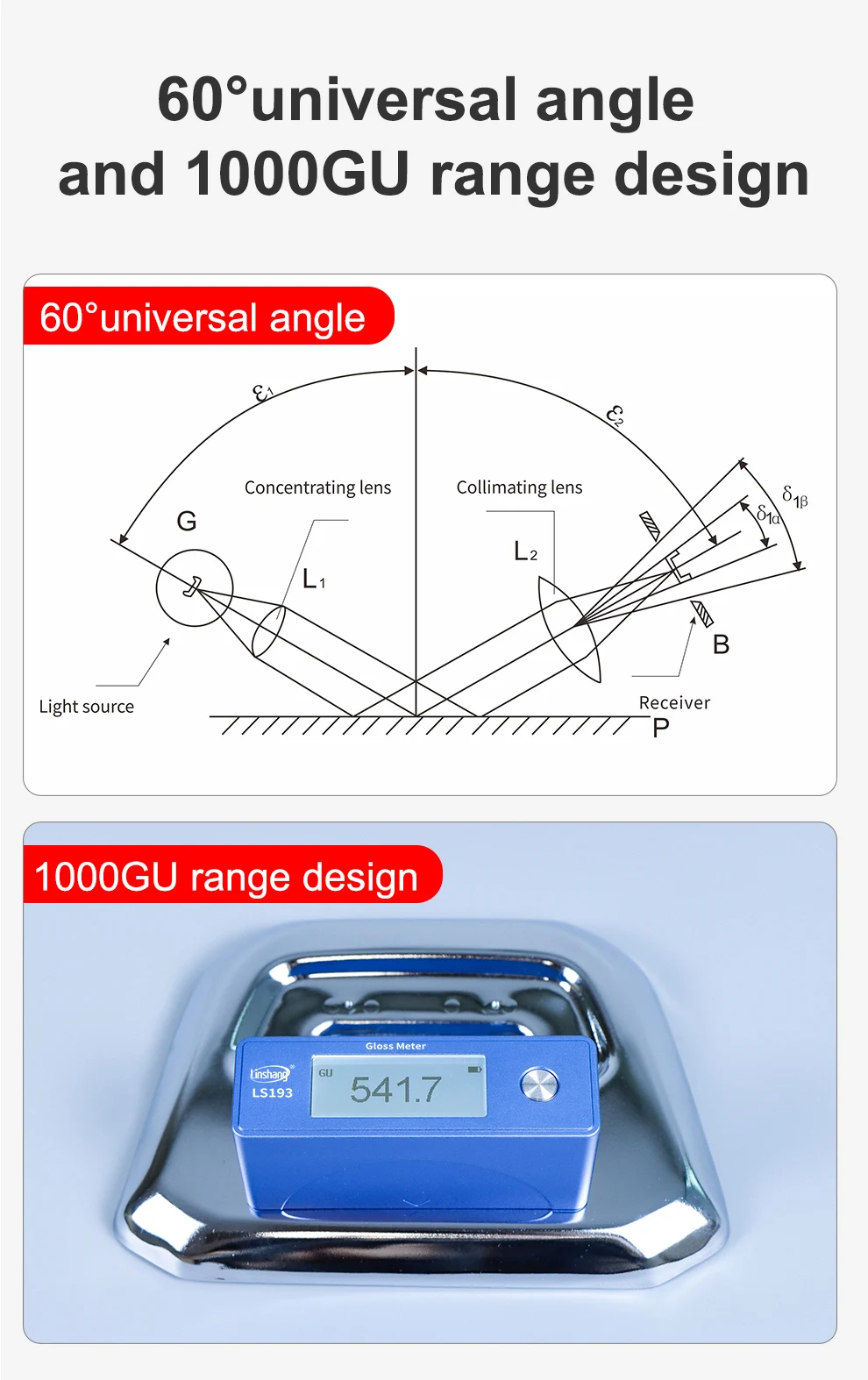

60°universal angle and 1000GU range design

60°universal angle design with widely measurement range of 1000GU.

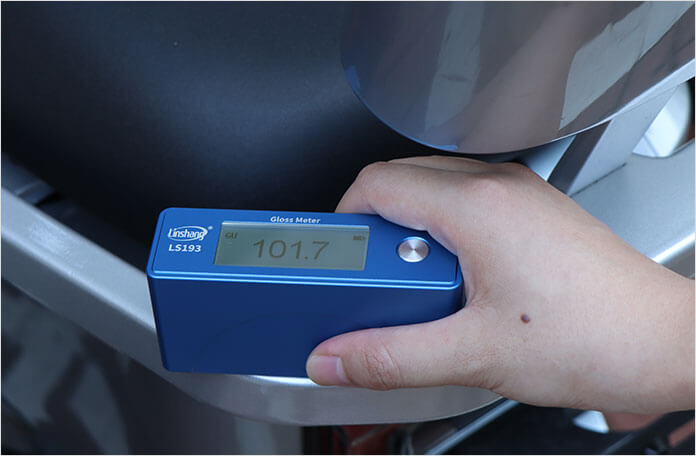

Wide range of applications

It is widely used for the surface gloss testing of paints, plastics, paper, ceramics, stone, metals and other materials.

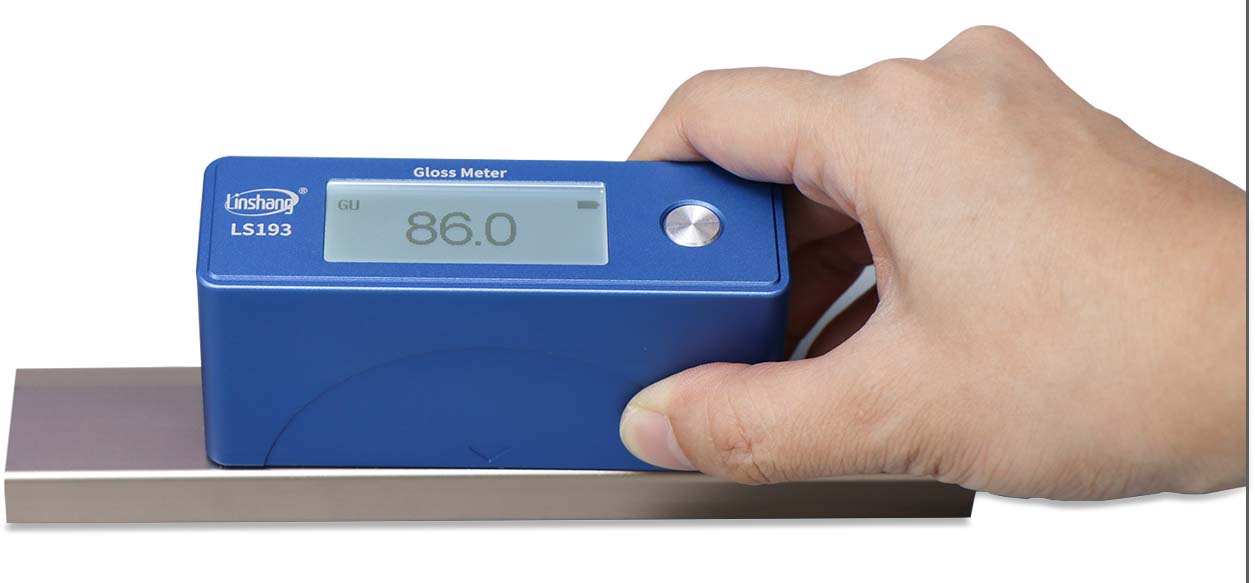

Operation easily

Operation easily, put and read without using a button.

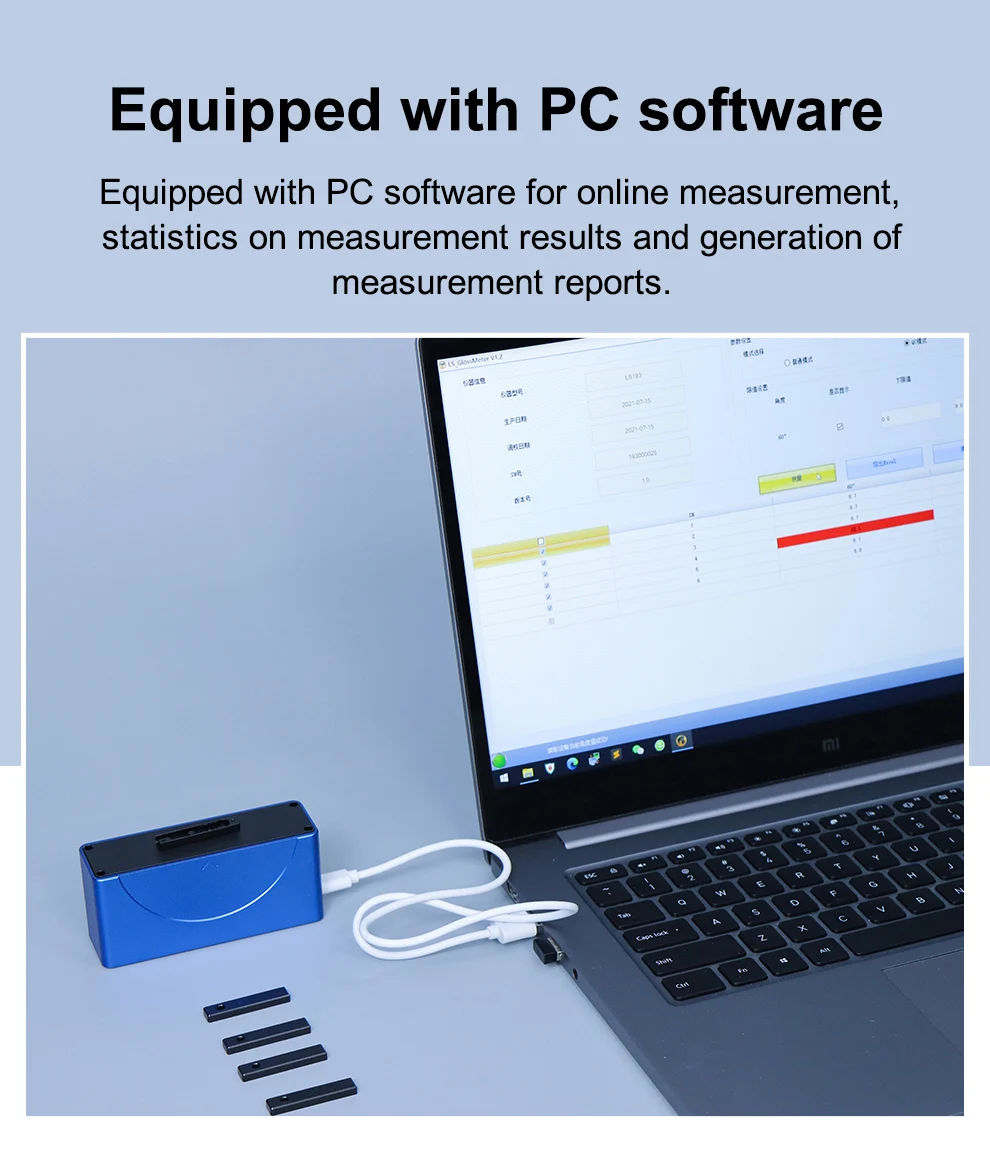

Equipped with PC software

Equipped with PC software for online measurement, statistics on measurement results and generation of measurement reports.

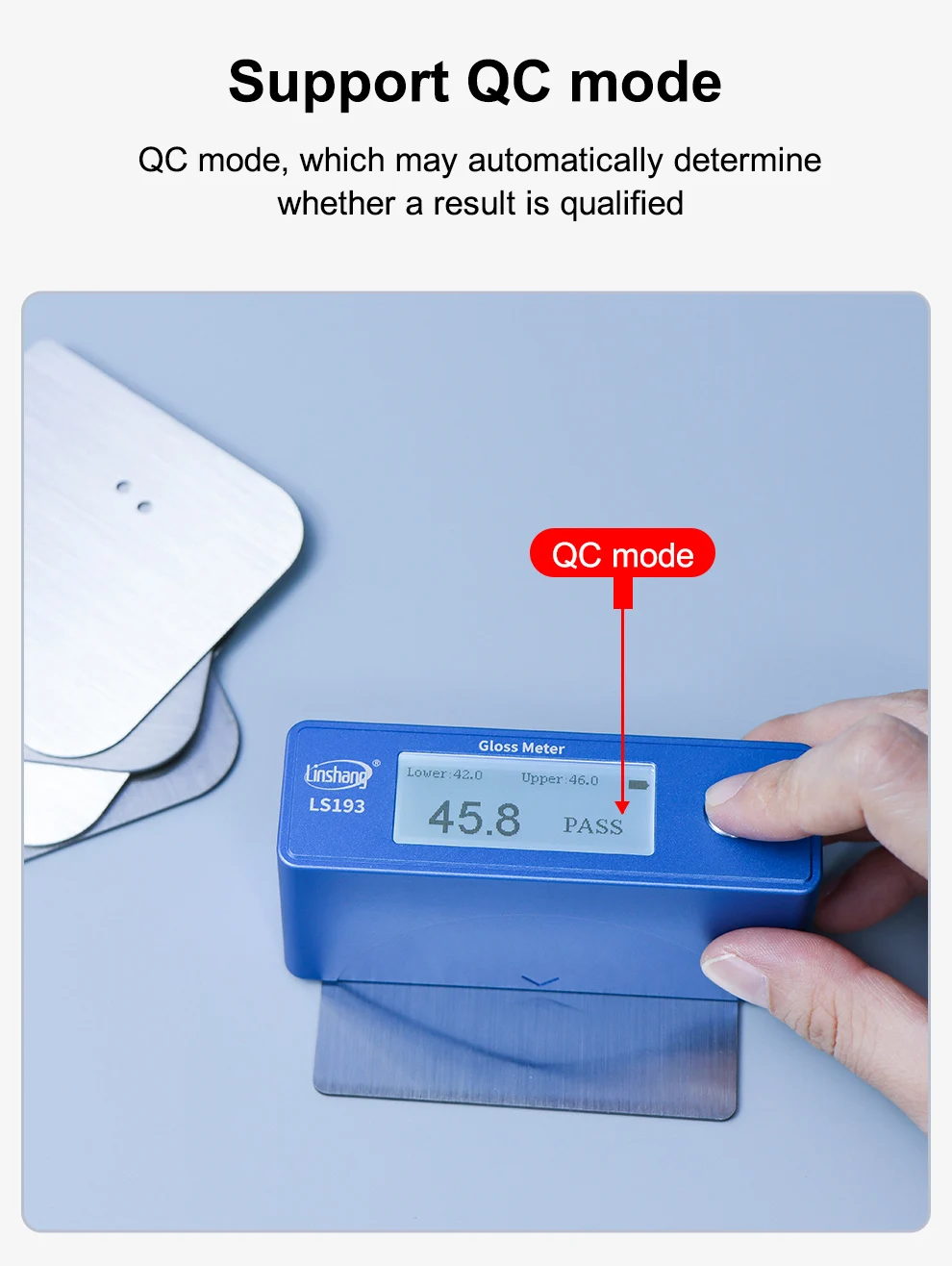

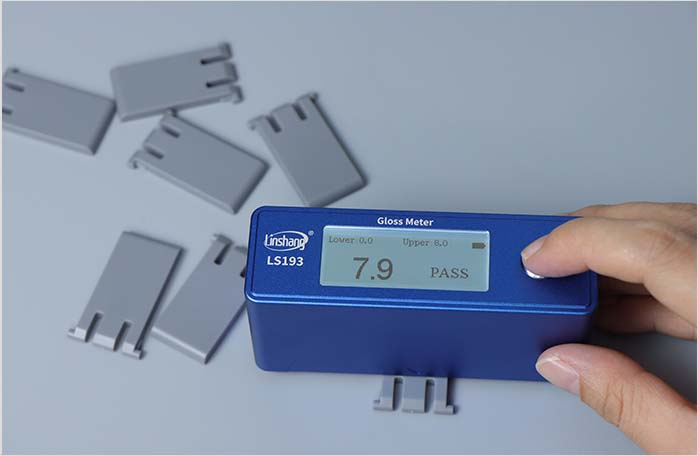

Support QC mode

QC mode, which may automatically determine whether a result is qualified.

Aluminum shell design

The instrument shell made of aluminum is durable and not easily damaged in use.

Pass authoritative metrology institute inspection

LS193 conforms to following standards: ISO2813，ISO7668，ASTM D523，ASTM D2457，DIN 67530，GB/T9754, GB/T13891，GB/T7706, GB/T8807, also can pass inspection of authoritative metrology institute.

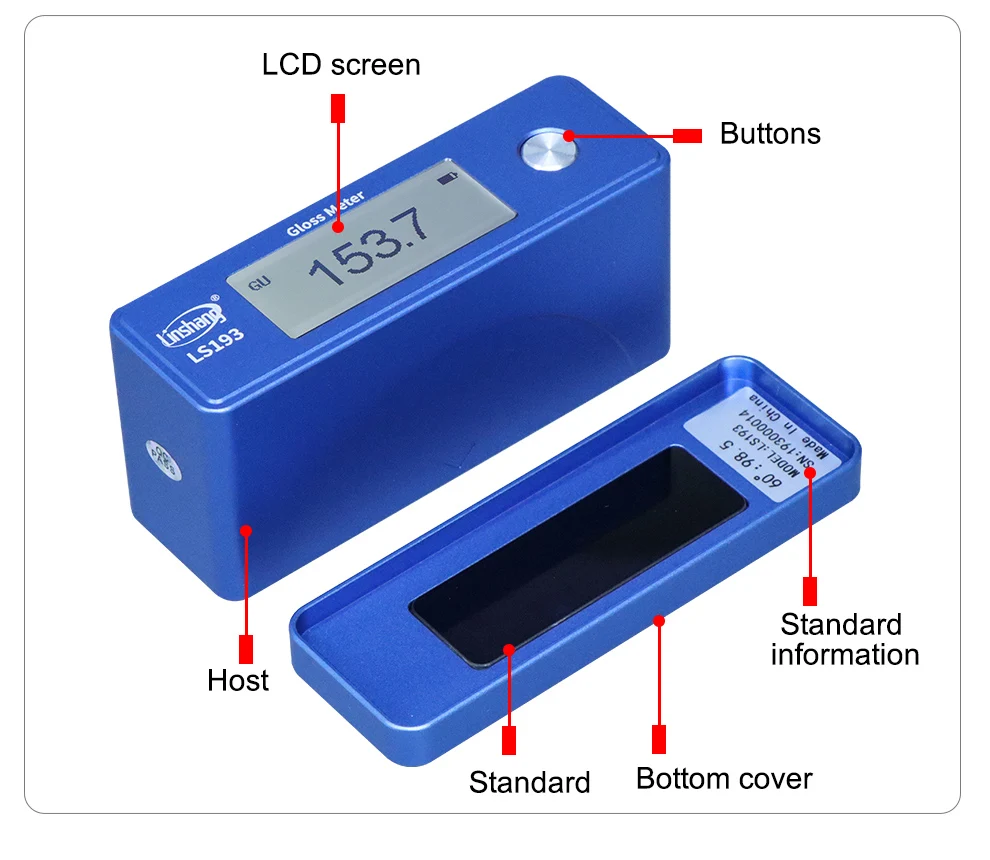

1. Gloss Meter*1

2. USB Data Cable*1

3. USB Disk (software)*1

4. Special Lens Cloth*1

5. User Manual*1

6. Certificate / Warranty Card*1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
