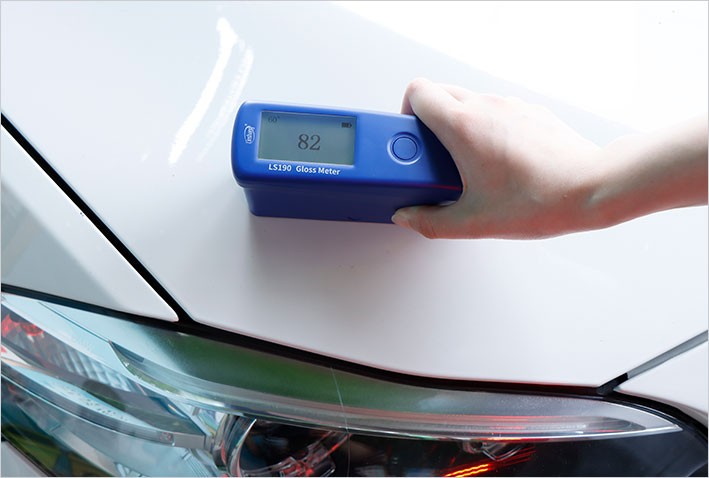

Linshang, เครื่องวัดค่าความเงา,Gloss Meter LS190, Glossmeter Car Glossmetre LS190 60°, Universal Angle Design Easy Operation High Precision Rechargeable Software,LS190 Gloss Meter,

Description

LS190 is a handheld gloss meter with a measuring range of 0-200GU. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. It is easy to use and you can get the measurement results immediately after testing in the normal mode. No need to wait. The device can switch to the QC mode, which can realize quick inspection to improve efficiency. LS190 gloss meter meets the national standard of secondary working machine which provided accurate measurement and stable data.

Specifications

1. Measuring Angle: 60°

2. Measuring Light spot: 9mm*15mm

3. Minimum Test Material Size: 20mm*10mm

4. Measuring Range: 0-200GU

5. Resolution: 1GU

6. Repeatability: 0-100GU:±1GU; 100-200GU:±1%

7. Reproducibility: 0-100GU:±1GU; 100-200GU:±1%

8. Zero Error: 1GU

9. Indication Error: 0-100GU:±3GU; 100-1000GU:±3%

10. Power Supply: Lithium rechargeable battery 3.7V@650mAh

11. Display: 240×128 Dot Matrix

12. Language: Simplified Chinese, English

13. Charge Port: USB (Type-C)

14. Data Transmission: USB

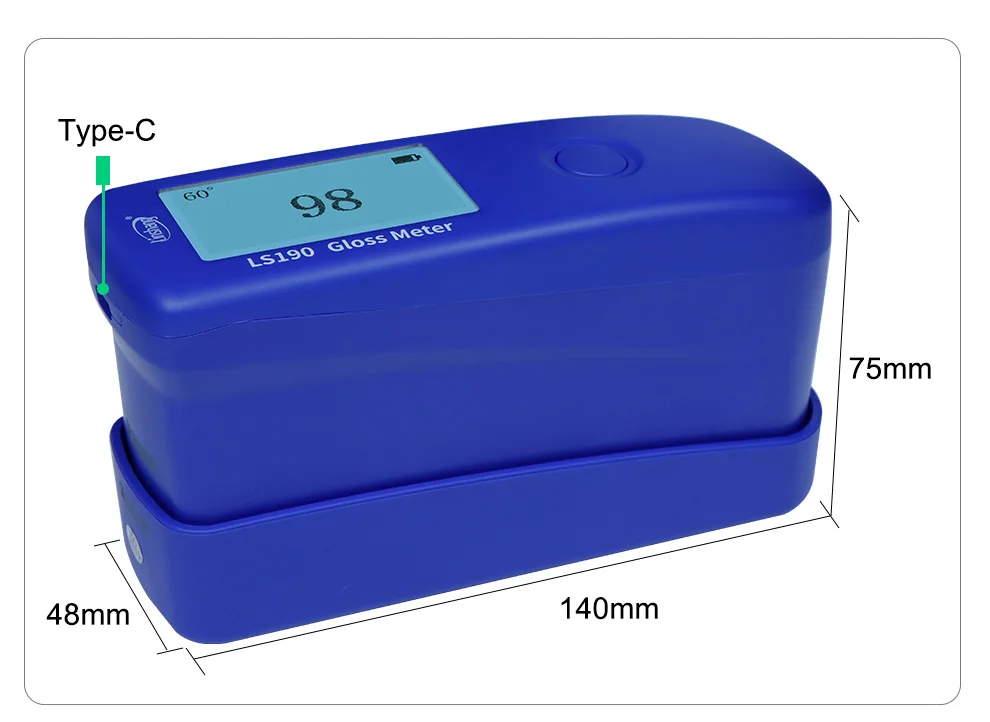

15. Size: 140*48*75mm

16. Weight: About 237g

17. Working Temperature: 10~45℃,0~85%RH (no condensation)

18. Storage Temperature: -10~60℃, 0~85%RH (no condensation)

Features

1. High-quality with competitive price, value for the money.

2. 60° measuring angle, universal light path design, can measure the gloss of most materials

3. 20*10mm test aperture, minimum size of material to be measured

4. Measurement range is 0-200GU, which can measure the gloss of most materials.

5. The meter can start measuring directly after turning it on, users can get the measurement results quickly without waiting.

6. Supporting QC mode, allows the user to customize the upper and lower limit values for qualification determination, which is suitable for inspection on large scale.

7. Connect to PC software to generate test reports and more extent functions.

8. The instrument is recharged by built-in lithium battery for long-lasting endurance, and it can measure 115200 times continuously under fully charged condition.

Wide range of applications

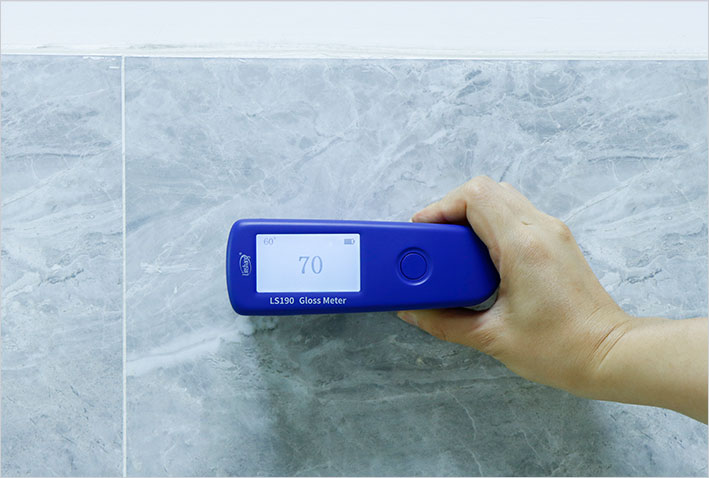

Widely used in paint, plastic, stone, metal and other industries.

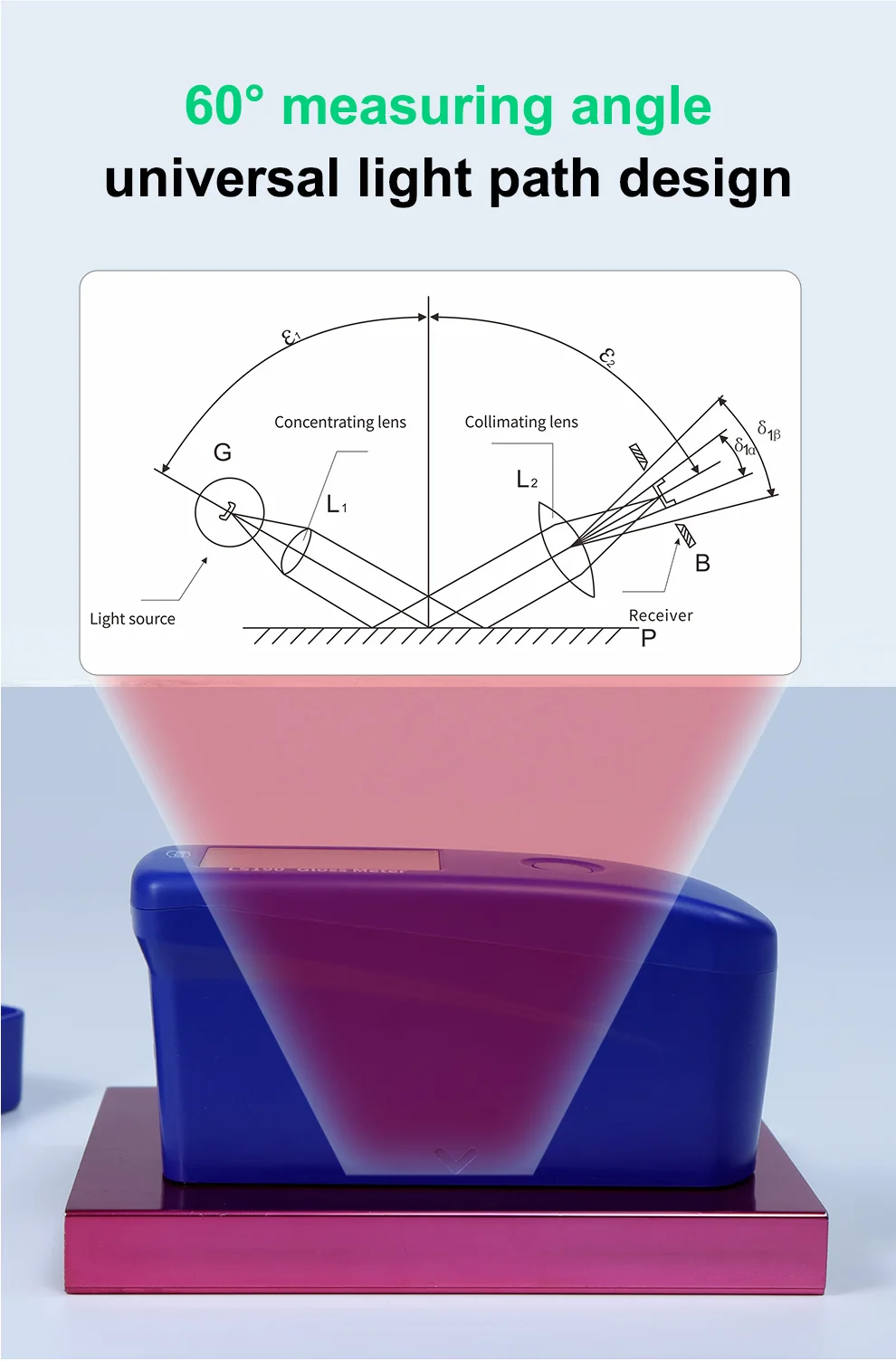

60° measuring angle, universal light path design

60° universal angle light path design, so that the general industry materials gloss can be measured.

20mm*10mm test aperture

Minimum size of material to be measured

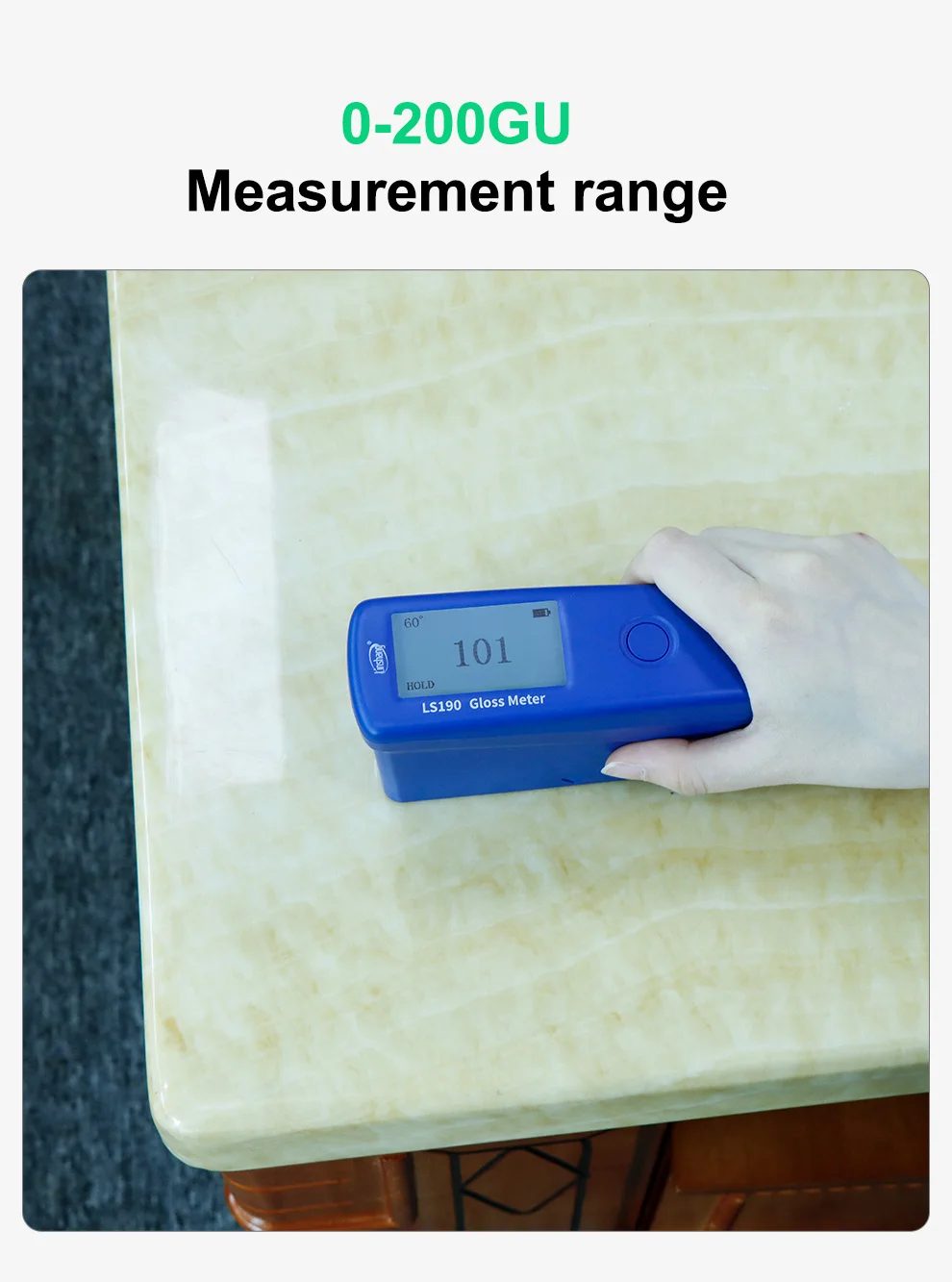

0-200GU Measurement range

Measurement range is 0-200GU, which can measure the gloss of most materials.

Easy to operate

Only one button, turn on the machine and measure samples, it can be measured immediately after being positioned. Test results can be locked with press the button.

QC mode for testing in large quantities.

LS190 gloss meter also supports QC mode in which the user can customize the upper and lower limits for qualification judgment. This mode is suitable for batch testing.

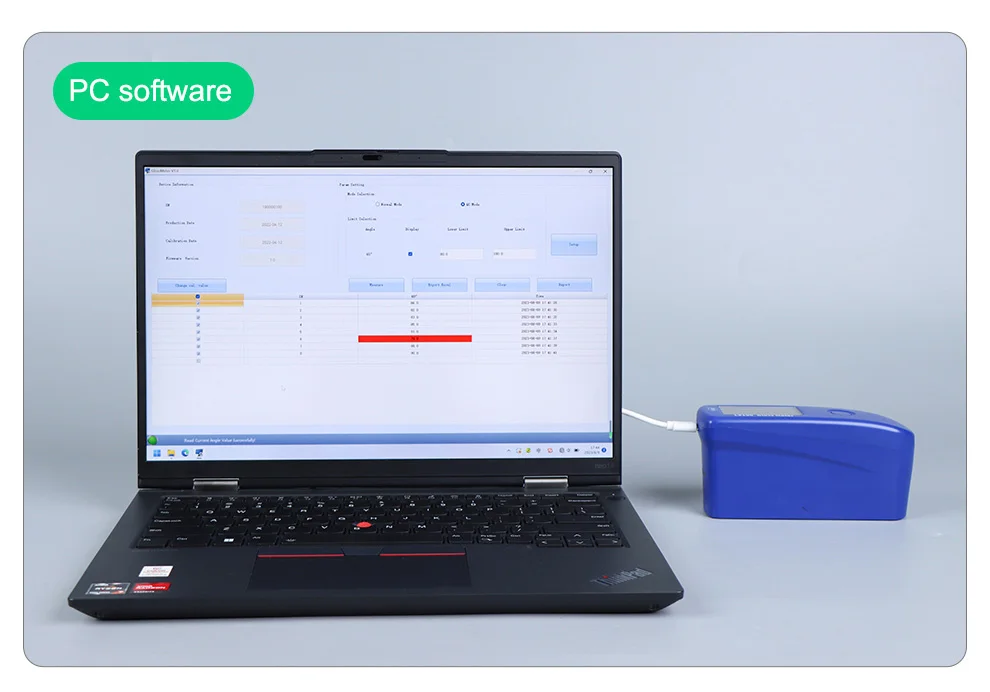

Providing PC software to generate test reports

The meter provides PC software and supports online measurement. The computer can perform intelligent statistics on the data and generates measurement reports.

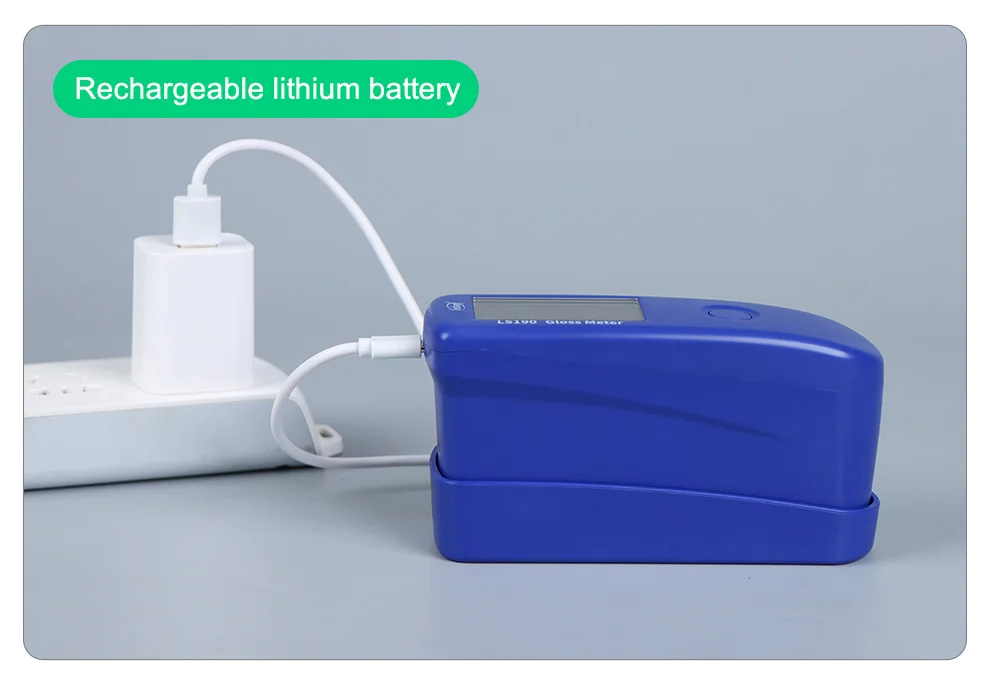

Rechargeable lithium battery charging

The instrument is recharged by built-in lithium battery for long-lasting endurance, and it can measure 115200 times continuously under fully charged condition.

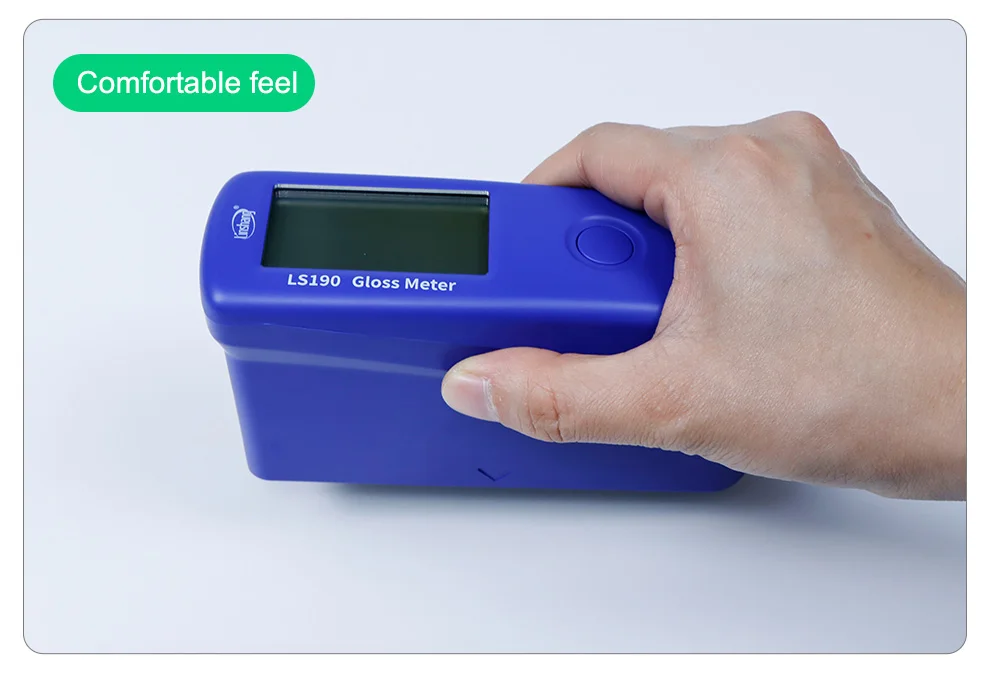

Smooth appearance, and comfortable feels in the hand

Blue engineering plastic with smooth appearance and has a clean minimalistic design.1. Gloss Meter*1

2. USB Data Cable*1

3. USB Disk (software)*1

4. Special Lens Cloth*1

5. User Manual*1

6. Certificate / Warranty Card*1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
