LINSHANG LS116,Visible Light Transmittance Meter, Polycarbonate Laminated Glass Range: 0.001%-99.8% Parallel, Light Path High Precision LS116,

Parameters

Description

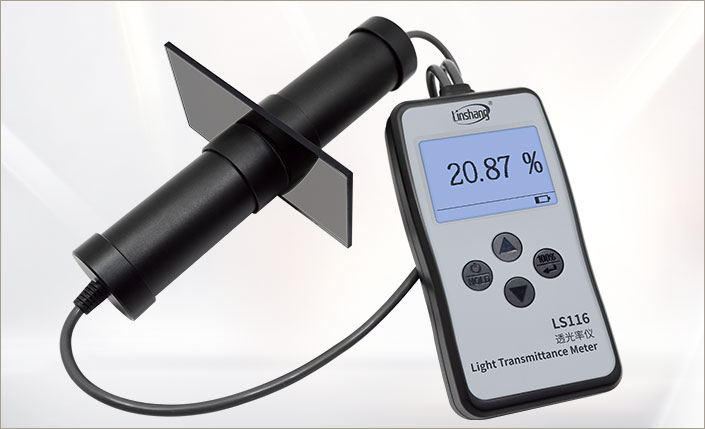

LS116 light transmittance meter is used to test the transmittance of uniform light transmitting materials. Adopting parallel light path design, it can be used to detect large thickness materials with accuracy up to ±1%. The light source of the instrument conforms to the CIE bright visual function standard, ensuring that it passes the test of the metrology institute. Suitable for testing the transmittance of various glass products, solar film, laminated glass, coated materials, organic material panels and other materials.

Specifications

1. Light source: 380nm-760nm full wavelength, in line with CIE photopic luminosity function

2. Measurement accuracy: ± 1% (colorless and uniform transparent materials)

3. Resolution: 0.001% (0% - 10%); 0.01% (10% - 100%)

4. Test sample thickness: Less than 100mm

5. Test sample diameter: 10mm

6. Display: 240 * 160 dot-matrixes LCD

7. Weight: about 622g (without battery)

8. Dimension: 148mm * 76mm * 26mm (L*W*H)

9. Power supply: 4 AAA alkaline dry battery

Features

1. Parallel light path and receiver spotlight design, it can test large thickness materials, up to 100mm thick.

2. The instrument can test high transmittance materials with 99.8% light transmittance.

3. Materials with low transmittance can be tested with a resolution of 0.001%.

4. The instrument ensures that it can pass the test of the metrology institute with an accuracy of ±1%.

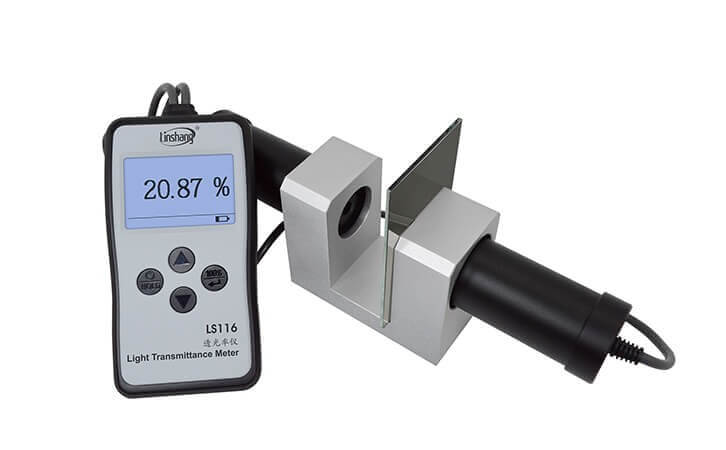

5. Fitted with a mounting base with two measurement methods.

6. Suitable for testing the transmittance of solar film, laminated glass, coated materials, organic material panels and other materials.

7. Fast response with real-time dynamic calibration function.

Detection uniform light transmitting materials

It is suitable for testing uniform light-transmitting materials' transmittance, such as solar film, laminated glass, coated materials, organic material panels.

Test large thickness materials

Parallel light path and receiver spotlight design, it can test large thickness materials, up to 100mm thick.

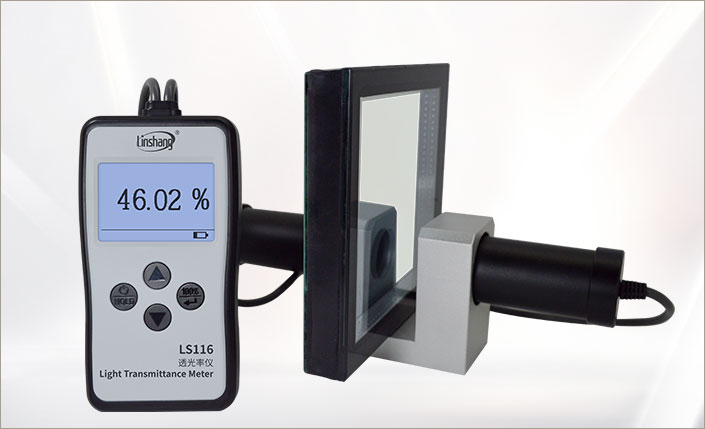

High transparency glass measurement

The instrument can test high transmittance materials with 99.8% light transmittance.

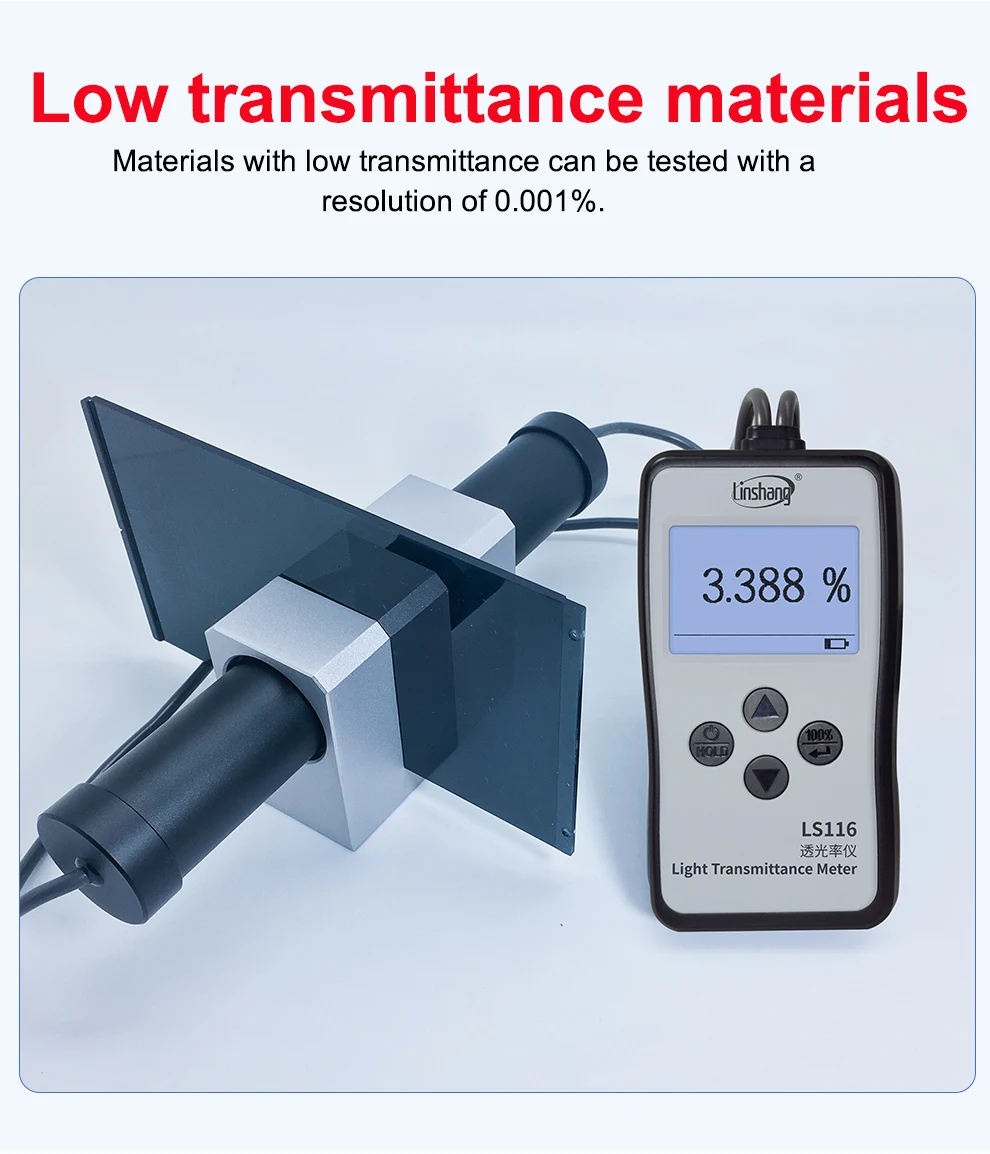

High resolution

Materials with low transmittance can be tested with a resolution of 0.001%.
