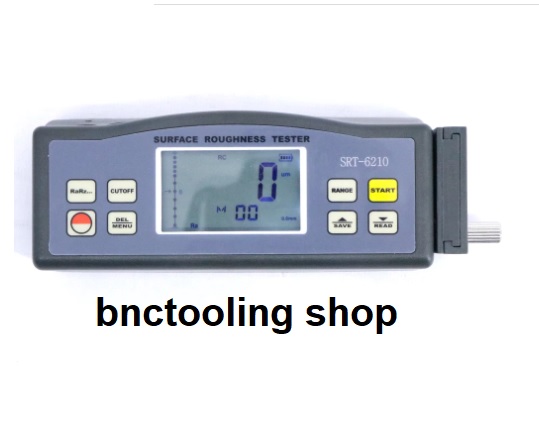

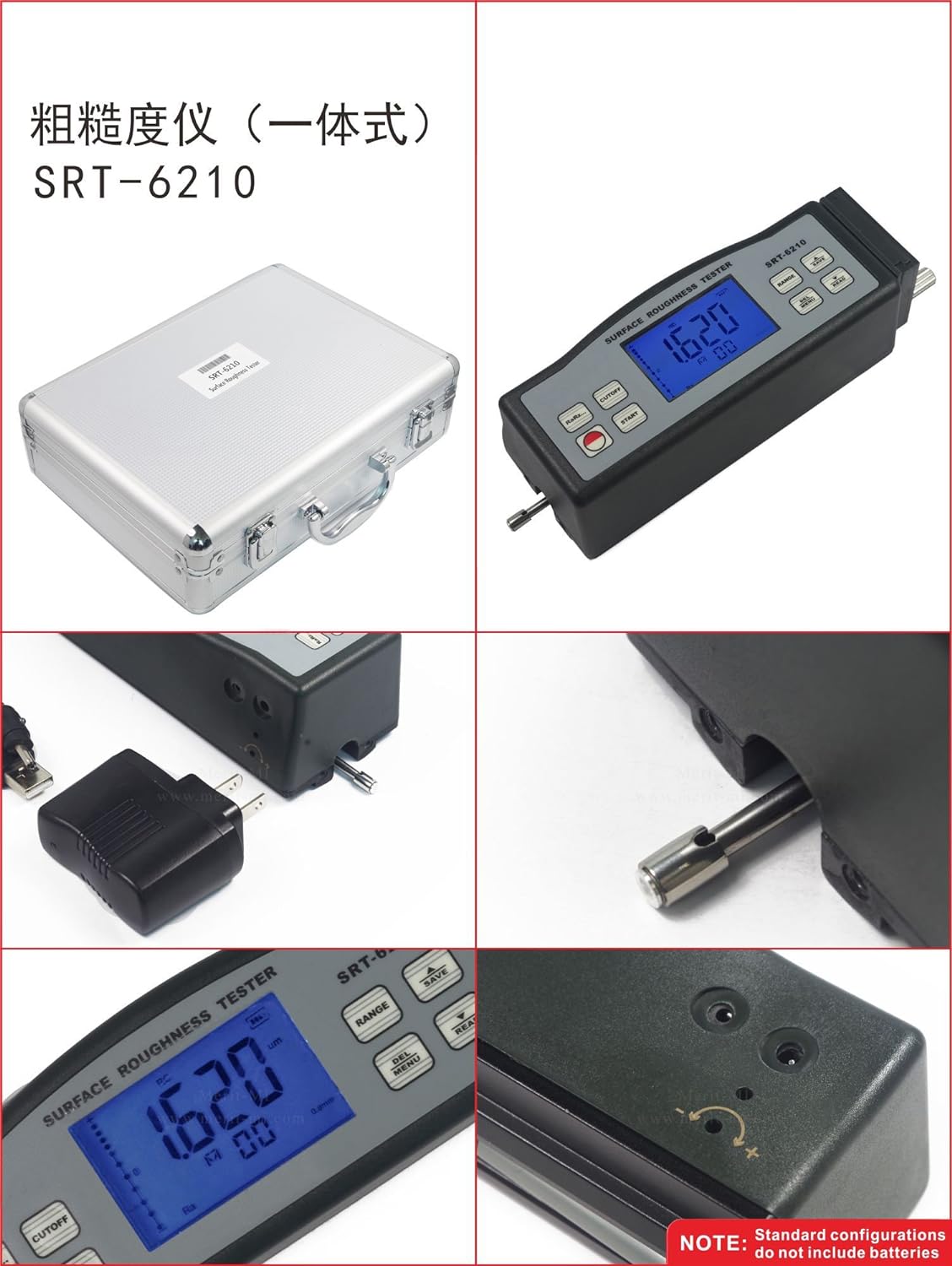

SRT-6210 Digital Profilometer Portable Surface Roughness Tester

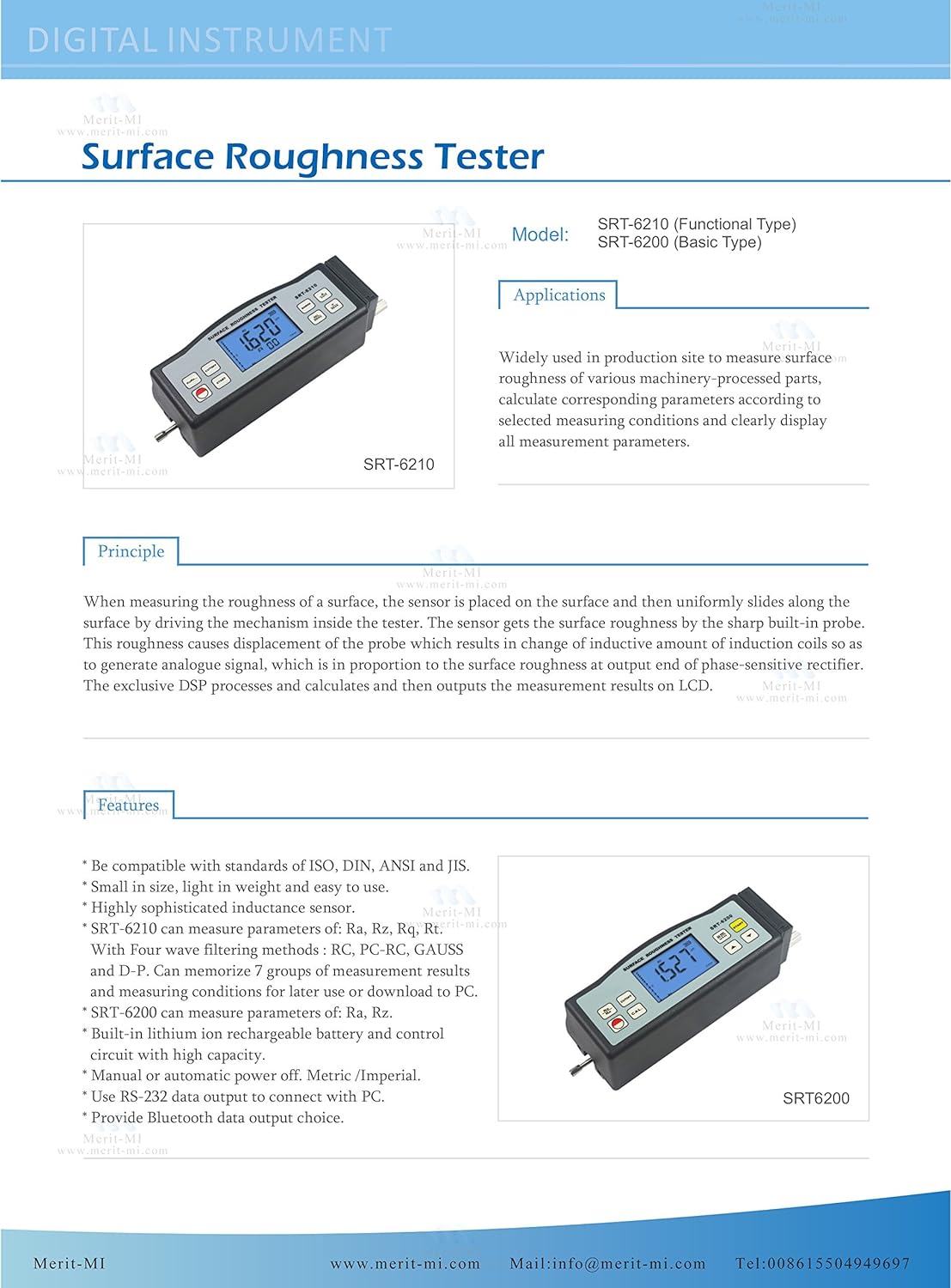

Using the built-in Diamond pin probe, this multi-parameter tester measures 4 parameters (Ra, Rz, Rq, Rt). It has 4 wave filtering methods (RC, PC-RC, GAUSS & D-P) and memorize 7 groups of measurement results & conditions for use at a later time. Widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters and clearly display all measurement parameters in Metric or Imperial. In addition, said parameters can be downloaded directly to PC as well via the optional RS-232 CD software & cable and passed ISO, DIN, ANSI and JIS international standards.

Measurement can be done by placing the sensor on the surface then uniformly slide the highly sensitive sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates then outputs the results clearly on LCD.



Special Features:

Multiple parameter measurement: Ra, Rz, Rq, Rt

Four wave filtering methods : RC, PC-RC, GAUSS and D-P

Highly sophisticated inductance sensor

Built-in lithium ion rechargeable battery and control circuit with high capacity

The sensor sliding along the surface by driving the mechanism

Memorize 7 groups of measurement results and conditions

Metric / Imperial Conversion

Exclusive DSP processes to output measurement results on LCD

Easy operation menu and large LCD display

Manual and Auto switch off

Circuit with high capacity

Compatible with four international standards ISO, DIN, ANSI and JIS

Option to communicate with PC computer for statistics, printing and analyzing via the optional cable and software for RS232C interface (optional, not included in the set)

Small in size, light in weight and easy to use

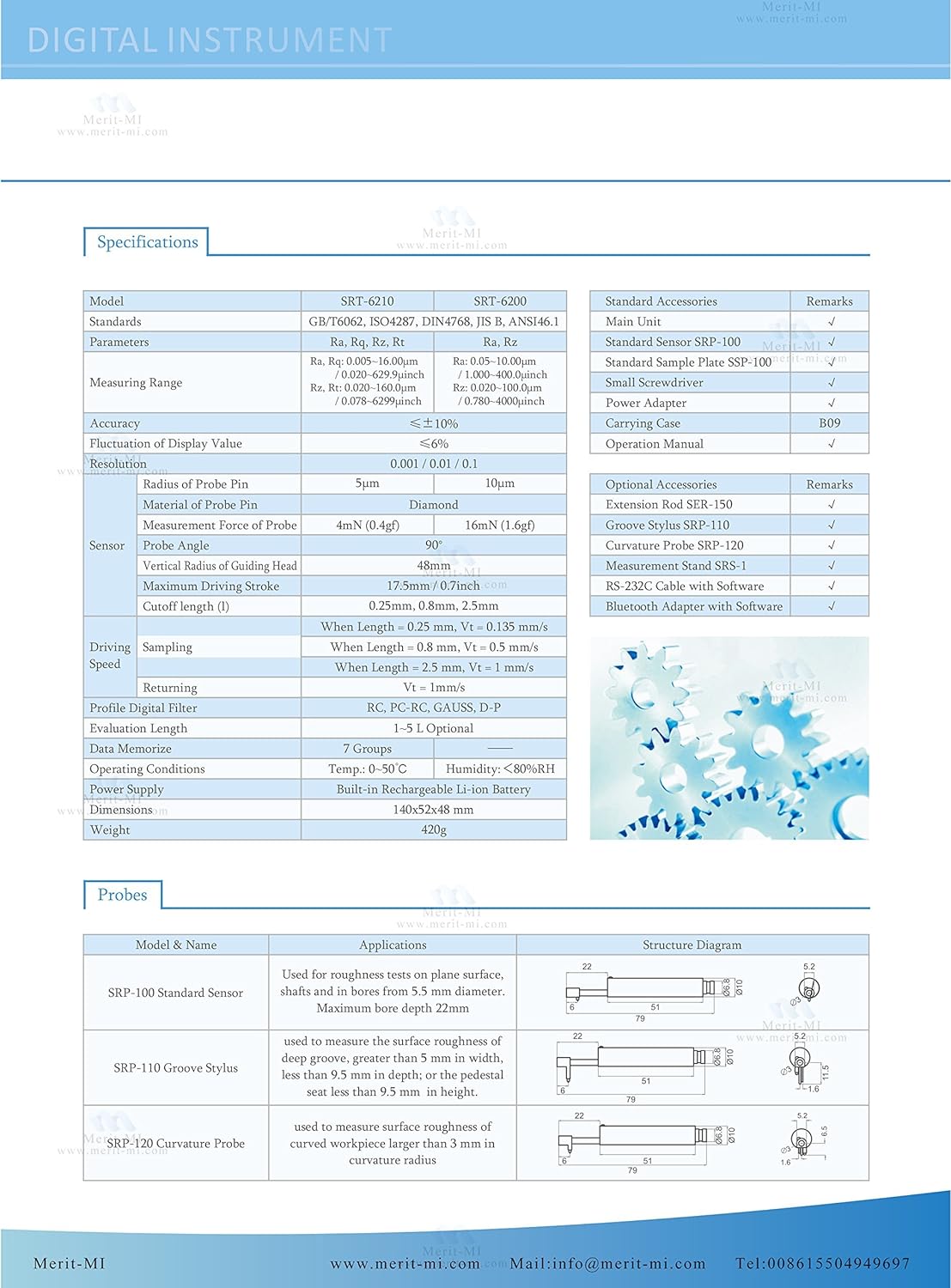

Specifications:

Multiple parameter measurement: Ra, Rz, Rq, Rt

Filtering methods: RC, PC-RC, GAUSS and D-P

Measuring Range

Ra, Rq: 0.025-16.00µm/1.000-629.9µinch

Rz, Rt: 0.020-160.00µm/0.780-6299µinch

Accuracy:<=10%

Repeatability: <= 6%

Fluctuation of display value: <= 6%

Sensor

Test Principle: Inductance type

Material of Probe Pin: Diamond

Radius of Probe Pin: 5µm

Dynamo-measurement of Probe: 4mN(0.4gf)

Vertical Radius of Guiding Head: 48mm

Probe Angle: 90°

Maximum driving stroke: 17.5mm / 0.7inch

Cutoff Length: 0.25mm / 0.8mm / 2.5mm optional

Evaluation length 1-5 cut-off optional

Driving speed

sampling length = 0.25mm Vt=0.135mm/s

sampling length = 0.8mm Vt=0.5mm/s

sampling length = 2.5mm Vt=1mm/s

returning Vt=1mm/s

Resolution:

0.001µm if reading <10µm

0.01µm if 10µm =reading <100µm

0.1µm if reading =100µm

Data output: communicate with PC through RS232C interface (optional, not included in set)

Store memory: 7 groups of measurement

Metric / Imperial Conversion

Display: 4 digits, 10mm LCD with blue backlight

Power Li-ion battery: rechargeable

Operating conditions

Temperature: 0~50°C

Humidity: <85%

Auto & Manual switch off

Size: 140 x 57 x 48mm (5.5 x 2.2 x 1.9 inch)

Weight: about 420G

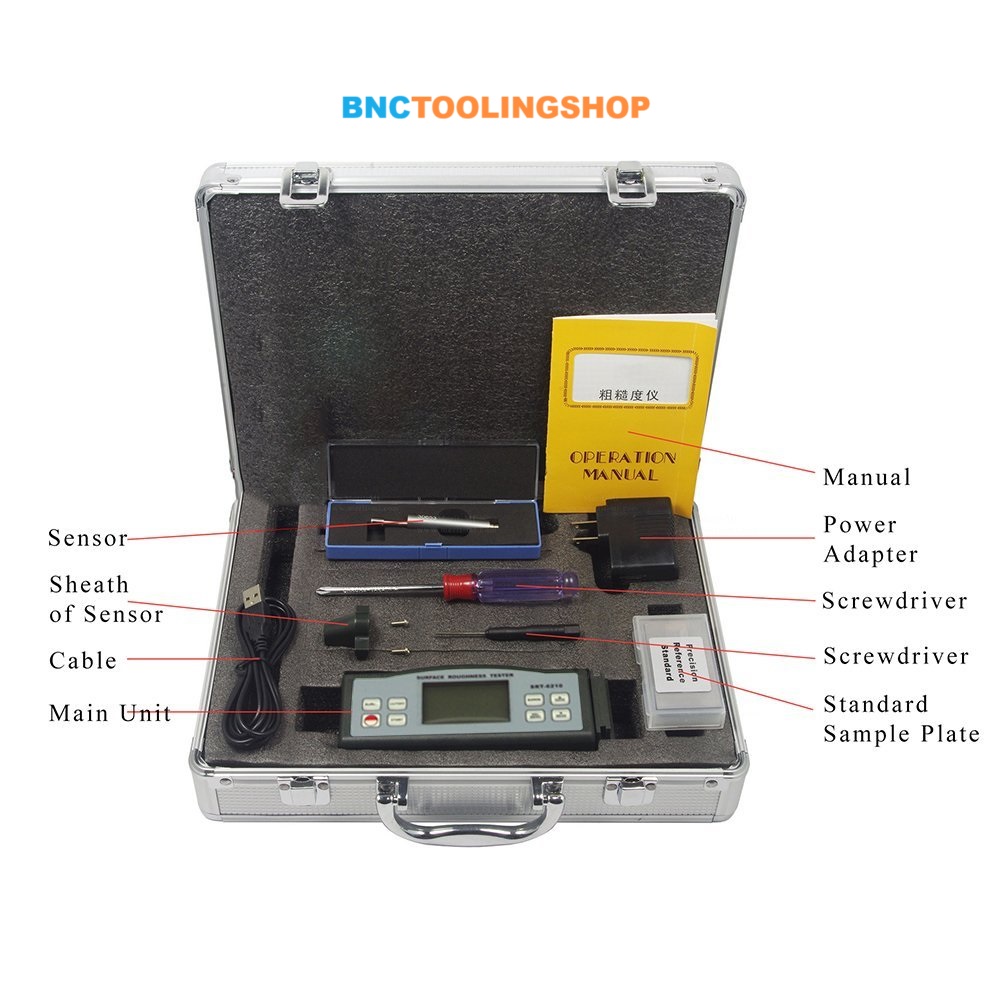

 Set Includes:



1 x Multi-Parameter Tester (main unit)

1 x Standard Sensor

1 x Standard Sample Plate

1 x Screwdriver

1 x Adjustable Leg

1 x Sensor Protector

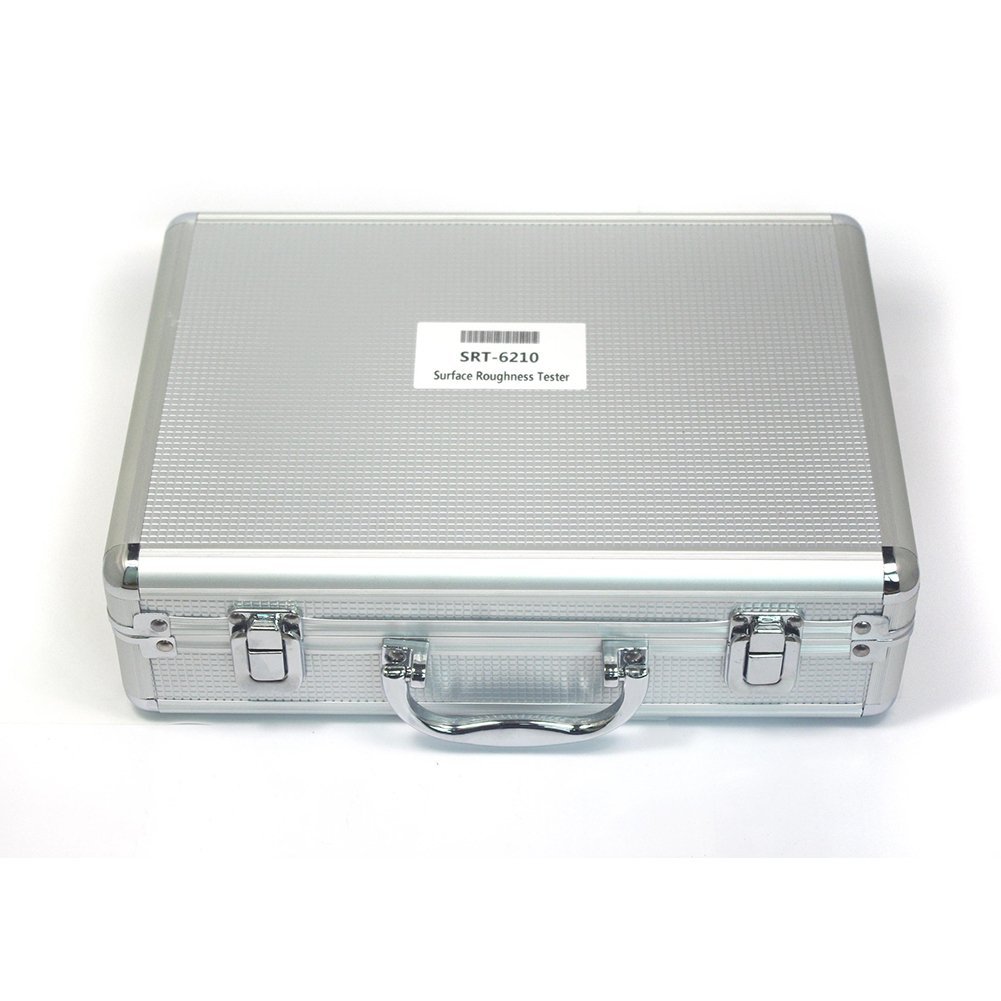

1 x Carrying Case

1 x Instruction Manual

1 x Power Adapter (choose 1 from these available Adapter for US, UK, Australia and Europe system)
