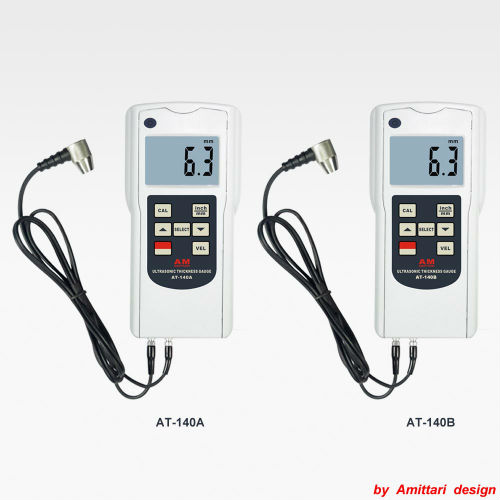

เครื่องวัดความหนาอัลตร้าโซนิค, Ultrasonic Thickness Gauge Meter, Brand:AMITTARI , Model : AT-140A/B
Brand : AMITTARI
Model : AT-140A/B
Type : Ultrasonic Thickness Gauge AT-140A/B
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า



Product Description



The Ultrasonic Thickness Gauge AT-140 series include two model; Using the latest high performance and low power consumption micro processing technology,applicable to measure the thickness of metal and other materials base on the ultrasonic operating principle.



Product Feature





* Coupling state prompt functions.

* Automatic shutdown and manual shutdown function.

* Automatic memory material code and sound velocity value, convenient use.

* Use USB data output with connection PC

* Provide Bluetooth data output choice.



Product Parameters



Resolution

AT-140A: 0.1 mm

AT-140B: 0.01 mm
Range AT-140A: 1.2~200mm (45# steel )
AT-140B: 1.2~300mm (45# steel )
Accuracy ±(0.5%n+0.1)
Sound velocity 500~9000m/s
Operating condition Temp. 0~50
Humidity: <80%)
Display unit millimeters and inches
Size 140x70x30 mm
Power Supply 4x1.5vAAA (UM-4)Battery
Weight 130g   (Not including batteries)



Product Accessories







Standard Accessories

Main Unit

5MФ8 Standard Sensor
Coupling Agent
Carrying Case
Operation Manual

Optional Accessories



USB data output

Bluetooth data output



Sensor Technical Parameters:

Probe

Model

Characteristics

Measuring

Range ( mm )

Diameter Frequency Operating Temperature











5MHz Φ8

Standard Configure Probe

( UTG-ST )

1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz Normal Temperature

( 0 ~ 50 °C )







Measurement of

Round Pipe

( Outwall )

UTG-TP

R60 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz Normal Temperature

( 0 ~ 50 °C )

R40 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz Normal Temperature

( 0 ~ 50 °C )

R50 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz Normal Temperature

( 0 ~ 50 °C )

R60 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz Normal Temperature

( 0 ~ 50 °C )

R70 1.5 ~ 200 ( Steel ) Φ 8 mm 5M Hz Normal Temperature

( 0 ~ 50 °C )

5MHz Φ6

Measurement of Workpiece

in Small Diameter

1.2 ~ 100 ( Steel ) Φ 6 mm 6M Hz Normal Temperature

( 0 ~ 50 °C )

5MHz Φ12

High Temperature

Measurement ( UTG-HT )

3.0 ~ 200 ( Steel ) Φ 12 mm 5M Hz Normal Temperature

( 0 ~ 300 °C )



2MHz Φ10



Measurement

Plastic 1.0 ~ 50

Φ 10 mm

2M Hz Normal Temperature

( 0 ~ 50 °C )

Cast Iron 3.0 ~ 40





Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories



Amittari instruments generally can be supplied   with Bluetooth data output function ( except   few   instruments ) . As Bluetooth data   output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact   with the customer-service worker if you need Bluetooth data   output.
