เครื่องวัดความหนาสี, Brand Genuine AMITTARI Digital Coating Thickness Gauge Meter USB BLUETOOTH DATA OUTPUT F&NF
Brand : AMITTARI ,
Model : AC-110C Basic, AC-110CS with Porbe,
Stock Code: AI stock'
Name : เครื่องวัดความหนาสี, Brand Genuine AMITTARI, Digital Coating Thickness Gauge,
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

Product Description

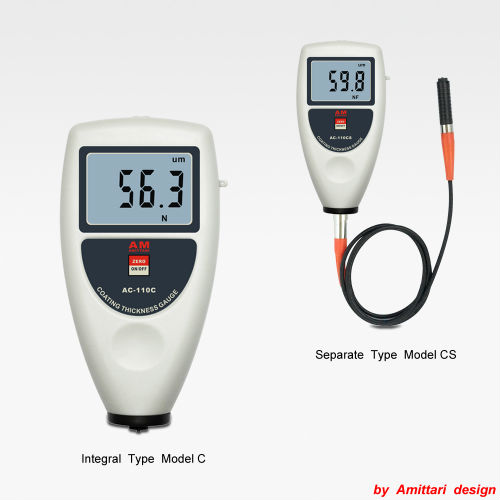

The Basic Type Coating Thickness Gauge AC-110 Series have two types: Type C ( Integral Type ), Type CS ( Separate Type ); Suitable for automotive, paint layer coating thickness measurement; Integral Type suitable for single-hand operation, large   probe   with   large   contact   surface   have   better   stability, users   can   get   continuous, good   repetitive   and   precise measurements. Separate Type can provide   several   type   probe, measure   can   be   more   flexibility. It   is   a   kind   of   portable measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement. Not only can be usedin the laboratory, also can be used in the engineering field. Through the use of different measuring head, but also can meet the needs of a variety of measurement. Widely used in manufacturing, metal processing industry, chemical industry, commodityinspection and testing field. Is the material protection professional.





Product Parameters



Measuring Range 0~1250 um
0~50mil (other range may be specified)
Resolution

0.1 um (0~99.9um)/1 um (over 100um)

Accuracy: 1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area 6 mm

Minimal Surface

F Type convex1.5 mm / concave 25 mm
NF Type   convex 3 mm / concave 50mm
Operating Condition Temp: 0~50°C /
Humidity: <95%
Size 120x63x25 mm
Power Supply 2x1.5vAAA Um-4 Battery
Weight 90 g   (Not including batteries)

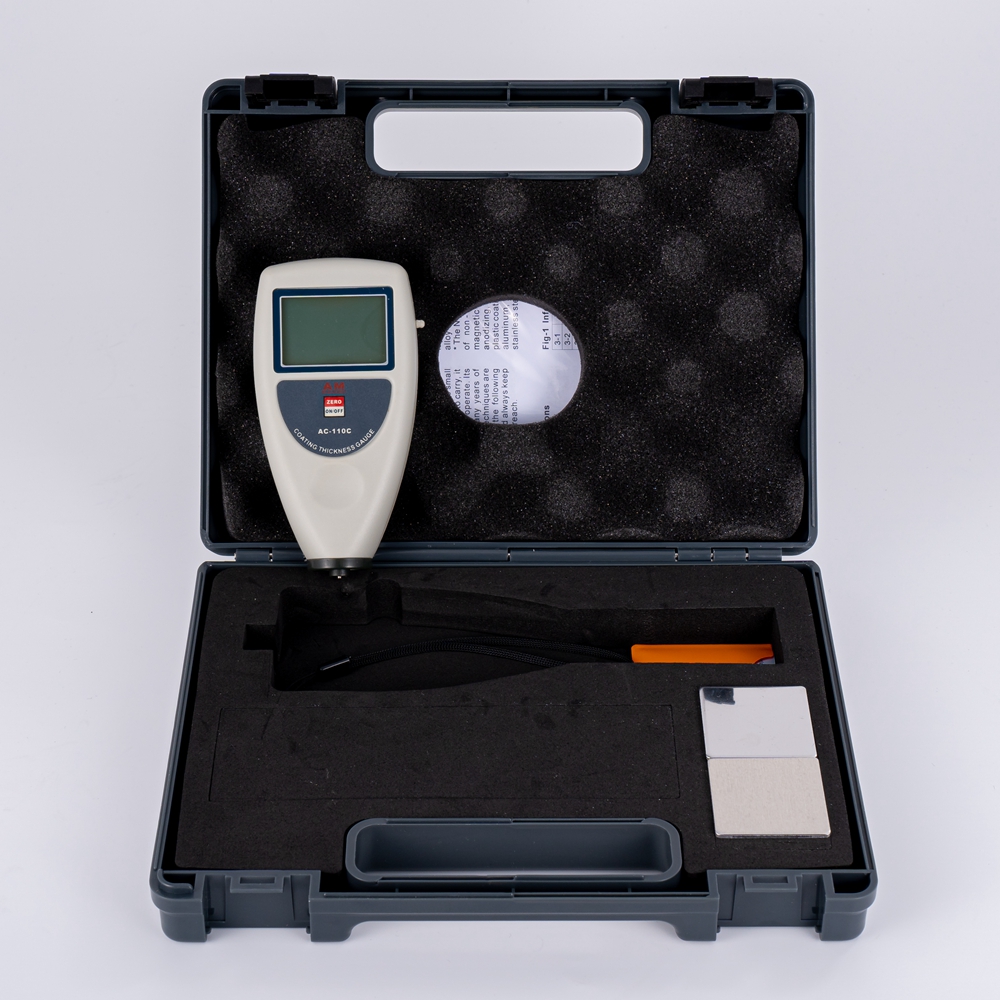

Product Accessories









Standard Accessories

Main Unit



Calibration Foils



Substrate   ( Iron )

Substrate   ( Aluminium )

Carrying Case
Operation Manual

Optional Accessories



USB data output

Bluetooth data output



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories



Amittari   instruments   generally   can   be   supplied   with   Bluetooth™   data   output function ( except   few   instruments ) . As   Bluetooth™   data   output   is   included   in optional accessories, not   standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly   contact   with   the customer-service worker   if you need Bluetooth™   data   output.
