3nh - TS8450, Benchtop Spectrophotometers, Portable desktop spectrophotometer, TS8450
Type Benchtop Spectrophotometers
Brand : 3NH
Model: TS8450
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

TS8450 Portable desktop spectrophotometer
Introduction:

TS8450 is a 45/0 optical portable desktop spectrophotometer, with 256 pixels dual array CMOS image sensor, imported white board, and gives consideration to the speed of measurement and the convenience of operation. It features with repeatability Δ E * ab easily control within 0.02, and inner instrument errors Δ E * ab control within 0.15. This accuracy measurement makes it good to use in the lab color accurate analysis and transfer. The TS8450 portable desktop spectrophotometer is also good to measure the brightness factor and color coordinates of traffic signs, markings and reflective films.Including GB 2893 and GB/T 18833 standard colors, it can customize the rectangular tolerance of polygons manually.



Application of TS8450 portable Desktop spectrophotometer:



TS8450 portable desktop spectrophotometer color measurement instrument is equipped with a single customized 25.4/8mm measurement diameter, used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be also used for fluorescence sample measurement. In addition, TS8450 portable desktop spectrophotometer is suitable for measuring the brightness factor and chromaticity coordinate of traffic road signs, marking lines and reflective film. It contains GB 2893 and GB/T 18833 standard colors and it can customize the rectangular tolerance of polygons manually.

Technical Advantages:

1.Adopt combination full spectrum LED light source and UV light source

Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.

2.A variety of color space, a variety of observation light sources

TS8450 portable desktop spectrophotometer color measurement instrument provides CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) color space, and D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) light sources, which can meet the special measurement requirements under different measurement conditions.

3.Calirbation Certificate

Each TS8450 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.

4.Industrial-grade HD touch screen, easy to use user interface

Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.

5.Color management software

SQCX quality management software with TS8450 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

6.Optional Accessory

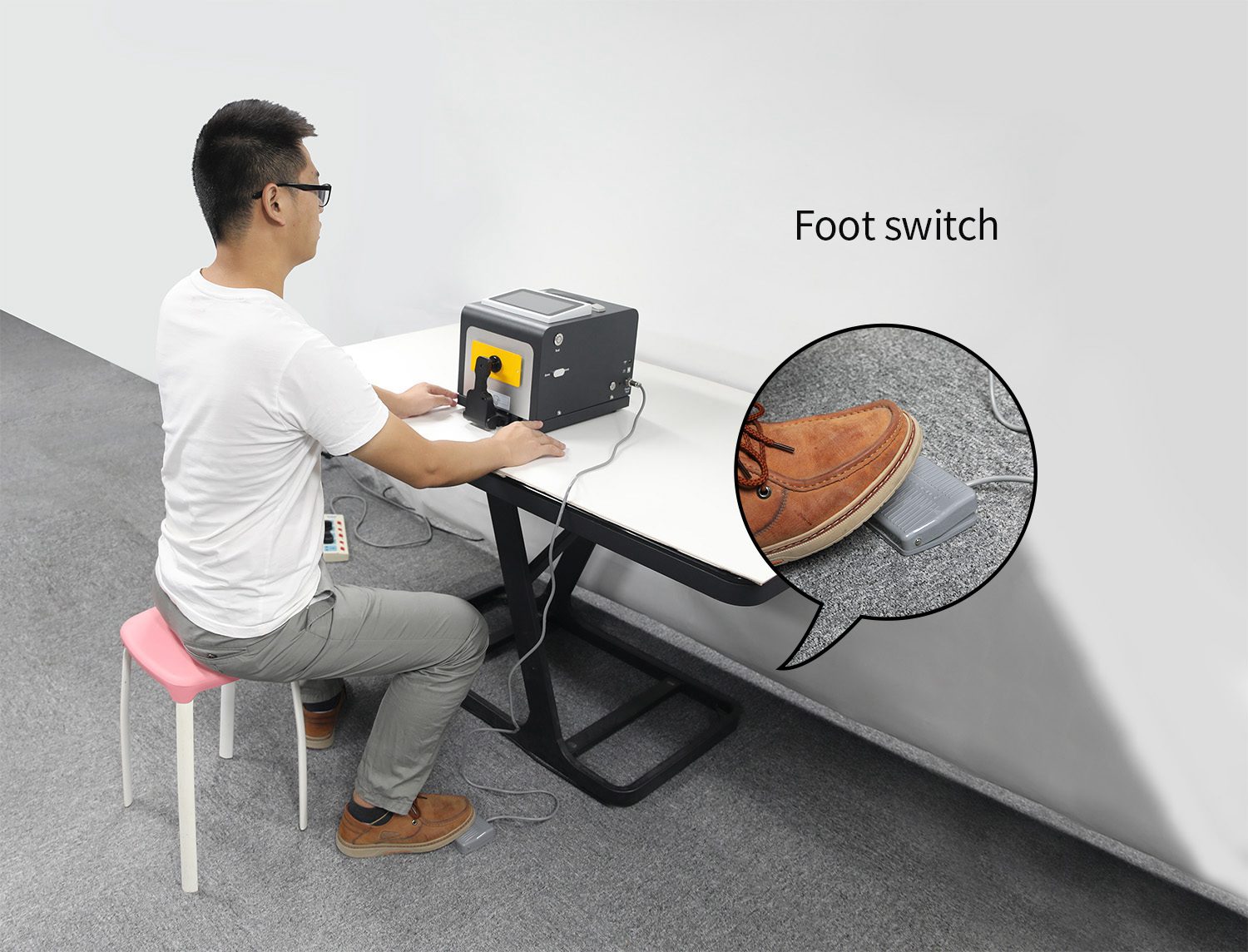

Micro printer, foot switch, rotating bracket can be freely selected according to the needs.

Technical Specification





Model TS8450
Optical Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle)
Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture,  used in laboratory accurate analysis and transmission;
Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensors 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture Customized single aperture,MAV:Φ25.4mm/Φ30mm;SAV:Φ8mm/Φ10mm
Specular Component 45/0
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.8s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method /
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth ®5.0, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment  -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are only for reference, subject to the actual sale of the product
