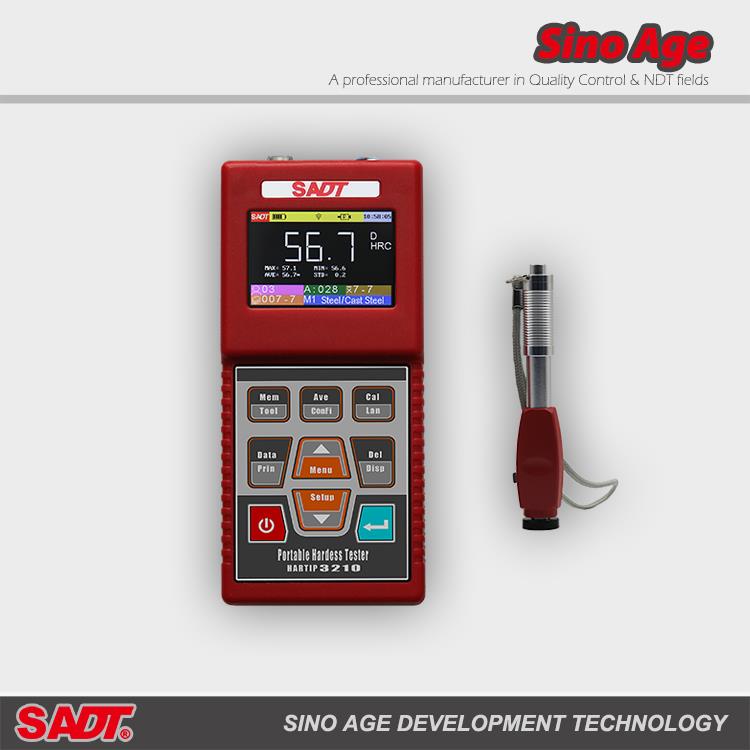

Wireless Probe Portable Hardness Tester Brand: SADT , Model: HARTIP3210 (Portable Hardness Tester), เครื่องทดสอบความแข็งเหล็กแบบพกพา

Accuracy

±0.3% @ HL=800, Repeatability: ±2HL

Display

2.8” 320 X 240 TFT Color LCD - Fittable Under Sunshine

Hardness Scale

HL / HRC / HRB / HB / HV / HS / HRA / Σb

Measuring Range

HL100-960 / HRC0.9-83.2 / HRB1-140 / HB1-1878 / HV1-1698 / HS0.5-1370 / HRA1-88.5 / Σb(Rm)1-6599N/Mm²

Probe

DC / D+15 / C / G / E / DL (Optional)

R/F Communication Distance

10m In Space

R/F Frequency

2.4GHz

Impact Direction

Universal Angle Type

Materials And

Conversion Curves

11 Common Metal Materials, 60 Conversion Curves

Memory

63 Files, 100 Data For Each File, Can Be Saved And Re-Readable

Statistics

Single Group Analysis -- Mean, Max., Min., Extreme Deviation, Standard Deviation, Coefficient Of Kurtosis, Coefficient Of Skewness, Percent Of Pass, Column Diagram, Normality Distribution Test And Uniform Distribution Test

Double Group Analysis -- Significant Difference Test For Mean Value, Standard Deviation, Percent Of Pass And Distribution

Re-Calibration

Calibration For Unified Or Individual Scale

Indicator

Upper Limit / Lower Limit / Low Battery / Buzzer Warning / Date And Time

Language

English, Simplified Chinese, Traditional Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish

Communication Interface

USB / RS232 / Bluetooth / 2.4G Wireless(Optional)

Continous Working Time

>40 Hours

Power Supply

1.5V AA Alkaline Battery X 4 / 1.2V Nickel-Hydrogen Rechargerable Battery X 4 / 3.7V Li-Ion Rechargeable Battery X 4 / USB Power Supply

Working Environment

-10ºC~+45ºC

Dimension(Mm)

195 X 84 X 38

Net Weight(G)

550

Standards

Conforming To ASTM A956, DIN 50156, GB/T 17394-1998
