Metal Leeb Hardness Tester stainless Steel Alloy copper Hardness Measuring Meter HRC HL HB HV HS HRB Hardness Testing Gauge Brand : SOONDA

Metal Leeb Hardness Tester stainless Steel Alloy copper Hardness Measuring Meter HRC HL HB HV HS HRB Hardness Testing Gauge

Brand : SOONDA

Model: SOONDA LHT - 001

Tips:

1. this instrument is equipped with D-type sensor, which needs to measure the hardness of metal more than 5mm. D-type probe is a conventional probe, which is suitable for measuring most workpieces. Workpieces of special materials need to be equipped with other types of probes.

2.The three needle thread of the sensor has two colors of yellow and gray. Two colors of the line with random sensors, random delivery. Thank you for your support!



Features:

Compact plastic case，suitable for use under poor working conditions. Test at any angle, even upside down.

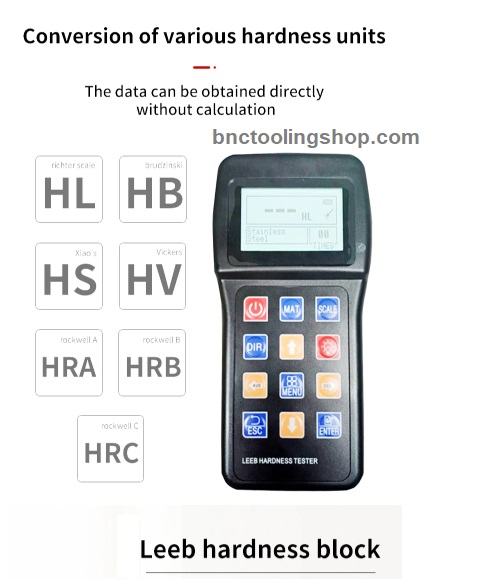

Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

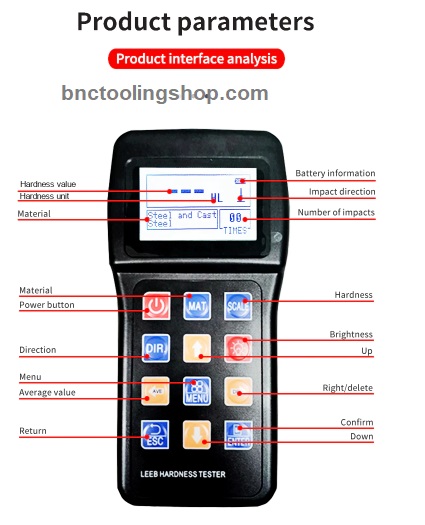

Large screen (segment LCD), showing all functions and parameters. With EL background light.

Large capacity memory could store 100 groups information.

Datapro Software to connect with PC via USB port.

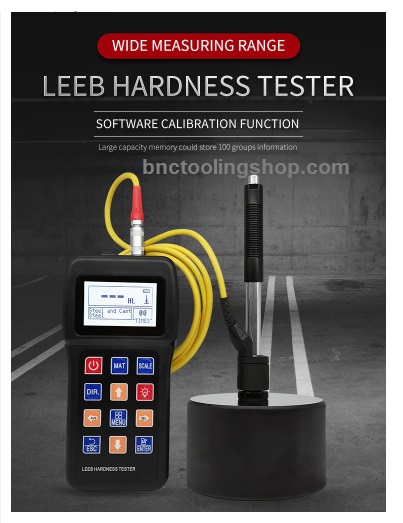

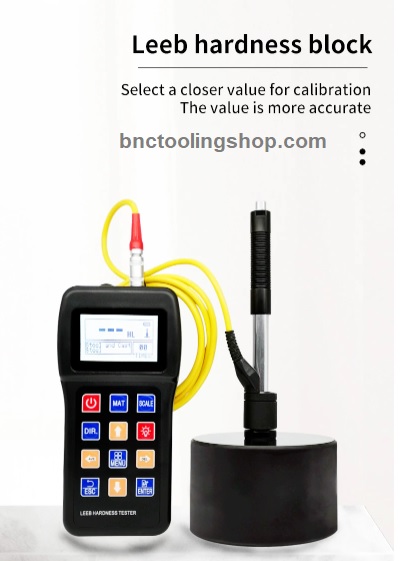

Software calibration function.

Main Application:

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts.

Testing surface of a small hollow space

Material identification in the warehouse of metallic materials

Rapid testing in large range and multi-measuring areas for large-scale work piece

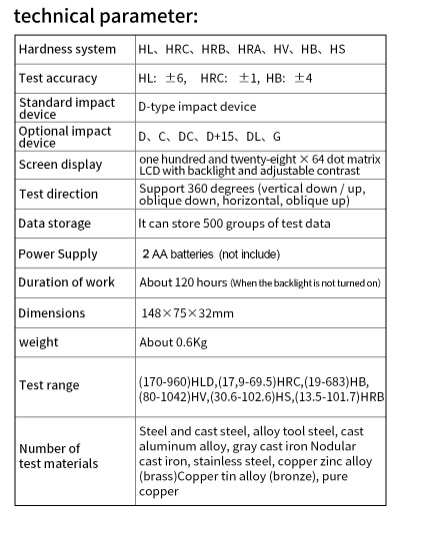

Technical Specifications:

Measuring range：(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB

Measuring direction：360°

Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

Display：segment LCD

Data memory：max. 100 groups（relative to impact times 32～1）

Working voltage：2AA battery (not included)

Continuous working period：about 100 hours（With backlight off）

Communication interface：USB

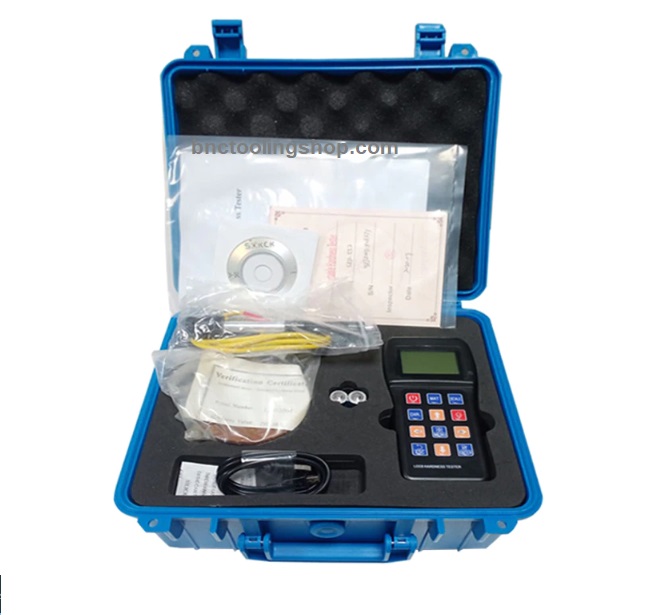

Packing list:

Standard Configuration :

1.Main unit----1,

2.D type impact device---1 With cable,

3.Standard test block---1,

4.Cleaning brush (I)---1,

5.Small support ring---1,

6.Manual---1,

7.Instrument package case---1
