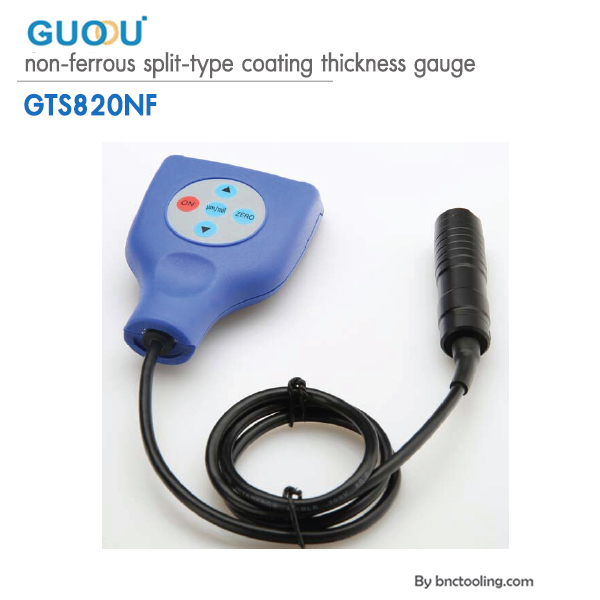

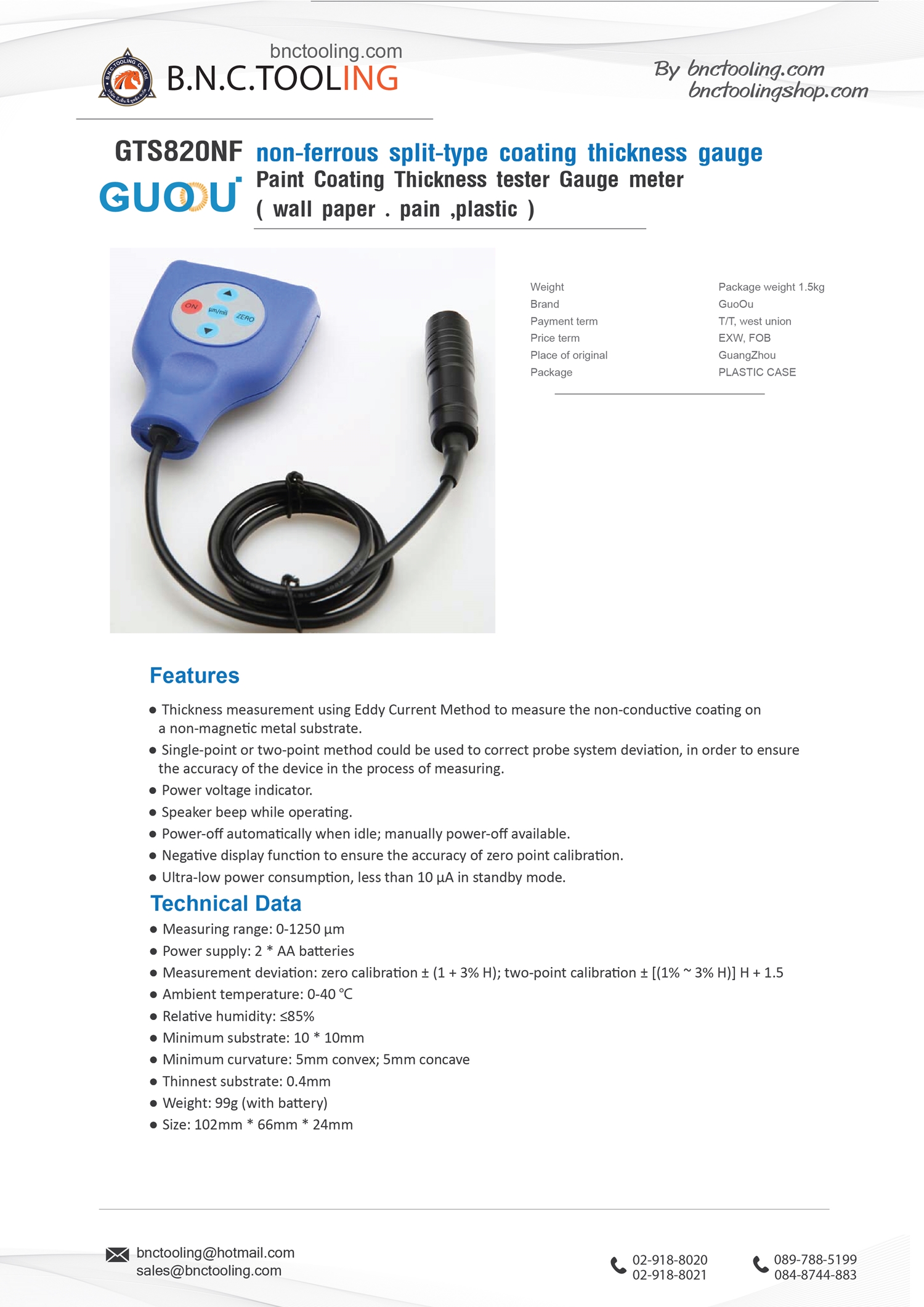

guoou,non-ferrous split-type coating thickness gauge,GTS820NF

Features

• Thickness measurement using Eddy Current Method to measure the non-conductive coating on a non-magnetic metal substrate.

• Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.

• Power voltage indicator.

• Speaker beep while operating.

• Power-off automatically when idle; manually power-off available.

• Negative display function to ensure the accuracy of zero point calibration.

• Ultra-low power consumption, less than 10 μA in standby mode.

Technical Data

• Measuring range: 0-1250 μm

• Power supply: 2 * AA batteries

• Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5

• Ambient temperature: 0-40 ℃

• Relative humidity: ≤85%

• Minimum substrate: 10 * 10mm

•  Minimum curvature: 5mm convex; 5mm concave

• Thinnest substrate: 0.4mm

•  Weight: 99g (with battery)

•  Size: 102mm * 66mm * 24mm
