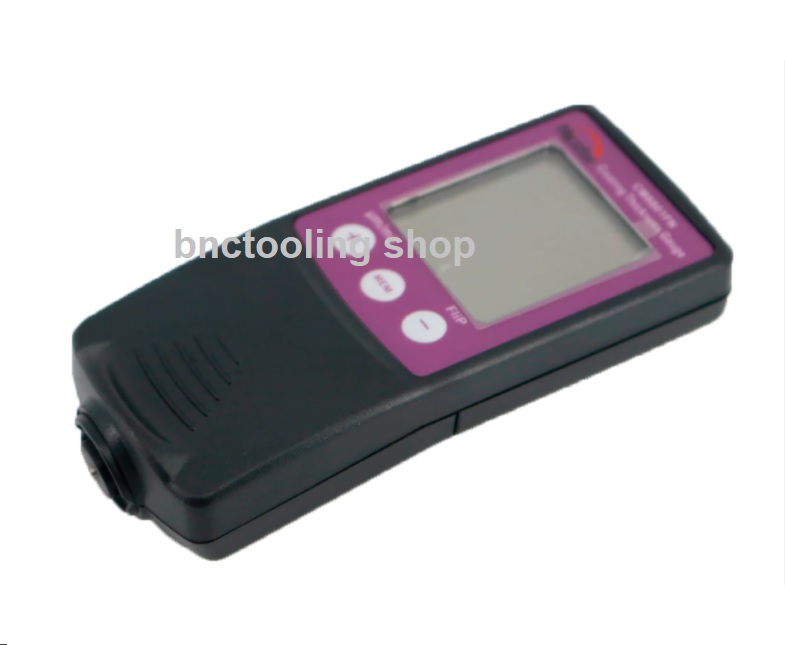

เครื่องวัดความหนาผิวเคลือบ เครื่องวัดความหนาสี, CM8801FN Digital Film Coating Thickness Gauge Painting Tester F&NF Type

CM-8801FN Include the function of F type (CM-8801F) and NF type (CM-8801N)



1-The F type probe for measuring the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper/aluminum and some ally tiles papers and others.

2-The NF type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc. ), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.

The coating thickness gauge is suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions





Features:

-Mini Coating thickness gauge

-Model: CM8801FN

-Color: as pictures

-100% brand new

-Microcomputer based, auto-detection, no damage to the coating surface.

-Metric/imperial system selectable, Auto power off.

-10 points value memory.

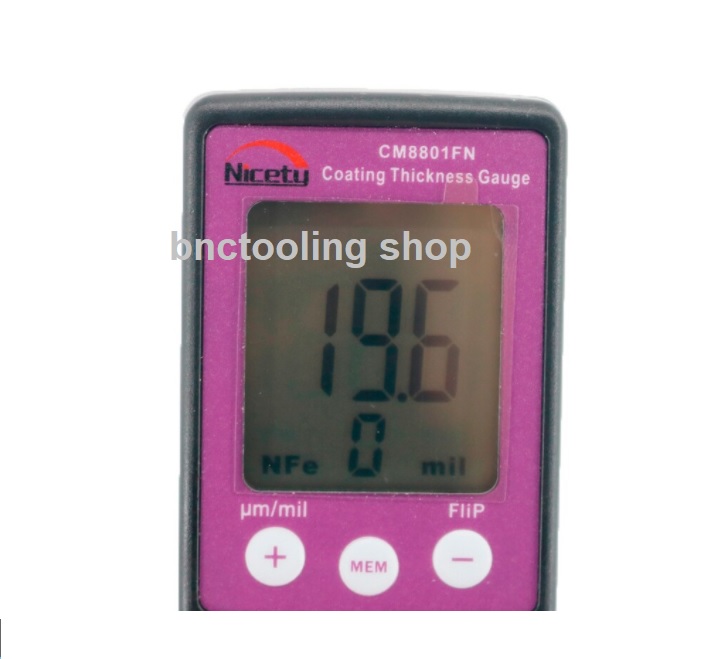

-Flip LCD display

-Low battery indication

-Has CE marking, conforms with the essential health and safety requirement set out by the European Directives



Specification:

-Range: 0 - 1250um; M, 0 - 50mil

-Principle: F type-magnetic induction, NF type-eddy current

-Resolution: 1um0.1mils

-Accuracy: +/-(3%+2um) or +/-(3%+0.1mils)

-Modes: Single & Continuous

-Battery: 2xAAA 1.5V batteries (not included)

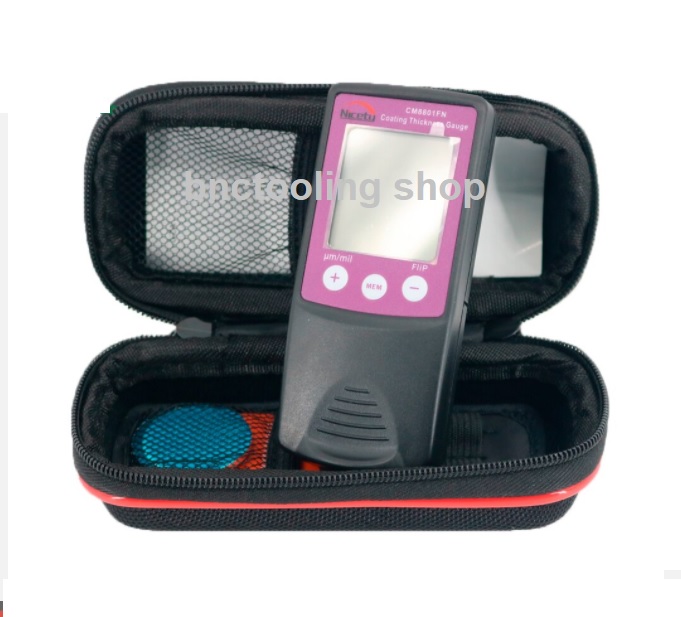

-Packing: Spectacle case, Bandbox



Packet Content:

1 x Digital Coating thickness gauge

1 x Instruction Manual

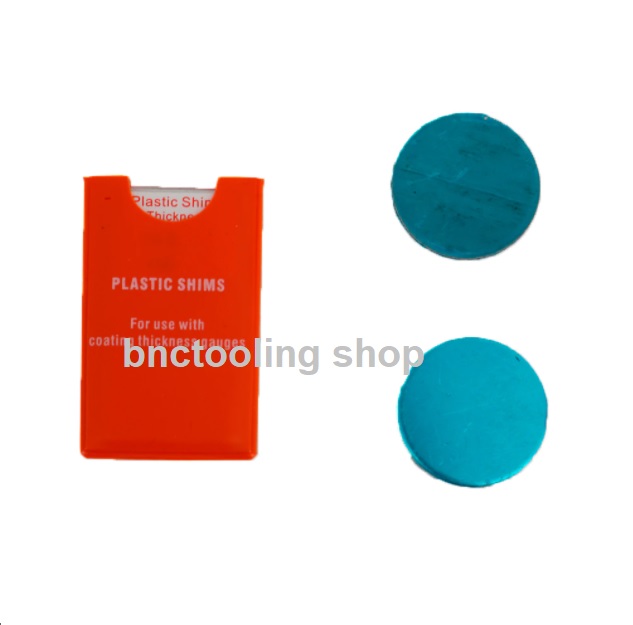

6 x Standard sheet gauge

2 x Iron base material for calibration
