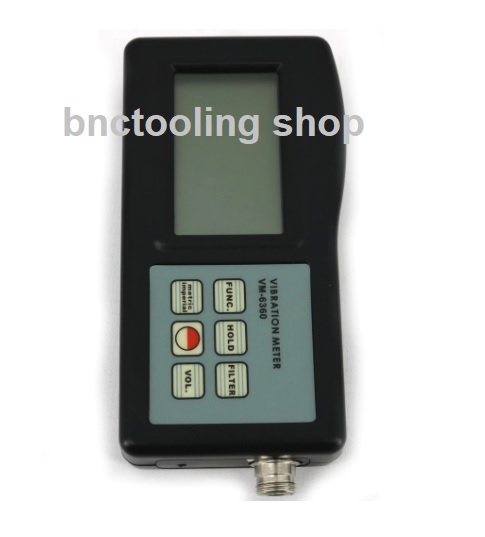

เครื่องวัดความสั่นสะเทือน,VM6360 High Quality High Precision Vibrometer Gauge Digital Vibration Meter Tester Portable Instrument.

Introduction:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.Is pecifically designed for present measuring various mechanical vibration. So as to provde the data for the quality control, run time and equipment upkeep.Iuse the high-performance acceleration meter, realize the repetitiveness and accurate measurement.It has the function of testing axle bearing situation



Parameters:

Filter baud: D P

Acceleration 10Hz-1KHz 0.1-200m/s 20.1-400m/s

10Hz-10KHz 0.3-200ft/s 0.3-1312ft/s

Velocity 10Hz-1KHz 0.1-8.0inch/s 0.1-400mm/s

0.004-16.0inch

Displacement 10Hz-1KHz 0.001-2.0mm 0.001-4.0mm

0.04-80mil 0.04-160 mil

Accuracy:<5%

Auto power off

RPM(revolution):5-100000r/min

Frequency:0.1 to 10KHz

Metric/imperial conversion

With RS232C interface

Max hold

Operating conditions:0-+45,90%RH

Power supply:4x1.5V AAA(UM-4)battery

Battery indicator: low battery indicator

Dimensions : 124x62x30mm

Weight: 120g(not including battery)

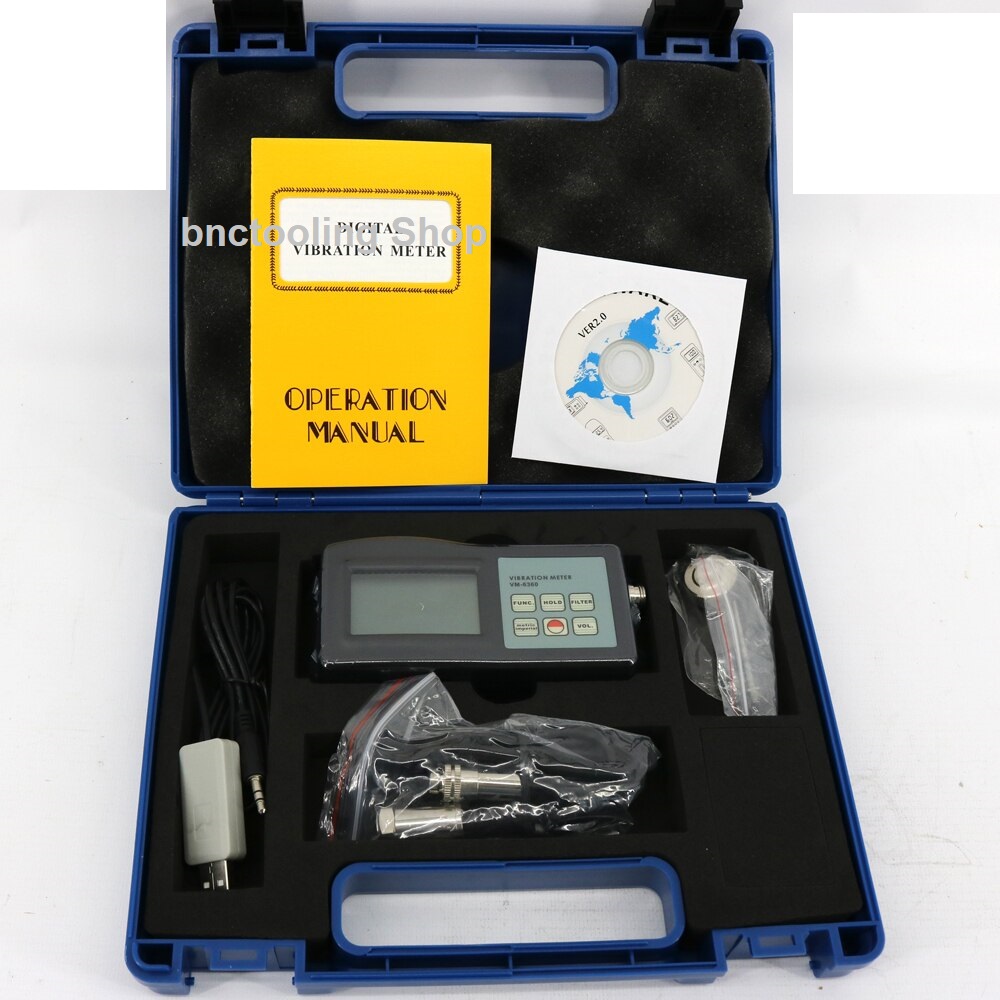

Standard delivery: Main unit,Carrying case,Powerful rare earth magnet,Piezoelectricity Transducer,Manual.
