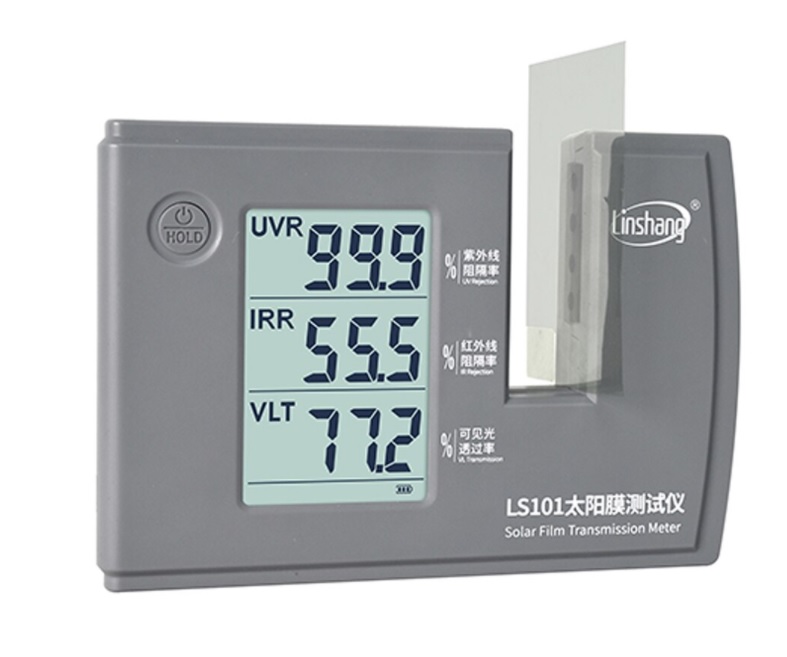

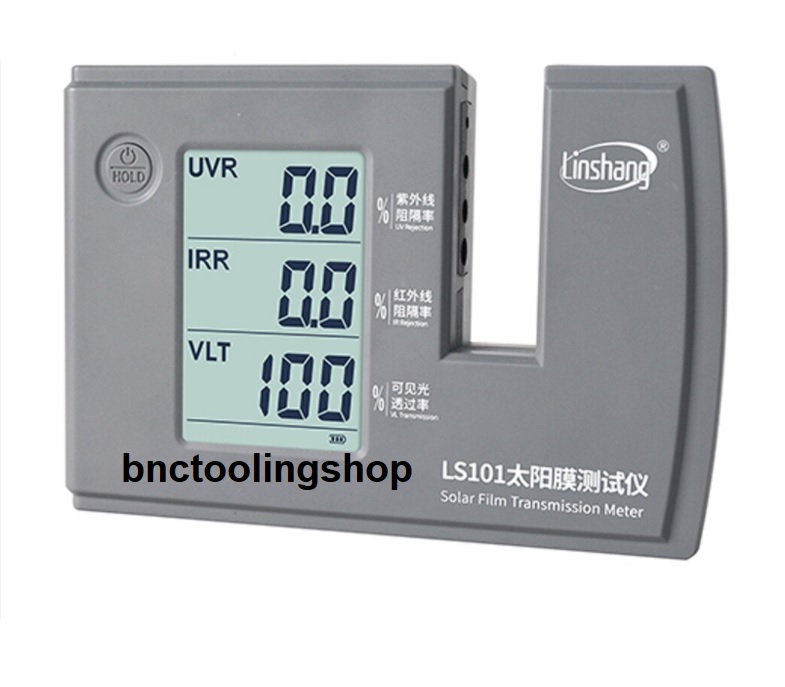

เครื่องวัดประสิทธิ์ภาพฟิลม์กรองแสง,Linshang LS101 Solar Film Transmission Meter UV/IR/VL Meter Powered by Batteries.

Detail

LS101 is able to measure and display UV, IR rejection value and visible light transmission value simultaneously. This meter is self-contained light sources and self-calibration. No manual adjustment is needed. The users only need to plug the power supply, turn on the switch and put the solar film in  theslot. The resulting performance data will appear on the display interface.



Size : 175mm*120mm*30mm (L*W*H)

Test slot: 23mm * 76 mm (W*H)

Weight:360g

Resolution: 0.1%

Accuracy : ±2% (Colorless and transparent material)

UV Peak wavelength :365nm

VL Peak wavelength : 380-760nm, conforming to the CIE photopic vision function standard.

IR Peak wavelength :940nm

Power Supply : 4*AA alkaline battery or 5V AC/DC power supply.



Feature:

1.Adopt large-screen LCD with backlight, which can be used without light.

2.Adopt parallel light source design which is suitable for testing the thick materials.

3.UV rejection meter, IR rejection meter, light transmittance meter, three function in ONE device.

4.Equipped with real-time dynamic self-calibration function, which is automatically calibrated after powering on.

5.Powered by USB Type C interface or the 5V power supply.
