เครื่องตรวจจับโลหะความแม่นยำสูง, G&G ZD310 High Precision Integrated Rebar Detector 2.8 Inch LCD Screen

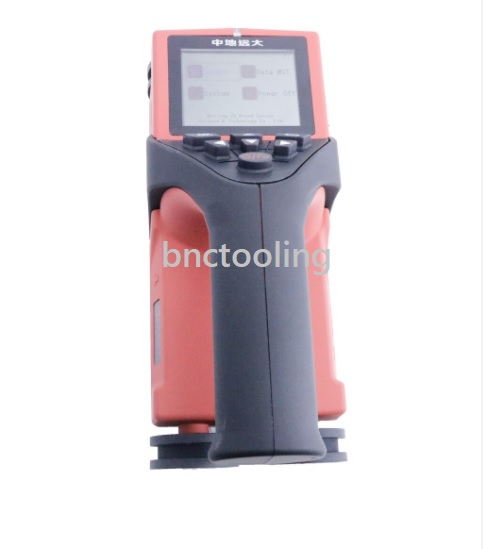

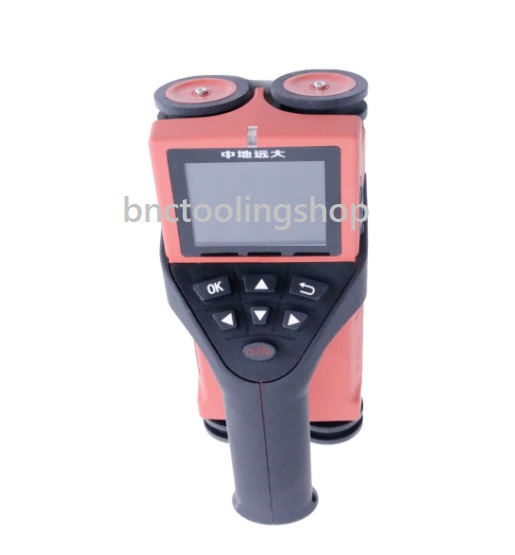

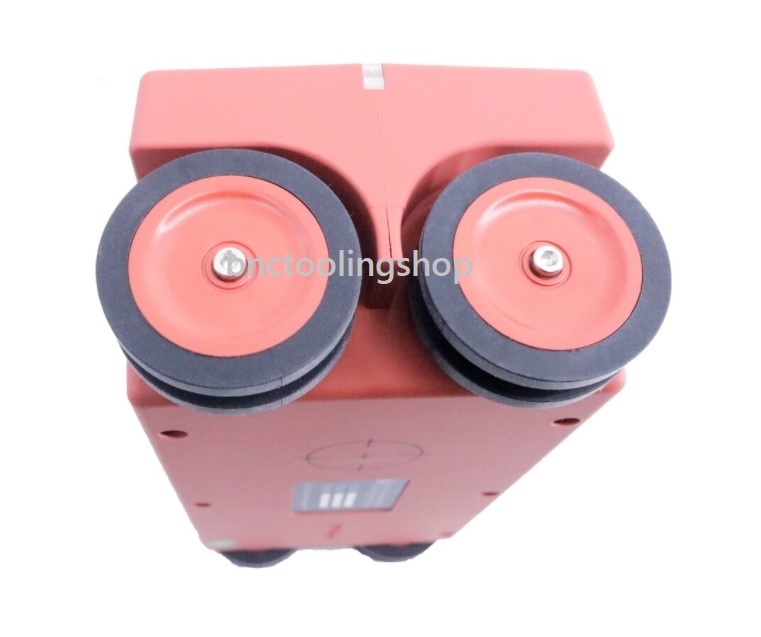

High Precision Integrated Rebar Detector

Model G&G ZD310

Part No.  ZD310



New ZD310 High Precision Integrated Rebar Detector Locate the Position Trend and Distribution of Steel Bars



Introduction

There are two models of ZD series :

ZD31: thickness mode (pitch, diameter, protective layer data), mesh mode, profile mode, waveform mode, JGJ single point retest modes.

ZD310: thickness mode (pitch, diameter, protective layer data)

ZD31 series integrated Rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated

structure of the host and the sensor coil, making it is convenient and quick when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger resolution.



Main Features

1. 2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can

be clearly visible detection data;

2. Multi-coil structure design, faster, higher precision, stronger resolution;

3. Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.

4. With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is about 16 hours;

5. Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;

6. The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;

7. Standard test block which can be configured with special and unique design;

8. Using the host and sensor coil integrated design compact size, light weight, easy to carry;

9. Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy drilling coring;

10. The detector box protection lining adopts the domestic ladder and cylindrical diversion trough, easy to put in the detector;

11. Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating complete report in PC.



Applicable range of Rebar(mm) : φ6~φ50

Protective layer thickness range(mm) : Small range:1~80 Large range:5~185

Screen : 320×240

Power supply : Built in high capacity lithium battery

Working hours : ≥16h

Communication : USB interface

Storage : 200K Measuring point of steel bar

Operation : Silicone keypad

Size(mm) : 219×92×106

Weight(Kg) : 0.60(Battery included)
