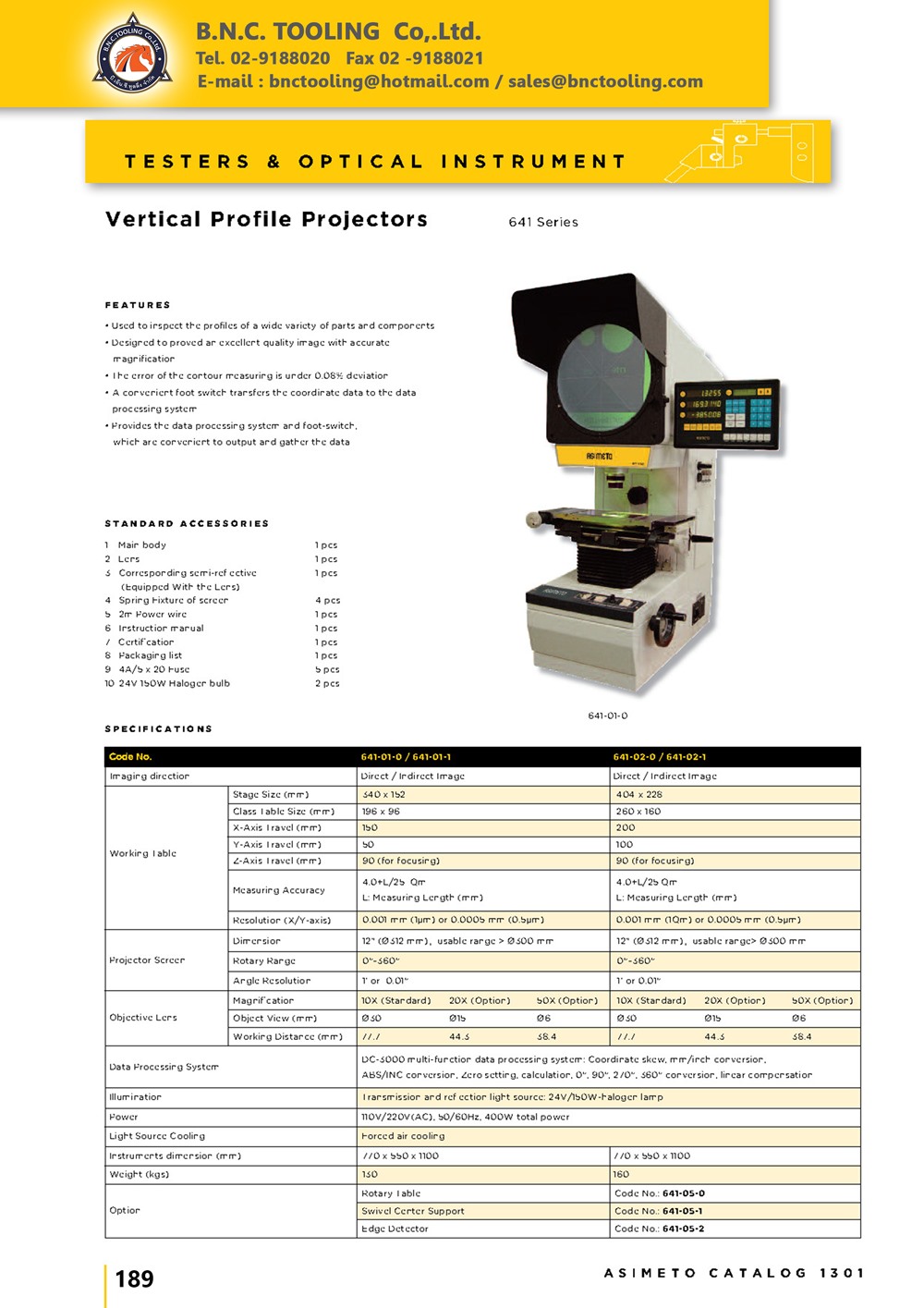

ASIMETO,P189,Vertical Profile Projectors,641-01-0

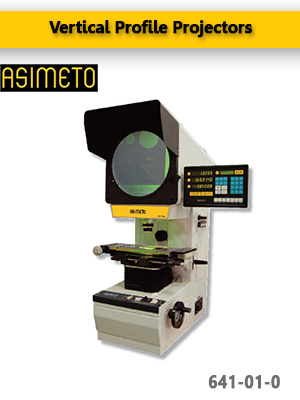

Vertical Profile Projectors 641 Series
FEATURE
• Used to inspect the profiles of a wide variety of parts and components
• Designed to proved an excellent quality image with accurate magnification
• The error of the contour measuring is under 0.08% deviation
• A convenient foot switch transfers the coordinate data to the data processing system
• Provides the data processing system and foot-switch,
  which are convenient to output and gather the data

STANDARD ACCESSORIES
1. Main body 1 pcs
2. Lens 1 pcs
3. Corresponding semi-reflective 1 pcs (Equipped With the Lens)
4. Spring Fixture of screen 4 pcs
5. 2mPower wire 1 pcs
6. Instruction manual 1 pcs
7. Certification 1 pcs
8. Packaging list 1 pcs
9. 4A/5 x 20 Fuse 5 pcs
10. 24V 150W Halogen bulb 2 pcs
