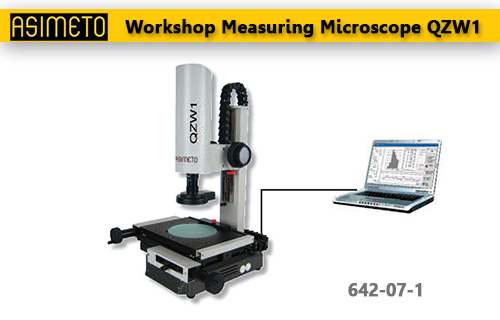

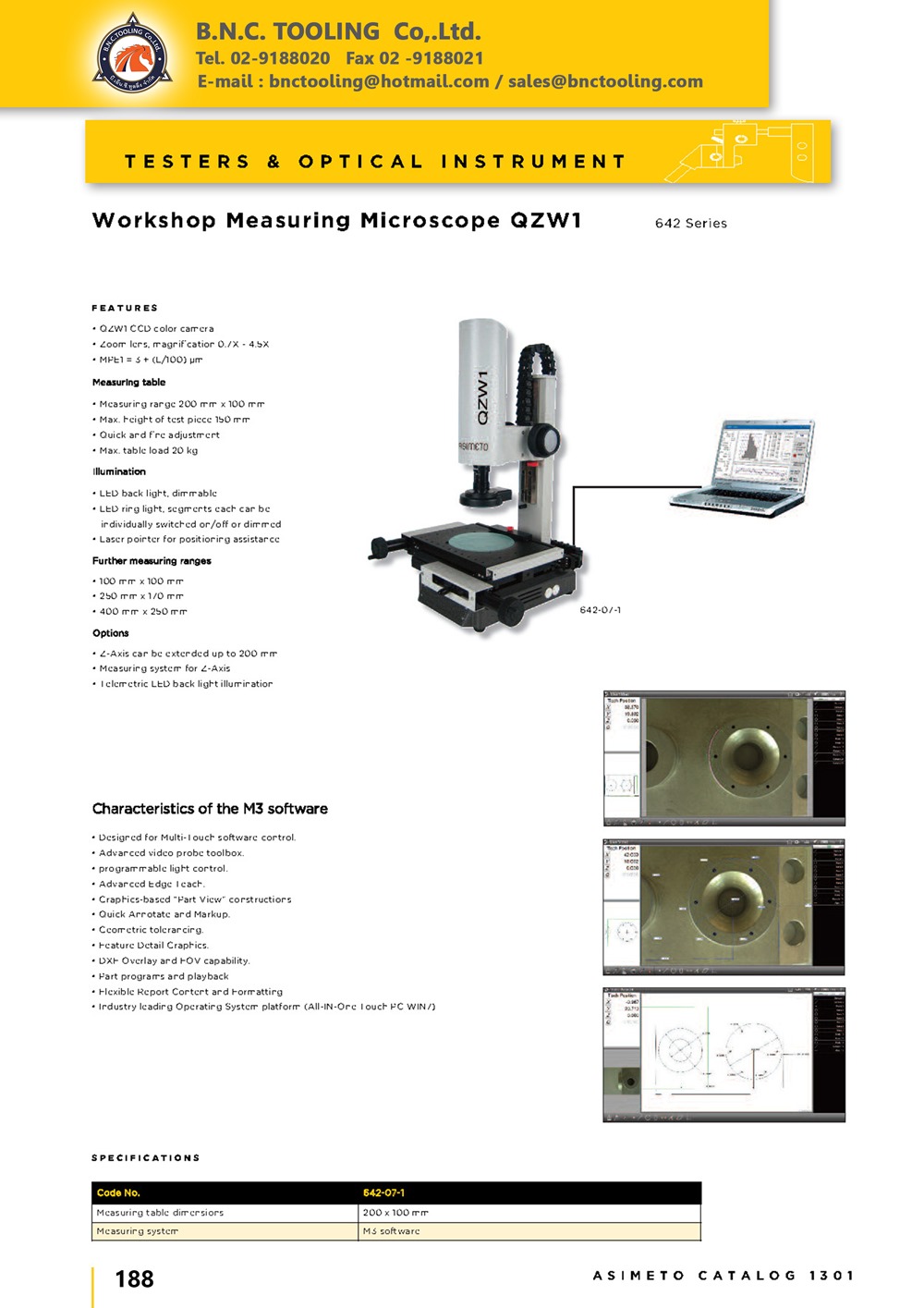

Workshop Measuring Microscope QZW1 642 Series
FEATURE
• QZW1 CCD color camera
• Zoom lens, magnification 0.7X - 4.5X
• MPE1 = 3 + (L/100) μm

Measuring table
• Measuring range 200 mm x 100 mm
• Max. height of test piece 150 mm
• Quick and fine adjustment
• Max. table load 20 kg

Illumination
• LED back light, dimmable
• LED ring light, segments each can be individually switched on/off or dimmed.
• Laser pointer for positioning assistance

Further measuring ranges
• 100 mm x 100 mm
• 250 mm x 170 mm
• 400 mm x 250 mm

Options
• Z-Axis can be extended up to 200 mm
• Measuring system for Z-Axis
• Telemetric LED back light illumination

Characteristics of the M3 software
• Designed for Multi-Touch software control.
• Advanced video probe toolbox.
• programmable light control.
• Advanced Edge Teach.
• Graphics-based “Part View” constructions
• Quick Annotate and Markup.
• Geometric tolerancing.
• Feature Detail Graphics.
• DXF Overlay and FOV capability.
• Part programs and playback
• Flexible Report Content and Formatting
• Industry leading Operating System platform (All-IN-One Touch PC WIN7)
