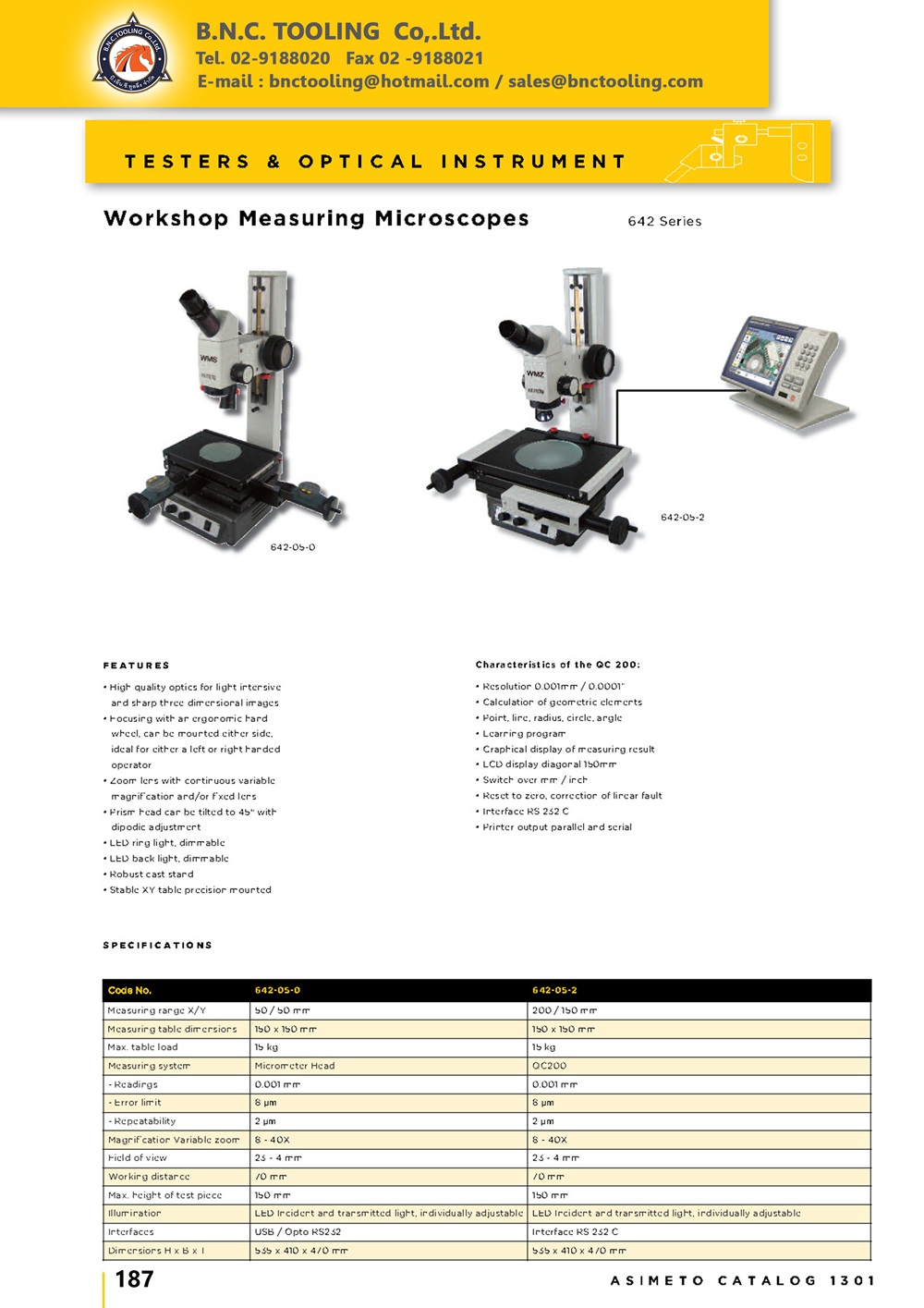

ASIMETO,P187,Workshop Measuring Microscopes,642-05-0

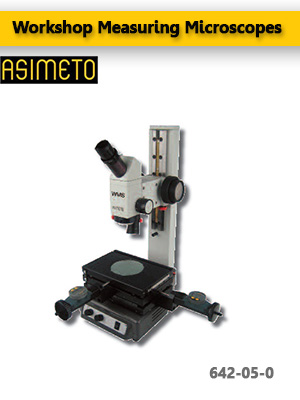

Workshop Measuring Microscopes 642 Series
FEATURE
• High quality optics for light intensive and sharp three dimensional images
• Focusing with an ergonomic hand wheel, can be mounted either side, ideal for either a left or right handed operator
• Zoom lens with continuous variable magnification and/or fixed lens
• Prism head can be tilted to 45° with dipodic adjustment
• LED ring light, dimmable
• LED back light, dimmable
• Robust cast stand
• Stable XY table precision mounted

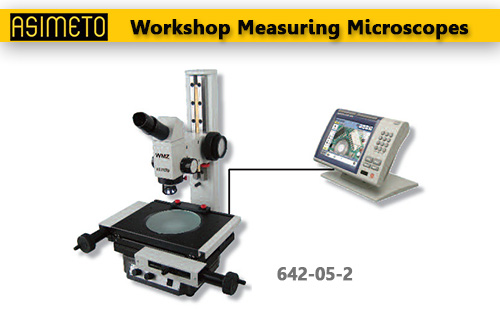

Characteristics of the QC 200:
• Resolution 0.001mm / 0.0001”
• Calculation of geometric elements
• Point, line, radius, circle, angle
• Learning program
• Graphical display of measuring result
• LCD display diagonal 150mm
• Switch over mm / inch
• Reset to zero, correction of linear fault
• Interface RS 232 C
• Printer output parallel and serial
