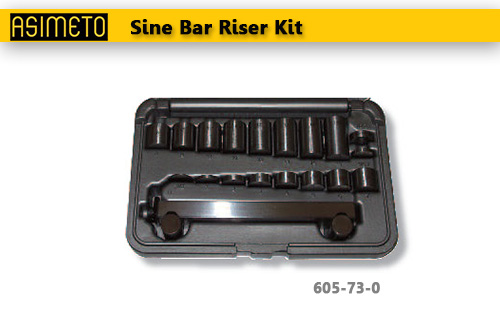

ASIMETO,P158,Sine Bar Riser Kit,605-73-0

Sine Bar Riser Kit 605 Series
FEATURE
Sine Bar:
• 5" length, 1" body size.
• Hardened and ground steel.
• Top parallel to bottom of rolls within 0.0002". Riser:
• 18 risers: 1⁄2, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 1⁄4T and 1⁄2T.
• Within 0.0001" of exact constants.
• Note: Risers to be used individually, not to be stacked.
  1⁄4T and 1⁄2T are to obtain angle of 1⁄4" and 1⁄2" taper per foot respectively.
