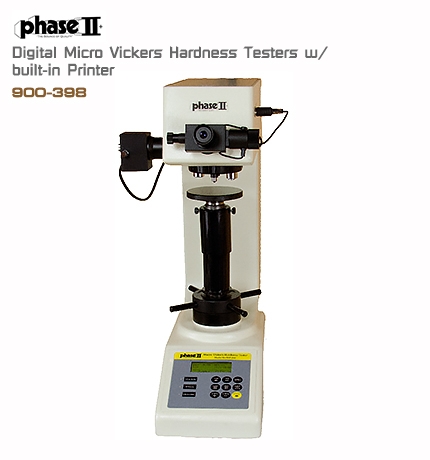

Phase II,Digital Micro Vickers Hardness Testers w/ built-in Printer,900-398

Model No. 900398A Vickers Hardness Tester
Includes Video cam, adapter and manual measurement softwar

Model No. 900398B Vickers Hardness Tester
Includes Video cam, adapter and Auto-Measurement software

Specifications for Phase II Vickers Hardness Tester Model 900-398
1. Test Forces:
9.80719.6124.5229.4249.0398.07196.1249.2
490.3 N 122.53510203050 kgf
2.Carriage Control: automatic: loading / holdingup of the load / unloading )
3. Amplification of the Microscope: 100 × 200 ×
4. Dwell Time of the Test Force:   (060)s
5. Min. Graduation Value of the Testing Drum Wheel: 0.125um
6. Testing Field:                             1HV—2967HV
7. Lens Indentor Switch:               With Manual Turret
8. Output:                                      Builtin Mini Printer RS232
9. Max. height of the specimen :   170 mm
10. Max. width of the specimen :  130mm
11. Objective:                                10x20x40x selectable
12. Light source:                            cold light source
13. Power Supply :                         110V/220V,60/50Hz
14. Dimension:                                535X225X580mm

Standard Accessories for Phase II Vickers Hardness Tester Model 900-398
• Base Machine
• Video Cam w/ Adapter
• Measurement Software
• Large test table
• “V”Shape test table
• 10X Digital Micro Lens
• Bullseye Level
• Adjustable Screw
• Vicker Hardness Block
• RS232 Interface Line
