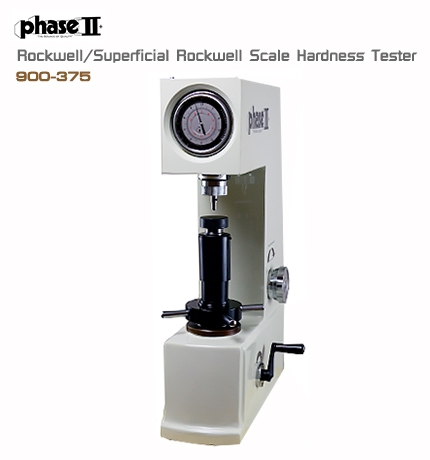

Phase II, Rockwell / Superficial Rockwell Scale Hardness Tester,900-375

Features
• Direct analog dial reading
• Advanced design, easy to operate
• Engineered to obtain highly sensitive and accurate readings
• Conforms to ASTM E-18
• Perfect for laboratories, workshops, tool rooms, inspection labs, etc.

Specifications:
Minor Load                              3 Kgf, 10 Kgf
Major Load                              15Kgf 60 Kgf
                                              30 Kgf 100 Kgf
                                              45 Kgf 150 Kgf
Test Force Application Dead      Weight
Test Force Control                    Manual
Results Display                        Dual Scale Dial
Vertical Capacity                      6.0 in.
Throat Depth                           5.5 in.
Height                                    26.0 in.
Width                                     18.2 in.
Depth                                     9.4 in.
Shipping Weight                      250 lbs

Hardness Scales: HRA B,C,D,E,F,G,H,K , L, M
(superficial) HR15N, HR15T, HR30N, HR30T, HR45N, HR45T

Accessories:
• Diamond Conical Indentor
• 1/16” Ball Indentor
• 2- HRC Test Blocks
• 1- HRB Test Block
• 1- HR15N Test Block
• 1- HR30N Test Block
• 1- HR45T Test Block
• Test Table 5.87” (150mm)
• Flat Anvil 2.5” (63mm)
• Std. Vee Anvil
• Accessory Case
• Dust Cover

Options:
• NIST/ASTM certified hardness test blocks, penetrators and kits are available.This model is available with ASTM E18-08B or current certification
