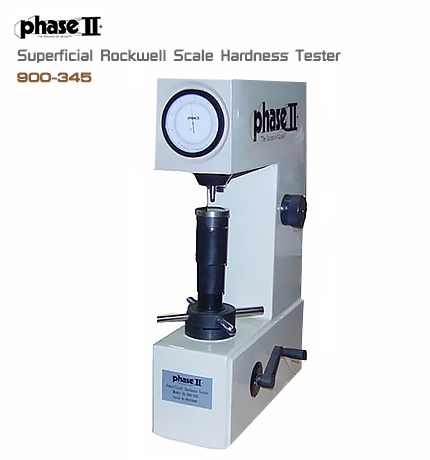

Phase II,Superficial Rockwell Scale Hardness Tester,900-345

Features:
• Direct analog dial reading
• Engineered to obtain highly sensitive and accurate readings
• Conforms to ASTM E-18
• Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
• For testing thin, soft material in the Superficial Rockwell scales (900-345)

Specifications:
Minor Load 3 Kgf
Major Load 15 Kgf, 30 Kgf, 45 Kgf
Test Force Application Dead Weight
Test Force Control Manual
Results Display Analog Dial Gage
Vertical Capacity 6.7 in.
Throat Depth 6.6 in.
Height 28 in.
Width 8.9 in.
Depth 19.6 in.
Shipping Weight 190 lbs

Accessories:
• N-scale Diamond Indentor
• 1/16" Steel Ball Indentor
• 3- HRN Test Blocks
• 3-HRT Test Blocks
• Test Table 5.87" (150mm)
• Flat Anvil 2.5" (63mm)
• Spot Anvil .38" (10mm)
• Std. Vee Anvil
• Accessory Case
• Dust Cover

Options:
• NIST/ASTM certified hardness test blocks, penetrators and
kits are available.This model is available with ASTM E18-08B
or current certification
