Brand Name : A&E Lab

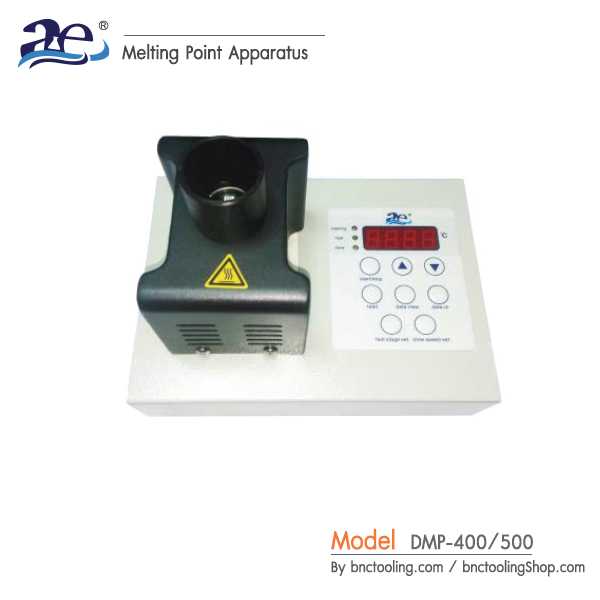

Model Name : Melting Point Apparatus
Model Number : DMP-400/DMP-500
A&E Lab,Melting Point Apparatus,DMP-400,DMP-500
Product Description
Heating Control:
Common Features of DMP-400 & DMP-500:
1. Sample chamber accommodates two different sample;
2. Measurement range: room temperature to 300⁰C;
3. Temperature setting and display resolution: 0.1 ⁰C;
4. Ramping rate to fast stage setting temperature: 20 ⁰C /min;
5. The slow speed can be set as lowest as 0.1 ⁰C /min;
6. When reaching the fast stage temperature, machine will beep to remind users to continue the next step Users do not need to keep an eye on the operation;
7. The “Read” button can simultaneously hold the melting reading and heating and easily differentiate the melting points of the two samples;
8. Calibration capable both chemically or external probe.
Additional Features of DMP-400:
1. Built with internal fan to speed up the cool down process of the machine. The cooling rate is 25 ⁰C /min;
2. The cooling process is automatically started when the analysis process ended, and the fan will be turned
off when the temperature reaching 5⁰C /min below fast stage temperature. It will help users quickly to do the next analysis;
3. Double display in both outside and inside view. It help users frequently prevent frequently switching gaze between eyepiece and outside LED display;
4. A hand-held “READ” push button helps users to record data quickly without looking for the “READ” button in the fascia;
5. Capable of recording data. Data will be stored permanently until erase;
6. Optional printer can be used for DMP-300. The printer can simultaneously print out the temperature reading with the date and sample ID when pushing “READ” button.
● Temp. setting and display resolution: 0.1°C;
● Ramping rate to fast stage setting temp.: 20°C/min;
● Slow speed can be set as lowest as 0.1°C/min;
● Calibration capable both chemically or external probe.
