Brand Name : TILO
Model Name : Hanging Color Assessment Viewer
Model Number : CC120-W

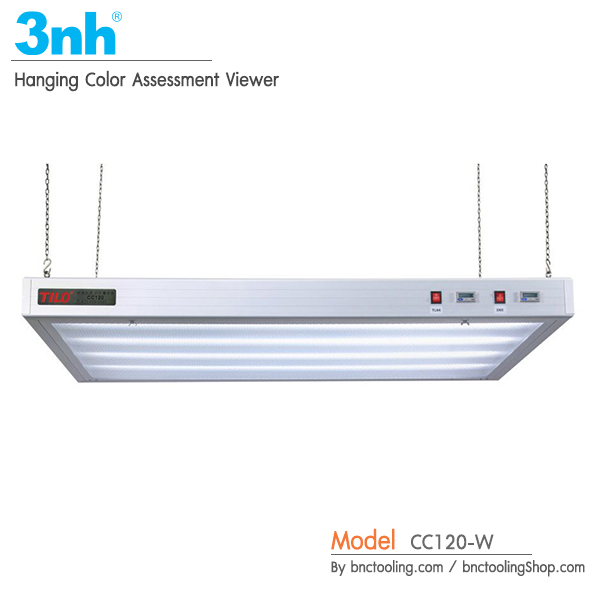

Hanging Color Assessment Viewer,CC120-W
Brand: TILO
Made in China
Configuration: D65, D50, TL84
Weight: 72KG
CC120-W Hanging Color Viewer light booth is widely applied to printing industry, furnishings and color matching of the printing ink industry etc.. It is a necessity for those industry to control the colors and qualities of products.
CC120-W hanging light booth supports 3 versions, single light source, double light source, and 3 light sources. Standard light source is D65, D50, U30, and we offer TL84, UV, CWF ,TL83 for optional. This machine is controlled by microcomputer, which allows the rapid conversion between each light source. The Color Viewer also has the function of display the running time of each light source.
Features
Operation instructions:
1. Insert the power cord and the docking station into the power socket of the color viewer.The power socket at the top of the color viewer, and the other end is connected to the mains power supply (note that the mains power supply must match the input power indicated by the color viewer).
2. Select a light source switch to press, the corresponding light source lamp lights up, and the timer of the color viewer starts to count. o switch the light source, you can turn off the front light source and then press the light switch that needs to be lit. To turn on two or more light sources at the same time, simply press two or more light source switches at the same time.
3. Place the item to be inspected in the middle of the table. When comparing the color of two or more items, place them side by side on the table top and compare them as far as possible in the middle position. When working, the table top should not be placed with anything unrelated to work, so as not to affect the color change.
4. After the test is completed, turn off all the light source lamp switches that have been turned on. Turn off the power when not in use after work, and unplug the power cord when not in use for a long time.
5. Replace the new lamp tube. There are two white cap screws on the front of the light-transmissive glass. You can unscrew the two screws and gently open the light-transmissive glass and lower it. Remove the lamp that needs to be replaced and install the new lamp. Pay attention to different light sources, different positions of the lamp, don't make mistakes.
Color viewer daily use and maintenance considerations:
1. Use of standard light source: After the light source lamp is illuminated for 30 minutes, the color temperature, color rendering index and illuminance reach the best state; if there is no special reason, frequent switching should be avoided to prolong the life of the lamp.
2. Light source lamp life: After using 2000-3000 hours,the color temperature, color rendering index and illuminance of the standard light source lamp will be attenuated. It is recommended to replace it in time to avoid affecting the color effect.
3, cleaning and maintenance: Please unplug the power plug before cleaning and maintenance, cut off the power, please use a regular cleaning agent to wipe the device with a clean soft cloth, avoid washing directly with water.
|
