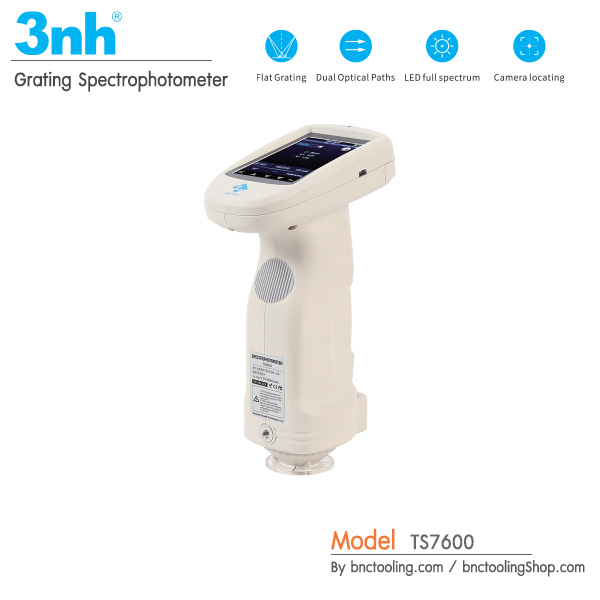

3nh,Grating Spectrophotometer,TS7600

● D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;

1. ● Adopt combined LED light source with high life and low power consumption;
2. ● Customized one 8mm or 4mm aperture ( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample)
3. ● Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;
4. ● Accurate spectrum and lab data, used for color matching and accurate color transmission;
5. ● High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;
6. ● USB interface,convenient for expansion of various functions;
7. ● Super dirt resistant and stable standard white calibration board;
8. ● Large capacity storage space, which can store more than 20000 pieces of test data
9. ● 2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;
10. ● Camera locating position and Stabilizer cross measurement position;
11. ● PC software has powerful function expansion;
