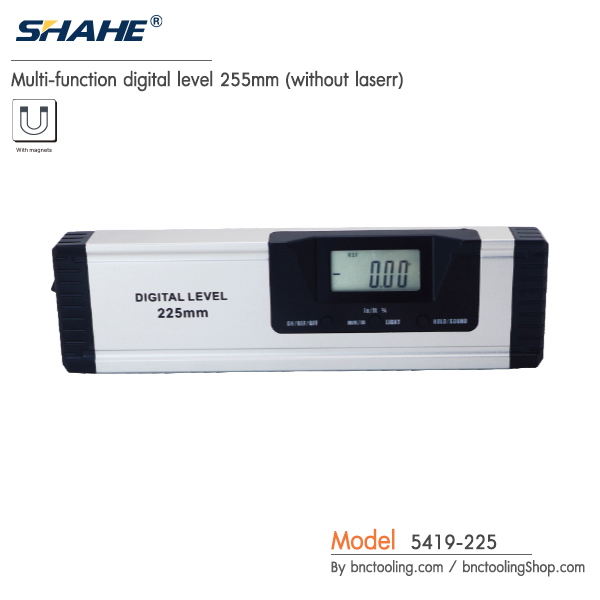

SHAHE,Multi-function digital level 255mm(without laserr),5419-225

Features

• LCD display with data hold function.

• Absolute level measuring and relative angle measuring.

• Slope and angle conversion.

• Laser for option.

• Bottom with magnets.

Features

• High strength aluminum alloy ruler.

• Digital display, clear and intuitive, with high accuracy.

• The LCD screen is illuminated and can be used normally in a dark environment. Long press the reset button to    realize illuminate switch.

• With reset to zero function, absolute level and relative measurement function.

• This digital level has automatic on/off function that will put it into "sleep mode" if it has Not been used for 3     min.Laser optional.

• The magnetic strip at the bottom can be adsorbed to the working face and the measurement is more accurate

                         Specification

Modelnumber   (mm/inch)     Measurlngrange   Resolution  Accuracy

 5419-225               225/9                   4x90°                 005°       ±0.2°

 5419-400               400-16                 4x90°                 005°       ±0.2°

 5419-600               600/24                 4x90°                 005°       ±0.2°

 5419-1000             1000/40               4x90°                 005°       ±0.2°

 5419-225D             225/9                  4x90°                 005°       ±0.2°

 5419-400D             400/16                4x90°                 005°       ±0.2°

 5419-600D             600/24                4x90°                 005°       ±0.2°

 5419-1000D           1000/40               4x90°                 005°       ±0.2°
